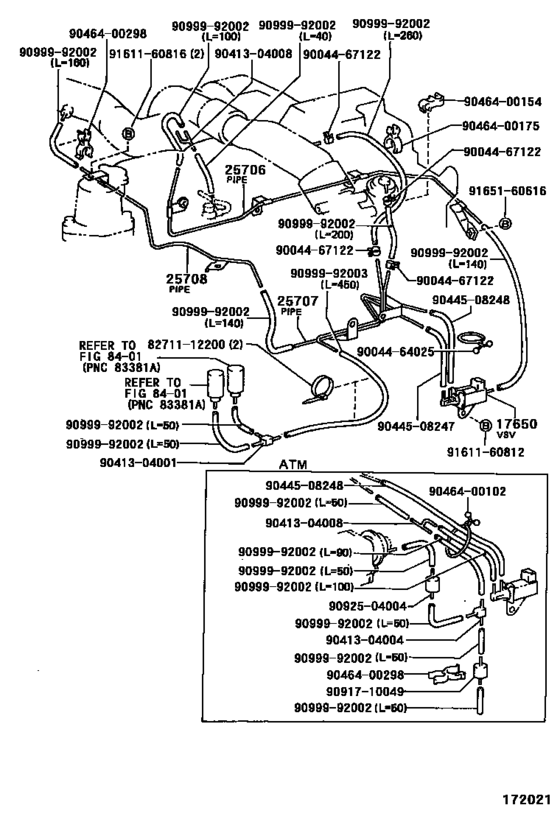

Vacuum Piping ([10.1985 - ] (8510- )13BT) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1990
- Sales region
- Japan
- Frame
- BJ71
- grade
- LX
- body
- HT
- ENGINE
- 13BT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 10.1985
- To
- 01.1990
- Vehicle Model
- Land Cruiser S/T,H/T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17650
|
17650
90910-12020 Valve Assy, Vacuum Switching[10.1985 - 01.1990] 13BT..BJ71,74 |
90910-12020 |
US $78.12 |
||
|
25706
|
25706
25706-56012
Pipe Sub-Assy, Vacuum Transmitting, No.1
[10.1985 - 03.1989] 13BT..BJ71,74 |
25706-56012 |
— | ||
| replacement | |||||
|
25706
|
25706
25706-56013 Pipe Sub-Assy, Vacuum Transmitting, No.1[10.1985 - 03.1989] 13BT..BJ71,74 |
25706-56013 |
US $36.55 |
||
|
25706
|
25706
25706-56013 Pipe Sub-Assy, Vacuum Transmitting, No.1[03.1989 -] 13BT..BJ71,74 |
25706-56013 |
US $36.55 |
||
|
25707
|
25707
25707-58010 Pipe Sub-Assy, Vacuum Transmitting, No.2[10.1985 - 01.1990] 13BT..BJ71,74 |
25707-58010 |
US $90.27 |
||
|
25708
|
25708
25708-58010 Pipe Sub-Assy, Vacuum Transmitting, No.3[10.1985 - 01.1990] 13BT..BJ71,74 |
25708-58010 |
US $88.82 |
||
|
8271112200
|
8271112200
82711-12200 Clamp (For Fuel Lid Lock Control Cable) |
82711-12200 |
US $2.15 |
||
|
9004464025
|
9004464025
90044-64025 Clamp, Wiring Harness |
90044-64025 |
US $3.06 |
||
|
9004467122
|
9004467122
90044-67122 Clip(For Intake Manifold) |
90044-67122 |
US $3.23 |
||
|
9041304001
|
9041304001
90413-04001 Way, 3(For Transfer Breather Hose) |
90413-04001 |
US $5.56 |
||
|
9041304004
|
9041304004
90413-04004 Way, 3(For Canister) |
90413-04004 |
US $2.62 |
||
|
9041304008
|
9041304008
90413-04008 Way, 3(For Transfer Breather Hose) |
90413-04008 |
from US $6.46 |
||
|
9044508247
|
9044508247
90445-08247 New Genuine Part |
90445-08247 |
US $4.08 |
||
|
9044508248
|
9044508248
90445-08248 New Genuine Part |
90445-08248 |
US $4.08 |
||
|
9046400102
|
9046400102
90464-00102 Clamp, No.3(For Luggage Door Lock Control Cable) |
90464-00102 |
US $2.20 |
||
|
9046400154
|
9046400154
90464-00154
New Genuine Part
|
90464-00154 |
— | ||
|
9046400175
|
9046400175
90464-00175 New Genuine Part |
90464-00175 |
US $5.50 |
||
|
9046400298
|
9046400298
90464-00298 Clamp, No.2 (For Transfer Vacuum) |
90464-00298 |
US $2.62 |
||
|
9091710049
|
9091710049
90917-10049 Valve, Check, No.1 |
90917-10049 |
from US $5.87 |
||
|
9092504004
|
9092504004
90925-04004 Valve, Vacuum Transmitting, No.1 |
90925-04004 |
US $12.93 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9099992003
|
9099992003
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
|
9161160812
|
9161160812
91611-60812
Bolt(For Drive Plate & Torque Converter Setting)
|
91611-60812 |
— | ||
| replacement | |||||
|
9161160812
|
9161160812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $0.99 |
||
|
9165160616
|
9165160616
91651-60616 BOLT |
91651-60616 |
from US $0.91 |
||
