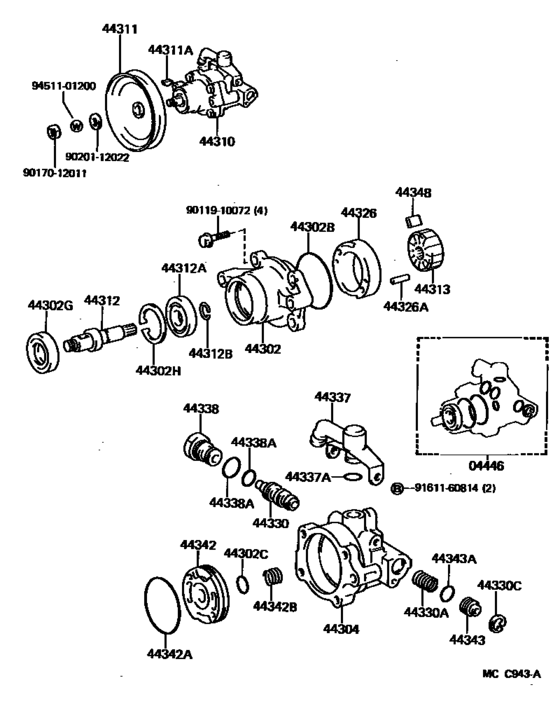

Vane Pump & Reservoir (Power Steering) ([11.1984 - ] (8411- )BJ7#) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1990
- Sales region
- Japan
- Frame
- BJ71
- grade
- LX
- body
- HT
- ENGINE
- 13BT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 10.1985
- To
- 01.1990
- Vehicle Model
- Land Cruiser S/T,H/T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04446
|
04446
04446-35010
Gasket Kit, Power Steering Pump
[11.1984 - 01.1990] BJ7#,LJ71 |
04446-35010 |
— | ||
| replacement | |||||
|
04446
|
04446
04446-30030 Gasket Kit, Power Steering Pump[11.1984 - 01.1990] BJ7#,LJ71 |
04446-30030 |
US $60.14 |
||
|
44302
|
44302
44302-14010 Housing Sub-Assy, Vane Pump, Front[11.1984 - 01.1990] BJ7# |
44302-14010 |
US $208.21 |
||
|
44302B
|
44302B
90301-60001 Ring, O, No.1(For Vane Pump Housing)[11.1984 - 01.1990] BJ7#,LJ71 |
90301-60001 |
US $4.89 |
||
|
44302C
|
44302C
96711-19016 Ring, O (For 5Th Shift Arm Shaft)[11.1984 - 01.1990] BJ7#,LJ71 |
96711-19016 |
US $5.38 |
||
|
44302G
|
44302G
90311-24001 Seal, Oil, No.1(For Vane Pump Housing)[11.1984 - 01.1990] BJ7#,LJ71 |
90311-24001 |
US $3.94 |
||
|
44302H
|
44302H
90521-44002 Ring, Hole Snap(For Power Steering Gear Housing)[11.1984 - 01.1990] BJ7#,LJ71 |
90521-44002 |
US $8.21 |
||
|
44304
|
44304
44304-60020
Housing Sub-Assy, Vane Pump, Rear
[11.1984 - 10.1986] BJ7# |
44304-60020 |
— | ||
| replacements | |||||
|
44304
|
44304
44304-60021 Housing Sub-Assy, Vane Pump, Rear[11.1984 - 10.1986] BJ7# |
44304-60021 |
US $471.74 |
||
|
44304
|
44304
44343-12040 Seat, Flow Control Spring[11.1984 - 10.1986] BJ7# |
44343-12040 |
US $9.43 |
||
|
44304
|
44304
90501-12103 Spring, Compression(For Flow Control Valve)[11.1984 - 10.1986] BJ7# |
90501-12103 |
US $2.87 |
||
|
44304
|
44304
44304-60021 Housing Sub-Assy, Vane Pump, Rear[10.1986 - 01.1990] BJ7# |
44304-60021 |
US $471.74 |
||
|
44310
|
44310
44320-60100
Pump Assy, Vane
[11.1984 - 01.1990] BJ7# |
44320-60100 |
— | ||
|
44311
|
44311
44311-60050
Pulley, Vane Pump
[11.1984 - 01.1990] BJ7# |
44311-60050 |
— | ||
|
44311A
|
44311A
90280-05008 Key, Woodruff(For Distributor Drive Gear)[11.1984 - 01.1990] BJ7#,LJ71 |
90280-05008 |
US $3.94 |
||
|
44312
|
44312
44312-12010
Shaft, Vane Pump
[11.1984 - 01.1990] BJ7#,LJ71 |
44312-12010 |
— | ||
|
44312A
|
44312A
90363-17004 Bearing(For Vane Pump Shaft)[11.1984 - 01.1990] BJ7#,LJ71 |
90363-17004 |
US $11.71 |
||
|
44312B
|
44312B
90520-15001
Ring, Snap, No.1(For Vane Pump Shaft)
[11.1984 - 01.1990] BJ7#,LJ71 |
90520-15001 |
— | ||
| replacement | |||||
|
44312B
|
44312B
90520-15005 Ring, Snap, No.1(For Vane Pump Shaft)[11.1984 - 01.1990] BJ7#,LJ71 |
90520-15005 |
US $0.70 |
||
|
44313
|
44313
44313-12010
Rotor, Vane Pump
[11.1984 - 10.1988] BJ7#,LJ71 マーク無し,NO MARK |
44313-12010 |
— | ||
| replacement | |||||
|
44313
|
44313
44313-22040 Rotor, Vane Pump[11.1984 - 10.1988] BJ7#,LJ71 マーク無し,NO MARK |
44313-22040 |
US $103.38 |
||
|
44313
|
44313
44313-12020
Rotor, Vane Pump
[11.1984 - 10.1988] BJ7#,LJ71 マーク １,MARK 1 |
44313-12020 |
— | ||
| replacement | |||||
|
44313
|
44313
44313-22050 Rotor, Vane Pump[11.1984 - 10.1988] BJ7#,LJ71 マーク １,MARK 1 |
44313-22050 |
US $101.34 |
||
|
44313
|
44313
44313-12030 Rotor, Vane Pump[11.1984 - 10.1988] BJ7#,LJ71 マーク ２,MARK 2 |
44313-12030 |
US $106.29 |
||
| replacement | |||||
|
44313
|
44313
44313-22060 Rotor, Vane Pump[11.1984 - 10.1988] BJ7#,LJ71 マーク ２,MARK 2 |
44313-22060 |
US $103.38 |
||
|
44313
|
44313
44313-12040 Rotor, Vane Pump[11.1984 - 10.1988] BJ7#,LJ71 マーク ３,MARK 3 |
44313-12040 |
US $106.29 |
||
| replacement | |||||
|
44313
|
44313
44313-22070 Rotor, Vane Pump[11.1984 - 10.1988] BJ7#,LJ71 マーク ３,MARK 3 |
44313-22070 |
US $103.38 |
||
|
44313
|
44313
44313-12050 Rotor, Vane Pump[11.1984 - 10.1988] BJ7#,LJ71 マーク ４,MARK 4 |
44313-12050 |
US $106.29 |
||
| replacement | |||||
|
44313
|
44313
44313-22080 Rotor, Vane Pump[11.1984 - 10.1988] BJ7#,LJ71 マーク ４,MARK 4 |
44313-22080 |
US $103.38 |
||
|
44313
|
44313
44313-22040 Rotor, Vane Pump[10.1988 - 01.1990] BJ7#,LJ71 マーク無し,NO MARK |
44313-22040 |
US $103.38 |
||
|
44313
|
44313
44313-22050 Rotor, Vane Pump[10.1988 - 01.1990] BJ7#,LJ71 マーク １,MARK 1 |
44313-22050 |
US $101.34 |
||
|
44313
|
44313
44313-22060 Rotor, Vane Pump[10.1988 - 01.1990] BJ7#,LJ71 マーク ２,MARK 2 |
44313-22060 |
US $103.38 |
||
|
44313
|
44313
44313-22070 Rotor, Vane Pump[10.1988 - 01.1990] BJ7#,LJ71 マーク ３,MARK 3 |
44313-22070 |
US $103.38 |
||
|
44313
|
44313
44313-22080 Rotor, Vane Pump[10.1988 - 01.1990] BJ7#,LJ71 マーク ４,MARK 4 |
44313-22080 |
US $103.38 |
||
|
44326
|
44326
44325-12010 Ring, Cam(For Vane Pump)[11.1984 - 01.1990] BJ7#,LJ71 マーク無し,NO MARK |
44325-12010 |
US $109.78 |
||
|
44326
|
44326
44325-12020 Ring, Cam(For Vane Pump)[11.1984 - 01.1990] BJ7#,LJ71 マーク １,MARK 1 |
44325-12020 |
US $113.57 |
||
|
44326
|
44326
44325-12030 Ring, Cam(For Vane Pump)[11.1984 - 01.1990] BJ7#,LJ71 マーク ２,MARK 2 |
44325-12030 |
US $116.48 |
||
|
44326
|
44326
44325-12040 Ring, Cam(For Vane Pump)[11.1984 - 01.1990] BJ7#,LJ71 マーク ３,MARK 3 |
44325-12040 |
US $116.48 |
||
|
44326
|
44326
44325-12050 Ring, Cam(For Vane Pump)[11.1984 - 01.1990] BJ7#,LJ71 マーク ４,MARK 4 |
44325-12050 |
US $116.48 |
||
|
44326A
|
44326A
90250-05008 Pin, Straight(For Vane Pump Cam Ring)[11.1984 - 01.1990] BJ7#,LJ71 長さ＝２５，外径＝５．０ |
90250-05008 |
US $3.20 |
||
|
44330
|
44330
44330-30100 Valve Assy, Flow Control[11.1984 - 01.1990] BJ7#,LJ71 マーク Ａ,MARK A |
44330-30100 |
US $123.76 |
||
| replacement | |||||
|
44330
|
44330
44330-32670
Valve Assy, Flow Control
[11.1984 - 01.1990] BJ7#,LJ71 マーク Ａ,MARK A |
44330-32670 |
— | ||
|
44330
|
44330
44330-30110 Valve Assy, Flow Control[11.1984 - 01.1990] BJ7#,LJ71 マーク Ｂ,MARK B |
44330-30110 |
US $123.76 |
||
| replacement | |||||
|
44330
|
44330
44330-32680 Valve Assy, Flow Control[11.1984 - 01.1990] BJ7#,LJ71 マーク Ｂ,MARK B |
44330-32680 |
US $115.02 |
||
|
44330
|
44330
44330-30120 Valve Assy, Flow Control[11.1984 - 01.1990] BJ7#,LJ71 マーク Ｃ,MARK C |
44330-30120 |
US $123.76 |
||
| replacement | |||||
|
44330
|
44330
44330-32690 Valve Assy, Flow Control[11.1984 - 01.1990] BJ7#,LJ71 マーク Ｃ,MARK C |
44330-32690 |
US $115.02 |
||
|
44330
|
44330
44330-30130 Valve Assy, Flow Control[11.1984 - 01.1990] BJ7#,LJ71 マーク Ｄ,MARK D |
44330-30130 |
US $123.76 |
||
| replacement | |||||
|
44330
|
44330
44330-32700 Valve Assy, Flow Control[11.1984 - 01.1990] BJ7#,LJ71 マーク Ｄ,MARK D |
44330-32700 |
US $115.02 |
||
|
44330
|
44330
44330-30140 Valve Assy, Flow Control[11.1984 - 01.1990] BJ7#,LJ71 マーク Ｅ,MARK E |
44330-30140 |
US $123.76 |
||
| replacement | |||||
|
44330
|
44330
44330-32710 Valve Assy, Flow Control[11.1984 - 01.1990] BJ7#,LJ71 マーク Ｅ,MARK E |
44330-32710 |
US $115.02 |
||
|
44330
|
44330
44330-30150 Valve Assy, Flow Control[11.1984 - 01.1990] BJ7#,LJ71 マーク Ｆ,MARK F |
44330-30150 |
US $123.76 |
||
| replacement | |||||
|
44330
|
44330
44330-32720 Valve Assy, Flow Control[11.1984 - 01.1990] BJ7#,LJ71 マーク Ｆ,MARK F |
44330-32720 |
US $115.02 |
||
|
44330A
|
44330A
90501-12103 Spring, Compression(For Flow Control Valve)[10.1986 - 01.1990] BJ7#,LJ71 |
90501-12103 |
US $2.87 |
||
|
44330A
|
44330A
90501-12447
Spring, Compression(For Flow Control Valve)
[11.1984 - 10.1986] BJ7#,LJ71 |
90501-12447 |
— | ||
|
44330C
|
44330C
96151-01700 Ring, Snap(For Flow Control Valve)[11.1984 - 01.1990] BJ7#,LJ71 |
96151-01700 |
US $3.30 |
||
|
44337
|
44337
44337-60010
Union, Power Steering Suction Port
[11.1984 - 01.1990] BJ7# |
44337-60010 |
— | ||
|
44337A
|
44337A
96711-19013 Ring, O(For Power Steering Suction Port)[11.1984 - 01.1990] BJ7#,LJ71 |
96711-19013 |
US $4.30 |
||
|
44338
|
44338
44308-35030
Union Sub-Assy, Pressure Port
[11.1984 - 01.1990] BJ7#,LJ71 |
44308-35030 |
— | ||
|
44338A
|
44338A
90301-22001 Ring, O(For Pressure Port Union)[11.1984 - 01.1990] BJ7#,LJ71 外径＝２５．５，内径＝２２．５,OD=25.5 |
90301-22001 |
US $10.57 |
||
|
44338A
|
44338A
96711-19014 O-Ring[11.1984 - 01.1990] BJ7#,LJ71 外径＝１７．０，内径＝１３．０,OD=17.6 |
96711-19014 |
US $3.76 |
||
|
44342
|
44342
44341-12010 Plate, Vane Pump Side, Front[11.1984 - 01.1990] BJ7#,LJ71 |
44341-12010 |
US $91.73 |
||
|
44342A
|
44342A
90301-53002 Ring, O(For Vane Pump Side Plate Rear)[11.1984 - 01.1990] BJ7#,LJ71 |
90301-53002 |
US $4.19 |
||
|
44342B
|
44342B
90501-23014 Spring, Compression(For Vane Pump Side Plate Rear)[11.1984 - 01.1990] BJ7#,LJ71 |
90501-23014 |
from US $3.83 |
||
|
44343
|
44343
44343-12010
Seat, Flow Control Spring
[11.1984 - 10.1986] BJ7#,LJ71 |
44343-12010 |
— | ||
|
44343
|
44343
44343-12040 Seat, Flow Control Spring[10.1986 - 01.1990] BJ7#,LJ71 |
44343-12040 |
US $9.43 |
||
|
44343A
|
44343A
96711-19014 O-Ring[11.1984 - 01.1990] BJ7#,LJ71 |
96711-19014 |
US $3.76 |
||
|
44348
|
44348
44345-12010 Plate, Vane Pump[11.1984 - 01.1990] BJ7#,LJ71 長さ＝１４．９９７,ROTOR NO MARK |
44345-12010 |
US $11.83 |
||
|
44348
|
44348
44345-12020 Plate, Vane Pump[11.1984 - 01.1990] BJ7#,LJ71 長さ＝１４．９９５,ROTOR MARK 1 |
44345-12020 |
US $6.12 |
||
|
44348
|
44348
44345-12030 Plate, Vane Pump[11.1984 - 01.1990] BJ7#,LJ71 長さ＝１４．９９３,ROTOR MARK 2 |
44345-12030 |
US $6.12 |
||
|
44348
|
44348
44345-12040 Plate, Vane Pump[11.1984 - 01.1990] BJ7#,LJ71 長さ＝１４．９９１,ROTOR MARK 3 |
44345-12040 |
US $6.12 |
||
|
44348
|
44348
44345-12050 Plate, Vane Pump[11.1984 - 01.1990] BJ7#,LJ71 長さ＝１４．９８９,ROTOR MARK 4 |
44345-12050 |
US $6.12 |
||
|
9011910072
|
9011910072
90119-10072 New Genuine Part |
90119-10072 |
US $2.87 |
||
|
9017012011
|
9017012011
90170-12011 Nut(For Vane Pump Pulley) |
90170-12011 |
US $2.80 |
||
|
9020112022
|
9020112022
90201-12022 New Genuine Part |
90201-12022 |
US $1.51 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $1.79 |
||
|
9451101200
|
9451101200
94511-01200 WASHER |
94511-01200 |
US $3.58 |
||
