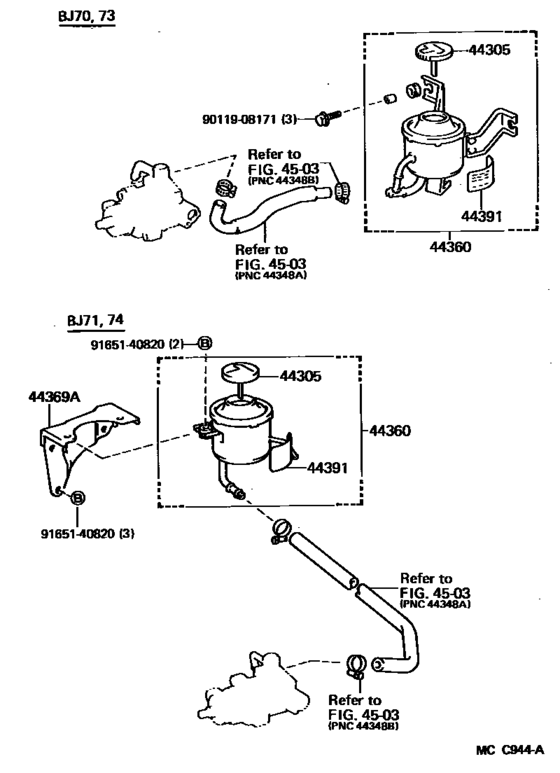

Vane Pump & Reservoir (Power Steering) ([11.1984 - ] (8411- )BJ7#) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1990
- Sales region
- Japan
- Frame
- BJ71
- grade
- LX
- body
- HT
- ENGINE
- 13BT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 10.1985
- To
- 01.1990
- Vehicle Model
- Land Cruiser S/T,H/T
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44305
|
44305
44305-30020
Cap Sub-Assy, Vane Pump Oil Reservoir
[11.1984 - 01.1990] BJ7#,LJ71 |
44305-30020 |
— | ||
| replacement | |||||
|
44305
|
44305
44305-22061 Cap Sub-Assy, Vane Pump Oil Reservoir[11.1984 - 01.1990] BJ7#,LJ71 |
44305-22061 |
from US $15.88 |
||
|
44360
|
44360
44360-60060 Reservoir Assy, Vane Pump Oil[10.1985 - 01.1990] BJ71,74 |
44360-60060 |
US $330.51 |
||
|
44369A
|
44369A
44369-60010 Bracket, Oil Reservoir, No.1[10.1985 - 01.1990] BJ71,74 |
44369-60010 |
US $27.08 |
||
|
44391
|
44391
44391-14010
Plate, Power Steering Oil Reservoir Caution
[09.1986 - 01.1990] BJ7#,LJ71 |
44391-14010 |
— | ||
|
44391
|
44391
44391-30020
Plate, Power Steering Oil Reservoir Caution
[11.1984 - 09.1986] BJ7#,LJ71 |
44391-30020 |
— | ||
|
9011908171
|
9011908171
90119-08171
New Genuine Part
|
90119-08171 |
— | ||
| replacement | |||||
|
9011908171
|
9011908171
90119-08806 BOLT WWASHER |
90119-08806 |
US $3.58 |
||
|
9165140820
|
9165140820
91651-40820 Bolt |
91651-40820 |
from US $0.96 |
||
