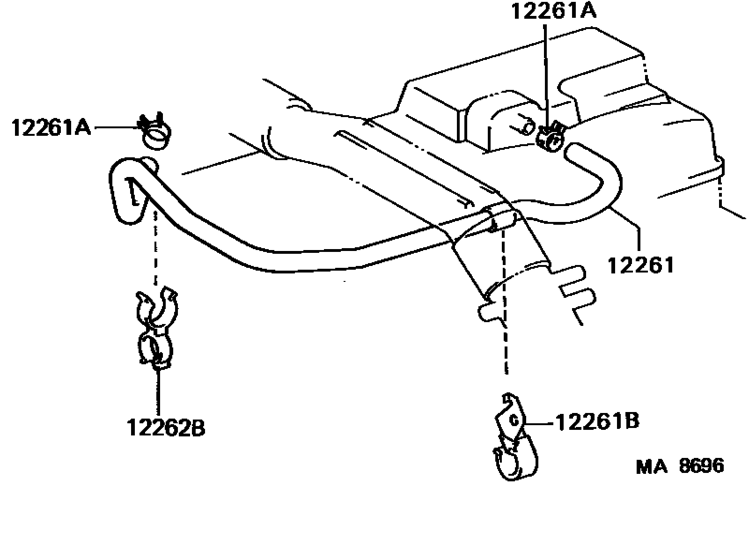

Ventilation Hose ([10.1985 - ] (8510- )13BT) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1990
- Sales region
- Japan
- Frame
- BJ71
- grade
- LX
- body
- HT
- ENGINE
- 13BT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 10.1985
- To
- 01.1990
- Vehicle Model
- Land Cruiser S/T,H/T
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12261
|
12261
12261-58020
Hose, Ventilation
[10.1985 - 01.1990] 13BT..BJ71,74 |
12261-58020 |
— | ||
|
12261A
|
12261A
90467-23001
Clip Or Clamp(For Ventilation Hose)
[01.1986 - 08.1988] 13BT..BJ71,74 ENGINE SIDE |
90467-23001 |
— | ||
| replacement | |||||
|
12261A
|
12261A
96134-52100 Clip(For Ventilation Hose)[01.1986 - 08.1988] 13BT..BJ71,74 ENGINE SIDE |
96134-52100 |
from US $3.31 |
||
|
12261A
|
12261A
90467-23002 Clip Or Clamp(For Ventilation Hose)[01.1986 - 08.1988] 13BT..BJ71,74 AIR CLEANER SIDE |
90467-23002 |
US $1.61 |
||
|
12261B
|
12261B
90929-01131
Clip Or Clamp(For Ventilation Hose)
[10.1985 - 01.1990] 13BT..BJ71,74 |
90929-01131 |
— | ||
|
12262B
|
12262B
90464-00435 Clamp(For Ventilation Hose)[10.1985 - 01.1990] 13BT..BJ71,74 |
90464-00435 |
US $3.32 |
||
