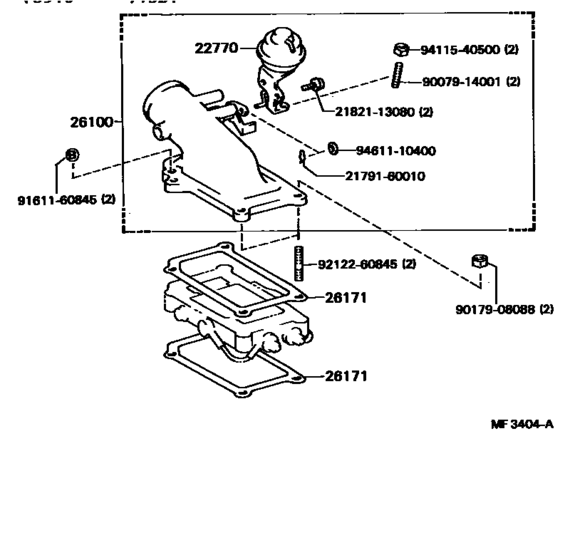

Venturi ([10.1985 - ] (8510- )13BT) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1990
- Sales region
- Japan
- Frame
- BJ71
- grade
- LX
- body
- HT
- ENGINE
- 13BT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 10.1985
- To
- 01.1990
- Vehicle Model
- Land Cruiser S/T,H/T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22770
|
22770
26133-58060
Actuator, Idel Up
[10.1985 - 01.1990] 13BT..BJ71,74 |
26133-58060 |
— | ||
|
26100
|
26100
26100-58061
Venturi Assy
[10.1985 - 01.1990] 13BT..BJ71,74 |
26100-58061 |
— | ||
|
26171
|
26171
26171-56040
Gasket, Venturi
[10.1985 - 08.1988] 13BT..BJ71,74 |
26171-56040 |
— | ||
|
26171
|
26171
26171-56060
Gasket, Venturi
[08.1988 - 01.1990] 13BT..BJ71,74 |
26171-56060 |
— | ||
|
2179160010
|
2179160010
21791-60010
Ring, Snap, No.1(For Carburetor Link)
|
21791-60010 |
— | ||
| replacement | |||||
|
2179160010
|
2179160010
21791-13010 Ring, Snap, No.1(For Carburetor Link) |
21791-13010 |
US $3.32 |
||
|
2182113080
|
2182113080
21821-13080 Screw, 2nd Throttle Valve Set |
21821-13080 |
US $3.93 |
||
|
9007914001
|
9007914001
90079-14001 New Genuine Part |
90079-14001 |
US $1.60 |
||
| replacement | |||||
|
9007914001
|
9007914001
90079-14005 New Genuine Part |
90079-14005 |
US $1.60 |
||
|
9017908088
|
9017908088
90179-08088
NUT
|
90179-08088 |
— | ||
| replacement | |||||
|
9017908088
|
9017908088
94185-60800 NUT |
94185-60800 |
from US $0.80 |
||
|
9161160845
|
9161160845
91611-60845
Bolt(for Clutch Release Cylinder Setting)
|
91611-60845 |
— | ||
| replacement | |||||
|
9161160845
|
9161160845
91611-B0845 Bolt(for Clutch Release Cylinder Setting) |
91611-B0845 |
US $3.05 |
||
|
9212260845
|
9212260845
92122-60845 Bolt, Stud(For Egr Valve) |
92122-60845 |
US $3.35 |
||
|
9411540500
|
9411540500
94115-40500 Nut(For Lpg Filter Stud Bolt Set) |
94115-40500 |
US $1.97 |
||
|
9461110400
|
9461110400
94611-10400 New Genuine Part |
94611-10400 |
US $1.38 |
||
