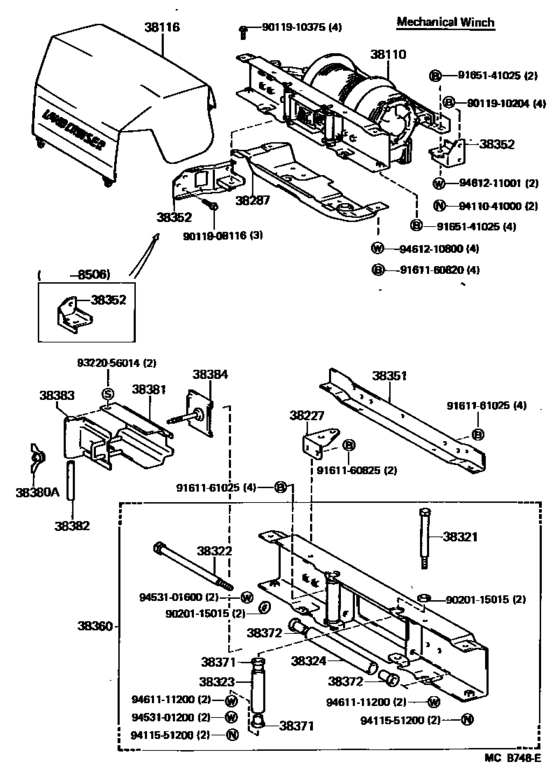

Winch ([11.1984 - ] (8411- )BJ7#) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1990
- Sales region
- Japan
- Frame
- BJ71
- grade
- LX
- body
- HT
- ENGINE
- 13BT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 10.1985
- To
- 01.1990
- Vehicle Model
- Land Cruiser S/T,H/T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
38110
|
38110
38110-60090 Winch Assy[11.1984 - 01.1990] BJ7# MECHANICAL |
38110-60090 |
US $3,552.64 |
||
|
38110
|
38110
38110-60110 Winch Assy[11.1984 - 01.1990] BJ7# ELECTRIC |
38110-60110 |
US $4,513.60 |
||
|
38116
|
38116
38286-60030
Cover, Winch
[11.1984 - 08.1987] BJ7#,LJ71 ELECTRIC |
38286-60030 |
— | ||
|
38116
|
38116
38286-60040
Cover, Winch
[11.1984 - 01.1990] BJ7# MECHANICAL |
38286-60040 |
— | ||
|
38227
|
38227
38227-60040
Plate, Winch Clutch Lever Shift Lock
[11.1984 - 01.1990] BJ7# |
38227-60040 |
— | ||
|
38287
|
38287
38287-60010 Cover, Winch Under[11.1984 - 01.1990] BJ7# |
38287-60010 |
US $262.08 |
||
|
38321
|
38321
38321-60130 Shaft, Winch Roller[11.1984 - 08.1987] BJ7#,LJ71 |
38321-60130 |
US $16.89 |
||
|
38322
|
38322
38322-60130 Shaft, Winch Roller, No.2[11.1984 - 08.1987] BJ7#,LJ71 |
38322-60130 |
US $25.19 |
||
|
38323
|
38323
38323-60130 Roller, Winch Wire Guide, No.1[11.1984 - 08.1987] BJ7#,LJ71 |
38323-60130 |
US $26.21 |
||
|
38324
|
38324
38324-60130 Roller, Winch Wire Guide, No.2[11.1984 - 08.1987] BJ7#,LJ71 |
38324-60130 |
US $52.12 |
||
|
38351
|
38351
38351-60030 Base, Winch[11.1984 - 01.1990] BJ7# |
38351-60030 |
US $96.10 |
||
|
38352
|
38352
38352-60030 Support, Winch Base[06.1985 - 01.1990] BJ7# RH |
38352-60030 |
US $94.64 |
||
|
38352
|
38352
38353-60010
Support, Winch Base
[11.1984 - 01.1990] BJ7# LH |
38353-60010 |
— | ||
|
38360
|
38360
38360-60010 Bracket Assy, Winch Roller[11.1984 - 01.1990] BJ7# MECHANICAL |
38360-60010 |
US $707.62 |
||
|
38360
|
38360
38360-60020 Bracket Assy, Winch Roller[11.1984 - 08.1987] BJ7#,LJ71 ELECTRIC |
38360-60020 |
US $707.62 |
||
|
38371
|
38371
38371-60010 Bush, Winch Roller, No.1[11.1984 - 08.1987] BJ7#,LJ71 |
38371-60010 |
US $9.03 |
||
|
38372
|
38372
38372-60010 Bush, Winch Roller, No.2[11.1984 - 08.1987] BJ7#,LJ71 |
38372-60010 |
US $10.63 |
||
|
38380A
|
38380A
90175-08015
Nut, Wing (For Winch Hook Holder)
[11.1984 - 08.1987] BJ7#,LJ71 |
90175-08015 |
— | ||
|
38381
|
38381
38381-60010
Bracket, Winch Hook Holder
[11.1984 - 08.1987] BJ7#,LJ71 |
38381-60010 |
— | ||
|
38382
|
38382
38382-60010
Shaft, Winch Hook Holder
[11.1984 - 08.1987] BJ7#,LJ71 |
38382-60010 |
— | ||
|
38383
|
38383
38383-60010
Support, Winch Hook Holder Bracket, No.1
[11.1984 - 08.1987] BJ7#,LJ71 |
38383-60010 |
— | ||
|
38384
|
38384
38384-60010
Support, Winch Hook Holder Bracket, No.2
[11.1984 - 08.1987] BJ7#,LJ71 |
38384-60010 |
— | ||
|
9011908116
|
9011908116
90119-08116 Bolt W Washer |
90119-08116 |
US $4.30 |
||
|
9011910204
|
9011910204
90119-10204 Bolt, No.1 (For Center Support Bearing) |
90119-10204 |
US $3.40 |
||
|
9011910375
|
9011910375
90119-10375 BOLT |
90119-10375 |
from US $3.58 |
||
|
9020115015
|
9020115015
90201-15015 New Genuine Part |
90201-15015 |
US $2.87 |
||
|
9161160820
|
9161160820
91611-60820
Bolt(For Transaxle & Engine Setting)
|
91611-60820 |
— | ||
| replacement | |||||
|
9161160820
|
9161160820
91611-G0820 Bolt |
91611-G0820 |
from US $1.18 |
||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.08 |
||
|
9161161025
|
9161161025
91611-61025
Bolt(For Transaxle & Engine Setting)
|
91611-61025 |
— | ||
| replacement | |||||
|
9161161025
|
9161161025
91612-61025 Bolt (For Control Shaft Cover) |
91612-61025 |
from US $0.93 |
||
|
9165141025
|
9165141025
91651-41025
Bolt(For Transaxle Case & Engine Setting)
|
91651-41025 |
— | ||
| replacement | |||||
|
9165141025
|
9165141025
91651-61025 Bolt with washer |
91651-61025 |
from US $1.48 |
||
|
9322056014
|
9322056014
93220-56014
New Genuine Part
|
93220-56014 |
— | ||
|
9411041000
|
9411041000
94110-41000 Nut(For Steering Damper) |
94110-41000 |
US $2.87 |
||
|
9411551200
|
9411551200
94115-51200 Nut(For Backing Plate To Steering Knuckle Setting) |
94115-51200 |
US $3.05 |
||
|
9453101200
|
9453101200
94531-01200 WASHER |
94531-01200 |
from US $0.72 |
||
|
9453101600
|
9453101600
94531-01600 WASHER |
94531-01600 |
US $0.61 |
||
|
9461111200
|
9461111200
94611-11200 New Genuine Part |
94611-11200 |
US $2.87 |
||
|
9461210800
|
9461210800
94612-10800 Washer, Plate(For Repair Actuator Set) |
94612-10800 |
from US $0.82 |
||
|
9461211001
|
9461211001
94612-11001 Washer, Plate (For Center Support Bearing Housing) |
94612-11001 |
from US $1.08 |
||
