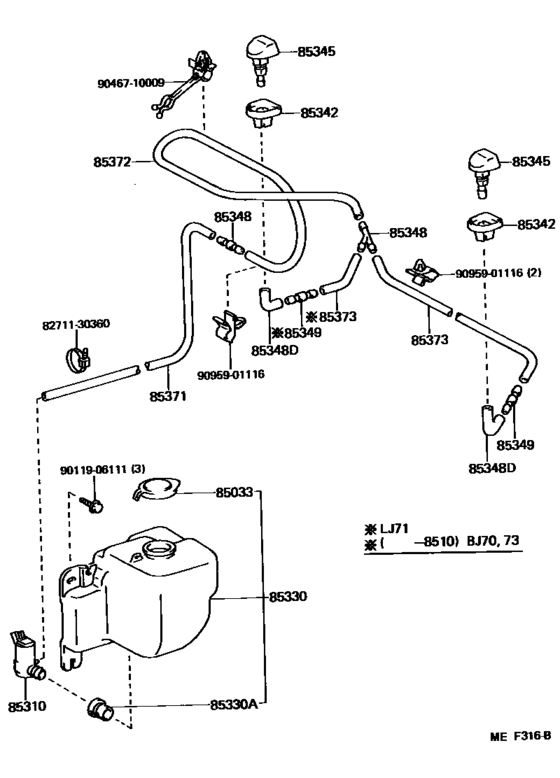

Windshield Washer ([11.1984 - ] (8411- )) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1990
- Sales region
- Japan
- Frame
- BJ71
- grade
- LX
- body
- HT
- ENGINE
- 13BT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 10.1985
- To
- 01.1990
- Vehicle Model
- Land Cruiser S/T,H/T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85033
|
85033
85332-12320 Cap Assy, Windshield Washer[11.1984 - 01.1990] BJ7#,LJ71 |
85332-12320 |
US $2.10 |
||
|
85310
|
85310
85310-90B00 Motor And Pump Assy, Windshield Washer[11.1984 - 01.1990] BJ7# |
85310-90B00 |
US $47.52 |
||
|
85330
|
85330
85330-90K07
Windshield Washer Jar Assy (alternative part is 85315-60190)
[11.1984 - 01.1990] BJ7# |
85330-90K07 |
— | ||
|
85330A
|
85330A
90099-32089 Bush, Headlamp Cleaner Washer Jar[11.1984 - 01.1990] BJ7#,LJ71 |
90099-32089 |
from US $0.98 |
||
| replacement | |||||
|
85330A
|
85330A
90099320891
Grommet
[11.1984 - 01.1990] BJ7#,LJ71 |
90099320891 |
— | ||
|
85342
|
85342
85342-14010 Holder, Washer Nozzle[11.1984 - 01.1990] BJ7#,LJ71 |
85342-14010 |
from US $3.74 |
||
|
85345
|
85345
85035-90K00 Nozzle Sub-Assy, Washer[11.1984 - 01.1990] BJ7#,LJ71 |
85035-90K00 |
from US $21.67 |
||
|
85348
|
85348
85348-12250 Joint, Windshield Washer Hose, No.1[11.1984 - 01.1990] BJ7#,LJ71 3WAY |
85348-12250 |
from US $0.55 |
||
|
85348
|
85348
85349-89122 Valve Sub-Assy, Washer[08.1987 - 01.1990] BJ7#,LJ71 2WAY |
85349-89122 |
from US $1.25 |
||
|
85348
|
85348
85355-89122 Joint, Windshield Washer Hose, No.1[10.1985 - 08.1987] BJ7#,LJ71 2WAY |
85355-89122 |
US $3.06 |
||
| replacement | |||||
|
85348
|
85348
85349-89122 Valve Sub-Assy, Washer[10.1985 - 08.1987] BJ7#,LJ71 2WAY |
85349-89122 |
from US $1.25 |
||
|
85348D
|
85348D
85355-14481 Joint, Windshield Washer Elbow, No.1[05.1987 - 01.1990] BJ7#,LJ71 |
85355-14481 |
US $0.98 |
||
|
85348D
|
85348D
85355-20070
Joint, Windshield Washer Motor
[11.1984 - 05.1987] BJ7#,LJ71 |
85355-20070 |
— | ||
| replacement | |||||
|
85348D
|
85348D
85355-14481 Joint, Windshield Washer Elbow, No.1[11.1984 - 05.1987] BJ7#,LJ71 |
85355-14481 |
US $0.98 |
||
|
85349
|
85349
85349-89122 Valve Sub-Assy, Washer[08.1987 - 01.1990] BJ7#,LJ71 |
85349-89122 |
from US $1.25 |
||
|
85349
|
85349
85355-89122 Joint, Windshield Washer Hose, No.1[10.1985 - 08.1987] BJ7#,LJ71 |
85355-89122 |
US $3.06 |
||
| replacement | |||||
|
85349
|
85349
85349-89122 Valve Sub-Assy, Washer[10.1985 - 08.1987] BJ7#,LJ71 |
85349-89122 |
from US $1.25 |
||
|
85371
|
85371
90446-06006 Hose, Windshield Washer (From Motor To Joint)[11.1984 - 01.1990] BJ7# *H,L=1260 |
90446-06006 |
from US $6.19 |
||
|
85372
|
85372
90099-33299 Joint, Windshield Washer Elbow, No.2[10.1985 - 01.1990] BJ7# ＊Ｈ，Ｌ＝６１０; LJ71 ＊Ｈ，Ｌ＝５６０ |
90099-33299 |
from US $4.37 |
||
|
85373
|
85373
90446-06013 Hose, Windshield Washer (From Motor To Joint)[10.1985 - 01.1990] BJ7# ＊Ｈ，Ｌ＝６５０; LJ71 ＊Ｈ，Ｌ＝１４０ |
90446-06013 |
from US $0.70 |
||
|
8271130360
|
8271130360
82711-30360 Clamp(For Transfer Vacuum Tube) |
82711-30360 |
US $9.32 |
||
| replacement | |||||
|
8271130360
|
8271130360
82711-22270 Clamp(For Transfer Vacuum Tube) |
82711-22270 |
US $3.58 |
||
|
9011906111
|
9011906111
90119-06111
Bolt
|
90119-06111 |
— | ||
|
9046710009
|
9046710009
90467-10009 CLIP |
90467-10009 |
US $4.66 |
||
|
9095901116
|
9095901116
90959-01116 BRACKET |
90959-01116 |
from US $1.08 |
||
