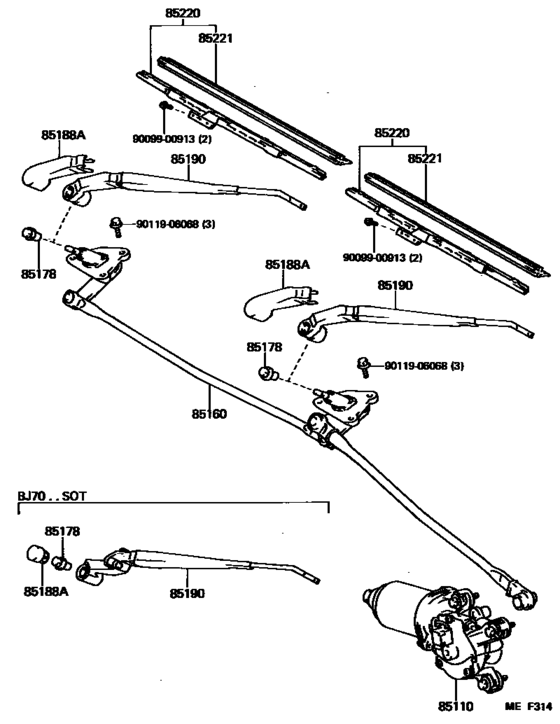

Windshield Wiper ([11.1984 - ] (8411- )) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1990
- Sales region
- Japan
- Frame
- BJ71
- grade
- LX
- body
- HT
- ENGINE
- 13BT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 10.1985
- To
- 01.1990
- Vehicle Model
- Land Cruiser S/T,H/T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85110
|
85110
85110-90K01
Motor Assy, Windshield Wiper
[11.1984 - 08.1987] BJ7# |
85110-90K01 |
— | ||
| replacement | |||||
|
85110
|
85110
85110-90K09
Motor Assy, Windshield Wiper
[11.1984 - 08.1987] BJ7# |
85110-90K09 |
— | ||
|
85110
|
85110
85110-90K09
Motor Assy, Windshield Wiper
[08.1987 - 01.1990] BJ7# |
85110-90K09 |
— | ||
|
85160
|
85160
85160-90K02
Link Assy, Windshield Wiper
[11.1984 - 01.1990] BJ70,71,LJ71..HT,WG |
85160-90K02 |
— | ||
| replacement | |||||
|
85160
|
85160
85150-60131 Link Assy, Windshield Wiper[11.1984 - 01.1990] BJ70,71,LJ71..HT,WG |
85150-60131 |
from US $158.97 |
||
|
85178
|
85178
90176-08016 Cap Nut (For Front Wiper Arm Setting)[11.1984 - 01.1990] BJ7#,LJ71 |
90176-08016 |
from US $1.63 |
||
|
85188A
|
85188A
85261-90K01 Cap, Windshield Wiper Pivot, No.2[11.1984 - 08.1986] BJ7#,LJ71 |
85261-90K01 |
from US $10.39 |
||
|
85190
|
85190
85190-90K02
Arm Assy, Windshield Wiper
[11.1984 - 01.1990] BJ70,71,LJ71..HT,WG RH |
85190-90K02 |
— | ||
|
85190
|
85190
85210-90K02 Arm Assy, Windshield Wiper[11.1984 - 01.1990] BJ70,71,LJ71..HT,WG LH |
85210-90K02 |
US $60.14 |
||
|
85220
|
85220
85220-12570
Blade Assy, Windshield Wiper
[11.1984 - 01.1990] BJ7#,LJ71..HT,WG RH |
85220-12570 |
— | ||
| replacement | |||||
|
85220
|
85220
85220-12651 Blade Assy, Windshield WiperWINDSHIELD WIPER [11.1984 - 01.1990] BJ7#,LJ71..HT,WG RH |
85220-12651 |
US $29.55 |
||
|
85220
|
85220
85220-14170
Blade Assy, Windshield Wiper
[08.1986 - 01.1990] BJ7#,LJ71 RH,WINTER BLADE |
85220-14170 |
— | ||
| replacement | |||||
|
85220
|
85220
85291-28H00
Blade Assy, Windshield Wiper
[08.1986 - 01.1990] BJ7#,LJ71 RH,WINTER BLADE |
85291-28H00 |
— | ||
|
85220
|
85220
85220-22470
Blade Assy, Windshield Wiper
[11.1984 - 01.1990] BJ7#,LJ71..HT,WG LH |
85220-22470 |
— | ||
| replacement | |||||
|
85220
|
85220
85220-22481 Blade Assy, Windshield Wiper[11.1984 - 01.1990] BJ7#,LJ71..HT,WG LH |
85220-22481 |
US $20.97 |
||
|
85220
|
85220
85220-90K00
Blade Assy, Windshield Wiper
[08.1986 - 01.1990] BJ7#,LJ71 LH,WINTER BLADE |
85220-90K00 |
— | ||
| replacement | |||||
|
85220
|
85220
85291-90K00
Blade Assy, Windshield Wiper
[08.1986 - 01.1990] BJ7#,LJ71 LH,WINTER BLADE |
85291-90K00 |
— | ||
|
85221
|
85221
85221-12230
Blade, Windshield Wiper
[11.1984 - 01.1990] BJ7#,LJ71 RH |
85221-12230 |
— | ||
| replacement | |||||
|
85221
|
85221
85214-12H90 Rubber, Blade Wiper[11.1984 - 01.1990] BJ7#,LJ71 RH |
85214-12H90 |
from US $8.74 |
||
|
85221
|
85221
85221-89103
Blade, Windshield Wiper
[11.1984 - 01.1990] BJ7#,LJ71 LH |
85221-89103 |
— | ||
| replacement | |||||
|
85221
|
85221
85214-12H90 Rubber, Blade Wiper[11.1984 - 01.1990] BJ7#,LJ71 LH |
85214-12H90 |
from US $8.74 |
||
|
9009900913
|
9009900913
90099-00913 SCREW |
90099-00913 |
US $3.05 |
||
|
9011906068
|
9011906068
90119-06068
New Genuine Part
|
90119-06068 |
— | ||
| replacement | |||||
|
9011906068
|
9011906068
90119-06311 BOLT |
90119-06311 |
US $1.79 |
||
