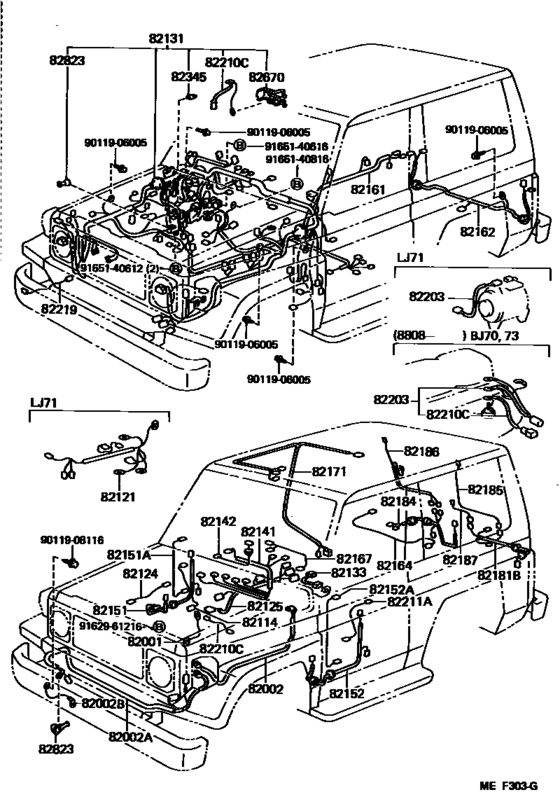

Wiring & Clamp ([11.1984 - ] (8411- )) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1990
- Sales region
- Japan
- Frame
- BJ71
- grade
- LX
- body
- HT
- ENGINE
- 13BT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 10.1985
- To
- 01.1990
- Vehicle Model
- Land Cruiser S/T,H/T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82001
|
82001
82123-90K07 Cable, Bond, No.1[11.1984 - 01.1990] BJ7# |
82123-90K07 |
US $31.16 |
||
|
82002
|
82002
82275-90K02 Cable, Battery To Magnet Switch[11.1984 - 01.1990] BJ7#,LJ71 |
82275-90K02 |
US $63.48 |
||
|
82002A
|
82002A
82276-90K00 Cable, Magnet Switch To Winch[11.1984 - 01.1990] BJ7#,LJ71 |
82276-90K00 |
US $158.70 |
||
|
82002B
|
82002B
90980-07175
Cable, Winch To Ground
[11.1984 - 01.1990] BJ7#,LJ71 |
90980-07175 |
— | ||
|
82114
|
82114
82114-90K06 Wire, Engine Room, No.4[08.1986 - 01.1990] BJ7#..LX |
82114-90K06 |
US $19.66 |
||
|
82125
|
82125
82125-90K04 Wire, Transmission[11.1984 - 08.1986] BJ7# |
82125-90K04 |
US $49.94 |
||
|
82125
|
82125
82125-90K09 Wire, Transmission[10.1985 - 01.1990] BJ71,74..MTM |
82125-90K09 |
US $221.31 |
||
|
82131
|
82131
82131-90324 Wire, Cowl[08.1987 - 01.1990] BJ71,74 |
82131-90324 |
US $2,067.52 |
||
|
82131
|
82131
82131-90325 Wire, Cowl[08.1987 - 01.1990] BJ71,74 COLD SPEC |
82131-90325 |
US $1,921.92 |
||
|
82131
|
82131
82131-90K92
Wire, Cowl
[10.1985 - 08.1986] BJ71,74 |
82131-90K92 |
— | ||
|
82131
|
82131
82131-90K93
Wire, Cowl
[10.1985 - 08.1986] BJ71,74 COLD SPEC |
82131-90K93 |
— | ||
|
82131
|
82131
82131-90L56 Wire, Cowl[08.1986 - 08.1987] BJ71,74 |
82131-90L56 |
US $2,052.96 |
||
|
82131
|
82131
82131-90L57 Wire, Cowl[08.1986 - 08.1987] BJ71,74 COLD SPEC |
82131-90L57 |
US $1,921.92 |
||
|
82133
|
82133
82133-90K00
Wire, Cowl, No.3
[11.1984 - 08.1987] BJ7#,LJ71 |
82133-90K00 |
— | ||
|
82141
|
82141
82141-90K07 Wire, Instrument Panel[11.1984 - 08.1987] BJ7#,LJ71 W/*RWD,*RW OR CLOCK |
82141-90K07 |
US $44.12 |
||
|
82141
|
82141
82141-90K19
Wire, Instrument Panel
[08.1987 - 01.1990] BJ7#,LJ71 W/*RWD,*RW OR CLOCK; BJ70,73..HT..STD W/*RWD OR W/*RWD & W/CLOCK |
82141-90K19 |
— | ||
|
82142
|
82142
82142-90K01
Wire, Instrument Panel, No.2
[10.1985 - 08.1986] BJ7#,LJ71 W/CLINOMETER |
82142-90K01 |
— | ||
|
82142
|
82142
82142-90K02 Wire, Instrument Panel, No.2[10.1985 - 08.1987] BJ7#,LJ71 W/THERMOMETER |
82142-90K02 |
US $43.10 |
||
|
82142
|
82142
82142-90K05 Wire, Instrument Panel, No.2[08.1987 - 01.1990] BJ7#,LJ71 W/THERMOMETER |
82142-90K05 |
US $43.53 |
||
|
82151
|
82151
82152-90K01 Wire, Front Door, Rh[10.1985 - 08.1986] BJ7#,LJ71..LX,LX5 W/*PW & *FM |
82152-90K01 |
US $43.24 |
||
|
82151
|
82151
82152-90K02 Wire, Front Door, Rh[10.1985 - 08.1987] BJ7#,LJ71..LX,LX5 W/*RCM OR *EL(W/O *PW) |
82152-90K02 |
US $43.10 |
||
|
82151
|
82151
82152-90K03
Wire, Front Door, Rh
[10.1985 - 08.1986] BJ70,LJ71..LX,LX5,SX5 W/*PW & *EL;W/*RCM,*PW & *EL; BJ7#,LJ71..LX,LX5,SX5 W/*RCM & *PW |
82152-90K03 |
— | ||
|
82151
|
82151
82152-90K04 Wire, Front Door, Rh[08.1987 - 01.1990] BJ7#,LJ71..LX,LX5 W/O *PW |
82152-90K04 |
US $43.53 |
||
|
82151
|
82151
82152-90K05 Wire, Front Door, Rh[08.1987 - 01.1990] BJ7#,LJ71..LX,SX5 W/*PW |
82152-90K05 |
US $55.76 |
||
|
82151A
|
82151A
82151-90K04 Wire, Front Door, No.2, Rh[10.1985 - 08.1986] BJ7#,LJ71..LX,LX5,SX5 |
82151-90K04 |
US $37.13 |
||
|
82152
|
82152
82151-90K01 Wire, Front Door, Lh[10.1985 - 08.1986] BJ7#,LJ71..LX,LX5 W/*PW & *FM |
82151-90K01 |
US $37.56 |
||
|
82152
|
82152
82151-90K02 Wire, Front Door, Lh[10.1985 - 08.1987] BJ7#,LJ71..LX,LX5 W/*RCM OR *EL(W/O *PW) |
82151-90K02 |
US $43.10 |
||
|
82152
|
82152
82151-90K03 Wire, Front Door, Lh[10.1985 - 08.1986] BJ7#,LJ71..LX,LX5,SX5 W/*PW & *EL;W/*RCM,*PW & *EL;W/*RCM & *PW |
82151-90K03 |
US $49.50 |
||
|
82152
|
82152
82151-90K08 Wire, Front Door, Lh[08.1987 - 01.1990] BJ7#,LJ71..LX,LX5 W/*RCM OR *EL(W/O *PW) |
82151-90K08 |
US $43.53 |
||
|
82152
|
82152
82151-90K09 Wire, Front Door, Lh[08.1987 - 01.1990] BJ7#,LJ71..LX,SX5 W/*PW |
82151-90K09 |
US $49.94 |
||
|
82152A
|
82152A
82151-90K04 Wire, Front Door, No.2, Rh[10.1985 - 08.1986] BJ7#,LJ71..LX,LX5,SX5 |
82151-90K04 |
US $37.13 |
||
|
82161
|
82161
82161-90K20
Wire, Floor
[10.1985 - 08.1986] BJ70,71,LJ71 |
82161-90K20 |
— | ||
|
82161
|
82161
82161-90K21
Wire, Floor
[10.1985 - 08.1987] BJ70,71,LJ71 W/SUN ROOF OR RR HEATER |
82161-90K21 |
— | ||
|
82161
|
82161
82161-90K45
Wire, Floor
[08.1987 - 01.1990] BJ70,71,LJ71 W/SUN ROOF OR RR HEATER |
82161-90K45 |
— | ||
|
82161
|
82161
82161-90K46 Wire, Floor[08.1987 - 01.1990] BJ70,71,LJ71..LX,LX5 W/SUN ROOF; BJ70,71,LJ71..LX,LX5,STD W/ALTI METER & THERMO METER |
82161-90K46 |
US $528.53 |
||
|
82162
|
82162
82162-90K20 Wire, Floor, No.2[10.1985 - 08.1986] BJ7# W/*RWD |
82162-90K20 |
US $126.67 |
||
|
82162
|
82162
82162-90K44 Wire, Floor, No.2[08.1987 - 01.1990] BJ7#..HT |
82162-90K44 |
US $126.67 |
||
|
82164
|
82164
82164-90K04 Wire, Frame[08.1986 - 01.1990] BJ7#..LX |
82164-90K04 |
US $31.60 |
||
|
82171
|
82171
82171-90K04 Wire, Roof, No.1[11.1984 - 01.1990] BJ70,71,LJ71..HT,WG |
82171-90K04 |
US $37.27 |
||
|
82171
|
82171
82172-90K01 Wire, Roof, No.1[01.1985 - 01.1990] BJ70,71,LJ71..LX,LX5,SX5 W/SUN ROOF |
82172-90K01 |
US $62.03 |
||
|
82181B
|
82181B
82183-90K04
Wire, Luggage Room, No.3
[10.1985 - 01.1990] BJ7#,LJ71..LX,LX5,STD |
82183-90K04 |
— | ||
|
82181B
|
82181B
82183-90K05
Wire, Luggage Room, No.3
[10.1985 - 08.1986] BJ7#,LJ71..LX,LX5 W/*EL |
82183-90K05 |
— | ||
|
82181B
|
82181B
82183-90K07
Wire, Luggage Room, No.3
[10.1985 - 10.1985] BJ7#..HT W/*RWD |
82183-90K07 |
— | ||
|
82181B
|
82181B
82183-90K08
Wire, Luggage Room, No.3
[10.1985 - 10.1985] BJ7# |
82183-90K08 |
— | ||
|
82184
|
82184
82184-90K03
Wire, Back Door, No.1
[10.1985 - 01.1990] BJ7#,LJ71..(HT,WG)..(LX,LX5,STD) W/*RW |
82184-90K03 |
— | ||
|
82184
|
82184
82184-90K06
Wire, Back Door, No.1
[10.1985 - 10.1985] BJ7#..HT W/*RW |
82184-90K06 |
— | ||
|
82184
|
82184
82184-90K07
Wire, Back Door, No.1
[10.1985 - 10.1985] BJ7#..HT W/*RWD |
82184-90K07 |
— | ||
|
82185
|
82185
82185-90K00
Wire, Back Door, No.2
[11.1984 - 01.1990] BJ7#,LJ71..HT,WG |
82185-90K00 |
— | ||
|
82186
|
82186
82186-90K00
Wire, Rear Window, No.1
[11.1984 - 01.1990] BJ7#,LJ71..HT,WG |
82186-90K00 |
— | ||
|
82187
|
82187
82187-90K00 Wire, Rear Window, No.2[11.1984 - 08.1986] BJ7#,LJ71 |
82187-90K00 |
US $3.84 |
||
|
82210C
|
82210C
90982-08115
Fusible Link
[10.1985 - 01.1990] BJ71,74 長さ＝１１０，Ｇ,INTAKE HEATER |
90982-08115 |
— | ||
|
82210C
|
82210C
90982-08232
Fusible Link
[10.1985 - 08.1988] BJ7#,LJ71 バッテリ,BATTERY |
90982-08232 |
— | ||
|
82211A
|
82211A
87484-90K00
Wire, Rear Heater
[11.1984 - 01.1987] BJ7#,LJ71 |
87484-90K00 |
— | ||
|
82219
|
82219
82219-90K00
Wire, Thermo Sensor
[10.1985 - 01.1990] BJ7#; LJ71 W/WINCH |
82219-90K00 |
— | ||
|
82219
|
82219
82219-90K02
Wire, Thermo Sensor
[10.1985 - 01.1990] BJ7# W/WINCH |
82219-90K02 |
— | ||
|
82345
|
82345
82345-12050 Diode[11.1984 - 01.1990] BJ7#,LJ71 |
82345-12050 |
US $14.16 |
||
|
82670
|
82670
82670-90K00
Block Assy, Junction, No.1
[11.1984 - 08.1988] BJ7#,LJ71 |
82670-90K00 |
— | ||
|
82823
|
82823
82823-12020
Cap, Terminal, No.1
[11.1984 - 08.1988] BJ7#,LJ71 ALTERNATOR |
82823-12020 |
— | ||
|
82823
|
82823
82823-90300
Cap, Terminal, No.1
[11.1984 - 01.1990] BJ7#,LJ71 MAGNET SW.(WINCH) |
82823-90300 |
— | ||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.43 |
||
|
9011908116
|
9011908116
90119-08116 Bolt W Washer |
90119-08116 |
US $4.30 |
||
|
9162961216
|
9162961216
91629-61216 New Genuine Part |
91629-61216 |
US $1.05 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.95 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.72 |
||
| replacement | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.43 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $0.95 |
||
