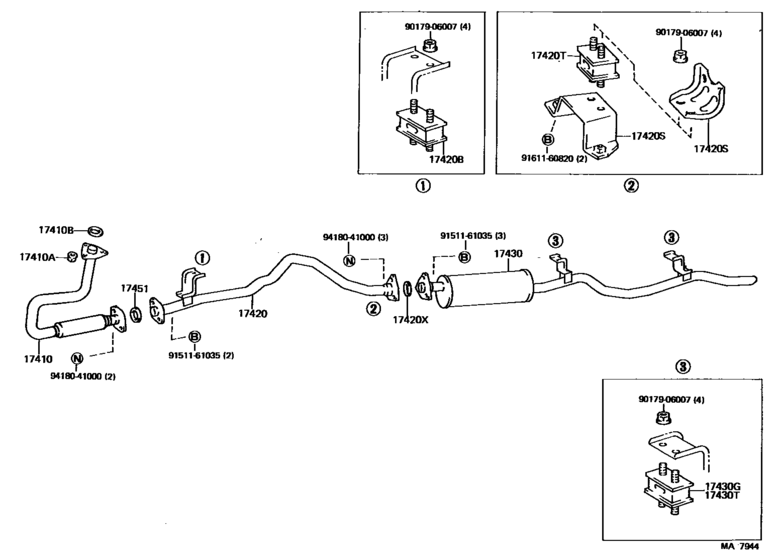

Exhaust Pipe ([11.1984 - ] (8411- )3B..BJ75) Diagram Toyota LAND CRUISER
- Year
- 1984 - 1990
- Sales region
- Europe
- Frame
- BJ75
- grade
- STD
- body
- HT
- ENGINE
- 3B
- Model
- LAND CRUISER 70
- From
- 11.1984
- To
- 01.1990
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17401-58070
Pipe Assy, Exhaust, Front
[11.1984 - 08.1988] 3B..BJ70,73,75..LX,STD |
17401-58070 |
— | ||
|
17410
|
17410
17401-58200
Pipe Assy, Exhaust, Front
[08.1988 - 01.1990] 3B..BJ70,73,75..LX,STD |
17401-58200 |
— | ||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[11.1984 - 01.1990] 22R#,13BT,3B,2L#..BJ7#,LJ7#,RJ7# |
90179-10070 |
from US $1.33 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[11.1984 - 01.1990] 22R#,13BT,3B,2L#..BJ7#,LJ7#,RJ7# |
90080-17187 |
US $44.70 |
||
|
17410B
|
17410B
90917-06012
Gasket, Exhaust Pipe
[11.1984 - 08.1988] 3B..BJ70,73,75..LX,STD |
90917-06012 |
— | ||
| replacement | |||||
|
17410B
|
17410B
90917-06045 Gasket, Exhaust Pipe[11.1984 - 08.1988] 3B..BJ70,73,75..LX,STD |
90917-06045 |
from US $1.56 |
||
|
17410B
|
17410B
90917-06034
Gasket, Exhaust Pipe
[08.1988 - 01.1990] 3B..BJ70,73,75..LX,STD |
90917-06034 |
— | ||
| replacement | |||||
|
17410B
|
17410B
90917-06059 Gasket, Exhaust Pipe[08.1988 - 01.1990] 3B..BJ70,73,75..LX,STD |
90917-06059 |
from US $4.64 |
||
|
17420
|
17420
17403-58070
Pipe Assy, Exhaust, Center
[11.1984 - 08.1988] 3B..BJ75 |
17403-58070 |
— | ||
|
17420
|
17420
17403-68010
Pipe Assy, Exhaust, Center
[08.1988 - 01.1990] 3B..BJ75 |
17403-68010 |
— | ||
|
17420B
|
17420B
17567-61030 Cushion, Exhaust Pipe Front (For Rear)[11.1984 - 01.1990] 13BT,3B,2L#..BJ7#,LJ7# |
17567-61030 |
from US $14.29 |
||
|
17420S
|
17420S
17573-58080 Bracket, Exhaust Pipe Center, RearEXHAUST PIPE CENTER, REAR [11.1984 - 08.1986] 3B..BJ75 BODY SIDE |
17573-58080 |
US $43.68 |
||
|
17420S
|
17420S
17573-58081 Bracket, Exhaust Pipe No.1 Support, LowerEXHAUST PIPE SUPPORT, NO.3 [08.1986 - 01.1990] 3B..BJ75 BODY SIDE |
17573-58081 |
from US $15.20 |
||
|
17420S
|
17420S
17576-61030 Bracket, Exhaust Pipe Center, Rear[11.1984 - 01.1990] 3B..BJ75 PIPE SIDE |
17576-61030 |
from US $14.76 |
||
|
17420T
|
17420T
17567-61030 Cushion, Exhaust Pipe Front (For Rear)[11.1984 - 01.1990] 3B..BJ75 |
17567-61030 |
from US $14.29 |
||
|
17420X
|
17420X
90917-06024
Gasket, Exhaust Pipe, Center
[11.1984 - 01.1990] 13BT,3B..BJ71,75 |
90917-06024 |
— | ||
| replacement | |||||
|
17420X
|
17420X
90917-06073 Gasket, Exhaust Pipe, Center[11.1984 - 01.1990] 13BT,3B..BJ71,75 |
90917-06073 |
from US $8.06 |
||
|
17430
|
17430
17405-58090
Pipe Assy, Exhaust, Tail
[11.1984 - 01.1990] 3B..BJ75..HT |
17405-58090 |
— | ||
|
17430G
|
17430G
17567-61030 Cushion, Exhaust Pipe Front (For Rear)[11.1984 - 01.1990] 22R#,13BT,3B,2L#..BJ7#,LJ7#,RJ7# |
17567-61030 |
from US $14.29 |
||
|
17430T
|
17430T
17567-61030 Cushion, Exhaust Pipe Front (For Rear)[11.1984 - 01.1990] 22R#,13BT,3B,2L#..BJ7#,LJ7#,RJ7# |
17567-61030 |
from US $14.29 |
||
|
17451
|
17451
90917-06012
Gasket, Exhaust Pipe
[11.1984 - 01.1990] 3B,2LT..BJ70,73,75,LJ7#..LX,STD,VX |
90917-06012 |
— | ||
| replacement | |||||
|
17451
|
17451
90917-06045 Gasket, Exhaust Pipe[11.1984 - 01.1990] 3B,2LT..BJ70,73,75,LJ7#..LX,STD,VX |
90917-06045 |
from US $1.56 |
||
|
9017906007
|
9017906007
90179-06007 Nut |
90179-06007 |
from US $0.82 |
||
|
9151161035
|
9151161035
91511-61035
Bolt(For Transaxle Case & Engine Setting)
|
91511-61035 |
— | ||
| replacement | |||||
|
9151161035
|
9151161035
91512-61035 Bolt(For Transaxle Case & Engine Setting) |
91512-61035 |
from US $0.95 |
||
|
9161160820
|
9161160820
91611-60820
Bolt(For Transaxle & Engine Setting)
|
91611-60820 |
— | ||
| replacement | |||||
|
9161160820
|
9161160820
91611-G0820 Bolt |
91611-G0820 |
from US $1.16 |
||
|
9418041000
|
9418041000
94180-41000 Nut |
94180-41000 |
from US $1.27 |
||
