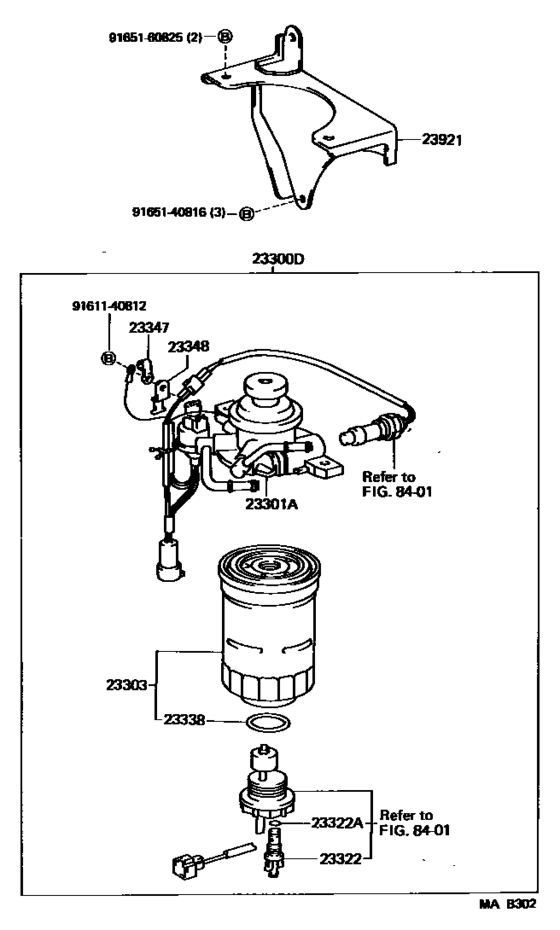

Fuel Filter ([08.1988 - ] (8808- )3B..LX,STD) Diagram Toyota LAND CRUISER
- Year
- 1984 - 1990
- Sales region
- Europe
- Frame
- BJ75
- grade
- STD
- body
- HT
- ENGINE
- 3B
- Model
- LAND CRUISER 70
- From
- 11.1984
- To
- 01.1990
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23300D
|
23300D
23300-56040 Filter Assy, Fuel(For Diesel)[11.1984 - 08.1988] 3B..BJ70,73,75..LX,STD |
23300-56040 |
US $82.99 |
||
|
23300D
|
23300D
23300-58080 Filter Assy, Fuel(For Diesel)FUEL(FOR DIESEL) [08.1988 - 01.1990] 3B..BJ70,73,75..LX,STD |
23300-58080 |
US $410.59 |
||
| replacements | |||||
|
23300D
|
23300D
23301-58060
Cap Assy, Fuel Filter
[08.1988 - 01.1990] 3B..BJ70,73,75..LX,STD |
23301-58060 |
— | ||
|
23300D
|
23300D
23303-64010 Element Sub-Assy, Fuel Filter[08.1988 - 01.1990] 3B..BJ70,73,75..LX,STD |
23303-64010 |
from US $51.47 |
||
|
23300D
|
23300D
84461-35030 Switch, Level Warning[08.1988 - 01.1990] 3B..BJ70,73,75..LX,STD |
84461-35030 |
US $38.09 |
||
|
23301A
|
23301A
23301-58060
Cap Assy, Fuel Filter
[08.1988 - 01.1990] 3B..BJ70,73,75..LX,STD |
23301-58060 |
— | ||
|
23301A
|
23301A
23301-58070
Cap Assy, Fuel Filter
[08.1988 - 01.1990] 3B..BJ70,73,75..LX,STD W/FUEL HEATER |
23301-58070 |
— | ||
|
23303
|
23303
23303-56031 Element Sub-Assy, Fuel Filter[11.1984 - 08.1988] 3B..BJ70,73,75..LX,STD |
23303-56031 |
US $65.69 |
||
|
23303
|
23303
23303-64010 Element Sub-Assy, Fuel Filter[08.1988 - 01.1990] 3B..BJ70,73,75 |
23303-64010 |
from US $51.47 |
||
|
23322
|
23322
23322-64020 Plug, Drain(For Fuel Filter)[08.1988 - 01.1990] 3B..BJ70,73,75..LX,STD |
23322-64020 |
US $11.83 |
||
|
23322A
|
23322A
23344-54010 O-Ring (For Drain Plug)[08.1988 - 01.1990] 3B..BJ70,73,75 |
23344-54010 |
from US $1.54 |
||
|
23338
|
23338
23338-54010 Gasket(For Warning Switch)[11.1984 - 08.1988] 13BT,3B..BJ7#..LX,STD W/SEDIMENTER |
23338-54010 |
US $3.32 |
||
|
23338
|
23338
23344-64010 O-Ring (For Level Warning Switch)[08.1988 - 01.1990] 3B..BJ70,73,75 |
23344-64010 |
from US $1.54 |
||
|
23347
|
23347
23347-58010
Clip, Cord
[08.1988 - 01.1990] 3B..BJ70,73,75..LX,STD W/FUEL HEATER |
23347-58010 |
— | ||
|
23348
|
23348
23348-58010
Stay
[08.1988 - 01.1990] 3B..BJ70,73,75..LX,STD W/FUEL HEATER |
23348-58010 |
— | ||
|
23921
|
23921
23921-58060
Support, Fuel Filter
[08.1988 - 01.1990] 3B..BJ70,73,75..LX,STD |
23921-58060 |
— | ||
| replacement | |||||
|
23921
|
23921
23921-17030
Support, Fuel Filter
[08.1988 - 01.1990] 3B..BJ70,73,75..LX,STD |
23921-17030 |
— | ||
|
9161140812
|
9161140812
91611-40812
Bolt(for Drive Plate & Torque Converter Setting)
|
91611-40812 |
— | ||
| replacement | |||||
|
9161140812
|
9161140812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $0.95 |
||
|
9165160825
|
9165160825
91651-60825
Bolt, Hexagon(For Steering Column Bracket)
|
91651-60825 |
— | ||
| replacement | |||||
|
9165160825
|
9165160825
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $0.82 |
||
