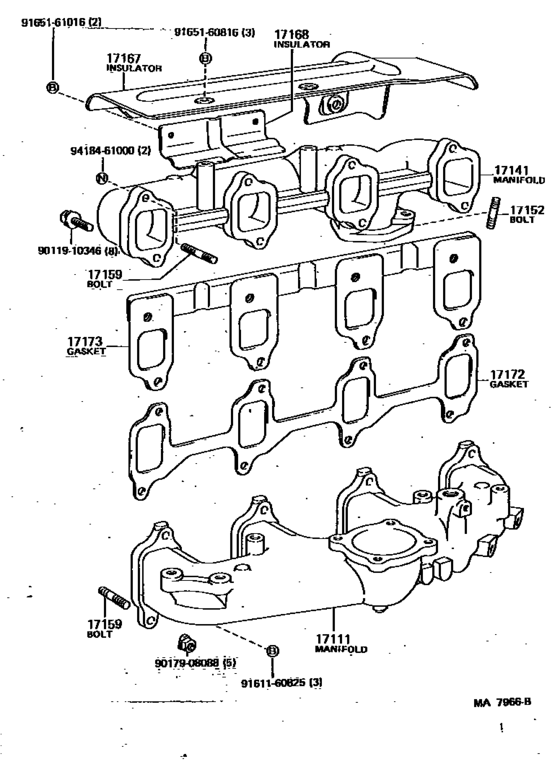

Manifold ([11.1984 - 08.1988] (8411-8808)3B) Diagram Toyota LAND CRUISER
- Year
- 1984 - 1990
- Sales region
- Europe
- Frame
- BJ75
- grade
- STD
- body
- HT
- ENGINE
- 3B
- Model
- LAND CRUISER 70
- From
- 11.1984
- To
- 01.1990
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17111
|
17111
17111-56130 Manifold, Intake[11.1984 - 01.1990] 3B..BJ70,73,75 |
17111-56130 |
US $388.75 |
||
|
17141
|
17141
17141-56050
Manifold, Exhaust
[11.1984 - 08.1988] 3B..BJ70,73,75 |
17141-56050 |
— | ||
|
17141
|
17141
17141-56060 Manifold, Exhaust[08.1988 - 01.1990] 3B..BJ70,73,75 |
17141-56060 |
from US $198.02 |
||
|
17152
|
17152
90116-10056
Bolt, Stud(For Turbocharger)
[11.1984 - 05.1987] 13BT,3B..BJ7# |
90116-10056 |
— | ||
| replacement | |||||
|
17152
|
17152
90116-10087 Bolt, Stud(For Turbocharger)[11.1984 - 05.1987] 13BT,3B..BJ7# |
90116-10087 |
from US $2.24 |
||
|
17152
|
17152
90116-10087 Bolt, Stud(For Turbocharger)[05.1987 - 01.1990] 13BT,3B..BJ7# |
90116-10087 |
from US $2.24 |
||
|
17159
|
17159
90116-10098
Bolt, Stud(For Exhaust Manifold To Cylinder Head)
[11.1984 - 01.1990] 13BT,3B..BJ7# EXHAUST MANIFOLD |
90116-10098 |
— | ||
| replacement | |||||
|
17159
|
17159
90116-10063 Bolt, Stud(For Exhaust Manifold To Cylinder Head)[11.1984 - 01.1990] 13BT,3B..BJ7# EXHAUST MANIFOLD |
90116-10063 |
from US $0.91 |
||
|
17159
|
17159
92132-60825 Bolt, Stud(For Manifold To Cylinder Head)[11.1984 - 01.1990] 13BT,3B..BJ7# INTAKE MANIFOLD |
92132-60825 |
US $3.58 |
||
|
17167
|
17167
17167-56022
Insulator, Exhaust Manifold Heat, No.1
[11.1984 - 08.1987] 3B..BJ70,73,75 |
17167-56022 |
— | ||
| replacement | |||||
|
17167
|
17167
17167-56023
Insulator, Exhaust Manifold Heat, No.1
[11.1984 - 08.1987] 3B..BJ70,73,75 |
17167-56023 |
— | ||
|
17167
|
17167
17167-56023
Insulator, Exhaust Manifold Heat, No.1
[08.1987 - 08.1988] 3B..BJ70,73,75 |
17167-56023 |
— | ||
|
17167
|
17167
17167-56040 Insulator, Exhaust Manifold Heat, No.1[08.1988 - 01.1990] 3B..BJ70,73,75 |
17167-56040 |
US $123.76 |
||
| replacement | |||||
|
17167
|
17167
17167-56060 Insulator, Exhaust Manifold Heat, No.1[08.1988 - 01.1990] 3B..BJ70,73,75 |
17167-56060 |
US $108.33 |
||
|
17168
|
17168
17168-56010 Insulator, Exhaust Manifold Heat, No.2[08.1988 - 01.1990] 3B..BJ70,73,75 |
17168-56010 |
US $29.27 |
||
| replacement | |||||
|
17168
|
17168
17168-58060 Insulator, Exhaust Manifold Heat, No.2[08.1988 - 01.1990] 3B..BJ70,73,75 |
17168-58060 |
US $10.13 |
||
|
17168
|
17168
17168-58021
Insulator, Exhaust Manifold Heat, No.2
[11.1984 - 08.1987] 3B..BJ70,73,75 |
17168-58021 |
— | ||
| replacement | |||||
|
17168
|
17168
17168-58022
Insulator, Exhaust Manifold Heat, No.2
[11.1984 - 08.1987] 3B..BJ70,73,75 |
17168-58022 |
— | ||
|
17168
|
17168
17168-58022
Insulator, Exhaust Manifold Heat, No.2
[08.1987 - 08.1988] 3B..BJ70,73,75 |
17168-58022 |
— | ||
|
17172
|
17172
17171-56010 Gasket, Manifold To Cylinder Head[08.1988 - 01.1990] 13BT,3B..BJ7# |
17171-56010 |
from US $10.93 |
||
|
17172
|
17172
17172-56022
Gasket, Manifold To Cylinder Head
[11.1984 - 08.1988] 13BT,3B..BJ7# |
17172-56022 |
— | ||
| replacement | |||||
|
17172
|
17172
17171-56010 Gasket, Manifold To Cylinder Head[11.1984 - 08.1988] 13BT,3B..BJ7# |
17171-56010 |
from US $10.93 |
||
|
17173
|
17173
17173-56040 Gasket, Exhaust Manifold To Head[08.1988 - 01.1990] 3B..BJ70,73,75 |
17173-56040 |
from US $17.20 |
||
|
17173
|
17173
17173-58010 Gasket, Exhaust Manifold To Head[11.1984 - 08.1988] 13BT,3B..BJ7# |
17173-58010 |
from US $22.04 |
||
|
9011910346
|
9011910346
90119-10346
Bolt (For Front Lower Ball Joint)
|
90119-10346 |
— | ||
| replacement | |||||
|
9011910346
|
9011910346
90105-10057 Bolt (For Front Lower Ball Joint) |
90105-10057 |
US $4.12 |
||
|
9017908088
|
9017908088
90179-08088
NUT
|
90179-08088 |
— | ||
| replacement | |||||
|
9017908088
|
9017908088
94185-60800 NUT |
94185-60800 |
from US $0.80 |
||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.08 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $0.99 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 BOLT |
90080-11396 |
US $3.32 |
||
|
9165161016
|
9165161016
91651-61016 Bolt |
91651-61016 |
US $1.14 |
||
|
9418461000
|
9418461000
94184-61000 Nut(For Rear Spring) |
94184-61000 |
US $2.87 |
||
| replacement | |||||
|
9418461000
|
9418461000
48284-0W060 Nut, Front Spring Center Bolt |
48284-0W060 |
from US $0.87 |
||
