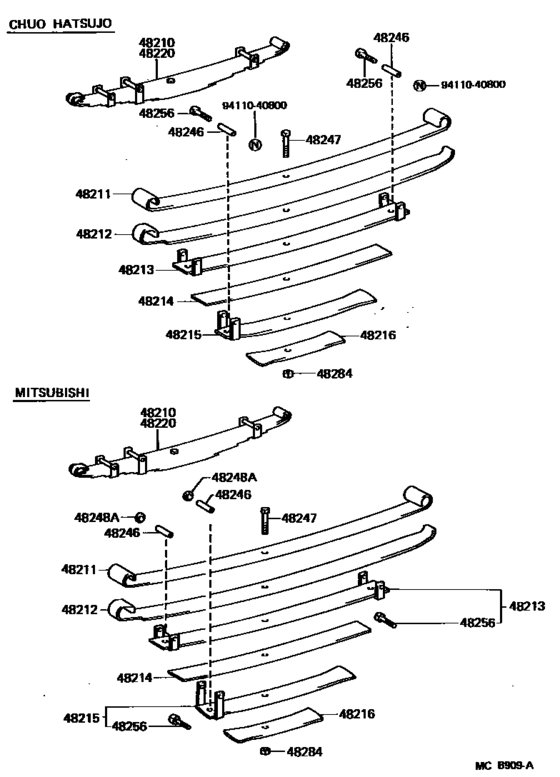

Rear Spring & Shock Absorber ([11.1984 - 08.1988] (8411-8808)BJ75) Diagram Toyota LAND CRUISER
- Year
- 1984 - 1990
- Sales region
- Europe
- Frame
- BJ75
- grade
- STD
- body
- HT
- ENGINE
- 3B
- Model
- LAND CRUISER 70
- From
- 11.1984
- To
- 01.1990
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48210
|
48210
48210-60420 Spring Assy, Rear RhREAR RH [11.1984 - 08.1988] BJ75 |
48210-60420 |
US $1,003.18 |
||
|
48210
|
48210
48210-60591 Spring Assy, Rear RhREAR RH [01.1988 - 08.1988] BJ75 8-LEAF,DENMARK SPEC |
48210-60591 |
US $1,320.59 |
||
|
48211
|
48211
48211-60420 Leaf, Rear Spring, No.1REAR SPRING, NO.1 [11.1984 - 08.1988] BJ75 |
48211-60420 |
US $224.22 |
||
|
48211
|
48211
48211-60591 Leaf, Rear Spring, No.1REAR SPRING, NO.1 [01.1988 - 08.1988] BJ75 DENMARK SPEC,CHUO HATSUJO |
48211-60591 |
US $225.68 |
||
|
48212
|
48212
48212-60420 Leaf, Rear Spring, No.2REAR SPRING, NO.2 [11.1984 - 08.1988] BJ75 |
48212-60420 |
US $186.37 |
||
|
48212
|
48212
48212-60591 Leaf, Rear Spring, No.2REAR SPRING, NO.2 [01.1988 - 08.1988] BJ75 DENMARK SPEC,CHUO HATSUJO |
48212-60591 |
US $190.74 |
||
|
48213
|
48213
48202-60420 Leaf, Rear Spring, No.3REAR SPRING, NO.3 [11.1984 - 08.1988] BJ75 |
48202-60420 |
US $196.56 |
||
|
48213
|
48213
48213-60591 Leaf, Rear Spring, No.3REAR SPRING, NO.3 [01.1988 - 08.1988] BJ75 DENMARK SPEC,CHUO HATSUJO |
48213-60591 |
US $136.86 |
||
| replacement | |||||
|
48213
|
48213
48213-60592
Leaf, Rear Spring, No.3
[01.1988 - 08.1988] BJ75 DENMARK SPEC,CHUO HATSUJO |
48213-60592 |
— | ||
|
48214
|
48214
48202-60591 Leaf, Rear Spring, No.4REAR SPRING, NO.4 [01.1988 - 08.1988] BJ75 DENMARK SPEC,CHUO HATSUJO |
48202-60591 |
US $173.26 |
||
|
48214
|
48214
48214-60420 Leaf, Rear Spring, No.4REAR SPRING, NO.4 [11.1984 - 08.1988] BJ75 |
48214-60420 |
US $145.60 |
||
|
48215
|
48215
48203-60420 Leaf, Rear Spring, No.5REAR SPRING, NO.5 [11.1984 - 08.1988] BJ75 |
48203-60420 |
US $208.21 |
||
|
48215
|
48215
48215-60591 Leaf, Rear Spring, No.5REAR SPRING, NO.5 [01.1988 - 08.1988] BJ75 DENMARK SPEC,CHUO HATSUJO |
48215-60591 |
US $113.57 |
||
| replacement | |||||
|
48215
|
48215
48215-60593 Leaf, Rear Spring, No.5REAR SPRING, NO.5 [01.1988 - 08.1988] BJ75 DENMARK SPEC,CHUO HATSUJO |
48215-60593 |
US $110.66 |
||
|
48216
|
48216
48216-60420 Leaf, Rear Spring, No.6REAR SPRING, NO.6 [11.1984 - 08.1988] BJ75 |
48216-60420 |
US $104.83 |
||
|
48216
|
48216
48216-60591 Leaf, Rear Spring, No.6REAR SPRING, NO.6 [01.1988 - 08.1988] BJ75 DENMARK SPEC,CHUO HATSUJO |
48216-60591 |
US $100.46 |
||
| replacement | |||||
|
48216
|
48216
48216-60593
Leaf, Rear Spring, No.6
[01.1988 - 08.1988] BJ75 DENMARK SPEC,CHUO HATSUJO |
48216-60593 |
— | ||
|
48220
|
48220
48210-60420 Spring Assy, Rear RhREAR RH [11.1984 - 08.1988] BJ75 |
48210-60420 |
US $1,003.18 |
||
|
48220
|
48220
48210-60591 Spring Assy, Rear RhREAR RH [01.1988 - 08.1988] BJ75 8-LEAF,DENMARK SPEC |
48210-60591 |
US $1,320.59 |
||
|
48246
|
48246
48146-60070 Case(For Rear Spring Clip Bolt)[11.1984 - 08.1988] BJ75 |
48146-60070 |
US $2.61 |
||
|
48247
|
48247
48247-36500 Bolt, Rear Spring, Center[01.1988 - 08.1988] BJ75 DENMARK SPEC,CHUO HATSUJO |
48247-36500 |
US $4.02 |
||
|
48247
|
48247
48247-36530 Bolt, Rear Spring, Center[11.1984 - 08.1988] BJ75 CHUO HATSUJO |
48247-36530 |
US $5.77 |
||
|
48247
|
48247
48289-60010 Bolt, Front Spring, Center[11.1984 - 08.1988] BJ7#..LX,STD MITSUBISHI |
48289-60010 |
from US $11.53 |
||
|
48248A
|
48248A
48148-37010 Washer(For Rear Spring Clip Bolt)[11.1984 - 08.1988] BJ75 |
48148-37010 |
US $2.15 |
||
|
48256
|
48256
48156-37010
Bolt, Hexagon(For Rear Spring Clip Set)
[11.1984 - 08.1988] BJ75 MITSUBISHI |
48156-37010 |
— | ||
|
48256
|
48256
48256-25050 Bolt, Hexagon(For Rear Spring Clip)[11.1984 - 01.1990] BJ75 CHUO HATSUJO |
48256-25050 |
from US $3.33 |
||
|
48284
|
48284
48284-60062 Nut, Front Spring Center Bolt[11.1984 - 08.1988] BJ7#..LX,STD MITSUBISHI |
48284-60062 |
from US $3.94 |
||
|
48284
|
48284
94110-51000 Nut(For Steering Center Arm)[11.1984 - 01.1990] BJ75 CHUO HATSUJO |
94110-51000 |
from US $0.74 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.82 |
||
