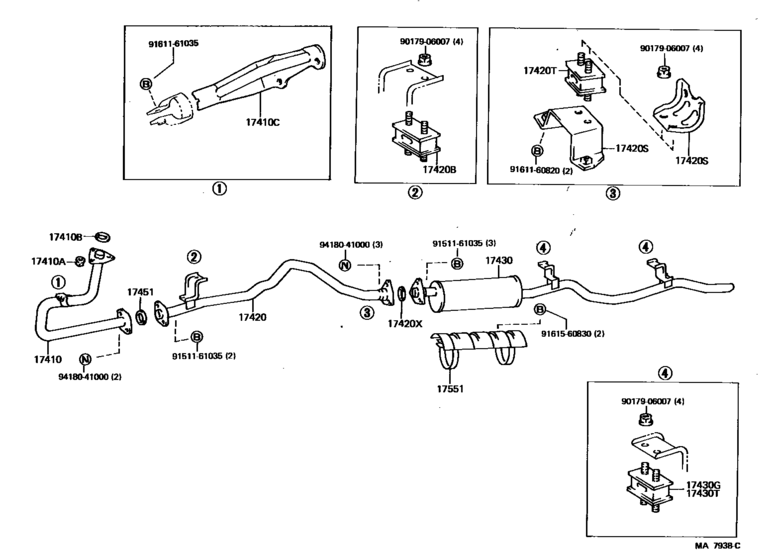

Exhaust Pipe ([11.1984 - ] (8411- )3B..BJ75) Diagram Toyota LAND CRUISER
- Year
- 1984 - 1990
- Sales region
- General
- Frame
- BJ75
- grade
- STD
- body
- PIC
- ENGINE
- 3B
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 70
- From
- 11.1984
- To
- 01.1990
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
- Driver's Position
- RHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17401-58060
Pipe Assy, Exhaust, Front
[11.1984 - 08.1988] 3B..BJ70,73,75 |
17401-58060 |
— | ||
| replacement | |||||
|
17410
|
17410
17401-58061
Pipe Assy, Exhaust, Front
[11.1984 - 08.1988] 3B..BJ70,73,75 |
17401-58061 |
— | ||
|
17410
|
17410
17401-58190
Pipe Assy, Exhaust, Front
[08.1988 - 01.1990] 3B..BJ70,73,75 |
17401-58190 |
— | ||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[11.1984 - 01.1990] 22R,13BT,3B,3F,2H,2L#..BJ7#,FJ7#,HJ75,LJ70,RJ70 |
90179-10070 |
from US $1.31 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[11.1984 - 01.1990] 22R,13BT,3B,3F,2H,2L#..BJ7#,FJ7#,HJ75,LJ70,RJ70 |
90080-17187 |
US $44.70 |
||
|
17410B
|
17410B
90917-06012
Gasket, Exhaust Pipe
[11.1984 - 08.1988] 3B..BJ70,73,75 |
90917-06012 |
— | ||
| replacement | |||||
|
17410B
|
17410B
90917-06045 Gasket, Exhaust Pipe[11.1984 - 08.1988] 3B..BJ70,73,75 |
90917-06045 |
from US $1.56 |
||
|
17410B
|
17410B
90917-06034
Gasket, Exhaust Pipe
[08.1988 - 01.1990] 3B..BJ70,73,75 |
90917-06034 |
— | ||
| replacement | |||||
|
17410B
|
17410B
90917-06059 Gasket, Exhaust Pipe[08.1988 - 01.1990] 3B..BJ70,73,75 |
90917-06059 |
from US $4.64 |
||
|
17410C
|
17410C
17571-58071 Bracket, Exhaust Pipe Front (For Front)[11.1984 - 08.1988] 3B..BJ70,73,75 |
17571-58071 |
US $52.42 |
||
|
17410C
|
17410C
17571-58240 Bracket, Exhaust Pipe Front (For Front)EXHAUST PIPE FRONT (FOR FRONT) [08.1988 - 01.1990] 3B..BJ70,73,75 |
17571-58240 |
US $31.60 |
||
|
17420
|
17420
17403-58070
Pipe Assy, Exhaust, Center
[11.1984 - 01.1990] 3B..BJ75 |
17403-58070 |
— | ||
|
17420B
|
17420B
17567-61030 Cushion, Exhaust Pipe Front (For Rear)[11.1984 - 01.1990] 13BT,3B,2L#..BJ7#,LJ70 |
17567-61030 |
from US $14.29 |
||
|
17420S
|
17420S
17573-58081 Bracket, Exhaust Pipe No.1 Support, LowerEXHAUST PIPE SUPPORT, NO.3 [11.1984 - 01.1990] 3B..BJ75 BODY SIDE |
17573-58081 |
from US $15.20 |
||
|
17420S
|
17420S
17576-61030 Bracket, Exhaust Pipe Center, Rear[11.1984 - 01.1990] 3B,3F,2H..BJ75,FJ75,HJ75 PIPE SIDE |
17576-61030 |
from US $14.76 |
||
|
17420T
|
17420T
17567-61030 Cushion, Exhaust Pipe Front (For Rear)[11.1984 - 01.1990] 3B,3F,2H..BJ75,FJ75,HJ75 |
17567-61030 |
from US $14.29 |
||
|
17420X
|
17420X
90917-06024
Gasket, Exhaust Pipe, Center
[11.1984 - 01.1990] 13BT,3B,3F,2H..BJ74,75,FJ75,HJ75 |
90917-06024 |
— | ||
| replacement | |||||
|
17420X
|
17420X
90917-06073 Gasket, Exhaust Pipe, Center[11.1984 - 01.1990] 13BT,3B,3F,2H..BJ74,75,FJ75,HJ75 |
90917-06073 |
from US $8.06 |
||
|
17430
|
17430
17405-58110
Pipe Assy, Exhaust, Tail
[11.1984 - 01.1990] 3B..BJ75 |
17405-58110 |
— | ||
|
17430G
|
17430G
17567-61030 Cushion, Exhaust Pipe Front (For Rear)[11.1984 - 01.1990] 22R,13BT,3B,3F,2H,2L#..BJ7#,FJ7#,HJ75,LJ70,RJ70 |
17567-61030 |
from US $14.29 |
||
|
17430T
|
17430T
17567-61030 Cushion, Exhaust Pipe Front (For Rear)[11.1984 - 01.1990] 22R,13BT,3B,3F,2H,2L#..BJ7#,FJ7#,HJ75,LJ70,RJ70 |
17567-61030 |
from US $14.29 |
||
|
17451
|
17451
90917-06012
Gasket, Exhaust Pipe
[11.1984 - 08.1986] 3B..BJ70,73,75 |
90917-06012 |
— | ||
| replacement | |||||
|
17451
|
17451
90917-06045 Gasket, Exhaust Pipe[11.1984 - 08.1986] 3B..BJ70,73,75 |
90917-06045 |
from US $1.56 |
||
|
17551
|
17551
17551-61010
Insulator, Exhaust Pipe Heat, No.1
[11.1984 - 08.1986] 3B,3F,2H..BJ75,FJ75,HJ75 |
17551-61010 |
— | ||
|
9017906007
|
9017906007
90179-06007 Nut |
90179-06007 |
from US $0.82 |
||
|
9151161035
|
9151161035
91511-61035
Bolt(For Transaxle Case & Engine Setting)
|
91511-61035 |
— | ||
| replacement | |||||
|
9151161035
|
9151161035
91512-61035 Bolt(For Transaxle Case & Engine Setting) |
91512-61035 |
from US $0.95 |
||
|
9161160820
|
9161160820
91611-60820
Bolt(For Transaxle & Engine Setting)
|
91611-60820 |
— | ||
| replacement | |||||
|
9161160820
|
9161160820
91611-G0820 Bolt |
91611-G0820 |
from US $1.16 |
||
|
9161161035
|
9161161035
91611-61035
BOLT
|
91611-61035 |
— | ||
| replacement | |||||
|
9161161035
|
9161161035
91612-61035 Bolt(For Hybrid Vehicle Transaxle & Engine Setting) |
91612-61035 |
from US $1.10 |
||
|
9161560830
|
9161560830
91615-60830 Bolt(For Clutch Release Cylinder Setting) |
91615-60830 |
US $2.33 |
||
| replacement | |||||
|
9161560830
|
9161560830
91611-60830 Bolt(For Clutch Release Cylinder Setting) |
91611-60830 |
from US $1.41 |
||
|
9418041000
|
9418041000
94180-41000 Nut |
94180-41000 |
from US $1.27 |
||
