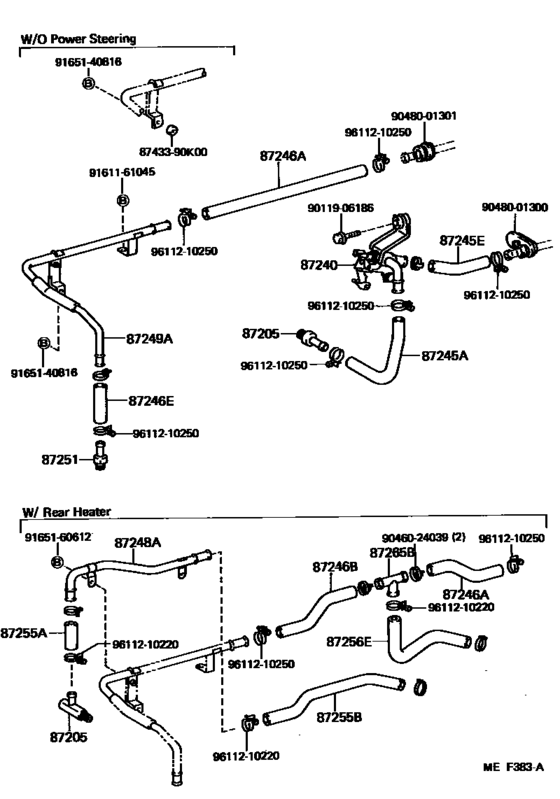

Heating & Air Conditioning - Water Piping ([11.1984 - ] (8411- )BJ70,73,75) Diagram Toyota LAND CRUISER
- Year
- 1984 - 1990
- Sales region
- General
- Frame
- BJ75
- grade
- STD
- body
- PIC
- ENGINE
- 3B
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 70
- From
- 11.1984
- To
- 01.1990
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
- Driver's Position
- RHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87205
|
87205
87251-30200 Union(For Water By-Pass Hose)[11.1984 - 01.1990] LJ70; BJ7# FR HEATER |
87251-30200 |
from US $5.24 |
||
|
87240
|
87240
87240-90K00
Valve Assy, Heater Water
[11.1984 - 01.1990] BJ70,73,75,LJ70,RJ70 |
87240-90K00 |
— | ||
|
87245A
|
87245A
87245-90K04
Hose, Heater Water, Inlet A
[11.1984 - 01.1990] BJ70,73,75 |
87245-90K04 |
— | ||
|
87245E
|
87245E
87245-1B060
Hose, Heater Water, Inlet E
[11.1984 - 01.1990] BJ7#,FJ7#,HJ75,LJ70,RJ70 |
87245-1B060 |
— | ||
|
87246A
|
87246A
99556-30320 Hose, Heater Water, Outlet A[11.1984 - 08.1985] BJ7# *H,L=320 |
99556-30320 |
US $9.03 |
||
| replacement | |||||
|
87246A
|
87246A
99556-30500 Hose, Heater Water, Inlet A[11.1984 - 08.1985] BJ7# *H,L=320 |
99556-30500 |
from US $16.17 |
||
|
87246A
|
87246A
99556-30500 Hose, Heater Water, Inlet A[08.1985 - 01.1990] BJ70,73,75 *H,L=320 |
99556-30500 |
from US $16.17 |
||
|
87246E
|
87246E
99556-30055
Hose, Heater Water, Inlet B
[11.1984 - 08.1985] BJ7# *H,L=55 |
99556-30055 |
— | ||
| replacement | |||||
|
87246E
|
87246E
99556-30100 Hose, Water Inlet[11.1984 - 08.1985] BJ7# *H,L=55 |
99556-30100 |
from US $2.96 |
||
|
87246E
|
87246E
99556-30100 Hose, Water Inlet[08.1985 - 01.1990] BJ7# *H,L=55 |
99556-30100 |
from US $2.96 |
||
|
87249A
|
87249A
87248-90K18
Pipe, Heater Water Outlet, A
[11.1984 - 08.1988] BJ70,73,75 |
87248-90K18 |
— | ||
|
87249A
|
87249A
87248-90K26
Pipe, Heater Water Outlet, A
[08.1988 - 01.1990] BJ70,73,75 |
87248-90K26 |
— | ||
|
87251
|
87251
87251-30200 Union(For Water By-Pass Hose)[11.1984 - 01.1990] BJ7#,HJ75 |
87251-30200 |
from US $5.24 |
||
|
8743390K00
|
8743390K00
87433-90K00
Bracket, Combustion Heater, No.3
|
87433-90K00 |
— | ||
|
9011906186
|
9011906186
90119-06186
BOLT
|
90119-06186 |
— | ||
| replacement | |||||
|
9011906186
|
9011906186
90119-06420 BOLT WWASHER |
90119-06420 |
from US $1.27 |
||
|
9046024039
|
9046024039
90460-24039 Clamp Or Clip, Hose(For Oil Cooler Hose) |
90460-24039 |
US $1.54 |
||
| replacement | |||||
|
9046024039
|
9046024039
90467-21010 Clip(For Ventilation Hose No.2) |
90467-21010 |
from US $2.43 |
||
|
9048001300
|
9048001300
90480-01300
Grommet, Heater
|
90480-01300 |
— | ||
| replacement | |||||
|
9048001300
|
9048001300
87128-60080 Grommet, Heater |
87128-60080 |
US $4.40 |
||
|
9048001301
|
9048001301
90480-01301
New Genuine Part
|
90480-01301 |
— | ||
|
9161161045
|
9161161045
91611-61045
Bolt, Hexagon(For Idle Gear Bolt Lock)
|
91611-61045 |
— | ||
| replacement | |||||
|
9161161045
|
9161161045
91612-61045 Bolt(For Transaxle & Engine Setting) |
91612-61045 |
from US $1.12 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $0.95 |
||
|
9165160612
|
9165160612
91651-60612 BOLT |
91651-60612 |
US $1.61 |
||
|
9611210220
|
9611210220
96112-10220 Clamp Or Clip, Hose(For Water By-Pass Hose) |
96112-10220 |
US $0.61 |
||
|
9611210250
|
9611210250
96112-10250 Clamp Or Clip, Hose(For Oil Cooler Hose) |
96112-10250 |
from US $2.24 |
||
