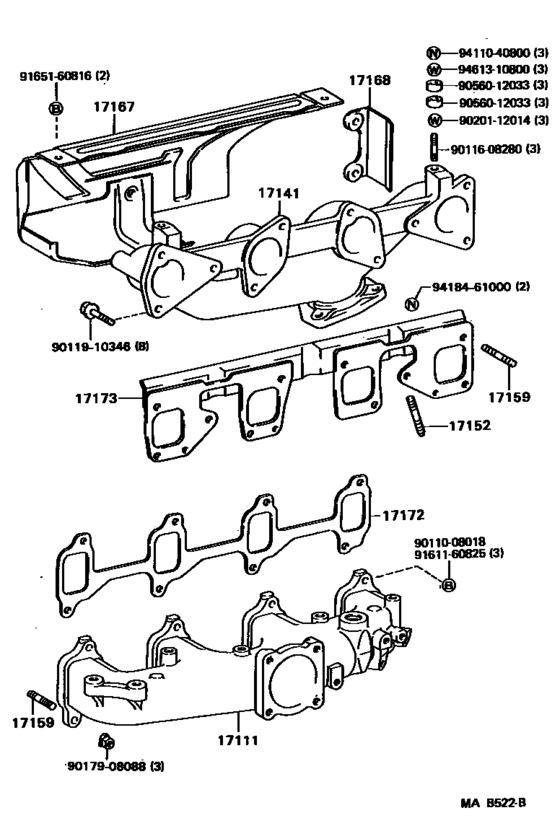

Manifold ([11.1984 - ] (8411- )3B) Diagram Toyota LAND CRUISER
- Year
- 1984 - 1990
- Sales region
- General
- Frame
- BJ75
- grade
- STD
- body
- PIC
- ENGINE
- 3B
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 70
- From
- 11.1984
- To
- 01.1990
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
- Driver's Position
- RHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17111
|
17111
17111-56120 Manifold, IntakeINTAKE [11.1984 - 01.1990] 3B..BJ70,73,75..GEN,ME |
17111-56120 |
US $347.98 |
||
|
17141
|
17141
17141-56050
Manifold, Exhaust
[11.1984 - 08.1988] 3B..BJ70,73,75 |
17141-56050 |
— | ||
|
17141
|
17141
17141-56060 Manifold, Exhaust[08.1988 - 01.1990] 3B..BJ70,73,75 |
17141-56060 |
from US $198.02 |
||
|
17152
|
17152
90116-10056
Bolt, Stud(For Turbocharger)
[11.1984 - 05.1987] 3F..FJ7#; 2H..HJ75; 13BT,3B..BJ7# |
90116-10056 |
— | ||
| replacement | |||||
|
17152
|
17152
90116-10087 Bolt, Stud(For Turbocharger)[11.1984 - 05.1987] 3F..FJ7#; 2H..HJ75; 13BT,3B..BJ7# |
90116-10087 |
from US $2.24 |
||
|
17152
|
17152
90116-10087 Bolt, Stud(For Turbocharger)[05.1987 - 01.1990] 2H..HJ75; 3F..FJ7#; 13BT,3B..BJ7# |
90116-10087 |
from US $2.24 |
||
|
17159
|
17159
90116-10098
Bolt, Stud(For Exhaust Manifold To Cylinder Head)
[11.1984 - 01.1990] 13BT,3B..BJ7# EXHAUST MANIFOLD |
90116-10098 |
— | ||
| replacement | |||||
|
17159
|
17159
90116-10063 Bolt, Stud(For Exhaust Manifold To Cylinder Head)[11.1984 - 01.1990] 13BT,3B..BJ7# EXHAUST MANIFOLD |
90116-10063 |
from US $0.91 |
||
|
17159
|
17159
92132-60825 Bolt, Stud(For Manifold To Cylinder Head)[11.1984 - 01.1990] 13BT,3B..BJ7# INTAKE MANIFOLD |
92132-60825 |
US $3.58 |
||
|
17167
|
17167
17167-56022
Insulator, Exhaust Manifold Heat, No.1
[11.1984 - 08.1987] 3B..BJ70,73,75 |
17167-56022 |
— | ||
| replacement | |||||
|
17167
|
17167
17167-56023
Insulator, Exhaust Manifold Heat, No.1
[11.1984 - 08.1987] 3B..BJ70,73,75 |
17167-56023 |
— | ||
|
17167
|
17167
17167-56023
Insulator, Exhaust Manifold Heat, No.1
[08.1987 - 08.1988] 3B..BJ70,73,75 |
17167-56023 |
— | ||
|
17167
|
17167
17167-56040 Insulator, Exhaust Manifold Heat, No.1[08.1988 - 01.1990] 3B..BJ70,73,75 |
17167-56040 |
US $123.76 |
||
| replacement | |||||
|
17167
|
17167
17167-56060 Insulator, Exhaust Manifold Heat, No.1[08.1988 - 01.1990] 3B..BJ70,73,75 |
17167-56060 |
US $108.33 |
||
|
17168
|
17168
17168-56010 Insulator, Exhaust Manifold Heat, No.2[08.1988 - 01.1990] 3B..BJ70,73,75 |
17168-56010 |
US $29.27 |
||
| replacement | |||||
|
17168
|
17168
17168-58060 Insulator, Exhaust Manifold Heat, No.2[08.1988 - 01.1990] 3B..BJ70,73,75 |
17168-58060 |
US $10.13 |
||
|
17168
|
17168
17168-58021
Insulator, Exhaust Manifold Heat, No.2
[11.1984 - 08.1987] 3B..BJ70,73,75 |
17168-58021 |
— | ||
| replacement | |||||
|
17168
|
17168
17168-58022
Insulator, Exhaust Manifold Heat, No.2
[11.1984 - 08.1987] 3B..BJ70,73,75 |
17168-58022 |
— | ||
|
17168
|
17168
17168-58022
Insulator, Exhaust Manifold Heat, No.2
[08.1987 - 08.1988] 3B..BJ70,73,75 |
17168-58022 |
— | ||
|
17172
|
17172
17171-56010 Gasket, Manifold To Cylinder Head[08.1988 - 01.1990] 13BT,3B..BJ7# |
17171-56010 |
from US $10.93 |
||
|
17172
|
17172
17172-56022
Gasket, Manifold To Cylinder Head
[11.1984 - 08.1988] 13BT,3B..BJ7# |
17172-56022 |
— | ||
| replacement | |||||
|
17172
|
17172
17171-56010 Gasket, Manifold To Cylinder Head[11.1984 - 08.1988] 13BT,3B..BJ7# |
17171-56010 |
from US $10.93 |
||
|
17173
|
17173
17173-56040 Gasket, Exhaust Manifold To Head[08.1988 - 01.1990] 3B..BJ70,73,75 |
17173-56040 |
from US $15.87 |
||
|
17173
|
17173
17173-58010 Gasket, Exhaust Manifold To Head[11.1984 - 08.1988] 13BT,3B..BJ7# |
17173-58010 |
from US $22.04 |
||
|
9011008018
|
9011008018
90110-08018 New Genuine Part |
90110-08018 |
US $1.22 |
||
|
9011608280
|
9011608280
90116-08280 STUD |
90116-08280 |
from US $1.31 |
||
|
9011910346
|
9011910346
90119-10346
Bolt (For Front Lower Ball Joint)
|
90119-10346 |
— | ||
| replacement | |||||
|
9011910346
|
9011910346
90105-10057 Bolt (For Front Lower Ball Joint) |
90105-10057 |
US $4.12 |
||
|
9017908088
|
9017908088
90179-08088
NUT
|
90179-08088 |
— | ||
| replacement | |||||
|
9017908088
|
9017908088
94185-60800 NUT |
94185-60800 |
from US $0.80 |
||
|
9020112014
|
9020112014
90201-12014 New Genuine Part |
90201-12014 |
US $2.15 |
||
|
9056012033
|
9056012033
90560-12033 New Genuine Part |
90560-12033 |
US $1.97 |
||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.08 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $0.99 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 BOLT |
90080-11396 |
US $3.32 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.82 |
||
|
9418461000
|
9418461000
94184-61000 Nut(For Rear Spring) |
94184-61000 |
US $2.87 |
||
| replacement | |||||
|
9418461000
|
9418461000
48284-0W060 Nut, Front Spring Center Bolt |
48284-0W060 |
from US $0.87 |
||
|
9461310800
|
9461310800
94613-10800 Spacer (For Control Select Lever Support) |
94613-10800 |
from US $0.67 |
||
