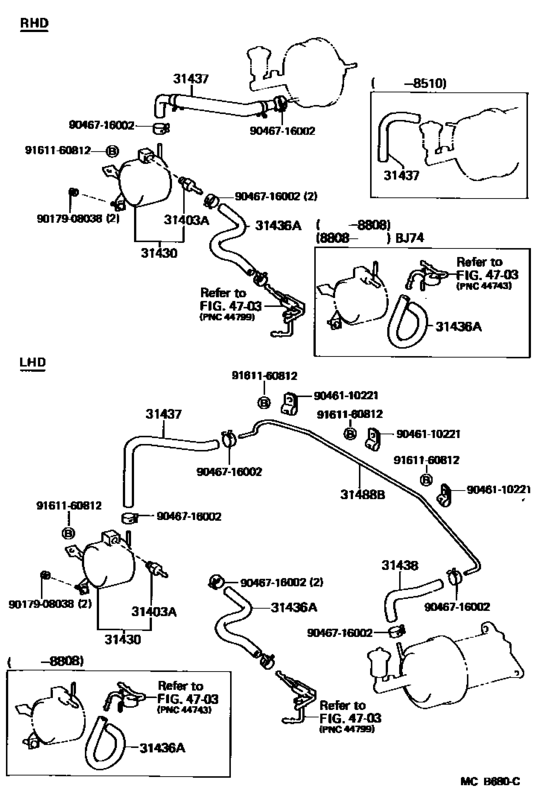

Clutch Booster ([11.1984 - ] (8411- )BJ7#..MTM) Diagram Toyota LAND CRUISER
- Year
- 1984 - 1986
- Sales region
- General
- Frame
- BJ75
- grade
- STD
- body
- PIC
- ENGINE
- 3B
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 70
- From
- 11.1984
- To
- 08.1986
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
- Driver's Position
- RHD
- Fuel Induction
- DSL
- Building Condition
- IV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31403A
|
31403A
44730-60040 Booster Kit, Brake[11.1984 - 01.1990] BJ7#,FJ7#,HJ75..MTM..(ARL,GEN,ME) |
44730-60040 |
US $77.93 |
||
|
31430
|
31430
31430-60030
Reservoir Assy, Clutch Vacuum
[11.1984 - 01.1990] BJ70,73,75..LHD; BJ7#,FJ7#..RHD..MTM..(ARL,GEN) |
31430-60030 |
— | ||
|
31436A
|
31436A
31437-60060
Hose, No.1(For Clutch Booster Vacuum)
[11.1984 - 08.1988] BJ7#..MTM |
31437-60060 |
— | ||
|
31437
|
31437
95441-09220 Hose, No.2(For Clutch Booster Vacuum)[11.1984 - 10.1985] BJ7#..RHD |
95441-09220 |
US $11.50 |
||
| replacement | |||||
|
31437
|
31437
95446-09300 Hose, Solenoid To Vacuum Tube[11.1984 - 10.1985] BJ7#..RHD |
95446-09300 |
US $11.65 |
||
|
31437
|
31437
95441-09380 Hose, No.2(For Clutch Booster Vacuum)[10.1985 - 09.1988] BJ70,73,75..RHD |
95441-09380 |
US $14.41 |
||
| replacement | |||||
|
31437
|
31437
31438-60050
Hose, No.2(For Clutch Booster Vacuum)
[10.1985 - 09.1988] BJ70,73,75..RHD |
31438-60050 |
— | ||
|
9017908038
|
9017908038
90179-08038 Nut (For Transmission Control Cable) |
90179-08038 |
from US $0.78 |
||
|
9046110221
|
9046110221
90461-10221
Clamp, Conneector Tube
|
90461-10221 |
— | ||
|
9046716002
|
9046716002
90467-16002
Clip(Vaccum Transmitting Hose No.1)
|
90467-16002 |
— | ||
| replacement | |||||
|
9046716002
|
9046716002
96133-41500 Clamp Or Clip(For Air Hose, No.5) |
96133-41500 |
from US $2.30 |
||
|
9161160812
|
9161160812
91611-60812
Bolt(For Drive Plate & Torque Converter Setting)
|
91611-60812 |
— | ||
| replacement | |||||
|
9161160812
|
9161160812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
