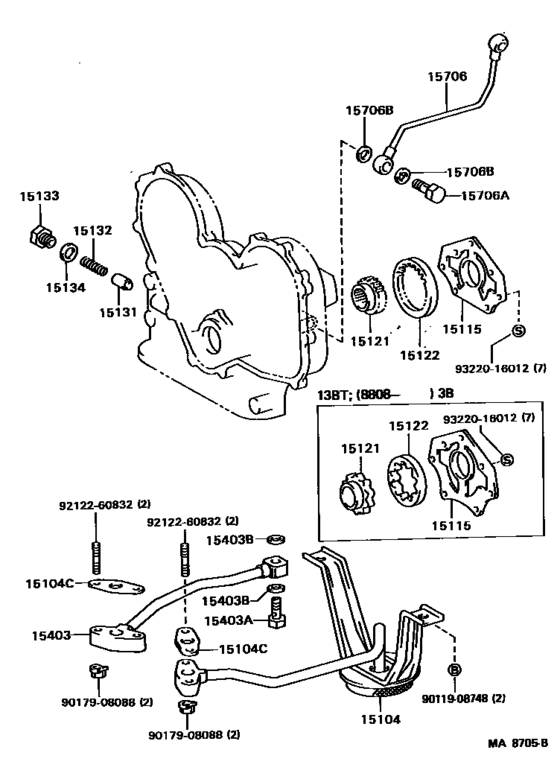

Engine Oil Pump ([11.1984 - ] (8411- )13BT,3B) Diagram Toyota LAND CRUISER
- Year
- 1984 - 1986
- Sales region
- General
- Frame
- BJ75
- grade
- STD
- body
- PIC
- ENGINE
- 3B
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 70
- From
- 11.1984
- To
- 08.1986
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
- Driver's Position
- RHD
- Fuel Induction
- DSL
- Building Condition
- IV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15104
|
15104
15104-56050 Strainer Sub-Assy, Oil[11.1984 - 08.1988] 13BT,3B..BJ7# |
15104-56050 |
US $183.46 |
||
| replacement | |||||
|
15104
|
15104
15104-56062 Strainer Sub-Assy, Oil[11.1984 - 08.1988] 13BT,3B..BJ7# |
15104-56062 |
US $124.05 |
||
|
15104C
|
15104C
15149-56020
Gasket(For Oil Strainer)
[08.1988 - 01.1990] 13BT,3B..BJ7# |
15149-56020 |
— | ||
| replacement | |||||
|
15104C
|
15104C
15149-58010 Gasket(For Oil Strainer)[08.1988 - 01.1990] 13BT,3B..BJ7# |
15149-58010 |
US $3.03 |
||
|
15104C
|
15104C
15193-56020
Gasket(For Oil Strainer)
[11.1984 - 08.1988] 13BT,3B..BJ7# |
15193-56020 |
— | ||
| replacement | |||||
|
15104C
|
15104C
15149-58010 Gasket(For Oil Strainer)[11.1984 - 08.1988] 13BT,3B..BJ7# |
15149-58010 |
US $3.03 |
||
|
15115
|
15115
15115-56030 Cover, Oil Pump[11.1984 - 08.1988] 3B..BJ70,73,75 |
15115-56030 |
US $52.02 |
||
|
15121
|
15121
15121-56030 Gear, Oil Pump Drive[11.1984 - 08.1988] 3B..BJ70,73,75 |
15121-56030 |
US $63.03 |
||
|
15122
|
15122
15122-56030 Gear, Oil Pump Driven[11.1984 - 08.1988] 3B..BJ70,73,75 |
15122-56030 |
from US $75.29 |
||
|
15131
|
15131
15131-24010 Valve, Oil Pump Relief[11.1984 - 01.1990] 13BT,3B..BJ7#; 3F..FJ7# |
15131-24010 |
from US $3.90 |
||
|
15132
|
15132
15132-76011 Spring, Oil Pump Relief Valve[11.1984 - 08.1988] 3B..BJ70,73,75; 2H..HJ75 |
15132-76011 |
from US $2.30 |
||
|
15133
|
15133
15133-20010 Plug, Oil Pump Relief Valve[11.1984 - 01.1990] 13BT,3B..BJ7#; 2H..HJ75; 22R..RJ70 |
15133-20010 |
from US $3.17 |
||
|
15134
|
15134
15134-20010 Gasket, Oil Pump Relief Valve[11.1984 - 01.1990] 13BT,3B..BJ7#; 2H..HJ75; 22R..RJ70 |
15134-20010 |
from US $1.88 |
||
|
15403
|
15403
15403-56041 Pipe Sub-Assy, Oil Pump Outlet[11.1984 - 08.1988] 13BT,3B..BJ7# |
15403-56041 |
US $141.23 |
||
|
15403
|
15403
15403-56050 Pipe Sub-Assy, Oil Pump Outlet[08.1988 - 01.1990] 13BT,3B..BJ7# |
15403-56050 |
US $54.16 |
||
|
15403A
|
15403A
90401-18002
Union(For Oil Pump Outlet Pipe)
[11.1984 - 08.1988] 13BT,3B..BJ7# |
90401-18002 |
— | ||
|
15403A
|
15403A
90401-20009 Union(For Oil Pump Outlet Pipe)[08.1988 - 01.1990] 13BT,3B..BJ7# |
90401-20009 |
US $5.42 |
||
|
15403B
|
15403B
90430-18012 Gasket(For Oil Pump Outlet Pipe)[11.1984 - 08.1988] 13BT,3B..BJ7#; 2H..HJ75 |
90430-18012 |
US $3.05 |
||
|
15403B
|
15403B
90430-20018 Gasket(For Oil Pump Outlet Pipe)[08.1988 - 01.1990] 13BT,3B..BJ7# |
90430-20018 |
from US $1.16 |
||
|
15706
|
15706
15077-56010
Pipe Sub-Assy, Oil, Injection Pump Outlet
[11.1984 - 08.1988] 13BT,3B..BJ7# |
15077-56010 |
— | ||
|
15706A
|
15706A
90044-01010
Union(For Oil Pipe, No.1)
[11.1984 - 08.1988] 13BT,3B..BJ7# |
90044-01010 |
— | ||
|
15706B
|
15706B
90044-30026 Gasket(For Injection Pump Outlet Pipe)[11.1984 - 08.1988] 13BT,3B..BJ7# |
90044-30026 |
US $3.40 |
||
|
9011908748
|
9011908748
90119-08748 Bolt(for Automatic Transmission Case Protector) |
90119-08748 |
US $1.89 |
||
| replacement | |||||
|
9011908748
|
9011908748
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $0.97 |
||
|
9017908088
|
9017908088
90179-08088
NUT
|
90179-08088 |
— | ||
| replacement | |||||
|
9017908088
|
9017908088
94185-60800 NUT |
94185-60800 |
from US $0.80 |
||
|
9212260832
|
9212260832
92122-60832 Bolt, Stud(For Oil Strainer) |
92122-60832 |
from US $1.61 |
||
|
9322016012
|
9322016012
93220-16012 SCREW |
93220-16012 |
US $1.40 |
||
