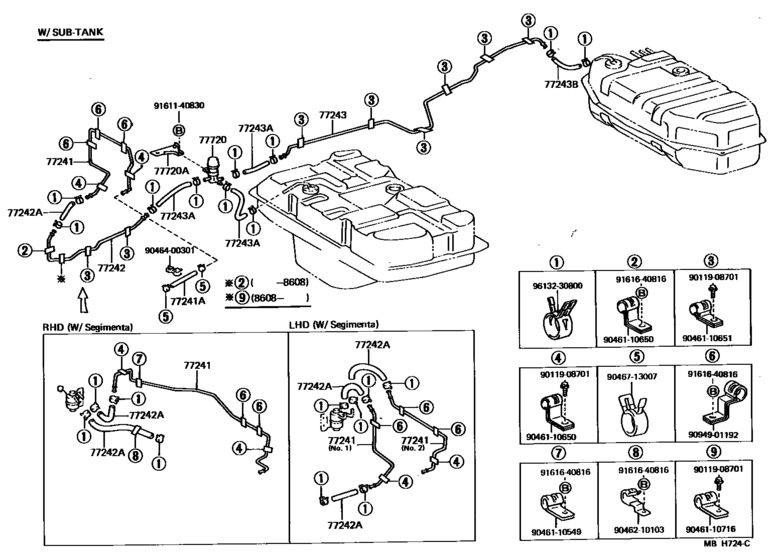

Fuel Tank & Tube ([11.1984 - ] (8411- )BJ75) Diagram Toyota LAND CRUISER
- Year
- 1984 - 1986
- Sales region
- General
- Frame
- BJ75
- grade
- STD
- body
- PIC
- ENGINE
- 3B
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 70
- From
- 11.1984
- To
- 08.1986
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
- Driver's Position
- RHD
- Fuel Induction
- DSL
- Building Condition
- IV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
77241
|
77241
77253-60050 Tube, Fuel Main, No.1[11.1984 - 08.1988] BJ70,73,75..GEN |
77253-60050 |
US $20.24 |
||
|
77241
|
77241
77253-60100 Tube, Fuel Main, No.1[11.1984 - 01.1990] BJ7#..RHD W/SEDIMENTER |
77253-60100 |
US $21.84 |
||
|
77241A
|
77241A
95332-08040
Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
[11.1984 - 02.1987] BJ70,73,75 *H,L=360,ID=8 |
95332-08040 |
— | ||
| replacement | |||||
|
77241A
|
77241A
95337-08040 Hose, Fuel, No.2 (For Main Tube, No.1)[11.1984 - 02.1987] BJ70,73,75 *H,L=360,ID=8 |
95337-08040 |
US $9.32 |
||
|
77242
|
77242
77252-60140 Tube, Fuel Main, No.2FUEL MAIN, NO.2 [11.1984 - 08.1986] BJ75 |
77252-60140 |
US $13.83 |
||
| replacement | |||||
|
77242
|
77242
77252-60141 Tube, Fuel Main, No.2FUEL MAIN, NO.2 [11.1984 - 08.1986] BJ75 |
77252-60141 |
US $20.24 |
||
|
77242
|
77242
77252-60141 Tube, Fuel Main, No.2FUEL MAIN, NO.2 [08.1986 - 08.1988] BJ75 |
77252-60141 |
US $20.24 |
||
|
77242A
|
77242A
90447-14026 Hose, Fuel, No.1 (For Main Tube, No.2)[11.1984 - 01.1990] BJ7#..RHD W/SEDIMENTER |
90447-14026 |
US $41.06 |
||
|
77242A
|
77242A
95332-08020
Hose, Fuel Pipe, No.1
[11.1984 - 01.1987] LJ70 *H,L=200,ID=7.6; FJ70,73 *H,L=200,ID=7.6; BJ70,73,75..GEN *H,L=200,ID=7.6 |
95332-08020 |
— | ||
| replacement | |||||
|
77242A
|
77242A
95337-08020 Hose, Fuel(For Fuel Evaporative Separator)FUEL, NO.1(FOR RETURN TUBE, NO.1) [11.1984 - 01.1987] LJ70 *H,L=200,ID=7.6; FJ70,73 *H,L=200,ID=7.6; BJ70,73,75..GEN *H,L=200,ID=7.6 |
95337-08020 |
from US $5.56 |
||
|
77242A
|
77242A
95332-08040
Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
[11.1984 - 02.1987] BJ70,73,75..RHD *H,L=380,ID=8,W/SEDIMENTER |
95332-08040 |
— | ||
| replacement | |||||
|
77242A
|
77242A
95337-08040 Hose, Fuel, No.2 (For Main Tube, No.1)[11.1984 - 02.1987] BJ70,73,75..RHD *H,L=380,ID=8,W/SEDIMENTER |
95337-08040 |
US $9.32 |
||
|
77243
|
77243
77254-60020 Tube, Fuel Main, No.2FUEL MAIN, NO.2 [11.1984 - 01.1990] BJ75 |
77254-60020 |
US $38.44 |
||
|
77243A
|
77243A
95332-08020
Hose, Fuel Pipe, No.1
[11.1984 - 01.1987] BJ75 *H,L=200,ID=7.6 |
95332-08020 |
— | ||
| replacement | |||||
|
77243A
|
77243A
95337-08020 Hose, Fuel(For Fuel Evaporative Separator)FUEL, NO.1(FOR RETURN TUBE, NO.1) [11.1984 - 01.1987] BJ75 *H,L=200,ID=7.6 |
95337-08020 |
from US $5.56 |
||
|
77243A
|
77243A
95332-08040
Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
[11.1984 - 08.1986] BJ75 *H,L=340,ID=8 |
95332-08040 |
— | ||
| replacement | |||||
|
77243A
|
77243A
95337-08040 Hose, Fuel, No.2 (For Main Tube, No.1)[11.1984 - 08.1986] BJ75 *H,L=340,ID=8 |
95337-08040 |
US $9.32 |
||
|
77243A
|
77243A
95333-08030 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)[08.1986 - 01.1990] BJ75 *H,L=300 |
95333-08030 |
US $11.83 |
||
|
77243B
|
77243B
95332-08030
Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
[11.1984 - 08.1986] BJ75 *H,L=260,ID=8 |
95332-08030 |
— | ||
| replacement | |||||
|
77243B
|
77243B
95333-08030 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)[11.1984 - 08.1986] BJ75 *H,L=260,ID=8 |
95333-08030 |
US $11.83 |
||
|
77243B
|
77243B
95333-08028 Hose, Fuel, No.2 (For Main Tube, No.1)[08.1986 - 01.1990] BJ75 *H,L=280 |
95333-08028 |
US $7.86 |
||
| replacement | |||||
|
77243B
|
77243B
95333-08030 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)[08.1986 - 01.1990] BJ75 *H,L=280 |
95333-08030 |
US $11.83 |
||
|
77720
|
77720
77710-60020
Valve Sub-Assy, Safety
[11.1984 - 10.1985] BJ75,FJ75,HJ75 MAIN |
77710-60020 |
— | ||
|
77720A
|
77720A
77716-60020 Bracket, Safety ValveSAFETY VALVE [11.1984 - 10.1985] BJ75,HJ75 |
77716-60020 |
US $24.61 |
||
|
9011908701
|
9011908701
90119-08701 BOLT |
90119-08701 |
from US $0.99 |
||
|
9046110549
|
9046110549
90461-10549
New Genuine Part
|
90461-10549 |
— | ||
|
9046110650
|
9046110650
90461-10650
Clamp, Accelerator Control Cable
|
90461-10650 |
— | ||
|
9046110651
|
9046110651
90461-10651 New Genuine Part |
90461-10651 |
US $5.02 |
||
|
9046110716
|
9046110716
90461-10716 New Genuine Part |
90461-10716 |
US $3.79 |
||
|
9046210103
|
9046210103
90462-10103 New Genuine Part |
90462-10103 |
US $4.22 |
||
|
9046400301
|
9046400301
90464-00301 Clamp |
90464-00301 |
US $1.61 |
||
|
9046713007
|
9046713007
90467-13007
Clamp Or Clip(For Water By-Pass Hose No.2)
|
90467-13007 |
— | ||
| replacement | |||||
|
9046713007
|
9046713007
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.46 |
||
|
9094901192
|
9094901192
90949-01192
New Genuine Part
|
90949-01192 |
— | ||
|
9161140830
|
9161140830
91611-40830
Bolt(For Clutch Release Cylinder Setting)
|
91611-40830 |
— | ||
| replacement | |||||
|
9161140830
|
9161140830
91611-60830 Bolt(For Clutch Release Cylinder Setting) |
91611-60830 |
from US $1.41 |
||
|
9161640816
|
9161640816
91616-40816
Screw Or Bolt(for Valve Rocker Shaft Lock)
|
91616-40816 |
— | ||
| replacement | |||||
|
9161640816
|
9161640816
91611-B0816 Bolt |
91611-B0816 |
from US $0.99 |
||
|
9613230800
|
9613230800
96132-30800
Clip, No.3(For Idle-Up Hose)
|
96132-30800 |
— | ||
| replacement | |||||
|
9613230800
|
9613230800
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.46 |
||
