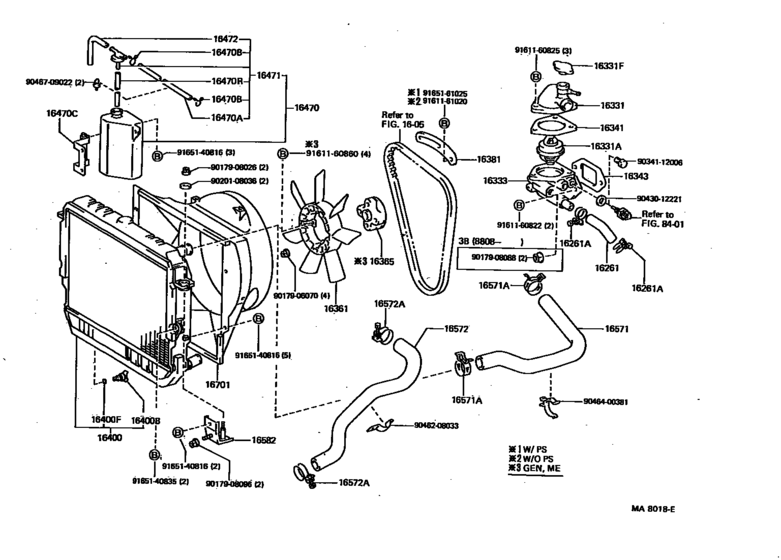

Radiator & Water Outlet ([11.1984 - ] (8411- )3B) Diagram Toyota LAND CRUISER
- Year
- 1984 - 1986
- Sales region
- General
- Frame
- BJ75
- grade
- STD
- body
- PIC
- ENGINE
- 3B
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 70
- From
- 11.1984
- To
- 08.1986
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
- Driver's Position
- RHD
- Fuel Induction
- DSL
- Building Condition
- IV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16261
|
16261
16261-56012 Hose, Water By-Pass[11.1984 - 01.1990] 13BT,3B..BJ7# |
16261-56012 |
from US $9.90 |
||
|
16261A
|
16261A
90044-60053 Clamp Or Clip, Hose(For Water By-Pass Hose)[11.1984 - 09.1986] 13BT,3B..BJ7# |
90044-60053 |
US $4.12 |
||
|
16261A
|
16261A
90467-28004
Clamp Or Clip, Hose(For Water By-Pass Hose)
[08.1988 - 01.1990] 13BT,3B..BJ7# |
90467-28004 |
— | ||
| replacement | |||||
|
16261A
|
16261A
90467-28007 Clip Or Clamp(For Ventilation Hose)[08.1988 - 01.1990] 13BT,3B..BJ7# |
90467-28007 |
from US $2.98 |
||
|
16331
|
16331
16331-58010
Outlet, Water
[11.1984 - 01.1990] 3B..BJ70,73,75 |
16331-58010 |
— | ||
|
16331A
|
16331A
90916-03066
Thermostat
[11.1984 - 08.1988] 13BT,3B..BJ7# *WAX 82-95 |
90916-03066 |
— | ||
| replacement | |||||
|
16331A
|
16331A
90916-03102 Thermostat[11.1984 - 08.1988] 13BT,3B..BJ7# *WAX 82-95 |
90916-03102 |
from US $19.82 |
||
|
16331A
|
16331A
90916-03077
Thermostat
[08.1988 - 01.1990] 13BT,3B..BJ7# *WAX 82-95 |
90916-03077 |
— | ||
| replacement | |||||
|
16331A
|
16331A
90916-03102 Thermostat[08.1988 - 01.1990] 13BT,3B..BJ7# *WAX 82-95 |
90916-03102 |
from US $19.82 |
||
|
16331F
|
16331F
16401-71010
Cap Sub-Assy(For Water Outlet)
[11.1984 - 01.1990] 13BT,3B..BJ7#; 2LT..LJ70 |
16401-71010 |
— | ||
| replacement | |||||
|
16331F
|
16331F
16401-54750 Radiator Cap[11.1984 - 01.1990] 13BT,3B..BJ7#; 2LT..LJ70 |
16401-54750 |
from US $16.13 |
||
|
16333
|
16333
16333-56060
Housing, Water Outlet
[11.1984 - 08.1988] 13BT,3B..BJ7# |
16333-56060 |
— | ||
| replacements | |||||
|
16333
|
16333
16333-58080 Housing, Water Outlet[11.1984 - 08.1988] 13BT,3B..BJ7# |
16333-58080 |
from US $59.89 |
||
|
16333
|
16333
16341-56030 Gasket, Water Outlet[11.1984 - 08.1988] 13BT,3B..BJ7# |
16341-56030 |
from US $2.51 |
||
|
16333
|
16333
16343-56023 Gasket, Water Outlet Housing[11.1984 - 08.1988] 13BT,3B..BJ7# |
16343-56023 |
from US $3.29 |
||
|
16333
|
16333
90341-12006 Plug(For Water Outlet)[11.1984 - 08.1988] 13BT,3B..BJ7# |
90341-12006 |
US $4.54 |
||
|
16333
|
16333
90430-12221 Gasket[11.1984 - 08.1988] 13BT,3B..BJ7# |
90430-12221 |
from US $1.05 |
||
|
16333
|
16333
92122-60832 Bolt, Stud(For Oil Strainer)[11.1984 - 08.1988] 13BT,3B..BJ7# |
92122-60832 |
from US $1.61 |
||
|
16333
|
16333
94185-60800 NUT[11.1984 - 08.1988] 13BT,3B..BJ7# |
94185-60800 |
from US $0.80 |
||
|
16333
|
16333
16333-56070
Housing, Water Outlet
[08.1988 - 04.1989] 13BT,3B..BJ7# |
16333-56070 |
— | ||
| replacements | |||||
|
16333
|
16333
16333-58080 Housing, Water Outlet[08.1988 - 04.1989] 13BT,3B..BJ7# |
16333-58080 |
from US $59.89 |
||
|
16333
|
16333
16343-56023 Gasket, Water Outlet Housing[08.1988 - 04.1989] 13BT,3B..BJ7# |
16343-56023 |
from US $3.29 |
||
|
16333
|
16333
92112-60835 Bolt, Stud(For Cylinder Head Cover Set)[08.1988 - 04.1989] 13BT,3B..BJ7# |
92112-60835 |
US $3.40 |
||
|
16333
|
16333
90341-12006 Plug(For Water Outlet)[08.1988 - 04.1989] 13BT,3B..BJ7# |
90341-12006 |
US $4.54 |
||
|
16333
|
16333
90430-12221 Gasket[08.1988 - 04.1989] 13BT,3B..BJ7# |
90430-12221 |
from US $1.05 |
||
|
16333
|
16333
16333-56071
Housing, Water Outlet
[04.1989 - 08.1989] 13BT,3B..BJ7# |
16333-56071 |
— | ||
| replacements | |||||
|
16333
|
16333
16343-56023 Gasket, Water Outlet Housing[04.1989 - 08.1989] 13BT,3B..BJ7# |
16343-56023 |
from US $3.29 |
||
|
16333
|
16333
16333-58080 Housing, Water Outlet[04.1989 - 08.1989] 13BT,3B..BJ7# |
16333-58080 |
from US $59.89 |
||
|
16333
|
16333
90341-12006 Plug(For Water Outlet)[04.1989 - 08.1989] 13BT,3B..BJ7# |
90341-12006 |
US $4.54 |
||
|
16333
|
16333
90430-12221 Gasket[04.1989 - 08.1989] 13BT,3B..BJ7# |
90430-12221 |
from US $1.05 |
||
|
16333
|
16333
16333-56072
Housing, Water Outlet
[08.1989 -] 13BT,3B..BJ7# |
16333-56072 |
— | ||
| replacements | |||||
|
16333
|
16333
16333-58080 Housing, Water Outlet[08.1989 -] 13BT,3B..BJ7# |
16333-58080 |
from US $59.89 |
||
|
16333
|
16333
90341-12006 Plug(For Water Outlet)[08.1989 -] 13BT,3B..BJ7# |
90341-12006 |
US $4.54 |
||
|
16333
|
16333
90430-12221 Gasket[08.1989 -] 13BT,3B..BJ7# |
90430-12221 |
from US $1.05 |
||
|
16341
|
16341
16341-56020
Gasket, Water Outlet
[11.1984 - 08.1988] 13BT,3B..BJ7# |
16341-56020 |
— | ||
| replacement | |||||
|
16341
|
16341
16341-56021 Gasket, Water Outlet[11.1984 - 08.1988] 13BT,3B..BJ7# |
16341-56021 |
from US $3.71 |
||
|
16341
|
16341
16341-56030 Gasket, Water Outlet[08.1988 - 01.1990] 13BT,3B..BJ7# |
16341-56030 |
from US $2.51 |
||
|
16343
|
16343
16343-56020
Gasket, Water Outlet Housing
[11.1984 - 08.1988] 13BT,3B..BJ7# |
16343-56020 |
— | ||
| replacement | |||||
|
16343
|
16343
16343-56023 Gasket, Water Outlet Housing[11.1984 - 08.1988] 13BT,3B..BJ7# |
16343-56023 |
from US $3.29 |
||
|
16361
|
16361
16361-47010 Fan[11.1984 - 01.1990] 3B..BJ70,73,75..GEN,ME |
16361-47010 |
from US $64.92 |
||
|
16365
|
16365
16365-57011
Spacer, Fan
[11.1984 - 01.1990] 3B..BJ70,73,75..GEN,ME |
16365-57011 |
— | ||
|
16381
|
16381
16381-56030
Bar, Fan Belt Adjusting
[11.1984 - 08.1986] 13BT,3B..BJ7# |
16381-56030 |
— | ||
|
16381
|
16381
16381-56070 Bar, Fan Belt AdjustingFAN BELT ADJUSTING [08.1988 - 01.1990] 3B..BJ70,73,75 |
16381-56070 |
US $24.17 |
||
| replacement | |||||
|
16381
|
16381
16381-58110
Bar, Fan Belt Adjusting
[08.1988 - 01.1990] 3B..BJ70,73,75 |
16381-58110 |
— | ||
|
16381
|
16381
16381-58020 Bar, Fan Belt Adjusting[11.1984 - 08.1988] 13BT,3B..BJ7# W/PS |
16381-58020 |
US $44.84 |
||
|
16381
|
16381
16381-58060 Bar, Fan Belt AdjustingFAN BELT ADJUSTING [08.1988 - 01.1990] 3B..BJ70,73,75 W/PS |
16381-58060 |
US $17.33 |
||
|
16400
|
16400
16400-58170
Radiator Assy
[11.1984 - 01.1990] 13BT,3B..BJ7#..MTM |
16400-58170 |
— | ||
|
16400B
|
16400B
16417-24200 Plug, Radiator Drain Cock[11.1984 - 01.1990] 13BT,3B..BJ7#; 3F..FJ7#; 2H..HJ75; 2L#..LJ70; 22R..RJ70 |
16417-24200 |
from US $3.50 |
||
|
16400F
|
16400F
16418-24200 Packing(For Radiator Drain Cock)[11.1984 - 01.1990] 13BT,3B..BJ7#; 3F..FJ7#; 2H..HJ75; 2L#..LJ70; 22R..RJ70 |
16418-24200 |
from US $1.24 |
||
|
16470
|
16470
16470-58040
Tank Assy, Radiator Reserve
[11.1984 - 01.1990] 13BT,3B..BJ7# |
16470-58040 |
— | ||
|
16470A
|
16470A
90099-33534 Hose Or Pipe(For Radiator Reserve Tank)[11.1984 - 01.1990] 13BT,3B..BJ7# *H,L=960 |
90099-33534 |
US $5.42 |
||
|
16470B
|
16470B
90467-11085 Clamp Or Clip(For Radiator Breather Hose)[11.1984 - 01.1990] 13BT,3B..BJ7#; 3F..FJ7#; 2L#..LJ70; 22R..RJ70; 2H..HJ75..ARL,GEN |
90467-11085 |
from US $0.70 |
||
|
16470C
|
16470C
16611-68020
Bracket(For Radiator Reserve Tank)
[11.1984 - 01.1990] 13BT,3B..BJ7# |
16611-68020 |
— | ||
|
16470R
|
16470R
90445-12078 Hose(For Radiator Breather)[11.1984 - 01.1990] 13BT,3B..BJ7# *H,L=220; 2H..HJ75 *H,L=220 |
90445-12078 |
from US $6.61 |
||
|
16471
|
16471
16405-58020
Cap Sub-Assy, Reserve Tank
[11.1984 - 01.1990] 13BT,3B..BJ7# |
16405-58020 |
— | ||
|
16472
|
16472
85338-30010
Hose(For Radiator Drain Cock)
[11.1984 - 09.1986] 2H..HJ75..ARL,GEN; 13BT,3B..BJ7# |
85338-30010 |
— | ||
|
16571
|
16571
16571-58040 Hose, Radiator, Inlet[11.1984 - 01.1990] 13BT,3B..BJ7# |
16571-58040 |
US $44.18 |
||
|
16571A
|
16571A
90467-42001
Clamp Or Clip, Hose(For Radiator Inlet)
[11.1984 - 09.1986] 3F..FJ7#; 13BT,3B..BJ7# |
90467-42001 |
— | ||
| replacement | |||||
|
16571A
|
16571A
90466-41008 Clamp, Hose(For Radiator Hose)[11.1984 - 09.1986] 3F..FJ7#; 13BT,3B..BJ7# |
90466-41008 |
from US $4.09 |
||
|
16572
|
16572
16572-58040 Hose, Radiator, Outlet[11.1984 - 01.1990] 13BT,3B..BJ7#..MTM |
16572-58040 |
from US $55.14 |
||
|
16572A
|
16572A
90460-50016
Clamp Or Clip, Hose(For Radiator Inlet)
[11.1984 - 09.1986] 2H..HJ75..ARL,GEN RADIATOR SIDE; 13BT,3B..BJ7# RADIATOR SIDE |
90460-50016 |
— | ||
| replacement | |||||
|
16572A
|
16572A
96111-10500 Clamp, Sub Radiator Inlet Hose[11.1984 - 09.1986] 2H..HJ75..ARL,GEN RADIATOR SIDE; 13BT,3B..BJ7# RADIATOR SIDE |
96111-10500 |
from US $2.15 |
||
|
16572A
|
16572A
96111-10560 Clamp Or Clip, Hose(For Radiator Outlet No.1)[11.1984 - 09.1986] 2H..HJ75..ARL,GEN WATER PUMP SIDE; 13BT,3B..BJ7# WATER PUMP SIDE |
96111-10560 |
US $4.12 |
||
|
16582
|
16582
16582-68010 Bracket, Radiator, No.1[11.1984 - 01.1990] 13BT,3B..BJ7#; 3F..FJ7#; 2H..HJ75 |
16582-68010 |
from US $45.53 |
||
|
16701
|
16701
16711-58030
Shroud Sub-Assy, Fan
[11.1984 - 01.1990] 13BT,3B..BJ7#..MTM |
16711-58030 |
— | ||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.57 |
||
|
9017908026
|
9017908026
90179-08026 Nut (For Front Wiper Arm Setting) |
90179-08026 |
US $1.43 |
||
|
9017908088
|
9017908088
90179-08088
NUT
|
90179-08088 |
— | ||
| replacement | |||||
|
9017908088
|
9017908088
94185-60800 NUT |
94185-60800 |
from US $0.80 |
||
|
9017908096
|
9017908096
90179-08096 NUT |
90179-08096 |
from US $1.37 |
||
|
9020108036
|
9020108036
90201-08036 WASHER |
90201-08036 |
from US $2.87 |
||
|
9034112006
|
9034112006
90341-12006 Plug(For Water Outlet) |
90341-12006 |
US $4.54 |
||
|
9043012221
|
9043012221
90430-12221 Gasket |
90430-12221 |
from US $1.05 |
||
|
9046208033
|
9046208033
90462-08033
New Genuine Part
|
90462-08033 |
— | ||
|
9046400381
|
9046400381
90464-00381
New Genuine Part
|
90464-00381 |
— | ||
|
9046709022
|
9046709022
90467-09022 New Genuine Part |
90467-09022 |
US $2.80 |
||
|
9161160822
|
9161160822
91611-60822 Bolt |
91611-60822 |
from US $1.16 |
||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.08 |
||
|
9161160860
|
9161160860
91611-60860 Bolt(For Rocker Support Set) |
91611-60860 |
US $1.79 |
||
|
9161161020
|
9161161020
91611-61020 Bolt(For Transaxle & Engine Setting) |
91611-61020 |
US $0.68 |
||
| replacement | |||||
|
9161161020
|
9161161020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
from US $1.05 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $0.95 |
||
|
9165140835
|
9165140835
91651-40835 New Genuine Part |
91651-40835 |
US $3.44 |
||
|
9165161025
|
9165161025
91651-61025 Bolt with washer |
91651-61025 |
from US $1.48 |
||
