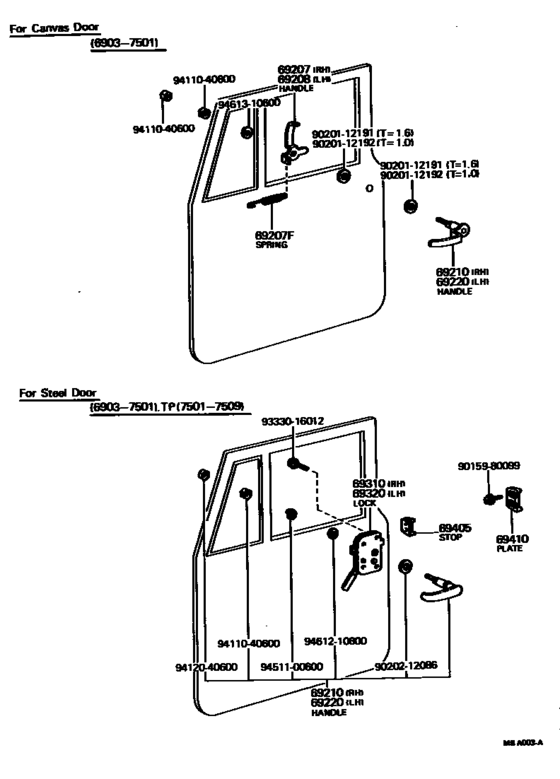

Front Door Lock & Handle ([03.1969 - 01.1975] (6903-7501)BJ4#,FJ4# ; (7501-7509)TPC) Diagram Toyota LAND CRUISER
- Year
- 1969 - 1975
- Sales region
- Japan
- Frame
- FJ43
- body
- TP
- ENGINE
- F
- Model
- LAND CRUISER 40
- From
- 03.1969
- To
- 01.1975
- Vehicle Model
- Land Cruiser VAN
- Back Door
- TPC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69207
|
69207
69261-60010
Handle Sub-Assy, Front Door Inside, Rh
[03.1969 - 09.1973] FJ4#..TPC |
69261-60010 |
— | ||
|
69207
|
69207
69261-90300 Handle Sub-Assy, Front Door Inside, RhFRONT DOOR INSIDE, RH [09.1973 - 01.1975] BJ4#,FJ4#..TP |
69261-90300 |
US $30.58 |
||
|
69207F
|
69207F
90506-16191
Spring, Tension(For Clutch Release Fork Return)
[03.1969 - 01.1975] BJ4#,FJ4#..TP |
90506-16191 |
— | ||
|
69208
|
69208
69262-60010
Handle Sub-Assy, Front Door Inside, Lh
[03.1969 - 09.1973] FJ4#..TPC |
69262-60010 |
— | ||
|
69208
|
69208
69262-90300
Handle Sub-Assy, Front Door Inside, Lh
[09.1973 - 01.1975] BJ4#,FJ4#..TP |
69262-90300 |
— | ||
|
69210
|
69210
69201-60010
Handle Assy, Front Door, Outside Rh
[03.1969 - 01.1975] BJ4#,FJ4#..TP FOR CANVAS DOOR |
69201-60010 |
— | ||
|
69210
|
69210
69201-90901 Handle Assy, Front Door, Outside RhFRONT DOOR, OUTSIDE RH [03.1969 - 01.1975] BJ4#,FJ4# FOR STEEL DOOR |
69201-90901 |
US $55.78 |
||
|
69220
|
69220
69201-60010
Handle Assy, Front Door, Outside Rh
[03.1969 - 01.1975] BJ4#,FJ4#..TP FOR CANVAS DOOR |
69201-60010 |
— | ||
|
69220
|
69220
69201-90901 Handle Assy, Front Door, Outside RhFRONT DOOR, OUTSIDE RH [03.1969 - 01.1975] BJ4#,FJ4# FOR STEEL DOOR |
69201-90901 |
US $55.78 |
||
|
69310
|
69310
69310-60031
Lock Assy, Tail Gate
[03.1969 - 01.1975] BJ4#,FJ4# |
69310-60031 |
— | ||
|
69320
|
69320
69320-60031
Lock Assy, Front Door, Lh
[03.1969 - 01.1975] BJ4#,FJ4# |
69320-60031 |
— | ||
|
69405
|
69405
69405-90300 Stop Sub-Assy, Door DownDOOR DOWN [07.1972 - 01.1975] BJ4#,FJ4# |
69405-90300 |
US $31.77 |
||
|
69405
|
69405
69405-95010
Stop Sub-Assy, Door Down
[03.1969 - 07.1972] FJ4# |
69405-95010 |
— | ||
|
69410
|
69410
67451-60020 Plate Assy, Front Door Lock StrikerFRONT DOOR LOCK STRIKER [03.1969 - 07.1972] FJ4# |
67451-60020 |
US $65 |
||
|
69410
|
69410
67451-90301
Striker, Tail Gate Lock
[07.1972 - 01.1975] BJ4#,FJ4# |
67451-90301 |
— | ||
|
9015980099
|
9015980099
90159-80099
New Genuine Part
|
90159-80099 |
— | ||
|
9020112191
|
9020112191
90201-12191
New Genuine Part
|
90201-12191 |
— | ||
|
9020112192
|
9020112192
90201-12192
New Genuine Part
|
90201-12192 |
— | ||
|
9020212086
|
9020212086
90202-12086
New Genuine Part
|
90202-12086 |
— | ||
|
9333016012
|
9333016012
93330-16012 New Genuine Part |
93330-16012 |
US $2.08 |
||
|
9411040600
|
9411040600
94110-40600 Nut, Rock |
94110-40600 |
from US $0.70 |
||
|
9412040600
|
9412040600
94120-40600 Nut, Wire Adjusting, No.1 |
94120-40600 |
US $2.72 |
||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $1.92 |
||
|
9461210600
|
9461210600
94612-10600 New Genuine Part |
94612-10600 |
US $3.84 |
||
|
9461310600
|
9461310600
94613-10600 New Genuine Part |
94613-10600 |
US $2.72 |
