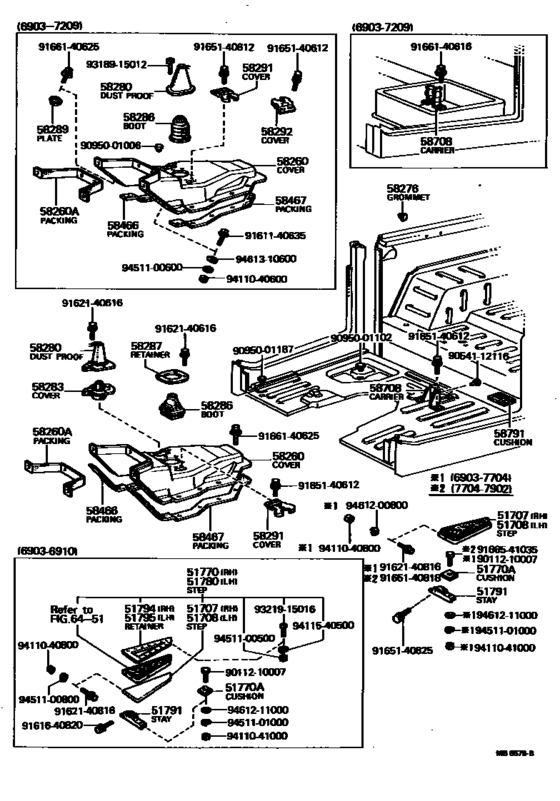

Front Floor Panel & Front Floor Member ([03.1969 - 02.1979] (6903-7902)BJ4#,FJ4#) Diagram Toyota LAND CRUISER
- Year
- 1969 - 1975
- Sales region
- Japan
- Frame
- FJ43
- body
- TP
- ENGINE
- F
- Model
- LAND CRUISER 40
- From
- 03.1969
- To
- 01.1975
- Vehicle Model
- Land Cruiser VAN
- Back Door
- TPC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51707
|
51707
51707-60012
Step Sub-Assy, Rh
[10.1969 - 12.1970] FJ4# |
51707-60012 |
— | ||
|
51707
|
51707
51707-90301 Step Sub-Assy, RhRH [12.1970 - 02.1979] BJ4#,FJ4# |
51707-90301 |
US $113.57 |
||
| replacement | |||||
|
51707
|
51707
51707-90302
Step Sub-Assy, Rh
[12.1970 - 02.1979] BJ4#,FJ4# |
51707-90302 |
— | ||
|
51707
|
51707
51780-60011 Step Sub-Assy, RhFRONT, RH [03.1969 - 10.1969] FJ4# |
51780-60011 |
US $110.66 |
||
| replacement | |||||
|
51707
|
51707
51707-69015 Step Assy, Front, Rh[03.1969 - 10.1969] FJ4# |
51707-69015 |
from US $125.80 |
||
|
51708
|
51708
51708-60012
Step Sub-Assy, Lh
[10.1969 - 12.1970] FJ4# |
51708-60012 |
— | ||
|
51708
|
51708
51708-90301 Step Sub-Assy, LhLH [12.1970 - 02.1979] BJ4#,FJ4# |
51708-90301 |
US $113.57 |
||
| replacement | |||||
|
51708
|
51708
51708-90302
Step Sub-Assy, Lh
[12.1970 - 02.1979] BJ4#,FJ4# |
51708-90302 |
— | ||
|
51708
|
51708
51790-60011
Step Sub-Assy, Lh
[03.1969 - 10.1969] FJ4# |
51790-60011 |
— | ||
| replacement | |||||
|
51708
|
51708
51707-69015 Step Assy, Front, Rh[03.1969 - 10.1969] FJ4# |
51707-69015 |
from US $125.80 |
||
|
51770
|
51770
51707-69015 Step Assy, Front, Rh[03.1969 - 10.1969] FJ4# |
51707-69015 |
from US $125.80 |
||
|
51770A
|
51770A
52213-90310
Cushion(For Step)
[03.1969 - 03.1972] FJ4# |
52213-90310 |
— | ||
| replacement | |||||
|
51770A
|
51770A
52212-90310
Spacer, Body Mounting
[03.1969 - 03.1972] FJ4# |
52212-90310 |
— | ||
|
51780
|
51780
51707-69015 Step Assy, Front, Rh[03.1969 - 10.1969] FJ4# |
51707-69015 |
from US $125.80 |
||
|
51791
|
51791
51791-60010
Stay, Step
[03.1969 - 02.1979] BJ4#,FJ4# |
51791-60010 |
— | ||
|
51794
|
51794
51793-60011
Retainer, Front Step Mat, Rh
[03.1969 - 10.1969] FJ4# |
51793-60011 |
— | ||
|
51795
|
51795
51794-60011
Retainer,front Step Mat, Lh
[03.1969 - 10.1969] FJ4# |
51794-60011 |
— | ||
|
58260
|
58260
58206-60071
Cover Assy, Transmission, Front
[03.1969 - 09.1972] FJ4# COLUMN SHIFT |
58206-60071 |
— | ||
|
58260
|
58260
58206-60081
Cover Assy, Transmission, Front
[03.1969 - 09.1972] FJ4# COLUMN SHIFT,FR.& RR. P.T.O. |
58206-60081 |
— | ||
|
58260
|
58260
58206-60091
Cover Assy, Transmission, Front
[03.1969 - 09.1972] FJ4# COLUMN SHIFT,FR. P.T.O. |
58206-60091 |
— | ||
|
58260
|
58260
58206-60102
Cover Assy, Transmission, Front
[03.1969 - 09.1972] FJ4# FLOOR SHIFT,FR.& RR. P.T.O. |
58206-60102 |
— | ||
|
58260
|
58260
58206-60112
Cover Assy, Transmission, Front
[03.1969 - 09.1972] FJ4# FLOOR SHIFT,FR. P.T.O. |
58206-60112 |
— | ||
|
58260
|
58260
58206-60122
Cover Assy, Transmission, Front
[03.1969 - 09.1972] FJ4# FLOOR SHIFT |
58206-60122 |
— | ||
|
58260
|
58260
58206-90305
Cover Assy, Transmission, Front
[09.1972 - 06.1973] FJ4# 4-SPEED |
58206-90305 |
— | ||
|
58260
|
58260
58206-90307
Cover Assy, Transmission, Front
[09.1972 - 06.1973] FJ4# 4-SPEED,W/WINCH |
58206-90307 |
— | ||
|
58260
|
58260
58262-90320
Cover Assy, Transmission, Front
[09.1972 - 09.1973] FJ4# 3-SPEED |
58262-90320 |
— | ||
|
58260
|
58260
58262-90322
Cover Assy, Transmission, Front
[09.1972 - 09.1973] FJ4# 3-SPEED,W/WINCH |
58262-90322 |
— | ||
|
58260
|
58260
58262-90331
Cover Assy, Transmission, Front
[06.1973 - 09.1973] FJ4# 4-SPEED |
58262-90331 |
— | ||
|
58260
|
58260
58262-90333
Cover Assy, Transmission, Front
[06.1973 - 09.1973] FJ4# 4-SPEED,W/WINCH |
58262-90333 |
— | ||
|
58260
|
58260
58262-90337
Cover Assy, Transmission, Front
[09.1973 - 01.1975] FJ4# 3-SPEED |
58262-90337 |
— | ||
|
58260
|
58260
58262-90339
Cover Assy, Transmission, Front
[09.1973 - 01.1975] FJ4# 3-SPEED,W/WINCH |
58262-90339 |
— | ||
|
58260
|
58260
58262-90341
Cover Assy, Transmission, Front
[09.1973 - 02.1979] BJ4#,FJ4# 4-SPEED |
58262-90341 |
— | ||
|
58260
|
58260
58262-90343
Cover Assy, Transmission, Front
[09.1973 - 02.1979] BJ4#,FJ4# 4-SPEED,W/WINCH |
58262-90343 |
— | ||
|
58260A
|
58260A
58263-60010
Packing, Front Transmission Service Hole Cover
[03.1969 - 02.1979] BJ4#,FJ4# |
58263-60010 |
— | ||
|
58276
|
58276
58276-90300
Grommet, Safety Band Anchorage Nut
[03.1973 - 07.1980] BJ4#,FJ4# OD=12,L=19 |
58276-90300 |
— | ||
|
58276
|
58276
90950-01126 Grommet, Safety Band Anchorage Nut[03.1969 - 02.1979] FJ4#,5# OD=12,L=25 |
90950-01126 |
US $5.76 |
||
|
58280
|
58280
58280-60020 Dust Proof Assy, Transfer Control LeverTRANSFER CONTROL LEVER [03.1969 - 09.1972] FJ4# |
58280-60020 |
US $33.72 |
||
|
58280
|
58280
58280-90303 Dust Proof Assy, Transfer Control LeverTRANSFER CONTROL LEVER [09.1972 - 09.1973] FJ4# |
58280-90303 |
US $40.19 |
||
| replacement | |||||
|
58280
|
58280
58290-90355
Dust Proof Assy, Transfer Control Lever
[09.1972 - 09.1973] FJ4# |
58290-90355 |
— | ||
|
58280
|
58280
58280-90304
Dust Proof Assy, Transfer Control Lever
[09.1973 - 02.1979] BJ4#,FJ4# |
58280-90304 |
— | ||
| replacement | |||||
|
58280
|
58280
58280-90305 Dust Proof Assy, Transfer Control LeverTRANSFER CONTROL LEVER [09.1973 - 02.1979] BJ4#,FJ4# |
58280-90305 |
US $42.56 |
||
|
58283
|
58283
58281-90352
Cover, Front Drive Dust
[09.1973 - 02.1979] BJ4#,FJ4#,5# |
58281-90352 |
— | ||
|
58286
|
58286
58273-60010
Boot, Shift & Select Lever, No.1
[03.1969 - 09.1973] FJ4#,55 |
58273-60010 |
— | ||
|
58286
|
58286
58273-90300 Boot, Shift & Select Lever, No.1[06.1973 - 07.1980] BJ4#,FJ4#,5# 4-SPEED |
58273-90300 |
from US $46.52 |
||
|
58286
|
58286
58273-90301
Boot, Shift & Select Lever, No.1
[09.1973 - 01.1975] FJ4#,55 3-SPEED |
58273-90301 |
— | ||
|
58287
|
58287
58274-90300 Retainer, Shift Lever BootSHIFT LEVER BOOT [06.1973 - 07.1980] BJ4#,FJ4#,5# 4-SPEED |
58274-90300 |
US $20.52 |
||
|
58287
|
58287
58274-90301 Retainer, Shift Lever BootSHIFT LEVER BOOT [09.1973 - 01.1975] FJ4#,55 3-SPEED |
58274-90301 |
US $13.25 |
||
|
58289
|
58289
58279-60010
Plate, Transmission Set
[03.1969 - 09.1972] FJ4# |
58279-60010 |
— | ||
|
58291
|
58291
58208-60011
Cover, Power Take-Off Control Lever, No.1
[03.1969 - 09.1972] FJ4# |
58208-60011 |
— | ||
|
58291
|
58291
58208-90300
Cover, Power Take-Off Control Lever, No.1
[09.1972 - 02.1979] BJ4#,FJ4# |
58208-90300 |
— | ||
|
58292
|
58292
58209-60010
Cover, Power Take-Off Control Lever, No.2
[03.1969 - 09.1972] FJ4# |
58209-60010 |
— | ||
|
58466
|
58466
58264-60010
Packing, Transmission Service Hole Cover, No.2
[03.1969 - 09.1972] FJ4# |
58264-60010 |
— | ||
|
58466
|
58466
58264-90301
Packing, Transmission Service Hole Cover, No.2
[09.1972 - 02.1979] BJ4#,FJ4# |
58264-90301 |
— | ||
|
58467
|
58467
58265-60020
Packing, Front Transmission Cover, No.3
[03.1969 - 09.1972] FJ4# |
58265-60020 |
— | ||
|
58467
|
58467
58265-90300
Packing, Front Transmission Cover, No.3
[09.1972 - 02.1979] BJ4#,FJ4# |
58265-90300 |
— | ||
|
58708
|
58708
58031-60010
Carrier Sub-Assy, Jack
[03.1969 - 09.1972] FJ4# |
58031-60010 |
— | ||
|
58708
|
58708
58803-90300
Carrier Sub-Assy, Jack
[09.1972 - 09.1973] FJ4# |
58803-90300 |
— | ||
|
58791
|
58791
75242-90300
Cushion, Jack Clamp
[09.1972 - 09.1973] FJ4# |
75242-90300 |
— | ||
|
9011210007
|
9011210007
90112-10007
New Genuine Part
|
90112-10007 |
— | ||
|
9054112116
|
9054112116
90541-12116
New Genuine Part
|
90541-12116 |
— | ||
|
9095001006
|
9095001006
90950-01006 Plug, Hole(For Front Fender) |
90950-01006 |
from US $2.16 |
||
|
9095001102
|
9095001102
90950-01102
Plug, Hole, No.1(For Dash Panel)
|
90950-01102 |
— | ||
|
9095001187
|
9095001187
90950-01187
New Genuine Part
|
90950-01187 |
— | ||
|
9161140635
|
9161140635
91611-40635
New Genuine Part
|
91611-40635 |
— | ||
| replacement | |||||
|
9161140635
|
9161140635
91611-60635 New Genuine Part |
91611-60635 |
US $2.08 |
||
|
9161640820
|
9161640820
91616-40820 Bolt, Engine Rear Cover Hinge Set |
91616-40820 |
US $1.40 |
||
|
9162140616
|
9162140616
91621-40616 Step Cover Bolt |
91621-40616 |
US $1.28 |
||
|
9162140816
|
9162140816
91621-40816 BOLTWWASHER |
91621-40816 |
from US $1.05 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
|
9165140818
|
9165140818
91651-40818 BOLT, W-WASHER |
91651-40818 |
US $1.28 |
||
|
9165140825
|
9165140825
91651-40825 Bolt(For Clutch Release Cylinder Setting) |
91651-40825 |
US $3.20 |
||
|
9166140616
|
9166140616
91661-40616 New Genuine Part |
91661-40616 |
US $1.28 |
||
|
9166140625
|
9166140625
91661-40625 BOLT |
91661-40625 |
US $2.24 |
||
|
9166541035
|
9166541035
91665-41035
New Genuine Part
|
91665-41035 |
— | ||
|
9318915012
|
9318915012
93189-15012
New Genuine Part
|
93189-15012 |
— | ||
| replacement | |||||
|
9318915012
|
9318915012
93289-15012 New Genuine Part |
93289-15012 |
US $2.33 |
||
|
9321915016
|
9321915016
93219-15016
Screw, Cover Set, No.1
|
93219-15016 |
— | ||
|
9411040600
|
9411040600
94110-40600 Nut, Rock |
94110-40600 |
from US $0.70 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.90 |
||
|
9411041000
|
9411041000
94110-41000 Nut(For Steering Damper) |
94110-41000 |
US $2.56 |
||
|
9411540500
|
9411540500
94115-40500 Nut(For Lpg Filter Stud Bolt Set) |
94115-40500 |
US $1.76 |
||
|
9451100500
|
9451100500
94511-00500 Washer, Cover Set, No.2 |
94511-00500 |
from US $0.24 |
||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $1.92 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
from US $1.60 |
||
|
9451101000
|
9451101000
94511-01000 Washer(For Rear Drive Shaft) |
94511-01000 |
US $1.76 |
||
|
9461200800
|
9461200800
94612-00800
Washer, Plate(For Repair Actuator Set)
|
94612-00800 |
— | ||
| replacement | |||||
|
9461200800
|
9461200800
94612-10800 Washer, Plate(For Repair Actuator Set) |
94612-10800 |
from US $0.96 |
||
|
9461211000
|
9461211000
94612-11000 Plate, Spring Set |
94612-11000 |
US $2.72 |
||
|
9461310600
|
9461310600
94613-10600 New Genuine Part |
94613-10600 |
US $2.72 |
||
