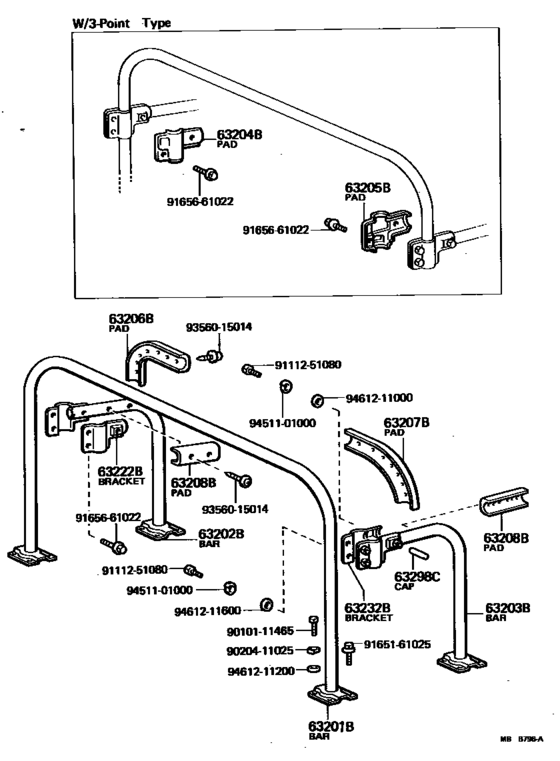

Protector Pipe, Roll Bar & Handrail ([08.1980 - ] (8008- )RB) Diagram Toyota LAND CRUISER
- Year
- 1980 - 1982
- Sales region
- Europe
- Frame
- FJ43
- body
- TP
- ENGINE
- 2F
- DESTINATION
- GEN
- Model
- LAND CRUISER 40
- From
- 08.1980
- To
- 10.1982
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
- Roll Bar
- RB
- Top,back Door
- TPC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63201B
|
63201B
63201-90303
Bar, Roll, Front
[08.1980 - 10.1982] BJ40,42,43,46,FJ40,43..RB..GEN |
63201-90303 |
— | ||
| replacement | |||||
|
63201B
|
63201B
63201-90304
Bar, Roll, Front
[08.1980 - 10.1982] BJ40,42,43,46,FJ40,43..RB..GEN |
63201-90304 |
— | ||
|
63201B
|
63201B
63201-90304
Bar, Roll, Front
[08.1980 - 10.1984] BJ40,42,43,46,FJ4#..RB W/*ELR |
63201-90304 |
— | ||
|
63202B
|
63202B
63202-90306
Bar, Roll Side, Rh
[08.1980 - 10.1982] BJ43,46,FJ43..RB..GEN |
63202-90306 |
— | ||
|
63202B
|
63202B
63202-90308
Bar, Roll Side, Rh
[08.1980 - 10.1984] BJ43,46,FJ43..RB W/*ELR |
63202-90308 |
— | ||
|
63203B
|
63203B
63203-90306
Bar, Roll Side, Lh
[08.1980 - 10.1982] BJ43,46,FJ43..RB..GEN |
63203-90306 |
— | ||
|
63203B
|
63203B
63203-90308
Bar, Roll Side, Lh
[08.1980 - 10.1984] BJ43,46,FJ43..RB W/*ELR |
63203-90308 |
— | ||
|
63204B
|
63204B
63204-90300
Pad, Roll Bar Bracket, Rh
[08.1980 - 10.1984] BJ40,42,43,46,FJ40,43..RB W/*ELR |
63204-90300 |
— | ||
|
63205B
|
63205B
63205-90300
Pad, Roll Bar Bracket, Lh
[08.1980 - 10.1984] BJ40,42,43,46,FJ40,43..RB W/*ELR |
63205-90300 |
— | ||
|
63206B
|
63206B
63206-90300
Pad, Roll Bar, Front Rh
[08.1980 - 10.1984] BJ40,42,43,46,FJ4#..RB |
63206-90300 |
— | ||
|
63207B
|
63207B
63207-90300
Pad, Roll Bar, Front Lh
[08.1980 - 10.1984] BJ40,42,43,46,FJ4#..RB |
63207-90300 |
— | ||
|
63208B
|
63208B
63208-90300
Pad, Roll Bar, Side
[08.1980 - 10.1984] BJ40,42,43,46,FJ4#..RB |
63208-90300 |
— | ||
|
63222B
|
63222B
63222-90302
Bracket, Roll Bar, Inner Rh
[08.1980 - 10.1982] BJ40,42,43,46,FJ40,43..RB..GEN |
63222-90302 |
— | ||
| replacement | |||||
|
63222B
|
63222B
63222-90303
Bracket, Roll Bar, Inner Rh
[08.1980 - 10.1982] BJ40,42,43,46,FJ40,43..RB..GEN |
63222-90303 |
— | ||
|
63222B
|
63222B
63222-90303
Bracket, Roll Bar, Inner Rh
[08.1980 - 10.1984] BJ40,42,43,46,FJ4#..RB W/*ELR |
63222-90303 |
— | ||
|
63232B
|
63232B
63232-90302
Bracket, Roll Bar, Inner Lh
[08.1980 - 10.1982] BJ40,42,43,46,FJ40,43..RB..GEN |
63232-90302 |
— | ||
| replacement | |||||
|
63232B
|
63232B
63232-90303
Bracket, Roll Bar, Inner Lh
[08.1980 - 10.1982] BJ40,42,43,46,FJ40,43..RB..GEN |
63232-90303 |
— | ||
|
63232B
|
63232B
63232-90303
Bracket, Roll Bar, Inner Lh
[08.1980 - 10.1984] BJ40,42,43,46,FJ4#..RB W/*ELR |
63232-90303 |
— | ||
|
63298C
|
63298C
55298-30010 Cap(For Roll Bar)TEE NUT(FOR 8MM) [08.1980 - 10.1982] BJ40,42,43,46,FJ40,43..RB..GEN |
55298-30010 |
US $3.06 |
||
|
9010111465
|
9010111465
90101-11465
New Genuine Part
|
90101-11465 |
— | ||
|
9020411025
|
9020411025
90204-11025 New Genuine Part |
90204-11025 |
US $2.18 |
||
|
9111251080
|
9111251080
91112-51080
New Genuine Part
|
91112-51080 |
— | ||
|
9165161025
|
9165161025
91651-61025 Bolt with washer |
91651-61025 |
from US $1.58 |
||
|
9165661022
|
9165661022
91656-61022
New Genuine Part
|
91656-61022 |
— | ||
|
9356015014
|
9356015014
93560-15014 SCREW |
93560-15014 |
US $1.12 |
||
|
9451101000
|
9451101000
94511-01000 Washer(For Rear Drive Shaft) |
94511-01000 |
US $1.76 |
||
|
9461211000
|
9461211000
94612-11000 Plate, Spring Set |
94612-11000 |
US $2.72 |
||
|
9461211200
|
9461211200
94612-11200 Washer |
94612-11200 |
from US $0.74 |
||
|
9461211600
|
9461211600
94612-11600 Washer, Shift Lever Shaft Housing, No.2 |
94612-11600 |
from US $1.76 |
||
