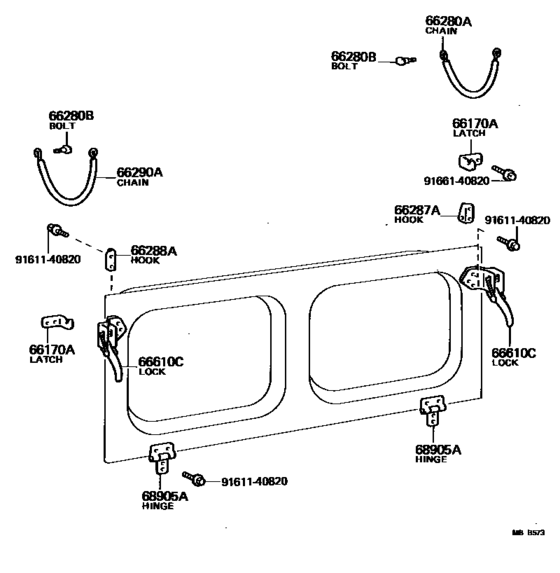

Back Door Lock & Hinge ([08.1980 - ] (8008- )TPS) Diagram Toyota LAND CRUISER
- Year
- 1980 - 1984
- Sales region
- Europe
- Frame
- FJ45
- body
- TP
- ENGINE
- 2F
- DESTINATION
- GEN
- Model
- LAND CRUISER 40
- From
- 08.1980
- To
- 10.1984
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
- Roll Bar
- WORB
- Top,back Door
- TPS
- Building Condition
- CBU
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
66170A
|
66170A
69362-90301
Latch Assy, Rear Drop Gate
[08.1980 - 10.1984] BJ46,FJ40,45..TPS RH |
69362-90301 |
— | ||
|
66170A
|
66170A
69363-90301
Latch Assy, Rear Drop Gate
[08.1980 - 10.1984] BJ46,FJ40,45..TPS LH |
69363-90301 |
— | ||
|
66280A
|
66280A
68909-90301
Chain Assy, Rear Drop Gate, Rh
[08.1980 - 10.1984] BJ46,FJ40,45..TPS |
68909-90301 |
— | ||
|
66280B
|
66280B
71382-60010
Bolt, Rear Gate Chain Set
[08.1980 - 10.1984] BJ46,FJ40,45..TPS |
71382-60010 |
— | ||
|
66287A
|
66287A
64917-60010
Hook, Rear Drop Gate Chain, Rh
[08.1980 - 10.1984] BJ46,FJ40,45..TPS |
64917-60010 |
— | ||
|
66288A
|
66288A
64918-60010
Hook, Rear Drop Gate Chain, Lh
[08.1980 - 10.1984] BJ46,FJ40,45..TPS |
64918-60010 |
— | ||
|
66290A
|
66290A
68909-90311
Chain Assy, Rear Drop Gate, Lh
[08.1980 - 10.1984] BJ46,FJ40,45..TPS |
68909-90311 |
— | ||
|
68905A
|
68905A
68905-90305
Hinge Assy, Rear Gate, Rh
[08.1980 - 10.1984] BJ46,FJ40,45..TPS |
68905-90305 |
— | ||
|
9161140820
|
9161140820
91611-40820
Bolt(For Intake Manifold To Exhaust Manifold)
|
91611-40820 |
— | ||
|
9166140820
|
9166140820
91661-40820 New Genuine Part |
91661-40820 |
from US $1.66 |
