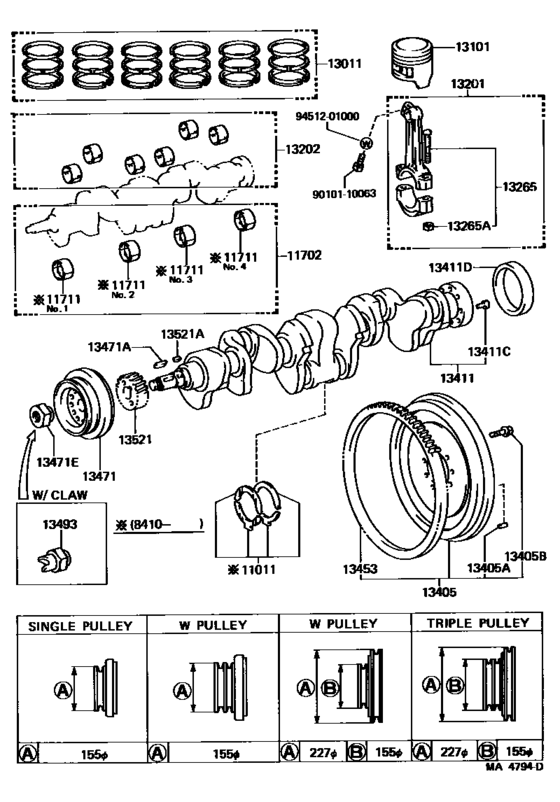

Crankshaft & Piston ([08.1980 - ] (8008- )2F) Diagram Toyota LAND CRUISER
- Year
- 1980 - 1984
- Sales region
- Europe
- Frame
- FJ45
- body
- TP
- ENGINE
- 2F
- DESTINATION
- GEN
- Model
- LAND CRUISER 40
- From
- 08.1980
- To
- 10.1984
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
- Roll Bar
- WORB
- Top,back Door
- TPS
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-61010
Washer Set, Crankshaft Thrust
[10.1984 - 04.1986] 2F..FJ4# STD,STD |
11011-61010 |
— | ||
| replacement | |||||
|
11011
|
11011
11011-61020
Washer Set, Crankshaft Thrust
[10.1984 - 04.1986] 2F..FJ4# STD,STD |
11011-61020 |
— | ||
|
11011
|
11011
11012-61010 Washer Set, Crankshaft Thrust[10.1984 - 04.1986] 2F..FJ4# O/S 0.125,O/S 0.125 |
11012-61010 |
US $35.53 |
||
| replacement | |||||
|
11011
|
11011
11012-61020
Washer Set, Crankshaft Thrust
[10.1984 - 04.1986] 2F..FJ4# O/S 0.125,O/S 0.125 |
11012-61020 |
— | ||
|
11011
|
11011
11013-61010 Washer Set, Crankshaft Thrust[10.1984 - 04.1986] 2F..FJ4# O/S 0.250,O/S 0.250 |
11013-61010 |
US $35.53 |
||
| replacement | |||||
|
11011
|
11011
11013-61020
Washer Set, Crankshaft Thrust
[10.1984 - 04.1986] 2F..FJ4# O/S 0.250,O/S 0.250 |
11013-61020 |
— | ||
|
11702
|
11702
11702-60013
Bearing Set, Crankshaft
[08.1980 - 10.1984] 2F..FJ4# STD |
11702-60013 |
— | ||
|
11702
|
11702
11703-60013
Bearing Set, Crankshaft
[08.1980 - 10.1984] 2F..FJ4# U/S 0.05 |
11703-60013 |
— | ||
|
11702
|
11702
11704-60013
Bearing Set, Crankshaft
[08.1980 - 10.1984] 2F..FJ4# U/S 0.25 |
11704-60013 |
— | ||
|
11702
|
11702
11704-61010
Bearing Set, Crankshaft
[10.1984 - 04.1986] 2F..FJ4# U/S 0.25,U/S 0.25 |
11704-61010 |
— | ||
| replacement | |||||
|
11702
|
11702
11704-61020
Bearing Set, Crankshaft
[10.1984 - 04.1986] 2F..FJ4# U/S 0.25,U/S 0.25 |
11704-61020 |
— | ||
|
11702
|
11702
11705-60013
Bearing Set, Crankshaft
[08.1980 - 10.1984] 2F..FJ4# U/S 0.50 |
11705-60013 |
— | ||
|
11702
|
11702
11705-61010
Bearing Set, Crankshaft
[10.1984 - 04.1986] 2F..FJ4# U/S 0.50,U/S 0.50 |
11705-61010 |
— | ||
| replacement | |||||
|
11702
|
11702
11705-61020 Bearing Set, Crankshaft[10.1984 - 04.1986] 2F..FJ4# U/S 0.50,U/S 0.50 |
11705-61020 |
US $343.62 |
||
|
11711
|
11711
11071-61010-01
Bearing, Crankshaft
[10.1984 - 04.1986] 2F..FJ4# NO.2,MARK"1",MARK 1 |
11071-61010-01 |
— | ||
| replacement | |||||
|
11711
|
11711
11071-61020-01
Bearing, Crankshaft
[10.1984 - 04.1986] 2F..FJ4# NO.2,MARK"1",MARK 1 |
11071-61020-01 |
— | ||
|
11711
|
11711
11071-61010-02 Bearing, Crankshaft[10.1984 - 04.1986] 2F..FJ4# NO.2,MARK"2",MARK 2 |
11071-61010-02 |
US $71.78 |
||
| replacement | |||||
|
11711
|
11711
11071-61020-02 Bearing, Crankshaft[10.1984 - 04.1986] 2F..FJ4# NO.2,MARK"2",MARK 2 |
11071-61020-02 |
US $68.14 |
||
|
11711
|
11711
11071-61010-03 Bearing, Crankshaft[10.1984 - 04.1986] 2F..FJ4# NO.2,MARK"3",MARK 3 |
11071-61010-03 |
US $71.78 |
||
| replacement | |||||
|
11711
|
11711
11071-61020-03 Bearing, Crankshaft[10.1984 - 04.1986] 2F..FJ4# NO.2,MARK"3",MARK 3 |
11071-61020-03 |
US $68.14 |
||
|
11711
|
11711
11071-61010-04 Bearing, Crankshaft[10.1984 - 04.1986] 2F..FJ4# NO.2,MARK"4",MARK 4 |
11071-61010-04 |
US $71.78 |
||
| replacement | |||||
|
11711
|
11711
11071-61020-04 Bearing, Crankshaft[10.1984 - 04.1986] 2F..FJ4# NO.2,MARK"4",MARK 4 |
11071-61020-04 |
US $68.14 |
||
|
11711
|
11711
11071-61010-05 Bearing, Crankshaft[10.1984 - 04.1986] 2F..FJ4# NO.2,MARK"5",MARK 5 |
11071-61010-05 |
US $71.78 |
||
| replacement | |||||
|
11711
|
11711
11071-61020-05 Bearing, Crankshaft[10.1984 - 04.1986] 2F..FJ4# NO.2,MARK"5",MARK 5 |
11071-61020-05 |
US $68.14 |
||
|
11711
|
11711
11072-61010-01 Bearing, Crankshaft[10.1984 - 04.1986] 2F..FJ4# NO.3,MARK"1",MARK 1 |
11072-61010-01 |
US $68 |
||
| replacement | |||||
|
11711
|
11711
11072-61020-01 Bearing, Crankshaft[10.1984 - 04.1986] 2F..FJ4# NO.3,MARK"1",MARK 1 |
11072-61020-01 |
US $64.79 |
||
|
11711
|
11711
11072-61010-02 Bearing, Crankshaft[10.1984 - 04.1986] 2F..FJ4# NO.3,MARK"2",MARK 2 |
11072-61010-02 |
US $68 |
||
| replacement | |||||
|
11711
|
11711
11072-61020-02 Bearing, Crankshaft[10.1984 - 04.1986] 2F..FJ4# NO.3,MARK"2",MARK 2 |
11072-61020-02 |
US $64.79 |
||
|
11711
|
11711
11072-61010-03 Bearing, Crankshaft[10.1984 - 04.1986] 2F..FJ4# NO.3,MARK"3",MARK 3 |
11072-61010-03 |
US $68 |
||
| replacement | |||||
|
11711
|
11711
11072-61020-03 Bearing, Crankshaft[10.1984 - 04.1986] 2F..FJ4# NO.3,MARK"3",MARK 3 |
11072-61020-03 |
US $64.79 |
||
|
11711
|
11711
11072-61010-04 Bearing, Crankshaft[10.1984 - 04.1986] 2F..FJ4# NO.3,MARK"4",MARK 4 |
11072-61010-04 |
US $68 |
||
| replacement | |||||
|
11711
|
11711
11072-61020-04 Bearing, Crankshaft[10.1984 - 04.1986] 2F..FJ4# NO.3,MARK"4",MARK 4 |
11072-61020-04 |
US $64.79 |
||
|
11711
|
11711
11072-61010-05 Bearing, Crankshaft[10.1984 - 04.1986] 2F..FJ4# NO.3,MARK"5",MARK 5 |
11072-61010-05 |
US $68 |
||
| replacement | |||||
|
11711
|
11711
11072-61020-05 Bearing, Crankshaft[10.1984 - 04.1986] 2F..FJ4# NO.3,MARK"5",MARK 5 |
11072-61020-05 |
US $64.79 |
||
|
11711
|
11711
11073-61010-01 Bearing, Crankshaft[10.1984 - 04.1986] 2F..FJ4# NO.4,MARK"1",MARK 1 |
11073-61010-01 |
US $85.90 |
||
| replacement | |||||
|
11711
|
11711
11073-61020-01 Bearing, Crankshaft[10.1984 - 04.1986] 2F..FJ4# NO.4,MARK"1",MARK 1 |
11073-61020-01 |
from US $34.48 |
||
|
11711
|
11711
11073-61010-02 Bearing, Crankshaft[10.1984 - 04.1986] 2F..FJ4# NO.4,MARK"2",MARK 2 |
11073-61010-02 |
US $85.90 |
||
| replacement | |||||
|
11711
|
11711
11073-61020-02 Bearing, Crankshaft[10.1984 - 04.1986] 2F..FJ4# NO.4,MARK"2",MARK 2 |
11073-61020-02 |
US $81.54 |
||
|
11711
|
11711
11073-61010-03 Bearing, Crankshaft[10.1984 - 04.1986] 2F..FJ4# NO.4,MARK"3",MARK 3 |
11073-61010-03 |
US $85.90 |
||
| replacement | |||||
|
11711
|
11711
11073-61020-03 Bearing, Crankshaft[10.1984 - 04.1986] 2F..FJ4# NO.4,MARK"3",MARK 3 |
11073-61020-03 |
from US $34.48 |
||
|
11711
|
11711
11073-61010-04 Bearing, Crankshaft[10.1984 - 04.1986] 2F..FJ4# NO.4,MARK"4",MARK 4 |
11073-61010-04 |
US $85.90 |
||
| replacement | |||||
|
11711
|
11711
11073-61020-04 Bearing, Crankshaft[10.1984 - 04.1986] 2F..FJ4# NO.4,MARK"4",MARK 4 |
11073-61020-04 |
US $81.54 |
||
|
11711
|
11711
11073-61010-05 Bearing, Crankshaft[10.1984 - 04.1986] 2F..FJ4# NO.4,MARK"5",MARK 5 |
11073-61010-05 |
US $85.90 |
||
| replacement | |||||
|
11711
|
11711
11073-61020-05 Bearing, Crankshaft[10.1984 - 04.1986] 2F..FJ4# NO.4,MARK"5",MARK 5 |
11073-61020-05 |
US $81.54 |
||
|
11711
|
11711
11701-61010-01 Bearing, Crankshaft[10.1984 - 04.1986] 2F..FJ4# NO.1,MARK"1",MARK 1 |
11701-61010-01 |
US $44.55 |
||
| replacement | |||||
|
11711
|
11711
11701-61020-01 Bearing, Crankshaft[10.1984 - 04.1986] 2F..FJ4# NO.1,MARK"1",MARK 1 |
11701-61020-01 |
from US $18.29 |
||
|
11711
|
11711
11701-61010-02 Bearing, Crankshaft[10.1984 - 04.1986] 2F..FJ4# NO.1,MARK"2",MARK 2 |
11701-61010-02 |
US $44.55 |
||
| replacement | |||||
|
11711
|
11711
11701-61020-02 Bearing, Crankshaft[10.1984 - 04.1986] 2F..FJ4# NO.1,MARK"2",MARK 2 |
11701-61020-02 |
US $17.78 |
||
|
11711
|
11711
11701-61010-03 Bearing, Crankshaft[10.1984 - 04.1986] 2F..FJ4# NO.1,MARK"3",MARK 3 |
11701-61010-03 |
US $44.55 |
||
| replacement | |||||
|
11711
|
11711
11701-61020-03 Bearing, Crankshaft[10.1984 - 04.1986] 2F..FJ4# NO.1,MARK"3",MARK 3 |
11701-61020-03 |
US $42.08 |
||
|
11711
|
11711
11701-61010-04 Bearing, Crankshaft[10.1984 - 04.1986] 2F..FJ4# NO.1,MARK"4",MARK 4 |
11701-61010-04 |
US $44.55 |
||
| replacement | |||||
|
11711
|
11711
11701-61020-04 Bearing, Crankshaft[10.1984 - 04.1986] 2F..FJ4# NO.1,MARK"4",MARK 4 |
11701-61020-04 |
from US $17.67 |
||
|
11711
|
11711
11701-61010-05 Bearing, Crankshaft[10.1984 - 04.1986] 2F..FJ4# NO.1,MARK"5",MARK 5 |
11701-61010-05 |
US $44.55 |
||
| replacement | |||||
|
11711
|
11711
11701-61020-05 Bearing, Crankshaft[10.1984 - 04.1986] 2F..FJ4# NO.1,MARK"5",MARK 5 |
11701-61020-05 |
US $42.08 |
||
|
13011
|
13011
13011-61010 Ring Set, Piston (STD)PISTON [08.1980 - 04.1986] 2F..FJ4# STD,STD |
13011-61010 |
US $323.23 |
||
|
13011
|
13011
13013-61010 Ring Set, Piston (O/S 0.50)PISTON [08.1980 - 04.1986] 2F..FJ4# O/S 0.50,O/S 0.50 |
13013-61010 |
US $323.23 |
||
|
13011
|
13011
13015-61010 Ring Set, Piston (O/S 1.00)[08.1980 - 04.1986] 2F..FJ4# O/S 1.00,O/S 1.00 |
13015-61010 |
from US $323.44 |
||
|
13011
|
13011
13017-61010
Ring Set, Piston (O/S 1.50)
[08.1980 - 04.1986] 2F..FJ4# O/S 1.50,O/S 1.50 |
13017-61010 |
— | ||
|
13101
|
13101
13101-61011 Piston Sub-Assy, W/pinW/PIN [08.1980 - 04.1986] 2F..FJ4#..ARL,GEN STD,STD |
13101-61011 |
US $111.82 |
||
|
13101
|
13101
13103-61011 Piston Sub-Assy, W/pinW/PIN [08.1980 - 04.1986] 2F..FJ4#..ARL,GEN O/S 0.50,O/S 0.50 |
13103-61011 |
US $99.82 |
||
|
13101
|
13101
13105-61011
Piston Sub-Assy, W/pin
[08.1980 - 04.1986] 2F..FJ4#..ARL,GEN O/S 1.00,O/S 1.00 |
13105-61011 |
— | ||
|
13101
|
13101
13107-61011 Piston Sub-Assy, W/pinW/PIN [08.1980 - 04.1986] 2F..FJ4#..ARL,GEN O/S 1.50,O/S 1.50 |
13107-61011 |
US $115.02 |
||
|
13201
|
13201
13201-60011
Rod Sub-Assy, Connecting
[08.1980 - 04.1986] 2F..FJ4# |
13201-60011 |
— | ||
|
13202
|
13202
13202-60011 Bearing Set, Connecting RodCONNECTING ROD [08.1980 - 04.1986] 2F..FJ4# STD,STD |
13202-60011 |
US $164.24 |
||
|
13202
|
13202
13203-60011 Bearing Set, Connecting RodCONNECTING ROD [08.1980 - 04.1986] 2F..FJ4# U/S 0.05,U/S 0.05 |
13203-60011 |
US $221.31 |
||
|
13202
|
13202
13204-60011
Bearing Set, Connecting Rod
[08.1980 - 04.1986] 2F..FJ4# U/S 0.25,U/S 0.25 |
13204-60011 |
— | ||
|
13202
|
13202
13205-60011 Bearing Set, Connecting RodCONNECTING ROD [08.1980 - 04.1986] 2F..FJ4# U/S 0.50,U/S 0.50 |
13205-60011 |
US $221.31 |
||
|
13265
|
13265
13265-69015 Bolt, Connecting RodCONNECTING ROD [08.1980 - 04.1986] 2F..FJ4# |
13265-69015 |
US $18.17 |
||
|
13265A
|
13265A
90170-10198 Nut, Hexagon(For Connecting Rod Bolt)[08.1980 - 04.1986] 2F..FJ4# |
90170-10198 |
US $2.62 |
||
|
13405
|
13405
13405-69015
Flywheel Sub-Assy
[08.1980 - 04.1986] 2F..FJ4# |
13405-69015 |
— | ||
|
13405A
|
13405A
90250-10192 Pin, Straight(For Timing Gear Cover Set)[08.1980 - 04.1986] B,3B..BJ4# L=22,OD=10; 2F..FJ4# L=22,OD=10; 2H..HJ47 L=22,OD=10 |
90250-10192 |
from US $0.99 |
||
|
13405B
|
13405B
90913-01003
Bolt, Flywheel Setting
[08.1980 - 10.1984] 2F..FJ4# |
90913-01003 |
— | ||
| replacement | |||||
|
13405B
|
13405B
90913-01016 Bolt, Flywheel Setting[08.1980 - 10.1984] 2F..FJ4# |
90913-01016 |
from US $4.19 |
||
|
13405B
|
13405B
90913-01013 Bolt, Flywheel SettingFLYWHEEL SET [10.1984 - 04.1986] 2F..FJ4# |
90913-01013 |
US $4.66 |
||
| replacement | |||||
|
13405B
|
13405B
90913-01016 Bolt, Flywheel Setting[10.1984 - 04.1986] 2F..FJ4# |
90913-01016 |
from US $4.19 |
||
|
13411
|
13411
13401-60015
Crankshaft
[08.1980 - 10.1982] 2F..FJ4# |
13401-60015 |
— | ||
| replacement | |||||
|
13411
|
13411
13401-61010
Crankshaft
[08.1980 - 10.1982] 2F..FJ4# |
13401-61010 |
— | ||
|
13411
|
13411
13401-61010
Crankshaft
[10.1982 - 10.1984] 2F..FJ4# |
13401-61010 |
— | ||
|
13411C
|
13411C
90241-10017
Pin, Straight(For Crankshaft)
[08.1980 - 04.1986] 2F..FJ4# |
90241-10017 |
— | ||
|
13411D
|
13411D
90311-99001 Seal, Oil(For Crankshaft)OIL(FOR CRANKSHAFT) [10.1984 - 04.1986] 2F..FJ4# |
90311-99001 |
US $31.46 |
||
|
13411D
|
13411D
90311-99065 Seal, Oil(For Crankshaft)OIL(FOR CRANKSHAFT) [08.1980 - 10.1984] 2F..FJ4#..EUR,GEN |
90311-99065 |
US $25.08 |
||
|
13453
|
13453
13453-60010 Gear, Flywheel Ring[08.1980 - 04.1986] 2F..FJ4# |
13453-60010 |
US $308.67 |
||
|
13471
|
13471
13470-60031
Pulley, Crankshaft
[08.1980 - 04.1986] 2F..FJ4# OD=155 |
13470-60031 |
— | ||
|
13471
|
13471
13470-60120
Pulley, Crankshaft
[08.1980 - 04.1986] 2F..FJ4# W PULLEY,OD=155,W/PS |
13470-60120 |
— | ||
|
13471
|
13471
13470-61010
Pulley, Crankshaft
[08.1980 - 04.1986] 2F..FJ4#..LHD..TP..GEN;2F..FJ40,45..(PIC,V)..(ARL,GEN) TRIPLE,OD=155&227,W/PS&COOLER |
13470-61010 |
— | ||
|
13471
|
13471
13470-61020
Pulley, Crankshaft
[08.1980 - 04.1986] 2F..FJ4#..LHD..TP..GEN;2F..FJ40,45..(PIC,V)..(ARL,GEN) W PULLEY,OD=155&227,W/COOLER |
13470-61020 |
— | ||
|
13471A
|
13471A
90281-07004 Key, Crankshaft(For Crankshaft Pulley Set)[08.1980 - 04.1986] 2F..FJ4# |
90281-07004 |
from US $5.24 |
||
|
13493
|
13493
90913-04003
Claw, Crankshaft
[08.1980 - 11.1981] 2F..FJ4#..(3F,4F)..(ARL,GEN) |
90913-04003 |
— | ||
|
13521
|
13521
13521-60010 Gear Or Sprocket, Crankshaft TimingCRANKSHAFT TIMING [08.1980 - 04.1986] 2F..FJ4# |
13521-60010 |
US $68.14 |
||
|
13521A
|
13521A
90280-05010 Key(For Oil Pump Drive Spline)[08.1980 - 04.1986] 2F..FJ4# |
90280-05010 |
US $4.16 |
||
|
9010110063
|
9010110063
90101-10063
New Genuine Part
|
90101-10063 |
— | ||
|
9451201000
|
9451201000
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-01000 |
from US $0.76 |
||
