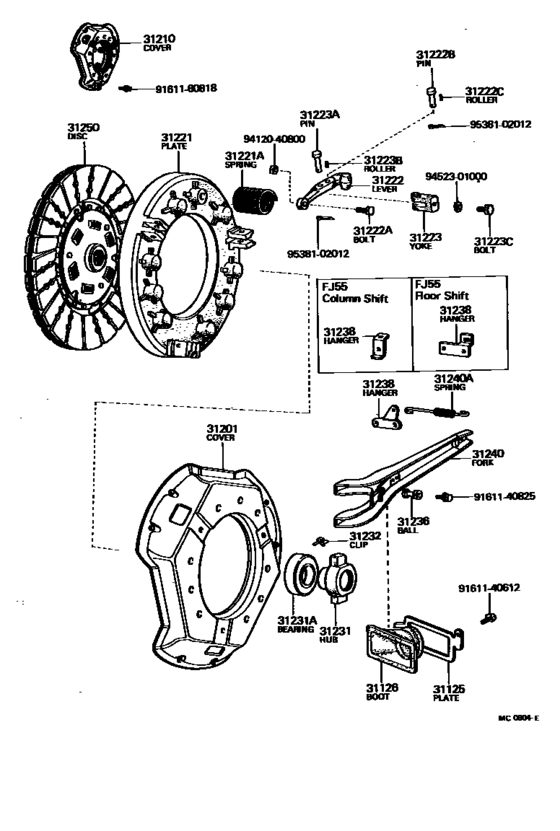

Clutch & Release Fork ([03.1969 - 08.1974] (6903-7408)FJ4#,55) Diagram Toyota LAND CRUISER
- Year
- 1969 - 1975
- Sales region
- General
- Frame
- FJ45
- body
- PIC
- ENGINE
- F
- DESTINATION
- GEN
- Model
- LAND CRUISER 40
- From
- 03.1969
- To
- 01.1975
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
- Roll Bar
- WORB
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31125
|
31125
31125-60010
Plate, Release Fork Boot
[03.1969 - 08.1974] FJ4# |
31125-60010 |
— | ||
|
31126
|
31126
31126-60010 Boot, Clutch Release ForkCLUTCH RELEASE FORK [03.1969 - 08.1974] FJ4#,55 |
31126-60010 |
US $22.71 |
||
|
31126
|
31126
31126-60021 Boot, Clutch Release Fork[08.1974 - 07.1980] FJ4#,55 |
31126-60021 |
from US $12.48 |
||
|
31201
|
31201
31201-69015 Cover Sub-Assy, ClutchCLUTCH [08.1974 - 01.1975] FJ4#,55 |
31201-69015 |
US $425.15 |
||
| replacement | |||||
|
31201
|
31201
31210-36330 Cover Assy, ClutchCLUTCH [08.1974 - 01.1975] FJ4#,55 |
31210-36330 |
from US $254.88 |
||
|
31201
|
31201
31201-69025 Cover Sub-Assy, ClutchCLUTCH [01.1975 - 07.1976] FJ4#,55 |
31201-69025 |
US $449.90 |
||
| replacement | |||||
|
31201
|
31201
31210-36330 Cover Assy, ClutchCLUTCH [01.1975 - 07.1976] FJ4#,55 |
31210-36330 |
from US $254.88 |
||
|
31201
|
31201
31211-55011 Cover Sub-Assy, ClutchCLUTCH [03.1969 - 08.1974] FJ4#,55 |
31211-55011 |
US $55.04 |
||
|
31210
|
31210
31210-60010 Cover Assy, ClutchCLUTCH [03.1969 - 09.1973] FJ4#,55 |
31210-60010 |
US $358.18 |
||
| replacement | |||||
|
31210
|
31210
31210-60013 Cover Assy, Clutch[03.1969 - 09.1973] FJ4#,55 |
31210-60013 |
US $327.60 |
||
|
31210
|
31210
31210-60011
Cover Assy, Clutch
[09.1973 - 08.1974] FJ4#,55 |
31210-60011 |
— | ||
| replacement | |||||
|
31210
|
31210
31210-60013 Cover Assy, Clutch[09.1973 - 08.1974] FJ4#,55 |
31210-60013 |
US $327.60 |
||
|
31210
|
31210
31210-60020 Cover Assy, ClutchCLUTCH [03.1969 - 09.1973] FJ4#,55 HEAVY DUTY SPRING |
31210-60020 |
US $358.18 |
||
| replacement | |||||
|
31210
|
31210
31210-60023 Cover Assy, Clutch[03.1969 - 09.1973] FJ4#,55 HEAVY DUTY SPRING |
31210-60023 |
US $327.60 |
||
|
31210
|
31210
31210-60021 Cover Assy, ClutchCLUTCH [09.1973 - 08.1974] FJ4#,55 HEAVY DUTY SPRING |
31210-60021 |
US $358.18 |
||
| replacement | |||||
|
31210
|
31210
31210-60023 Cover Assy, Clutch[09.1973 - 08.1974] FJ4#,55 HEAVY DUTY SPRING |
31210-60023 |
US $327.60 |
||
|
31210
|
31210
31210-60030
Cover Assy, Clutch
[08.1974 - 01.1975] FJ4#,55 |
31210-60030 |
— | ||
| replacement | |||||
|
31210
|
31210
31210-36330 Cover Assy, ClutchCLUTCH [08.1974 - 01.1975] FJ4#,55 |
31210-36330 |
from US $254.88 |
||
|
31210
|
31210
31210-60040
Cover Assy, Clutch
[01.1975 - 07.1976] FJ4#,55 |
31210-60040 |
— | ||
| replacement | |||||
|
31210
|
31210
31210-36330 Cover Assy, ClutchCLUTCH [01.1975 - 07.1976] FJ4#,55 |
31210-36330 |
from US $254.88 |
||
|
31221
|
31221
31221-55010 Plate, Clutch PressureCLUTCH PRESSURE [03.1969 - 08.1974] FJ4#,55,HJ45 |
31221-55010 |
US $107.74 |
||
|
31221
|
31221
31221-69015 Plate, Clutch PressureCLUTCH PRESSURE [08.1974 - 01.1975] FJ4#,55 |
31221-69015 |
US $128.13 |
||
| replacement | |||||
|
31221
|
31221
31221-60020
Plate, Clutch Pressure
[08.1974 - 01.1975] FJ4#,55 |
31221-60020 |
— | ||
|
31221
|
31221
31221-69025
Plate, Clutch Pressure
[01.1975 - 03.1977] FJ4#,55 596KG. |
31221-69025 |
— | ||
| replacement | |||||
|
31221
|
31221
31221-60020
Plate, Clutch Pressure
[01.1975 - 03.1977] FJ4#,55 596KG. |
31221-60020 |
— | ||
|
31221A
|
31221A
90501-50047 Spring, Compression(For Clutch)COMPRESSION(FOR CLUTCH) [09.1973 - 08.1974] FJ4#,55,HJ45 WD=5,CW=7 |
90501-50047 |
US $7.57 |
||
|
31221A
|
31221A
90501-50056 Spring, Compression(For Clutch)COMPRESSION(FOR CLUTCH) [09.1973 - 08.1974] FJ4#,55,HJ45 WD=5,CW=5 |
90501-50056 |
US $10.05 |
||
|
31222
|
31222
31222-60010
Lever, Clutch Pressure
[03.1969 - 09.1973] FJ4#,55,HJ45 |
31222-60010 |
— | ||
|
31222
|
31222
31222-60011
Lever, Clutch Pressure
[09.1973 - 08.1974] FJ4#,55,HJ45 |
31222-60011 |
— | ||
|
31222A
|
31222A
90106-08005
Bolt, Clutch Pressure Lever Adjust
[03.1969 - 08.1974] FJ4#,55,HJ45 |
90106-08005 |
— | ||
|
31222B
|
31222B
90240-08011 Pin, W/hole(For Clutch Pressure Lever)W/HOLE(FOR CLUTCH PRESSURE LEVER) [03.1969 - 08.1974] FJ4#,55,HJ45 |
90240-08011 |
US $3.49 |
||
|
31222C
|
31222C
90361-02019 Roller Or Bearing, Clutch Pressure Plate PinCLUTCH PRESSURE PLATE PIN [03.1969 - 08.1974] FJ4#,55,HJ45 |
90361-02019 |
US $1.16 |
||
| replacement | |||||
|
31222C
|
31222C
90361-02057 Roller Or Bearing, Clutch Pressure Plate PinCLUTCH PRESSURE PLATE PIN [03.1969 - 08.1974] FJ4#,55,HJ45 |
90361-02057 |
US $1.31 |
||
|
31223
|
31223
31223-55040 Yoke, Clutch Release LeverCLUTCH RELEASE LEVER [03.1969 - 08.1974] FJ4#,55,HJ45 |
31223-55040 |
US $14.27 |
||
|
31223A
|
31223A
90249-06003 Pin(For Clutch Pressure Lever)[03.1969 - 08.1974] FJ4#,55,HJ45 |
90249-06003 |
US $3.79 |
||
|
31223B
|
31223B
90361-06020 Roller, Clutch Pressure LeverCLUTCH PRESSURE LEVER [03.1969 - 08.1974] FJ4#,55,HJ45 |
90361-06020 |
US $1.60 |
||
|
31223C
|
31223C
90101-10077 Bolt, Hexagon(For Clutch Release Lever Yoke)HEXAGON(FOR CLUTCH RELEASE LEVER YOKE) [03.1969 - 08.1974] FJ4#,55,HJ45 |
90101-10077 |
US $2.33 |
||
|
31231
|
31231
31231-60010
Hub, Clutch Release Bearing
[03.1969 - 08.1974] FJ4#,55 |
31231-60010 |
— | ||
|
31231
|
31231
31231-60031 Hub, Clutch Release BearingCLUTCH RELEASE BEARING [08.1974 - 07.1980] FJ4#,55 |
31231-60031 |
US $77.17 |
||
| replacement | |||||
|
31231
|
31231
31231-60070 Hub, Clutch Release Bearing[08.1974 - 07.1980] FJ4#,55 |
31231-60070 |
from US $48.67 |
||
|
31231A
|
31231A
90363-45015
Bearing, Ball(For Clutch Release Hub)
[03.1969 - 05.1973] FJ4#,55,HJ45 |
90363-45015 |
— | ||
| replacement | |||||
|
31231A
|
31231A
90363-45079 Bearing, Ball(For Clutch Release Hub)BALL(FOR CLUTCH RELEASE HUB) [03.1969 - 05.1973] FJ4#,55,HJ45 |
90363-45079 |
US $37.85 |
||
|
31231A
|
31231A
90363-45079 Bearing, Ball(For Clutch Release Hub)BALL(FOR CLUTCH RELEASE HUB) [05.1973 - 08.1974] BJ4#,FJ4#,55,HJ45 |
90363-45079 |
US $37.85 |
||
|
31231A
|
31231A
90363-52086 Bearing, Ball(For Clutch Release Hub)[08.1974 - 07.1980] FJ4#,55 |
90363-52086 |
US $64.94 |
||
| replacement | |||||
|
31231A
|
31231A
90363-52001 Bearing, Ball(For Clutch Release Hub)[08.1974 - 07.1980] FJ4#,55 |
90363-52001 |
US $67.79 |
||
|
31232
|
31232
31232-55010 Clip Or Spring, Release Bearing HubRELEASE BEARING HUB [03.1969 - 08.1974] FJ4#,55 |
31232-55010 |
US $11.36 |
||
|
31232
|
31232
31232-60010 Clip Or Spring, Release Bearing HubRELEASE BEARING HUB [08.1974 - 07.1980] FJ4#,55 |
31232-60010 |
US $3.84 |
||
|
31236
|
31236
31236-60010 Ball, Release ForkRELEASE FORK [03.1969 - 08.1974] FJ4#,55 |
31236-60010 |
US $15.87 |
||
|
31236
|
31236
31236-60020 Ball, Release Fork[08.1974 - 07.1980] FJ4#,55 |
31236-60020 |
from US $8.74 |
||
|
31238
|
31238
31238-60020
Hanger, Release Fork Retracting Spring
[03.1969 - 08.1974] FJ4# |
31238-60020 |
— | ||
|
31238
|
31238
31238-60041
Hanger, Release Fork Retracting Spring
[08.1974 - 07.1980] FJ4#,55 |
31238-60041 |
— | ||
|
31240
|
31240
31204-60010
Fork Assy, Clutch Release
[03.1969 - 08.1974] FJ4#,55 |
31204-60010 |
— | ||
|
31240
|
31240
31204-60020
Fork Assy, Clutch Release
[08.1974 - 07.1980] FJ4#,55 |
31204-60020 |
— | ||
| replacements | |||||
|
31240
|
31240
31204-60030 Fork Sub-Assy, Clutch ReleaseCLUTCH RELEASE [08.1974 - 07.1980] FJ4#,55 |
31204-60030 |
from US $47.91 |
||
|
31240
|
31240
31232-60020 Clip Or Spring, Release Bearing Hub[08.1974 - 07.1980] FJ4#,55 |
31232-60020 |
from US $1.05 |
||
|
31240A
|
31240A
90506-16475 Spring, Tension(For Clutch Release Fork Return)[08.1974 - 07.1980] FJ4#,55 |
90506-16475 |
US $4.32 |
||
|
31240A
|
31240A
90506-18055
Spring, Tension(For Clutch Release Fork Return)
[03.1969 - 08.1974] FJ4#,HJ45 |
90506-18055 |
— | ||
|
31250
|
31250
31250-55031 Disc Assy, ClutchCLUTCH [03.1969 - 04.1973] FJ4#,55 |
31250-55031 |
US $275.18 |
||
| replacement | |||||
|
31250
|
31250
31250-36343 Disc Assy, Clutch[03.1969 - 04.1973] FJ4#,55 |
31250-36343 |
from US $219.08 |
||
|
31250
|
31250
31250-55032 Disc Assy, ClutchCLUTCH [04.1973 - 10.1976] FJ4#,55 |
31250-55032 |
US $275.18 |
||
| replacement | |||||
|
31250
|
31250
31250-36343 Disc Assy, Clutch[04.1973 - 10.1976] FJ4#,55 |
31250-36343 |
from US $219.08 |
||
|
9161140612
|
9161140612
91611-40612
Bolt(for Dust Cover To Steering Knuckle Arm Setting)
|
91611-40612 |
— | ||
| replacement | |||||
|
9161140612
|
9161140612
91611-G0612 Bolt |
91611-G0612 |
from US $0.78 |
||
|
9161140825
|
9161140825
91611-40825
Bolt(For Clutch Release Cylinder Setting)
|
91611-40825 |
— | ||
| replacement | |||||
|
9161140825
|
9161140825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.13 |
||
|
9161160818
|
9161160818
91611-60818
Bolt(For Oil Receiver Pipe)
|
91611-60818 |
— | ||
| replacement | |||||
|
9161160818
|
9161160818
90119-08830 Bolt(For Oil Receiver Pipe) |
90119-08830 |
US $1.60 |
||
|
9412040800
|
9412040800
94120-40800 Nut(For Clutch Pedal Stopper) |
94120-40800 |
US $1.44 |
||
|
9452301000
|
9452301000
94523-01000 Washer, Toothed(For Rear Brake Shoe Retracting Spring) |
94523-01000 |
US $2.33 |
||
|
9538102012
|
9538102012
95381-02012
New Genuine Part
|
95381-02012 |
— | ||
