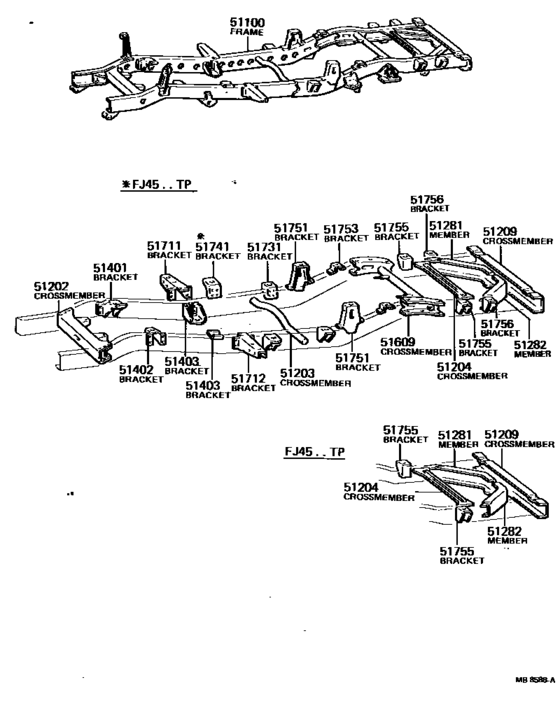

Frame ([03.1969 - 01.1979] (6903-7901)FJ45,HJ45) Diagram Toyota LAND CRUISER
- Year
- 1969 - 1975
- Sales region
- General
- Frame
- FJ45
- body
- PIC
- ENGINE
- F
- DESTINATION
- GEN
- Model
- LAND CRUISER 40
- From
- 03.1969
- To
- 01.1975
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
- Roll Bar
- WORB
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51100
|
51100
51001-60120
Frame Assy
[03.1969 - 06.1969] FJ45..LHD |
51001-60120 |
— | ||
|
51100
|
51100
51001-60121
Frame Assy
[06.1969 - 11.1970] FJ45..LHD |
51001-60121 |
— | ||
|
51100
|
51100
51001-60122
Frame Assy
[11.1970 - 09.1972] FJ45..LHD |
51001-60122 |
— | ||
|
51100
|
51100
51001-60124
Frame Assy
[09.1972 - 06.1976] FJ45..LHD |
51001-60124 |
— | ||
| replacements | |||||
|
51100
|
51100
91611-B0816 Bolt[09.1972 - 06.1976] FJ45..LHD |
91611-B0816 |
from US $1.03 |
||
|
51100
|
51100
04482-60020
Pin Kit, Front Spring
[09.1972 - 06.1976] FJ45..LHD |
04482-60020 |
— | ||
|
51100
|
51100
51900-60090 Carrier Assy, Spare Wheel[09.1972 - 06.1976] FJ45..LHD |
51900-60090 |
from US $124.05 |
||
|
51100
|
51100
51481-65010
Handle, Starting Or Spare Wheel Carrier
[09.1972 - 06.1976] FJ45..LHD |
51481-65010 |
— | ||
|
51100
|
51100
51741-60050
Bracket, Body Support, No.2
[09.1972 - 06.1976] FJ45..LHD |
51741-60050 |
— | ||
|
51100
|
51100
51742-60040
Bracket, Body Support, No.2
[09.1972 - 06.1976] FJ45..LHD |
51742-60040 |
— | ||
|
51100
|
51100
51001-60450
New Genuine Part
[09.1972 - 06.1976] FJ45..LHD |
51001-60450 |
— | ||
|
51202
|
51202
51201-60010
Crossmember Sub-Assy, Frame, No.1
[03.1969 - 06.1969] FJ4#..LHD |
51201-60010 |
— | ||
|
51202
|
51202
51201-60011
Crossmember Sub-Assy, Frame, No.1
[06.1969 - 08.1976] BJ4#,FJ4#..LHD |
51201-60011 |
— | ||
|
51203
|
51203
51202-60030
Crossmember Sub-Assy, Frame, No.2
[04.1972 - 01.1975] FJ45,HJ45 |
51202-60030 |
— | ||
|
51203
|
51203
51202-60050
Crossmember Sub-Assy, Frame, No.2
[01.1975 - 05.1975] FJ45 |
51202-60050 |
— | ||
|
51203
|
51203
51221-60030
Crossmember Sub-Assy, Frame, No.2
[03.1969 - 04.1972] FJ45 |
51221-60030 |
— | ||
| replacement | |||||
|
51203
|
51203
51202-60030
Crossmember Sub-Assy, Frame, No.2
[03.1969 - 04.1972] FJ45 |
51202-60030 |
— | ||
|
51204
|
51204
51241-60010
Crossmember Sub-Assy, Frame, No.3
[03.1969 - 06.1976] FJ45,HJ45 |
51241-60010 |
— | ||
|
51209
|
51209
51291-60020
Crossmember Sub-Assy, Frame, No.8
[03.1969 - 01.1979] FJ45,HJ45..PIC |
51291-60020 |
— | ||
| replacement | |||||
|
51209
|
51209
51291-60021
Crossmember Sub-Assy, Frame, No.8
[03.1969 - 01.1979] FJ45,HJ45..PIC |
51291-60021 |
— | ||
|
51281
|
51281
51028-60010
Member, Rear Diagonal, Rh
[11.1970 - 06.1976] FJ45,HJ45 |
51028-60010 |
— | ||
|
51281
|
51281
51281-60030
Member, Rear Diagonal, Rh
[03.1969 - 11.1970] FJ45 |
51281-60030 |
— | ||
| replacement | |||||
|
51281
|
51281
51028-60010
Member, Rear Diagonal, Rh
[03.1969 - 11.1970] FJ45 |
51028-60010 |
— | ||
|
51282
|
51282
51029-60010
Member, Rear Diagonal, Lh
[11.1970 - 06.1976] FJ45,HJ45 |
51029-60010 |
— | ||
|
51282
|
51282
51282-60020 Member, Rear Diagonal, LhREAR DIAGONAL, LH [03.1969 - 11.1970] FJ45 |
51282-60020 |
US $138.32 |
||
| replacement | |||||
|
51282
|
51282
51029-60010
Member, Rear Diagonal, Lh
[03.1969 - 11.1970] FJ45 |
51029-60010 |
— | ||
|
51401
|
51401
51421-60010
Bracket Sub-Assy, Engine Front Mounting, Rh
[03.1969 - 01.1979] FJ4#,HJ45 |
51421-60010 |
— | ||
|
51402
|
51402
51422-60010
Bracket Sub-Assy, Engine Front Mounting, Lh
[03.1969 - 07.1980] FJ4#,HJ45 |
51422-60010 |
— | ||
|
51403
|
51403
51431-60020
Bracket Sub-Assy, Engine Rear Mounting
[03.1969 - 07.1980] FJ45 RH. |
51431-60020 |
— | ||
|
51403
|
51403
51434-60010
Bracket Sub-Assy, Engine Rear Mounting
[03.1969 - 07.1980] FJ4#,HJ45 LH. |
51434-60010 |
— | ||
|
51609
|
51609
51203-60020 Crossmember Sub-Assy, Rear Shock Absorber SupportREAR SHOCK ABSORBER SUPPORT [03.1969 - 08.1969] FJ45 |
51203-60020 |
US $93.18 |
||
| replacements | |||||
|
51609
|
51609
51203-60021
Crossmember Sub-Assy, Rear Shock Absorber Support
[03.1969 - 08.1969] FJ45 |
51203-60021 |
— | ||
|
51609
|
51609
94146-41200 New Genuine Part[03.1969 - 08.1969] FJ45 |
94146-41200 |
US $4.89 |
||
|
51609
|
51609
51203-60021
Crossmember Sub-Assy, Rear Shock Absorber Support
[08.1969 - 11.1970] FJ45 |
51203-60021 |
— | ||
|
51609
|
51609
51203-60022
Crossmember Sub-Assy, Rear Shock Absorber Support
[11.1970 - 01.1975] FJ45,HJ45 |
51203-60022 |
— | ||
|
51609
|
51609
51203-60050
Crossmember Sub-Assy, Rear Shock Absorber Support
[01.1975 - 05.1975] FJ45 |
51203-60050 |
— | ||
|
51711
|
51711
51711-60020
Bracket, Front Body Support Or Mounting, Rh
[03.1969 - 01.1979] FJ45,HJ45 |
51711-60020 |
— | ||
|
51712
|
51712
51712-60010
Bracket, Front Body Support Or Mounting, Lh
[03.1969 - 01.1979] FJ45,HJ45 |
51712-60010 |
— | ||
|
51731
|
51731
51705-60010
Bracket, Cab Rear Mounting, Rh
[03.1969 - 11.1970] FJ45 |
51705-60010 |
— | ||
|
51731
|
51731
51705-60011
Bracket, Cab Rear Mounting, Rh
[11.1970 - 01.1979] FJ45,HJ45..PIC |
51705-60011 |
— | ||
|
51751
|
51751
51751-60010
Bracket, Body Support, No.1
[03.1969 - 11.1970] FJ45 RH. |
51751-60010 |
— | ||
|
51751
|
51751
51751-60011 Bracket, Body Support, No.1BODY SUPPORT, NO.1 [11.1970 - 06.1976] FJ45,HJ45 RH. |
51751-60011 |
US $75.71 |
||
| replacement | |||||
|
51751
|
51751
51751-60012
Bracket, Body Support, No.1
[11.1970 - 06.1976] FJ45,HJ45 RH. |
51751-60012 |
— | ||
|
51751
|
51751
51752-60010
Bracket, Body Support, No.1
[03.1969 - 11.1970] FJ45 LH. |
51752-60010 |
— | ||
|
51751
|
51751
51752-60011 Bracket, Body Support, No.1BODY SUPPORT, NO.1 [11.1970 - 06.1976] FJ45,HJ45 LH. |
51752-60011 |
US $75.71 |
||
| replacement | |||||
|
51751
|
51751
51752-60012
Bracket, Body Support, No.1
[11.1970 - 06.1976] FJ45,HJ45 LH. |
51752-60012 |
— | ||
|
51753
|
51753
51742-60030
Bracket, Body Support, No.2
[03.1969 - 06.1976] FJ45,HJ45 |
51742-60030 |
— | ||
|
51755
|
51755
51744-60010
Bracket, Body Mounting, No.2
[03.1969 - 01.1979] FJ45,HJ45 |
51744-60010 |
— | ||
|
51756
|
51756
51744-60010
Bracket, Body Mounting, No.2
[03.1969 - 01.1979] FJ45,HJ45..PIC |
51744-60010 |
— | ||
