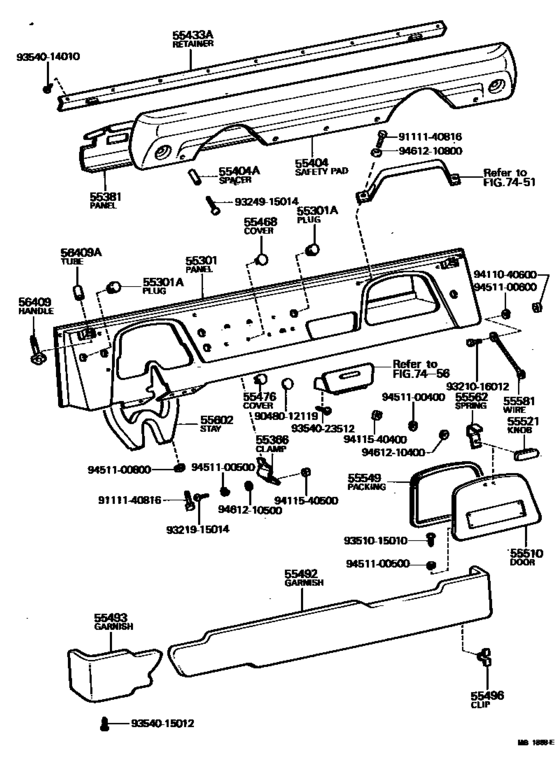

Instrument Panel & Glove Compartment ([03.1969 - 09.1972] (6903-7209)FJ4#,HJ45..LHD) Diagram Toyota LAND CRUISER
- Year
- 1969 - 1975
- Sales region
- General
- Frame
- FJ45
- body
- PIC
- ENGINE
- F
- DESTINATION
- GEN
- Model
- LAND CRUISER 40
- From
- 03.1969
- To
- 01.1975
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
- Roll Bar
- WORB
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55301
|
55301
55301-60041
Panel Sub-Assy, Instrument
[03.1969 - 07.1970] FJ40,43,45..LHD FOR COLUMN SHIFT |
55301-60041 |
— | ||
|
55301
|
55301
55301-60042
Panel Sub-Assy, Instrument
[07.1970 - 12.1970] FJ40,43,45..LHD FOR COLUMN SHIFT |
55301-60042 |
— | ||
|
55301
|
55301
55301-60043
Panel Sub-Assy, Instrument
[12.1970 - 09.1972] FJ40,43,45..LHD FOR COLUMN SHIFT |
55301-60043 |
— | ||
|
55301
|
55301
55301-60051
Panel Sub-Assy, Instrument
[03.1969 - 07.1970] FJ4#..LHD FOR FLOOR SHIFT |
55301-60051 |
— | ||
|
55301
|
55301
55301-60052
Panel Sub-Assy, Instrument
[07.1970 - 12.1970] FJ4#..LHD FOR FLOOR SHIFT |
55301-60052 |
— | ||
|
55301
|
55301
55301-60053
Panel Sub-Assy, Instrument
[12.1970 - 09.1972] FJ4#..LHD FOR FLOOR SHIFT |
55301-60053 |
— | ||
|
55301
|
55301
55301-60092
Panel Sub-Assy, Instrument
[03.1969 - 07.1970] FJ40,43,45..LHD FOR COLUMN SHIFT,W/PAD |
55301-60092 |
— | ||
|
55301
|
55301
55301-60093
Panel Sub-Assy, Instrument
[07.1970 - 12.1970] FJ40,43,45..LHD FOR COLUMN SHIFT,W/PAD |
55301-60093 |
— | ||
|
55301
|
55301
55301-60120
Panel Sub-Assy, Instrument
[12.1970 - 09.1972] FJ4#..LHD FOR COLUMN SHIFT,W/PAD |
55301-60120 |
— | ||
|
55301
|
55301
55301-90314
Panel Sub-Assy, Instrument
[09.1972 - 09.1973] FJ4#..LHD FOR W/PAD |
55301-90314 |
— | ||
|
55301
|
55301
55301-90315
Panel Sub-Assy, Instrument
[09.1972 - 09.1973] FJ4#..LHD FOR L/PAD |
55301-90315 |
— | ||
|
55301
|
55301
55301-90320
Panel Sub-Assy, Instrument
[09.1973 - 09.1977] FJ4#..LHD FOR L/PAD & HEATER |
55301-90320 |
— | ||
|
55301
|
55301
55301-90321
Panel Sub-Assy, Instrument
[09.1973 - 09.1977] FJ4#..LHD FOR L/PAD & W/HEATER |
55301-90321 |
— | ||
|
55301
|
55301
55301-90322
Panel Sub-Assy, Instrument
[09.1973 - 09.1977] FJ4#..LHD FOR W/PAD & HEATER |
55301-90322 |
— | ||
| replacement | |||||
|
55301
|
55301
55301-90323
Panel Sub-Assy, Instrument
[09.1973 - 09.1977] FJ4#..LHD FOR W/PAD & HEATER |
55301-90323 |
— | ||
|
55301
|
55301
55301-90323
Panel Sub-Assy, Instrument
[09.1973 - 09.1977] FJ4#..LHD FOR W/PAD & L/HEATER |
55301-90323 |
— | ||
|
55301A
|
55301A
90950-01038 Plug, Hole(For Instrument Lower Panel)[07.1970 - 09.1972] FJ4# |
90950-01038 |
US $2.75 |
||
|
55366
|
55366
55366-60010
Clamp, Transfer Change Valve Shift Wire
[03.1969 - 09.1972] FJ40,43,45..LHD |
55366-60010 |
— | ||
|
55381
|
55381
55381-60010
Panel, Instrument Impact
[03.1969 - 01.1975] BJ4#,FJ42;FJ40,43,45..LHD FOR W/PAD |
55381-60010 |
— | ||
|
55404
|
55404
55404-60010 Safety Pad Sub-Assy, Instrument Panel, UpperINSTRUMENT PANEL, UPPER [03.1969 - 09.1972] FJ4#..LHD |
55404-60010 |
US $311.58 |
||
| replacement | |||||
|
55404
|
55404
55404-90301 Safety Pad Sub-Assy, Instrument Panel, UpperINSTRUMENT PANEL, UPPER [03.1969 - 09.1972] FJ4#..LHD |
55404-90301 |
from US $451.57 |
||
|
55404
|
55404
55404-90300
Safety Pad Sub-Assy, Instrument Panel, Upper
[09.1972 - 01.1975] BJ4#;FJ4#..LHD |
55404-90300 |
— | ||
| replacement | |||||
|
55404
|
55404
55404-90301 Safety Pad Sub-Assy, Instrument Panel, UpperINSTRUMENT PANEL, UPPER [09.1972 - 01.1975] BJ4#;FJ4#..LHD |
55404-90301 |
from US $451.57 |
||
|
55404A
|
55404A
55446-60010 Spacer, Instrument Panel Safety Pad, SetINSTRUMENT PANEL SAFETY PAD SET [03.1969 - 03.1973] FJ4#..LHD |
55446-60010 |
US $3.03 |
||
|
55433A
|
55433A
55449-60010
Retainer, Safety Pad Set Plate
[03.1969 - 01.1975] BJ4#,FJ42;FJ40,43,45..LHD |
55449-60010 |
— | ||
|
55468
|
55468
55405-20020
Cover, Heater Switch Hole
[03.1969 - 09.1972] FJ4#,HJ45 |
55405-20020 |
— | ||
|
55476
|
55476
55476-20021
Cover, Cigarette Lighter Hole
[03.1969 - 09.1972] FJ4#,55,HJ45 OD=27 |
55476-20021 |
— | ||
|
55492
|
55492
55405-60010
Garnish Or Safety Pad, Lower, Rh
[03.1969 - 09.1972] FJ4#..LHD |
55405-60010 |
— | ||
|
55492
|
55492
55405-90300
Pad Sub-Assy, Instrument Panel, Lower Rh
[09.1972 - 01.1979] BJ4#,FJ4#..LHD |
55405-90300 |
— | ||
|
55493
|
55493
55406-60010
Garnish Or Safety Pad, Lower, Lh
[03.1969 - 09.1975] BJ4#,FJ4#..LHD |
55406-60010 |
— | ||
| replacement | |||||
|
55493
|
55493
55406-90300
Pad Sub-Assy, Instrument Panel, Lower Lh
[03.1969 - 09.1975] BJ4#,FJ4#..LHD |
55406-90300 |
— | ||
|
55496
|
55496
55434-30020 Retainer, Safety Pad[03.1969 - 01.1979] BJ4#,FJ4#..LHD |
55434-30020 |
US $3.32 |
||
|
55510
|
55510
55501-60041
Door Assy, Glove Compartment
[03.1969 - 04.1978] BJ4#,FJ4#,HJ45 |
55501-60041 |
— | ||
|
55521
|
55521
55521-60011
Knob, Glove Compartment Door
[03.1969 - 04.1978] BJ4#,FJ4#,HJ45 |
55521-60011 |
— | ||
|
55549
|
55549
55549-60011
Packing, Glove Compartment Door
[03.1969 - 05.1975] BJ4#,FJ4#,HJ45 |
55549-60011 |
— | ||
| replacement | |||||
|
55549
|
55549
55549-90300
Packing, Glove Compartment Door
[03.1969 - 05.1975] BJ4#,FJ4#,HJ45 |
55549-90300 |
— | ||
|
55562
|
55562
55544-55010
Spring, Glove Compartment Door Stop
[03.1969 - 03.1972] FJ4# |
55544-55010 |
— | ||
|
55562
|
55562
55544-90300
Spring, Glove Compartment Door Stop
[04.1972 - 04.1978] BJ4#,FJ4#,HJ45 |
55544-90300 |
— | ||
|
55581
|
55581
55508-30020 Cable Sub-Assy, Glove Compartment Door StopperGLOVE COMPARTMENT DOOR STOPPER [05.1970 - 07.1980] BJ4#,FJ4#,HJ45 |
55508-30020 |
from US $7.71 |
||
|
55581
|
55581
55581-60010 Cable Sub-Assy, Glove Compartment Door StopperGLOVE COMPARTMENT DOOR OPEN [03.1969 - 05.1970] FJ4# |
55581-60010 |
US $7.57 |
||
| replacement | |||||
|
55581
|
55581
55508-30020 Cable Sub-Assy, Glove Compartment Door StopperGLOVE COMPARTMENT DOOR STOPPER [03.1969 - 05.1970] FJ4# |
55508-30020 |
from US $7.71 |
||
|
55602
|
55602
55672-60020
Stay Sub-Assy, Steering Column, Upper
[03.1969 - 09.1977] BJ4#,FJ4#,HJ45..LHD |
55672-60020 |
— | ||
|
56409
|
56409
56409-60010 Handle Sub-Assy, Windshield Catch[03.1969 - 07.1980] BJ4#,FJ4#,HJ45 |
56409-60010 |
from US $20.22 |
||
|
56409A
|
56409A
90440-17057
Tube, Windshield Catch Handle
[03.1969 - 07.1980] BJ4#,FJ4#,HJ45 |
90440-17057 |
— | ||
|
9048012119
|
9048012119
90480-12119
Grommet, Choke Cable
|
90480-12119 |
— | ||
|
9111140816
|
9111140816
91111-40816
New Genuine Part
|
91111-40816 |
— | ||
| replacement | |||||
|
9111140816
|
9111140816
91111-50816 Bolt |
91111-50816 |
US $1.51 |
||
|
9321016012
|
9321016012
93210-16012 New Genuine Part |
93210-16012 |
US $1.22 |
||
|
9321915014
|
9321915014
93219-15014 Screw, Cover Set, No.1 |
93219-15014 |
US $1.51 |
||
|
9324915014
|
9324915014
93249-15014 New Genuine Part |
93249-15014 |
US $0.96 |
||
|
9351015010
|
9351015010
93510-15010 New Genuine Part |
93510-15010 |
US $2.18 |
||
|
9354014010
|
9354014010
93540-14010 Clip, Headlining Retainer |
93540-14010 |
from US $0.87 |
||
|
9354015012
|
9354015012
93540-15012 New Genuine Part |
93540-15012 |
US $0.83 |
||
|
9354023512
|
9354023512
93540-23512
New Genuine Part
|
93540-23512 |
— | ||
|
9411040600
|
9411040600
94110-40600 Nut, Rock |
94110-40600 |
from US $0.70 |
||
|
9411540400
|
9411540400
94115-40400
New Genuine Part
|
94115-40400 |
— | ||
| replacement | |||||
|
9411540400
|
9411540400
90076-01001 NUT |
90076-01001 |
US $1.65 |
||
|
9411540500
|
9411540500
94115-40500 Nut(For Lpg Filter Stud Bolt Set) |
94115-40500 |
US $1.10 |
||
|
9451100400
|
9451100400
94511-00400 WASHERSPRING |
94511-00400 |
US $2.48 |
||
|
9451100500
|
9451100500
94511-00500 Washer, Cover Set, No.2 |
94511-00500 |
US $2.06 |
||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $1.51 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
US $1.24 |
||
|
9461210400
|
9461210400
94612-10400 New Genuine Part |
94612-10400 |
US $2.18 |
||
|
9461210500
|
9461210500
94612-10500 WASHERPLATE |
94612-10500 |
US $1.25 |
||
|
9461210800
|
9461210800
94612-10800 Washer, Plate(For Repair Actuator Set) |
94612-10800 |
from US $0.72 |
||
