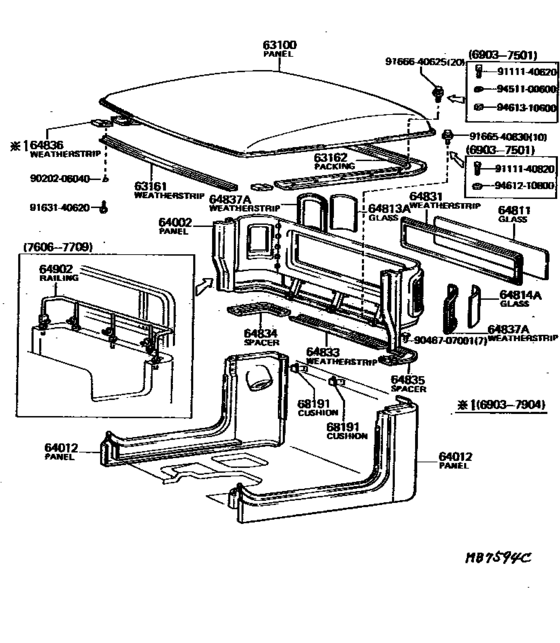

Roof Panel & Back Panel ([06.1976 - 07.1980] (7606-8007)FJ45) Diagram Toyota LAND CRUISER
- Year
- 1976 - 1980
- Sales region
- U.S.A.
- Frame
- FJ45
- body
- PIC
- ENGINE
- 2F
- DESTINATION
- CND
- Model
- LAND CRUISER 40
- From
- 06.1976
- To
- 07.1980
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63100
|
63100
63100-90307
Panel Assy, Roof
[06.1976 - 09.1977] FJ45 |
63100-90307 |
— | ||
| replacement | |||||
|
63100
|
63100
63100-90313
Panel Assy, Roof
[06.1976 - 09.1977] FJ45 |
63100-90313 |
— | ||
|
63100
|
63100
63100-90313
Panel Assy, Roof
[09.1977 - 01.1979] FJ45 |
63100-90313 |
— | ||
|
63100
|
63100
63100-90316
Panel Assy, Roof
[01.1979 - 07.1980] FJ45 |
63100-90316 |
— | ||
|
63161
|
63161
63161-60011 Weatherstrip, RoofROOF [03.1969 - 07.1980] BJ40,FJ4#..PIC,V |
63161-60011 |
from US $41.19 |
||
|
63162
|
63162
63313-90302
Packing, Roof Drip Moulding
[06.1976 - 05.1979] FJ45 |
63313-90302 |
— | ||
| replacement | |||||
|
63162
|
63162
63313-90303 Packing, Roof Drip MouldingROOF DRIP MOULDING [06.1976 - 05.1979] FJ45 |
63313-90303 |
from US $113.96 |
||
|
63162
|
63162
63313-90303 Packing, Roof Drip MouldingROOF DRIP MOULDING [05.1979 - 07.1980] FJ45 |
63313-90303 |
from US $113.96 |
||
|
64002
|
64002
64002-90313
Panel Sub-Assy, Cab Rear, Upper
[06.1976 - 04.1978] FJ45 |
64002-90313 |
— | ||
|
64002
|
64002
64002-90314
Panel Sub-Assy, Cab Rear, Upper
[04.1978 - 01.1979] FJ45 |
64002-90314 |
— | ||
|
64002
|
64002
64002-90322
Panel Sub-Assy, Cab Rear, Upper
[01.1979 - 07.1980] FJ45 |
64002-90322 |
— | ||
|
64012
|
64012
64011-90304 Panel Sub-Assy, Cab Lower CornerCAB LOWER CORNER [06.1976 - 06.1978] FJ45 RH. |
64011-90304 |
US $942.03 |
||
| replacement | |||||
|
64012
|
64012
64011-90309
Panel Sub-Assy, Cab Lower Corner
[06.1976 - 06.1978] FJ45 RH. |
64011-90309 |
— | ||
|
64012
|
64012
64011-90309
Panel Sub-Assy, Cab Lower Corner
[06.1978 - 01.1979] FJ45 RH. |
64011-90309 |
— | ||
|
64012
|
64012
64011-90312
Panel Sub-Assy, Cab Lower Corner
[01.1979 - 07.1980] FJ45 RH. |
64011-90312 |
— | ||
|
64012
|
64012
64012-90304
Panel Sub-Assy, Cab Lower Corner
[06.1976 - 06.1978] FJ45 LH. |
64012-90304 |
— | ||
|
64012
|
64012
64012-90305
Panel Sub-Assy, Cab Lower Corner
[06.1978 - 01.1979] FJ45 LH. |
64012-90305 |
— | ||
|
64012
|
64012
64012-90312
Panel Sub-Assy, Cab Lower Corner
[01.1979 - 07.1980] FJ45 LH. |
64012-90312 |
— | ||
|
64811
|
64811
64811-90333
Glass, Back Window
[06.1976 - 08.1976] FJ45 TP.T=5.0 |
64811-90333 |
— | ||
| replacement | |||||
|
64811
|
64811
64811-90336
Glass, Back Window
[06.1976 - 08.1976] FJ45 TP.T=5.0 |
64811-90336 |
— | ||
|
64811
|
64811
64811-90335
Glass, Back Window
[08.1976 - 07.1980] FJ45 TP.T=4.0 |
64811-90335 |
— | ||
| replacement | |||||
|
64811
|
64811
64811-90336
Glass, Back Window
[08.1976 - 07.1980] FJ45 TP.T=4.0 |
64811-90336 |
— | ||
|
64811
|
64811
64811-90336
Glass, Back Window
[09.1977 - 07.1980] FJ45 TN.TP.T=4.0 |
64811-90336 |
— | ||
|
64813A
|
64813A
64812-90333
Glass, Back Window Corner, Rh
[06.1976 - 07.1980] FJ45 TP.T=5.0 |
64812-90333 |
— | ||
| replacement | |||||
|
64813A
|
64813A
64812-90334
Glass, Back Window Corner, Rh
[06.1976 - 07.1980] FJ45 TP.T=5.0 |
64812-90334 |
— | ||
|
64813A
|
64813A
64812-90334
Glass, Back Window Corner, Rh
[09.1977 - 07.1980] FJ45 TN.TP.T=5.0 |
64812-90334 |
— | ||
|
64814A
|
64814A
64813-90333
Glass, Back Window Corner, Lh
[06.1976 - 07.1980] FJ45 TP.T=5.0 |
64813-90333 |
— | ||
| replacement | |||||
|
64814A
|
64814A
64813-90334
Glass, Back Window Corner, Lh
[06.1976 - 07.1980] FJ45 TP.T=5.0 |
64813-90334 |
— | ||
|
64814A
|
64814A
64813-90334
Glass, Back Window Corner, Lh
[09.1977 - 07.1980] FJ45 TN.TP.T=5.0 |
64813-90334 |
— | ||
|
64831
|
64831
64831-90332 Weatherstrip, Back Window GlassBACK WINDOW GLASS [06.1976 - 07.1980] FJ45 |
64831-90332 |
from US $66.05 |
||
|
64833
|
64833
64833-90300
Weatherstrip, Back Window Channel
[06.1976 - 07.1980] FJ45 |
64833-90300 |
— | ||
| replacement | |||||
|
64833
|
64833
64833-90332
Weatherstrip, Back Window Channel
[06.1976 - 07.1980] FJ45 |
64833-90332 |
— | ||
|
64834
|
64834
64834-90300
Spacer, Cab Rear Panel, Rh
[06.1976 - 01.1979] FJ45 |
64834-90300 |
— | ||
| replacement | |||||
|
64834
|
64834
64834-90301 Spacer, Cab Rear Panel, RhCAB REAR PANEL, RH [06.1976 - 01.1979] FJ45 |
64834-90301 |
from US $32.18 |
||
|
64834
|
64834
64834-90301 Spacer, Cab Rear Panel, RhCAB REAR PANEL, RH [01.1979 - 07.1980] FJ45 |
64834-90301 |
from US $32.18 |
||
|
64835
|
64835
64835-90300
Spacer, Cab Rear Panel, Lh
[06.1976 - 01.1979] FJ45 |
64835-90300 |
— | ||
| replacement | |||||
|
64835
|
64835
64835-90301 Spacer, Cab Rear Panel, LhCAB REAR PANEL, LH [06.1976 - 01.1979] FJ45 |
64835-90301 |
US $32.18 |
||
|
64835
|
64835
64835-90301 Spacer, Cab Rear Panel, LhCAB REAR PANEL, LH [01.1979 - 07.1980] FJ45 |
64835-90301 |
US $32.18 |
||
|
64836
|
64836
64836-90332 Weatherstrip, Roof, FrontROOF, FRONT [03.1969 - 04.1979] BJ40,FJ4#..PIC,V |
64836-90332 |
US $16 |
||
|
64837A
|
64837A
64832-90332 Weatherstrip, Back Window Corner[06.1976 - 07.1980] FJ45 |
64832-90332 |
US $24.75 |
||
|
64902
|
64902
64901-90312 Railing Sub-Assy, Cab, RearCAB, REAR [06.1976 - 09.1977] FJ45 |
64901-90312 |
US $275.18 |
||
|
68191
|
68191
68191-30010
Cushion, Door Glass Down Stopper(For Front Door)
[06.1976 - 01.1979] FJ45 |
68191-30010 |
— | ||
|
9020206040
|
9020206040
90202-06040
New Genuine Part
|
90202-06040 |
— | ||
|
9046707001
|
9046707001
90467-07001 Clip(For Rear Door Weatherstrip) |
90467-07001 |
US $0.96 |
||
|
9111140620
|
9111140620
91111-40620
New Genuine Part
|
91111-40620 |
— | ||
| replacement | |||||
|
9111140620
|
9111140620
91111-50620 New Genuine Part |
91111-50620 |
US $1.75 |
||
|
9111140820
|
9111140820
91111-40820
New Genuine Part
|
91111-40820 |
— | ||
| replacement | |||||
|
9111140820
|
9111140820
91111-50820 New Genuine Part |
91111-50820 |
from US $2.91 |
||
|
9163140620
|
9163140620
91631-40620 New Genuine Part |
91631-40620 |
US $2.56 |
||
|
9166540830
|
9166540830
91665-40830
New Genuine Part
|
91665-40830 |
— | ||
| replacement | |||||
|
9166540830
|
9166540830
91661-60830 Bolt |
91661-60830 |
from US $1.44 |
||
|
9166640625
|
9166640625
91666-40625
New Genuine Part
|
91666-40625 |
— | ||
| replacement | |||||
|
9166640625
|
9166640625
91661-60625 BOLT |
91661-60625 |
US $2.08 |
||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $1.92 |
||
|
9461210800
|
9461210800
94612-10800 Washer, Plate(For Repair Actuator Set) |
94612-10800 |
from US $0.88 |
||
|
9461310600
|
9461310600
94613-10600 New Genuine Part |
94613-10600 |
US $2.72 |
||
