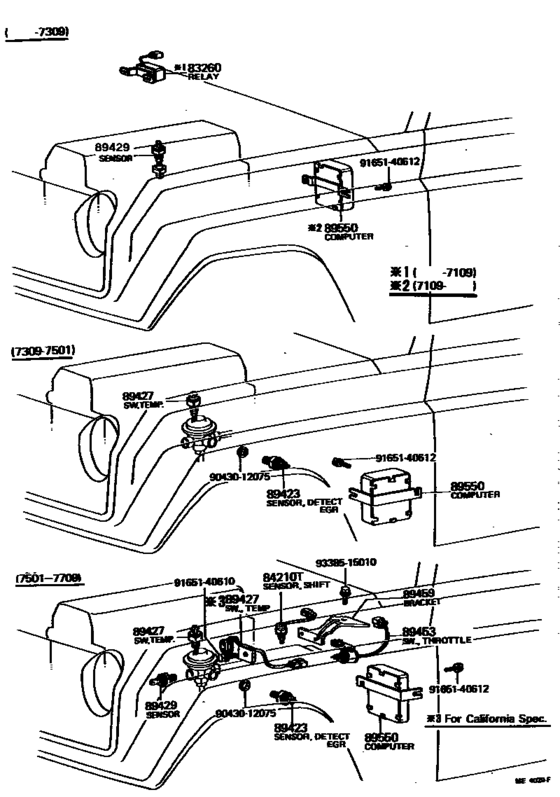

Switch & Relay & Computer ([03.1969 - 09.1977] (6903-7709)) Diagram Toyota LAND CRUISER
- Year
- 1969 - 1975
- Sales region
- U.S.A.
- Frame
- FJ55
- body
- WG
- ENGINE
- F
- Model
- LAND CRUISER 50
- From
- 03.1969
- To
- 01.1975
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83260
|
83260
83260-60010
Relay Assy, Speed Marker
[03.1969 - 09.1971] FJ40,55 |
83260-60010 |
— | ||
|
89423
|
89423
89423-60010
Sensor, Temperature Detect Egr
[09.1973 - 01.1975] FJ40,55 FOR E.G.R. CALIFORNIA SPEC. |
89423-60010 |
— | ||
|
89427
|
89427
89428-60010
Switch, Temperature Detect
[09.1973 - 01.1975] FJ40,55 |
89428-60010 |
— | ||
|
89427
|
89427
89428-60020
Switch, Temperature Detect
[09.1973 - 01.1975] FJ40,55 FOR E.G.R.CALIFORNIA SPEC. |
89428-60020 |
— | ||
|
89427
|
89427
89428-60030
Switch, Temperature Detect
[01.1975 - 02.1976] FJ40,55 |
89428-60030 |
— | ||
|
89429
|
89429
83420-22011
Sensor, Oil Temperature
[09.1971 - 09.1973] FJ40,55 FOR T.C.S. |
83420-22011 |
— | ||
|
89429
|
89429
89429-60010
Sensor, Oil Temperature
[01.1975 - 02.1976] FJ40,55 |
89429-60010 |
— | ||
|
89453
|
89453
89452-60010 Switch, Throttle Position (For T.c.s.)[01.1975 - 02.1976] FJ40,55 |
89452-60010 |
US $42.81 |
||
| replacement | |||||
|
89453
|
89453
89452-60011
Switch, Throttle Position (For T.c.s.)
[01.1975 - 02.1976] FJ40,55 |
89452-60011 |
— | ||
|
89459
|
89459
89459-60020
Bracket, Throttle Position
[01.1975 - 02.1976] FJ55 |
89459-60020 |
— | ||
|
89550
|
89550
89550-60010
Computer Assy, Emission Control
[09.1971 - 09.1972] FJ40,55 |
89550-60010 |
— | ||
|
89550
|
89550
89550-60011
Computer Assy, Emission Control
[09.1972 - 09.1973] FJ40,55 |
89550-60011 |
— | ||
|
89550
|
89550
89550-60013
Computer Assy, Emission Control
[09.1973 - 01.1975] FJ40,55 |
89550-60013 |
— | ||
|
89550
|
89550
89550-60020
Computer Assy, Emission Control
[09.1973 - 01.1975] FJ40,55 FOR E.G.R. CALIFORNIA SPEC. |
89550-60020 |
— | ||
|
89550
|
89550
89550-60031 Computer Assy, Emission Control[01.1975 - 05.1975] FJ40,55 |
89550-60031 |
US $452.82 |
||
| replacement | |||||
|
89550
|
89550
89550-60060
Computer Assy, Emission Control
[01.1975 - 05.1975] FJ40,55 |
89550-60060 |
— | ||
|
89550
|
89550
89550-60040 Computer Assy, Emission Control[01.1975 - 05.1975] FJ40,55 CALIFORNIA SPEC. |
89550-60040 |
US $452.82 |
||
| replacement | |||||
|
89550
|
89550
89550-60041
Computer Assy, Emission Control
[01.1975 - 05.1975] FJ40,55 CALIFORNIA SPEC. |
89550-60041 |
— | ||
|
9043012075
|
9043012075
90430-12075
Gasket
|
90430-12075 |
— | ||
| replacement | |||||
|
9043012075
|
9043012075
15652-60010
Gasket
|
15652-60010 |
— | ||
|
9165140610
|
9165140610
91651-40610 RIVET |
91651-40610 |
US $2.56 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.94 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
|
9338515010
|
9338515010
93385-15010 Screw(For Steering Tilt Lever) |
93385-15010 |
US $1.12 |
||
