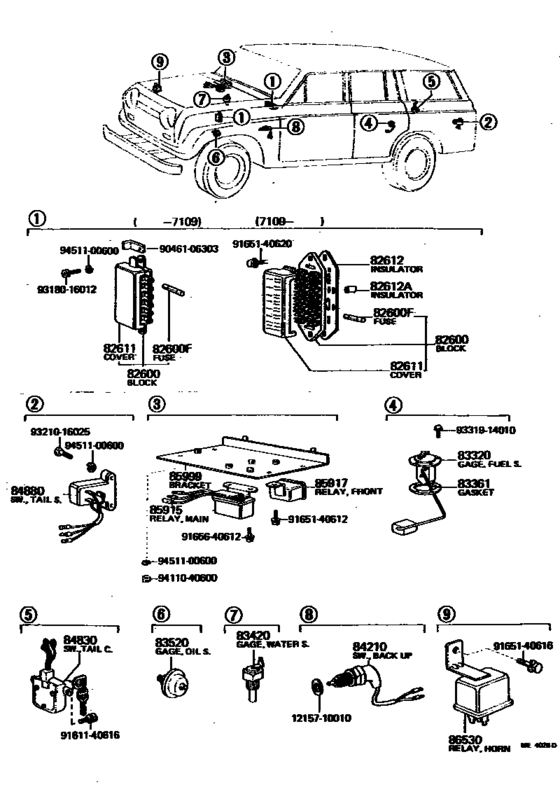

Switch & Relay & Computer ([03.1969 - 07.1980] (6903-8007)FJ55) Diagram Toyota LAND CRUISER
- Year
- 1969 - 1975
- Sales region
- U.S.A.
- Frame
- FJ55
- body
- WG
- ENGINE
- F
- Model
- LAND CRUISER 50
- From
- 03.1969
- To
- 01.1975
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82600
|
82600
82600-30022
Block Assy, Fuse
[03.1969 - 09.1971] FJ40,55 |
82600-30022 |
— | ||
|
82600
|
82600
82600-60901
Block Assy, Fuse
[09.1971 - 09.1977] FJ4#,55 |
82600-60901 |
— | ||
|
82600F
|
82600F
99118-62905 Fuse, Fuse BlockFUSE BLOCK [03.1969 - 09.1971] FJ40,55 5A,5A |
99118-62905 |
US $1.28 |
||
|
82600F
|
82600F
99118-62915 Fuse, Fuse Block[03.1969 - 07.1980] BJ40,FJ4#,55 15A,15A |
99118-62915 |
US $1.60 |
||
|
82600F
|
82600F
99118-62920 Fuse, Fuse BlockFUSE BLOCK [03.1969 - 07.1980] BJ40,FJ4#,55 20A,20A |
99118-62920 |
US $1.28 |
||
|
82611
|
82611
82611-30010
Cover, Fuse Block
[03.1969 - 09.1971] FJ40,55 |
82611-30010 |
— | ||
|
82611
|
82611
82611-60040
Cover, Fuse Block
[09.1971 - 09.1977] FJ4#,55 |
82611-60040 |
— | ||
|
82612
|
82612
82612-20020
Insulator, Fuse Block Terminal
[09.1971 - 01.1979] BJ40,FJ4#,55 |
82612-20020 |
— | ||
| replacement | |||||
|
82612
|
82612
82600-20903
Block Assy, Fuse
[09.1971 - 01.1979] BJ40,FJ4#,55 |
82600-20903 |
— | ||
|
82612A
|
82612A
82612-22020
Insulator, Fuse Block Terminal, B
[09.1971 - 01.1979] BJ40,FJ4#,55 |
82612-22020 |
— | ||
|
83320
|
83320
83320-60040
Gage Assy, Fuel Sender
[03.1969 - 09.1972] FJ55 |
83320-60040 |
— | ||
|
83320
|
83320
83320-60041
Gage Assy, Fuel Sender
[09.1972 - 07.1980] FJ55 |
83320-60041 |
— | ||
|
83361
|
83361
83361-20030 Gasket, Fuel Tank Vent[03.1969 - 09.1972] FJ55 |
83361-20030 |
from US $5.12 |
||
|
83420
|
83420
83420-20011 Gage Assy, Water Temperature Sender[03.1969 - 09.1972] FJ55 |
83420-20011 |
from US $47.89 |
||
|
83520
|
83520
83520-55010
Gage Assy,oil Pressure Sender
[03.1969 - 01.1979] FJ4#,55 |
83520-55010 |
— | ||
| replacement | |||||
|
83520
|
83520
83520-55011 Gage Assy,oil Pressure Sender[03.1969 - 01.1979] FJ4#,55 |
83520-55011 |
from US $63.08 |
||
|
84210
|
84210
84021-60020
Switch Assy, Back-Up Lamp
[03.1969 - 09.1972] FJ55 W/BRACKET,3-SPEED COLUMN SHIFT |
84021-60020 |
— | ||
|
84210
|
84210
84210-10040
Switch Assy, Back-Up Lamp
[09.1971 - 09.1972] FJ40,55 3-SPEED,COLUMN SHIFT |
84210-10040 |
— | ||
|
84210
|
84210
84210-20012 Switch Assy, Back-Up LampBACK-UP LAMP [09.1973 - 07.1980] BJ40,FJ4#,55 4-SPEED,FLOOR SHIFT |
84210-20012 |
from US $32.53 |
||
|
84210
|
84210
84210-30021
Switch Assy, Back-Up Lamp
[03.1969 - 09.1971] FJ40,55 3-SPEED,COLUMN SHIFT |
84210-30021 |
— | ||
|
84210
|
84210
84210-57012 Switch Assy, Back-Up LampBACK-UP LAMP [03.1969 - 01.1975] FJ40,55 3-SPEED,FLOOR SHIFT |
84210-57012 |
US $32.53 |
||
|
84830
|
84830
84830-60010 Switch Assy, Tail Gate ControlTAIL GATE CONTROL [03.1969 - 09.1977] FJ55 |
84830-60010 |
US $65.67 |
||
|
84880
|
84880
84880-31010 Switch Assy, Tail Gate SafetyTAIL GATE SAFETY [03.1969 - 02.1979] FJ55 |
84880-31010 |
US $36.11 |
||
|
85915
|
85915
85950-30011
Relay, Main
[03.1970 - 09.1977] FJ55 FOR TAIL GATE |
85950-30011 |
— | ||
|
85917
|
85917
85917-60010
Relay, Front Drive
[09.1972 - 09.1977] FJ4#,55 FOR MAGNET FRONT DRIVE |
85917-60010 |
— | ||
|
85999
|
85999
89590-90350
Bracket, Combination Relay
[09.1972 - 09.1973] FJ55 |
89590-90350 |
— | ||
|
86530
|
86530
86530-20031
Relay Assy, Horn
[03.1969 - 10.1969] FJ40,55 MARUKO |
86530-20031 |
— | ||
|
86530
|
86530
86530-35020
Relay Assy, Horn
[10.1969 - 07.1980] FJ4#,55 MARUKO |
86530-35020 |
— | ||
|
1215710010
|
1215710010
12157-10010 Gasket (For Drain Plug) |
12157-10010 |
from US $0.96 |
||
|
9046106303
|
9046106303
90461-06303 New Genuine Part |
90461-06303 |
US $2.33 |
||
|
9161140616
|
9161140616
91611-40616
Bolt, Hexagon(For Steering Column Bracket)
|
91611-40616 |
— | ||
| replacement | |||||
|
9161140616
|
9161140616
91611-B0616 Bolt(For Transaxle Case Receiver) |
91611-B0616 |
from US $0.88 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.94 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.76 |
||
| replacements | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.48 |
||
|
9165140616
|
9165140616
90080-11395 New Genuine Part |
90080-11395 |
US $2.73 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
|
9165640612
|
9165640612
91656-40612
New Genuine Part
|
91656-40612 |
— | ||
| replacement | |||||
|
9165640612
|
9165640612
91651-B0610 BOLTWWASHER |
91651-B0610 |
from US $1.92 |
||
|
9318016012
|
9318016012
93180-16012
New Genuine Part
|
93180-16012 |
— | ||
|
9321016025
|
9321016025
93210-16025 New Genuine Part |
93210-16025 |
US $2.72 |
||
|
9331914010
|
9331914010
93319-14010 SCREW |
93319-14010 |
from US $0.90 |
||
|
9411040600
|
9411040600
94110-40600 Nut, Rock |
94110-40600 |
from US $0.66 |
||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $1.92 |
||
