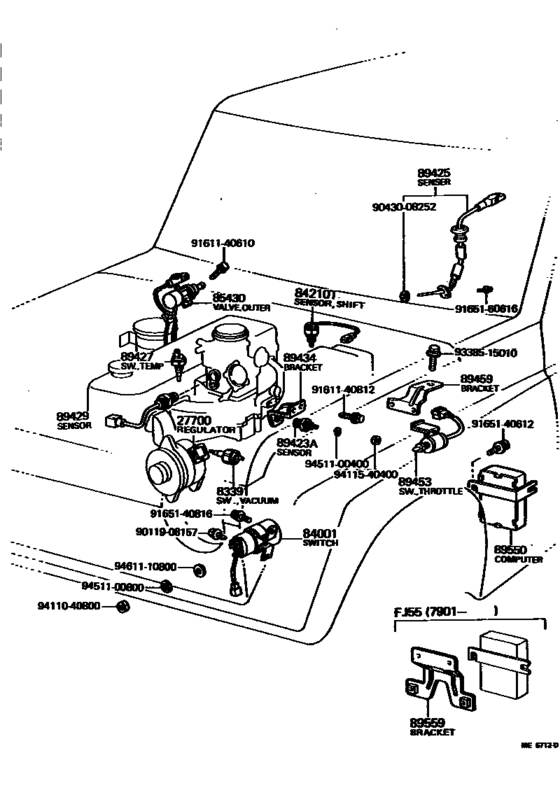

Switch & Relay & Computer ([09.1977 - 07.1980] (7709-8007)FJ4#,55) Diagram Toyota LAND CRUISER
- Year
- 1976 - 1980
- Sales region
- U.S.A.
- Frame
- FJ55
- body
- WG
- ENGINE
- 2F
- DESTINATION
- USA
- Model
- LAND CRUISER 50
- From
- 02.1976
- To
- 07.1980
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27700
|
27700
27700-24020
Regulator Assy, Generator
[05.1978 - 07.1980] 2F..FJ4#,55 |
27700-24020 |
— | ||
| replacement | |||||
|
27700
|
27700
27700-54040
Regulator Assy, Generator
[05.1978 - 07.1980] 2F..FJ4#,55 |
27700-54040 |
— | ||
|
27700
|
27700
27700-36010
Regulator Assy, Generator
[09.1975 - 09.1977] 2F..FJ55 |
27700-36010 |
— | ||
| replacement | |||||
|
27700
|
27700
27700-15040 Regulator Assy, Generator[09.1975 - 09.1977] 2F..FJ55 |
27700-15040 |
from US $99.78 |
||
|
27700
|
27700
27700-38100
Regulator Assy, Generator
[01.1979 - 07.1980] 2F..FJ4#,55 IC REGULATOR |
27700-38100 |
— | ||
| replacement | |||||
|
27700
|
27700
27700-28030
Regulator Assy, Generator
[01.1979 - 07.1980] 2F..FJ4#,55 IC REGULATOR |
27700-28030 |
— | ||
|
27700
|
27700
27700-60100
Regulator Assy, Generator
[09.1977 - 05.1978] 2F..FJ4#,55 |
27700-60100 |
— | ||
|
83391
|
83391
83391-12050
Switch, Vacuum
[01.1979 - 07.1980] FJ40,55..USA |
83391-12050 |
— | ||
|
84210T
|
84210T
84220-12010
Sensor Assy, Shift Point
[08.1976 - 09.1977] FJ40,55..USA |
84220-12010 |
— | ||
|
85430
|
85430
85430-60010 Valve, Outer Vent ControlOUTER VENT CONTROL [09.1977 - 07.1980] FJ40,55..USA |
85430-60010 |
US $99.01 |
||
|
89423A
|
89423A
89423-60020
Sensor, Manifold Temperature
[09.1977 - 07.1980] FJ40,55..USA |
89423-60020 |
— | ||
|
89425
|
89425
89425-69025
Sensor, Exhaust Gas Temperature
[01.1979 - 07.1980] FJ55..USA |
89425-69025 |
— | ||
|
89427
|
89427
89427-60010
Switch, Temperature Detect
[01.1976 - 02.1976] FJ40,55 CALIFORNIA SPEC. |
89427-60010 |
— | ||
|
89427
|
89427
89427-60011
Switch, Temperature Detect
[08.1976 - 09.1977] FJ40,55..USA CALIFORNIA SPEC. |
89427-60011 |
— | ||
|
89427
|
89427
89428-60030
Switch, Temperature Detect
[01.1975 - 02.1976] FJ40,55 |
89428-60030 |
— | ||
|
89429
|
89429
89429-60010
Sensor, Oil Temperature
[01.1975 - 02.1976] FJ40,55 |
89429-60010 |
— | ||
|
89434
|
89434
17118-61020
Bracket, Manifold Temperature Sensor
[09.1977 - 01.1979] FJ40,55..USA CALIFORNIA SPEC. |
17118-61020 |
— | ||
|
89453
|
89453
89452-60010 Switch, Throttle Position (For T.c.s.)[01.1975 - 02.1976] FJ40,55 |
89452-60010 |
US $42.81 |
||
| replacement | |||||
|
89453
|
89453
89452-60011
Switch, Throttle Position (For T.c.s.)
[01.1975 - 02.1976] FJ40,55 |
89452-60011 |
— | ||
|
89459
|
89459
89459-60020
Bracket, Throttle Position
[01.1975 - 02.1976] FJ55 |
89459-60020 |
— | ||
|
89550
|
89550
89550-60060
Computer Assy, Emission Control
[05.1975 - 02.1976] FJ40,55 |
89550-60060 |
— | ||
|
89550
|
89550
89550-60080
Computer Assy, Emission Control
[08.1976 - 09.1977] FJ40,55..USA |
89550-60080 |
— | ||
|
89550
|
89550
89550-60090
Computer Assy, Emission Control
[08.1976 - 09.1977] FJ40,55..USA CALIFORNIA SPEC. |
89550-60090 |
— | ||
|
89550
|
89550
89550-60100
Computer Assy, Emission Control
[09.1977 - 01.1979] FJ40,55..USA |
89550-60100 |
— | ||
|
89550
|
89550
89550-60120
Computer Assy, Emission Control
[01.1979 - 07.1980] FJ40,55..USA |
89550-60120 |
— | ||
|
89559
|
89559
89591-90351
Bracket, Emission Control Computer
[01.1979 - 07.1980] FJ55..USA |
89591-90351 |
— | ||
|
9011908157
|
9011908157
90119-08157
New Genuine Part
|
90119-08157 |
— | ||
| replacement | |||||
|
9011908157
|
9011908157
90119-08718 BOLT WWASHER |
90119-08718 |
from US $2.07 |
||
|
9043008252
|
9043008252
90430-08252 Gasket(For Catalytic Converter Sensor Guide) |
90430-08252 |
US $3.84 |
||
|
9161140610
|
9161140610
91611-40610
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-40610 |
— | ||
| replacement | |||||
|
9161140610
|
9161140610
91611-B0610 Bolt (For Transfer Oil Receiver No.1) |
91611-B0610 |
US $1.12 |
||
|
9161140812
|
9161140812
91611-40812
Bolt(for Drive Plate & Torque Converter Setting)
|
91611-40812 |
— | ||
| replacement | |||||
|
9161140812
|
9161140812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $1.03 |
||
|
9165160616
|
9165160616
91651-60616 BOLT |
91651-60616 |
from US $0.47 |
||
|
9338515010
|
9338515010
93385-15010 Screw(For Steering Tilt Lever) |
93385-15010 |
US $1.12 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $1.03 |
||
|
9411540400
|
9411540400
94115-40400
NUT
|
94115-40400 |
— | ||
| replacement | |||||
|
9411540400
|
9411540400
90076-01001 NUT |
90076-01001 |
US $2.08 |
||
|
9451100400
|
9451100400
94511-00400 WASHERSPRING |
94511-00400 |
US $3.20 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
from US $1.60 |
||
|
9461110800
|
9461110800
94611-10800 Washer, Plate (For Transmission Control Cable) |
94611-10800 |
US $1.28 |
||
