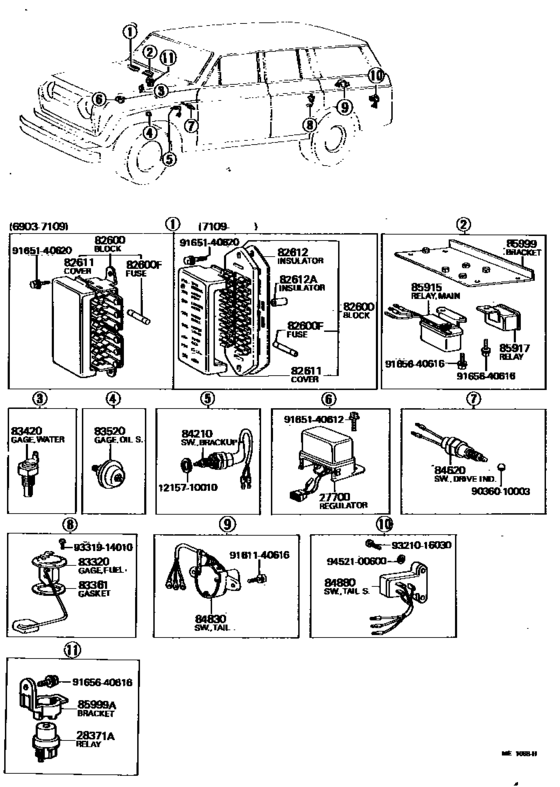

Switch & Relay & Computer ([03.1969 - 07.1980] (6903-8007)FJ55) Diagram Toyota LAND CRUISER
- Year
- 1975 - 1980
- Sales region
- General
- Frame
- FJ55
- ENGINE
- 2F
- DESTINATION
- ARL
- Model
- LAND CRUISER 50
- From
- 01.1975
- To
- 07.1980
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
- Driver's Position
- RHD
- Roll Bar
- WORB
- Top,back Door
- VKC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27700
|
27700
27700-13010 Regulator Assy, Generator[01.1979 - 07.1980] B..BJ4#..ARL,GEN FOR 12V; H,2F..FJ4#,55,HJ45 FOR 12V |
27700-13010 |
US $145.60 |
||
| replacement | |||||
|
27700
|
27700
27700-15040 Regulator Assy, Generator[01.1979 - 07.1980] B..BJ4#..ARL,GEN FOR 12V; H,2F..FJ4#,55,HJ45 FOR 12V |
27700-15040 |
from US $84.98 |
||
|
27700
|
27700
27700-36010
Regulator Assy, Generator
[09.1973 - 09.1977] F,2F..FJ55 FOR TANDEM MASTER CYLINDER |
27700-36010 |
— | ||
| replacement | |||||
|
27700
|
27700
27700-15040 Regulator Assy, Generator[09.1973 - 09.1977] F,2F..FJ55 FOR TANDEM MASTER CYLINDER |
27700-15040 |
from US $84.98 |
||
|
27700
|
27700
27700-60080
Regulator Assy, Generator
[09.1977 - 01.1979] B..BJ4#..ARL,GEN FOR 12V; H,2F..FJ4#,55,HJ45 FOR 12V |
27700-60080 |
— | ||
|
28371A
|
28371A
90987-02001 Relay Assy (For Heater Blower Motor)[04.1979 - 07.1980] H..HJ45..PIC..ARL;B,2F..BJ40,FJ40,45,55..ARL |
90987-02001 |
US $40.48 |
||
| replacement | |||||
|
28371A
|
28371A
90999-99089 Relay Assy (For Heater Blower Motor)[04.1979 - 07.1980] H..HJ45..PIC..ARL;B,2F..BJ40,FJ40,45,55..ARL |
90999-99089 |
US $26.05 |
||
|
82600
|
82600
82600-60050
Block Assy, Fuse
[09.1977 - 10.1978] BJ4#,FJ4#,55,HJ45 |
82600-60050 |
— | ||
| replacement | |||||
|
82600
|
82600
82600-60060
Block Assy, Fuse
[09.1977 - 10.1978] BJ4#,FJ4#,55,HJ45 |
82600-60060 |
— | ||
|
82600
|
82600
82600-60060
Block Assy, Fuse
[10.1978 - 01.1979] BJ4#,FJ4#,55,HJ45 |
82600-60060 |
— | ||
|
82600
|
82600
82600-60901
Block Assy, Fuse
[09.1971 - 09.1977] BJ4#,FJ4#,55,HJ45 |
82600-60901 |
— | ||
|
82600F
|
82600F
90982-07008
Fuse, Fuse Block
[01.1979 - 07.1980] BJ4#,FJ4#,55,HJ45 5A |
90982-07008 |
— | ||
| replacement | |||||
|
82600F
|
82600F
99118-62005 Fuse, Fuse Block[01.1979 - 07.1980] BJ4#,FJ4#,55,HJ45 5A |
99118-62005 |
US $1.24 |
||
|
82600F
|
82600F
99118-62905 Fuse, Fuse BlockFUSE BLOCK [09.1977 - 01.1979] BJ4#,FJ4#,55,HJ45 5A,5A |
99118-62905 |
US $1.43 |
||
|
82600F
|
82600F
99118-62910 Fuse, Fuse Block[09.1977 - 01.1979] BJ4#,FJ4#,55,HJ45 10A |
99118-62910 |
US $1.79 |
||
|
82600F
|
82600F
99118-62915 Fuse, Fuse Block[03.1969 - 07.1980] BJ4#,FJ4#,55,HJ45 15A,15A |
99118-62915 |
from US $1.72 |
||
|
82600F
|
82600F
99118-62920 Fuse, Fuse BlockFUSE BLOCK [03.1969 - 07.1980] BJ4#,FJ4#,55,HJ45 20A,20A |
99118-62920 |
US $1.43 |
||
|
82611
|
82611
82611-60040
Cover, Fuse Block
[09.1971 - 09.1977] BJ4#,FJ4#,55,HJ45 |
82611-60040 |
— | ||
|
82611
|
82611
82611-60050
Cover, Fuse Block
[09.1977 - 10.1978] BJ4#,FJ4#,55,HJ45 |
82611-60050 |
— | ||
| replacement | |||||
|
82611
|
82611
82611-60060
Cover, Fuse Block
[09.1977 - 10.1978] BJ4#,FJ4#,55,HJ45 |
82611-60060 |
— | ||
|
82611
|
82611
82611-60060
Cover, Fuse Block
[10.1978 - 01.1979] BJ4#,FJ4#,55,HJ45 |
82611-60060 |
— | ||
|
82611
|
82611
82611-90301 Cover, Fuse BlockFUSE BLOCK [01.1979 - 07.1980] BJ4#,FJ4#,55,HJ45 |
82611-90301 |
from US $20.50 |
||
|
82612
|
82612
82612-20020
Insulator, Fuse Block Terminal
[09.1971 - 01.1979] BJ4#,FJ4#,55,HJ45 |
82612-20020 |
— | ||
| replacement | |||||
|
82612
|
82612
82600-20903
Block Assy, Fuse
[09.1971 - 01.1979] BJ4#,FJ4#,55,HJ45 |
82600-20903 |
— | ||
|
82612A
|
82612A
82612-22020
Insulator, Fuse Block Terminal, B
[09.1971 - 01.1979] BJ4#,FJ40,43,45,55,HJ45 |
82612-22020 |
— | ||
|
83320
|
83320
83320-60041
Gage Assy, Fuel Sender
[09.1972 - 07.1980] FJ55 |
83320-60041 |
— | ||
|
83361
|
83361
83361-20030 Gasket, Fuel Tank Vent[09.1972 - 07.1980] BJ4#,FJ4#,55,HJ45 |
83361-20030 |
from US $2.30 |
||
|
83420
|
83420
83420-16010
Gage Assy, Water Temperature Sender
[10.1979 - 07.1980] BJ4#,FJ4#,55,HJ45 DENSO |
83420-16010 |
— | ||
| replacement | |||||
|
83420
|
83420
83420-20020 Gage Assy, Water Temperature Sender[10.1979 - 07.1980] BJ4#,FJ4#,55,HJ45 DENSO |
83420-20020 |
from US $29.21 |
||
|
83420
|
83420
83420-20011 Gage Assy, Water Temperature Sender[09.1972 - 10.1979] BJ4#,FJ4#,55,HJ45 |
83420-20011 |
US $57.62 |
||
|
83420
|
83420
83420-20020 Gage Assy, Water Temperature Sender[10.1979 - 07.1980] BJ4#,FJ4#,55,HJ45 YAZAKI |
83420-20020 |
from US $29.21 |
||
|
83520
|
83520
83520-14020
Gage Assy,oil Pressure Sender
[09.1976 - 07.1980] BJ4#,FJ4#,55,HJ45 FOR 12V,W/OIL COOLER |
83520-14020 |
— | ||
| replacement | |||||
|
83520
|
83520
83520-35032 Gage Assy,oil Pressure Sender[09.1976 - 07.1980] BJ4#,FJ4#,55,HJ45 FOR 12V,W/OIL COOLER |
83520-35032 |
from US $41.50 |
||
|
83520
|
83520
83520-55010
Gage Assy,oil Pressure Sender
[03.1969 - 07.1975] FJ4#,55,HJ45 |
83520-55010 |
— | ||
| replacement | |||||
|
83520
|
83520
83520-55011 Gage Assy,oil Pressure Sender[03.1969 - 07.1975] FJ4#,55,HJ45 |
83520-55011 |
from US $69.72 |
||
|
83520
|
83520
83520-55011 Gage Assy,oil Pressure Sender[01.1979 - 07.1980] BJ4#,FJ4#,55,HJ45 FOR 12V |
83520-55011 |
from US $69.72 |
||
|
84210
|
84210
84210-20012 Switch Assy, Back-Up LampBACK-UP LAMP [09.1972 - 01.1975] BJ4#,FJ4#,55,HJ45 4-SPEED,FLOOR SHIFT |
84210-20012 |
from US $35.95 |
||
|
84210
|
84210
84210-57012 Switch Assy, Back-Up LampBACK-UP LAMP [03.1969 - 01.1975] FJ4#,55 3-SPEED,FLOOR SHIFT |
84210-57012 |
US $35.95 |
||
|
84620
|
84620
84610-30020
Switch Assy, Front Drive Indicator
[03.1969 - 09.1979] BJ4#,FJ40,43,45,55 |
84610-30020 |
— | ||
|
85915
|
85915
85915-20021 Relay, MainMAIN [09.1977 - 07.1980] FJ55 FOR TAIL GATE |
85915-20021 |
US $94.64 |
||
|
85915
|
85915
85950-30011
Relay, Main
[03.1970 - 09.1977] FJ55 FOR TAIL GATE |
85950-30011 |
— | ||
|
85917
|
85917
85917-60010
Relay, Front Drive
[09.1972 - 09.1977] FJ4#,55 FOR MAGNET FRONT DRIVE |
85917-60010 |
— | ||
|
85999A
|
85999A
85999-26010
Bracket, Combination Relay
[04.1979 - 07.1980] HJ45..PIC..ARL;BJ40,FJ40,45,55..ARL |
85999-26010 |
— | ||
|
1215710010
|
1215710010
12157-10010 Gasket (For Drain Plug) |
12157-10010 |
from US $0.74 |
||
|
9036010003
|
9036010003
90360-10003 Ball(For Transmission Oil Pump Cover) |
90360-10003 |
from US $1.19 |
||
|
9161140616
|
9161140616
91611-40616
Bolt, Hexagon(For Steering Column Bracket)
|
91611-40616 |
— | ||
| replacement | |||||
|
9161140616
|
9161140616
91611-B0616 Bolt(For Transaxle Case Receiver) |
91611-B0616 |
from US $0.86 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.98 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
from US $0.86 |
||
|
9165640616
|
9165640616
91656-40616
Bolt
|
91656-40616 |
— | ||
| replacement | |||||
|
9165640616
|
9165640616
91651-60614 Bolt |
91651-60614 |
from US $1.19 |
||
|
9321016030
|
9321016030
93210-16030 New Genuine Part |
93210-16030 |
US $2.18 |
||
|
9331914010
|
9331914010
93319-14010 SCREW |
93319-14010 |
from US $0.90 |
||
|
9452100600
|
9452100600
94521-00600
New Genuine Part
|
94521-00600 |
— | ||
