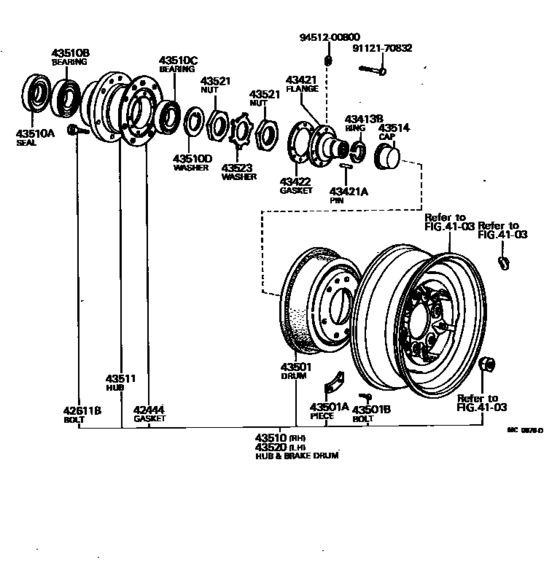

Front Axle Hub ([03.1969 - 09.1975] (6903-7509)) Diagram Toyota LAND CRUISER
- Year
- 1969 - 1975
- Sales region
- Japan
- Frame
- FJ55
- body
- WG
- ENGINE
- F
- Model
- LAND CRUISER 50
- From
- 03.1969
- To
- 01.1975
- Vehicle Model
- Land Cruiser VAN
- Back Door
- VTG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
42444
|
42444
42444-35010
Gasket, Brake Drum (For Front Axle)
[03.1969 - 09.1975] BJ4#,FJ4#,55 |
42444-35010 |
— | ||
|
42611B
|
42611B
90942-02014 Bolt, Hub (For Front Axle)[03.1969 - 09.1975] BJ4#,FJ4#,5# |
90942-02014 |
US $6.24 |
||
|
43413B
|
43413B
90520-28038 Ring, Drive Shaft SnapDRIVE SHAFT SNAP [03.1969 - 09.1975] BJ4#,FJ4#,5# |
90520-28038 |
US $2.62 |
||
|
43421
|
43421
43421-60010 Flange, Front Axle Outer ShaftFRONT AXLE OUTER SHAFT [03.1969 - 09.1975] BJ4#,FJ4#,5# |
43421-60010 |
US $106.29 |
||
|
43421A
|
43421A
90250-07057 Pin, Straight (For Axle Hub)[03.1969 - 07.1980] BJ4#,FJ4#,5# |
90250-07057 |
from US $1.19 |
||
|
43422
|
43422
43422-60010 Gasket, Axle Shaft[03.1969 - 07.1980] BJ4#,FJ4#,5# |
43422-60010 |
from US $0.90 |
||
|
43501
|
43501
43501-60010 Drum Sub-Assy, Rear BrakeREAR BRAKE [03.1969 - 09.1975] BJ4#,FJ4#,5# |
43501-60010 |
US $193.65 |
||
|
43501A
|
43501A
90937-01027
Piece, Balance (For Front Brake Drum)
[03.1969 - 09.1975] BJ4#,FJ4#,5# 30G. |
90937-01027 |
— | ||
|
43501A
|
43501A
90937-01028
Piece, Balance (For Front Brake Drum)
[03.1969 - 09.1975] BJ4#,FJ4#,5# 60G. |
90937-01028 |
— | ||
|
43501A
|
43501A
90937-01085
Piece, Balance (For Front Brake Drum)
[11.1971 - 09.1975] BJ4#,FJ4#,5# 90G. |
90937-01085 |
— | ||
|
43501B
|
43501B
90113-10007 Bolt, Set (For Rear Brake Drum Setting)[03.1969 - 09.1975] BJ4#,FJ4#,5# |
90113-10007 |
US $0.96 |
||
|
43510
|
43510
43510-60010
Hub And Brake Drum Assy, Front Axle, Rh
[03.1969 - 09.1975] BJ4#,FJ4#,5# |
43510-60010 |
— | ||
|
43510A
|
43510A
90312-55010 Seal, Oil (For Front Axle Hub)OIL (FOR FRONT AXLE HUB) [03.1969 - 09.1975] BJ4#,FJ4#,5# |
90312-55010 |
US $3.49 |
||
|
43510B
|
43510B
90368-41002
Bearing, Tapered Roller (For Front Axle Inner Bearing)
[03.1969 - 09.1975] BJ4#,FJ4#,5# |
90368-41002 |
— | ||
|
43510C
|
43510C
90368-38003
Bearing, Tapered Roller (For Front Axle Outer Bearing)
[03.1969 - 09.1975] BJ4#,FJ4#,5# |
90368-38003 |
— | ||
|
43510D
|
43510D
90214-38013
Washer, Claw (For Steering Knuckle Washer)
[03.1969 - 09.1975] BJ4#,FJ4#,5# |
90214-38013 |
— | ||
|
43511
|
43511
43511-60010
Hub, Front Axle
[03.1969 - 09.1975] BJ4#,FJ4#,5# |
43511-60010 |
— | ||
|
43514
|
43514
43423-60010 Cap, Front Hub GreaseFRONT HUB GREASE [03.1969 - 02.1979] BJ4#,FJ4#,5# |
43423-60010 |
US $10.63 |
||
|
43520
|
43520
43510-60010
Hub And Brake Drum Assy, Front Axle, Rh
[03.1969 - 09.1975] BJ4#,FJ4#,5# |
43510-60010 |
— | ||
|
43521
|
43521
43521-60010 Nut, Front Wheel AdjustingFRONT WHEEL ADJUSTING [03.1969 - 09.1975] BJ4#,FJ4#,5# |
43521-60010 |
US $9.60 |
||
|
43523
|
43523
43523-60010 Washer, Front Wheel Adjusting LockFRONT WHEEL ADJUSTING LOCK [03.1969 - 12.1971] FJ4#,55 |
43523-60010 |
US $3.93 |
||
| replacement | |||||
|
43523
|
43523
90215-38020 Washer, Front Wheel Adjusting LockFRONT WHEEL ADJUSTING LOCK [03.1969 - 12.1971] FJ4#,55 |
90215-38020 |
US $3.49 |
||
|
43523
|
43523
90215-38020 Washer, Front Wheel Adjusting LockFRONT WHEEL ADJUSTING LOCK [12.1971 - 09.1975] BJ4#,FJ4#,5# |
90215-38020 |
US $3.49 |
||
|
9112170832
|
9112170832
91121-70832 New Genuine Part |
91121-70832 |
US $2.77 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.76 |
||
