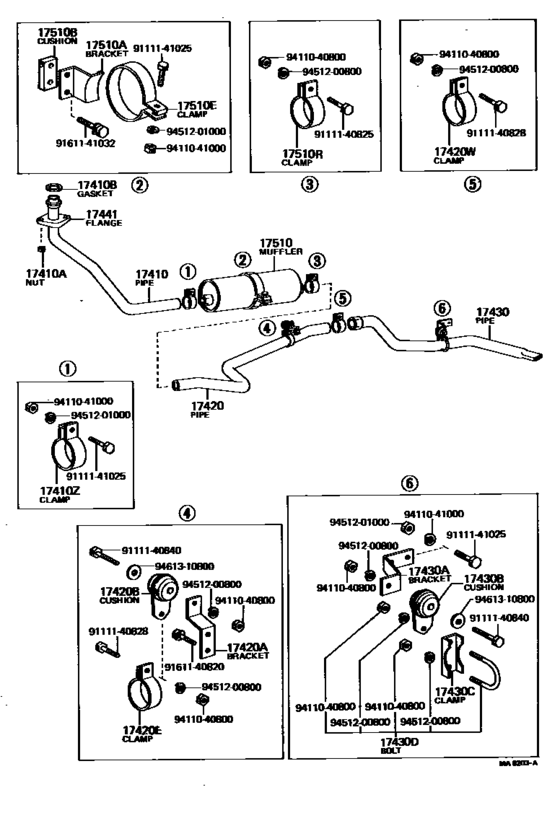

Exhaust Pipe ([09.1969 - 01.1975] (6909-7501)F..FJ55) Diagram Toyota LAND CRUISER
- Year
- 1969 - 1975
- Sales region
- Europe
- Frame
- FJ55
- ENGINE
- F
- DESTINATION
- GEN
- Model
- LAND CRUISER 50
- From
- 03.1969
- To
- 01.1975
- Vehicle Model
- Land Cruiser
- Driver's Position
- RHD
- Roll Bar
- WORB
- Top,back Door
- VKC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17401-60200 Pipe Assy, Exhaust, FrontEXHAUST, FRONT [03.1969 - 01.1975] F..FJ55 |
17401-60200 |
US $87.36 |
||
|
17410A
|
17410A
90170-10049
Nut, Exhaust Pipe Set Stud Bolt
[03.1969 - 12.1972] F,H..FJ4#,55,HJ45 |
90170-10049 |
— | ||
| replacement | |||||
|
17410A
|
17410A
90170-10199 Nut, Exhaust Pipe Set Stud Bolt[03.1969 - 12.1972] F,H..FJ4#,55,HJ45 |
90170-10199 |
US $4 |
||
|
17410A
|
17410A
90170-10199 Nut, Exhaust Pipe Set Stud Bolt[12.1972 - 01.1975] B,F,H..BJ4#,FJ4#,55,HJ45 |
90170-10199 |
US $4 |
||
|
17410B
|
17410B
90917-06005
Gasket, Exhaust Pipe
[03.1969 - 01.1975] F,H..FJ4#,55,HJ45 |
90917-06005 |
— | ||
| replacement | |||||
|
17410B
|
17410B
90917-06042 Gasket, Exhaust Pipe[03.1969 - 01.1975] F,H..FJ4#,55,HJ45 |
90917-06042 |
from US $4.78 |
||
|
17410Z
|
17410Z
90461-23063 Clamp No.2, Exhaust Pipe Front (For Rear)EXHAUST PIPE FRONT (FOR REAR) [03.1969 - 01.1975] F,H..FJ45,55,HJ45 |
90461-23063 |
US $4.66 |
||
| replacement | |||||
|
17410Z
|
17410Z
90461-23469
Clamp No.2, Exhaust Pipe Front (For Rear)
[03.1969 - 01.1975] F,H..FJ45,55,HJ45 |
90461-23469 |
— | ||
|
17420
|
17420
17421-60051
Pipe Assy, Exhaust, Center
[03.1969 - 09.1969] F..FJ55 |
17421-60051 |
— | ||
|
17420
|
17420
17421-60052
Pipe Assy, Exhaust, Center
[09.1969 - 01.1975] F..FJ55 |
17421-60052 |
— | ||
|
17420A
|
17420A
17561-60041
Bracket, Exhaust Pipe Center, Front
[03.1969 - 09.1969] F..FJ55 |
17561-60041 |
— | ||
|
17420A
|
17420A
17561-60060
Bracket, Exhaust Pipe Center, Front
[09.1969 - 01.1975] F..FJ55 |
17561-60060 |
— | ||
|
17420B
|
17420B
90917-08004 Cushion, Exhaust Pipe Front (For Front)[09.1969 - 01.1975] F..FJ55 |
90917-08004 |
US $12.80 |
||
|
17420E
|
17420E
90461-23387 Clamp No.2, Exhaust Pipe Center, Front[09.1969 - 01.1975] F..FJ55 |
90461-23387 |
US $9.60 |
||
|
17420W
|
17420W
90461-23071
Clamp No.2, Exhaust Pipe Center, Rear
[03.1969 - 09.1969] F..FJ55 |
90461-23071 |
— | ||
| replacement | |||||
|
17420W
|
17420W
90461-23087
Clamp No.2, Exhaust Tail Pipe(For Front)
[03.1969 - 09.1969] F..FJ55 |
90461-23087 |
— | ||
|
17420W
|
17420W
90461-23387 Clamp No.2, Exhaust Pipe Center, Front[09.1969 - 01.1975] F..FJ55 |
90461-23387 |
US $9.60 |
||
|
17430
|
17430
17431-60160
Pipe Assy, Exhaust, Tail
[03.1969 - 09.1969] F..FJ55 |
17431-60160 |
— | ||
|
17430
|
17430
17431-60161 Pipe Assy, Exhaust, TailEXHAUST, TAIL [09.1969 - 07.1970] F..FJ55 |
17431-60161 |
US $93.18 |
||
| replacement | |||||
|
17430
|
17430
17431-60260
Pipe Assy, Exhaust, Tail
[09.1969 - 07.1970] F..FJ55 |
17431-60260 |
— | ||
|
17430A
|
17430A
17506-60050
Bracket, Exhaust Tail Pipe(For Front)
[03.1969 - 09.1969] F..FJ55 |
17506-60050 |
— | ||
|
17430A
|
17430A
17562-60080
Bracket, Exhaust Tail Pipe(For Front)
[09.1969 - 01.1975] F..FJ55 |
17562-60080 |
— | ||
|
17430B
|
17430B
90917-08004 Cushion, Exhaust Pipe Front (For Front)[09.1969 - 11.1970] F..FJ55 |
90917-08004 |
US $12.80 |
||
|
17430C
|
17430C
90917-04008
Clamp No.1, Exhaust Pipe Front (For Front)
[09.1969 - 01.1975] F..FJ55;F..FJ40,42,43..LHD |
90917-04008 |
— | ||
|
17430D
|
17430D
90118-08045
Bolt Or Ring, Exhaust Pipe Front (For Front)
[09.1969 - 01.1975] F..FJ55;F..FJ40,42,43..LHD |
90118-08045 |
— | ||
| replacements | |||||
|
17430D
|
17430D
94130-00802 Nut, No.1 (For Center Support Bearing)[09.1969 - 01.1975] F..FJ55;F..FJ40,42,43..LHD |
94130-00802 |
from US $1.09 |
||
|
17430D
|
17430D
90117-08064
New Genuine Part
[09.1969 - 01.1975] F..FJ55;F..FJ40,42,43..LHD |
90117-08064 |
— | ||
|
17430D
|
17430D
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting)[09.1969 - 01.1975] F..FJ55;F..FJ40,42,43..LHD |
94512-00800 |
from US $0.80 |
||
|
17441
|
17441
17441-60010
Flange, Exhaust Pipe
[03.1969 - 01.1975] F..FJ4#,55 |
17441-60010 |
— | ||
|
17510
|
17510
17510-60021 Muffler Assy[03.1969 - 09.1969] F..FJ4#,55 |
17510-60021 |
US $78.62 |
||
|
17510
|
17510
17510-60070 Muffler Assy[09.1969 - 01.1975] F,H..FJ4#,55,HJ45 |
17510-60070 |
US $164.53 |
||
|
17510A
|
17510A
17566-60020 Bracket, Muffler, FrontMUFFLER, FRONT [03.1969 - 01.1975] F..FJ55 |
17566-60020 |
US $52.42 |
||
|
17510B
|
17510B
90917-09007 Cushion, Muffler, FrontMUFFLER, FRONT [03.1969 - 01.1975] F..FJ55 |
90917-09007 |
US $8.74 |
||
|
17510E
|
17510E
17578-60020
Clamp No.2, Muffler, Front
[03.1969 - 11.1970] F..FJ4#,55 |
17578-60020 |
— | ||
|
17510R
|
17510R
90461-23071
Clamp No.2, Exhaust Pipe Center, Rear
[03.1969 - 09.1969] F..FJ4#,55 |
90461-23071 |
— | ||
| replacement | |||||
|
17510R
|
17510R
90461-23087
Clamp No.2, Exhaust Tail Pipe(For Front)
[03.1969 - 09.1969] F..FJ4#,55 |
90461-23087 |
— | ||
|
17510R
|
17510R
90461-23223
Clamp No.2, Muffler, Rear
[09.1969 - 01.1970] F..FJ4#,55 |
90461-23223 |
— | ||
| replacement | |||||
|
17510R
|
17510R
90461-23375
Clamp No.2, Exhaust Tail Pipe(For Front)
[09.1969 - 01.1970] F..FJ4#,55 |
90461-23375 |
— | ||
|
17510R
|
17510R
90461-23387 Clamp No.2, Exhaust Pipe Center, Front[01.1970 - 01.1975] F,H..FJ4#,55,HJ45 |
90461-23387 |
US $9.60 |
||
|
9111140825
|
9111140825
91111-40825
Bolt(For Clutch Master Cylinder Setting)
|
91111-40825 |
— | ||
| replacement | |||||
|
9111140825
|
9111140825
91111-50825 Bolt(For Clutch Master Cylinder Setting) |
91111-50825 |
US $3.04 |
||
|
9111140828
|
9111140828
91111-40828 New Genuine Part |
91111-40828 |
US $2.33 |
||
| replacement | |||||
|
9111140828
|
9111140828
91111-50828 New Genuine Part |
91111-50828 |
US $2.33 |
||
|
9111140840
|
9111140840
91111-40840
New Genuine Part
|
91111-40840 |
— | ||
| replacement | |||||
|
9111140840
|
9111140840
91111-50840 New Genuine Part |
91111-50840 |
US $2.91 |
||
|
9111141025
|
9111141025
91111-41025
Bolt(For Crankshaft Pulley Set)
|
91111-41025 |
— | ||
| replacement | |||||
|
9111141025
|
9111141025
91112-61025 Bolt(For Clutch Pedal Stopper) |
91112-61025 |
from US $0.61 |
||
|
9161140820
|
9161140820
91611-40820
Bolt(For Intake Manifold To Exhaust Manifold)
|
91611-40820 |
— | ||
|
9161141032
|
9161141032
91611-41032
New Genuine Part
|
91611-41032 |
— | ||
| replacement | |||||
|
9161141032
|
9161141032
91612-61032 New Genuine Part |
91612-61032 |
US $1.75 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $1.09 |
||
|
9411041000
|
9411041000
94110-41000 Nut(For Steering Damper) |
94110-41000 |
US $2.56 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.80 |
||
|
9451201000
|
9451201000
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-01000 |
from US $0.76 |
||
|
9461310800
|
9461310800
94613-10800 Spacer (For Control Select Lever Support) |
94613-10800 |
from US $0.68 |
||
