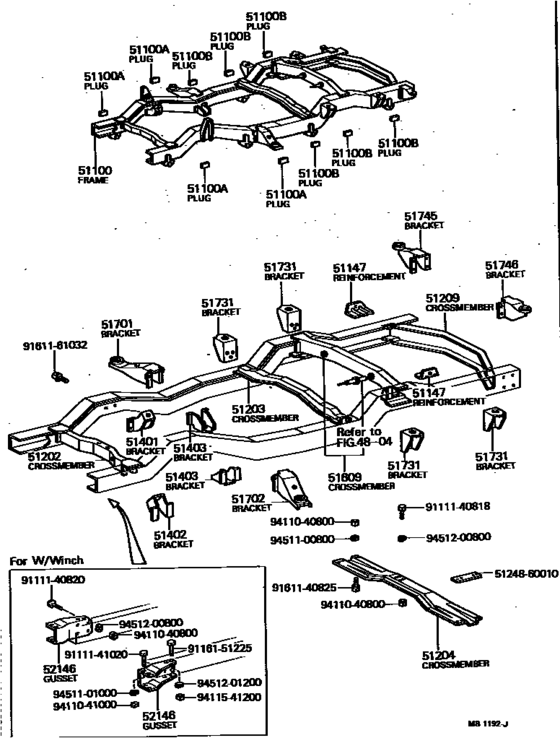

Frame ([03.1969 - 07.1980] (6903-8007)FJ55) Diagram Toyota LAND CRUISER
- Year
- 1969 - 1975
- Sales region
- Europe
- Frame
- FJ55
- ENGINE
- F
- DESTINATION
- GEN
- Model
- LAND CRUISER 50
- From
- 03.1969
- To
- 01.1975
- Vehicle Model
- Land Cruiser
- Driver's Position
- RHD
- Roll Bar
- WORB
- Top,back Door
- VKC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51100
|
51100
51001-60150 Frame Assy[03.1969 - 09.1970] FJ55..RHD |
51001-60150 |
US $3,188.64 |
||
| replacements | |||||
|
51100
|
51100
47351-60050
Bracket, Flexible Hose(For Front Rh)
[03.1969 - 09.1970] FJ55..RHD |
47351-60050 |
— | ||
|
51100
|
51100
94612-11001 Washer, Plate (For Center Support Bearing Housing)[03.1969 - 09.1970] FJ55..RHD |
94612-11001 |
from US $0.96 |
||
|
51100
|
51100
47352-60040
Bracket, Flexible Hose(For Front Lh)
[03.1969 - 09.1970] FJ55..RHD |
47352-60040 |
— | ||
|
51100
|
51100
51001-60152
Frame Assy
[03.1969 - 09.1970] FJ55..RHD |
51001-60152 |
— | ||
|
51100
|
51100
51001-60170
Frame Assy
[03.1969 - 09.1970] FJ55..RHD W/WINCH |
51001-60170 |
— | ||
| replacements | |||||
|
51100
|
51100
47351-60050
Bracket, Flexible Hose(For Front Rh)
[03.1969 - 09.1970] FJ55..RHD W/WINCH |
47351-60050 |
— | ||
|
51100
|
51100
94612-11001 Washer, Plate (For Center Support Bearing Housing)[03.1969 - 09.1970] FJ55..RHD W/WINCH |
94612-11001 |
from US $0.96 |
||
|
51100
|
51100
47352-60040
Bracket, Flexible Hose(For Front Lh)
[03.1969 - 09.1970] FJ55..RHD W/WINCH |
47352-60040 |
— | ||
|
51100
|
51100
51001-60172
Frame Assy
[03.1969 - 09.1970] FJ55..RHD W/WINCH |
51001-60172 |
— | ||
|
51100
|
51100
51001-60172
Frame Assy
[09.1970 - 01.1979] FJ55..RHD |
51001-60172 |
— | ||
|
51100A
|
51100A
90950-01033 Plug, Hole(For Frame)HOLE(FOR FRAME) [03.1969 - 07.1980] FJ55 |
90950-01033 |
US $2.62 |
||
|
51100B
|
51100B
90950-01035
Plug, Hole(For Frame)
[03.1969 - 07.1980] FJ55 |
90950-01035 |
— | ||
|
51147
|
51147
51147-60010
Reinforcement, Side Rail Rear Spring Rear Hanger
[03.1969 - 07.1980] FJ55 |
51147-60010 |
— | ||
|
51202
|
51202
51201-60040
Crossmember Sub-Assy, Frame, No.1
[03.1969 - 01.1979] FJ55..RHD |
51201-60040 |
— | ||
|
51203
|
51203
51221-60040
Crossmember Sub-Assy, Frame, No.2
[03.1969 - 07.1980] FJ55 |
51221-60040 |
— | ||
|
51204
|
51204
51241-60020
Crossmember Sub-Assy, Frame, No.3
[03.1969 - 08.1976] FJ55 |
51241-60020 |
— | ||
|
51209
|
51209
51281-60040 Crossmember Sub-Assy, Frame, No.8FRAME, NO.8 [03.1969 - 09.1970] FJ55 |
51281-60040 |
US $202.38 |
||
| replacements | |||||
|
51209
|
51209
51281-60041
Crossmember Sub-Assy, Frame, No.8
[03.1969 - 09.1970] FJ55 |
51281-60041 |
— | ||
|
51209
|
51209
94612-11001 Washer, Plate (For Center Support Bearing Housing)[03.1969 - 09.1970] FJ55 |
94612-11001 |
from US $0.96 |
||
|
51209
|
51209
51281-60041
Crossmember Sub-Assy, Frame, No.8
[09.1970 - 07.1980] FJ55 |
51281-60041 |
— | ||
|
51401
|
51401
51421-60020
Bracket Sub-Assy, Engine Front Mounting, Rh
[03.1969 - 07.1980] FJ55 |
51421-60020 |
— | ||
|
51402
|
51402
51422-60020
Bracket Sub-Assy, Engine Front Mounting, Lh
[03.1969 - 07.1980] FJ55 |
51422-60020 |
— | ||
|
51403
|
51403
51431-60030
Bracket Sub-Assy, Engine Rear Mounting
[03.1969 - 07.1980] FJ55 RH. |
51431-60030 |
— | ||
|
51403
|
51403
51432-60010
Bracket Sub-Assy, Engine Rear Mounting
[03.1969 - 07.1980] FJ55 LH. |
51432-60010 |
— | ||
|
51609
|
51609
51203-60030
Crossmember Sub-Assy, Rear Shock Absorber Support
[03.1969 - 08.1969] FJ55 |
51203-60030 |
— | ||
| replacements | |||||
|
51609
|
51609
51203-60H04
Crossmember Sub-Assy, Rear Shock Absorber Support
[03.1969 - 08.1969] FJ55 |
51203-60H04 |
— | ||
|
51609
|
51609
94146-41200 New Genuine Part[03.1969 - 08.1969] FJ55 |
94146-41200 |
US $4.89 |
||
|
51609
|
51609
51203-60031 Crossmember Sub-Assy, Rear Shock Absorber SupportREAR SHOCK ABSORBER SUPPORT [08.1969 - 01.1979] FJ55 |
51203-60031 |
US $180.54 |
||
| replacement | |||||
|
51609
|
51609
51203-60H04
Crossmember Sub-Assy, Rear Shock Absorber Support
[08.1969 - 01.1979] FJ55 |
51203-60H04 |
— | ||
|
51701
|
51701
51701-60010
Bracket Sub-Assy, Cab Mounting, No.1 Rh
[03.1969 - 07.1980] FJ55 |
51701-60010 |
— | ||
|
51702
|
51702
51701-60010
Bracket Sub-Assy, Cab Mounting, No.1 Rh
[03.1969 - 07.1980] FJ55 |
51701-60010 |
— | ||
|
51731
|
51731
51705-60030
Bracket, Cab Rear Mounting, Rh
[03.1969 - 07.1980] FJ55 |
51705-60030 |
— | ||
|
51745
|
51745
51709-60010
Bracket, Body Mounting, No.5
[03.1969 - 07.1980] FJ55 |
51709-60010 |
— | ||
|
51746
|
51746
51709-60010
Bracket, Body Mounting, No.5
[03.1969 - 07.1980] FJ55 |
51709-60010 |
— | ||
|
52146
|
52146
52145-60010
Gusset, Winch Support
[03.1969 - 07.1980] FJ55 RH. |
52145-60010 |
— | ||
|
52146
|
52146
52146-60010
Gusset, Winch Support
[03.1969 - 07.1980] FJ55 LH. |
52146-60010 |
— | ||
|
5124860010
|
5124860010
51248-60010
Spacer, Flame Crossmember
|
51248-60010 |
— | ||
|
9111140818
|
9111140818
91111-40818
New Genuine Part
|
91111-40818 |
— | ||
| replacement | |||||
|
9111140818
|
9111140818
91111-50818 New Genuine Part |
91111-50818 |
US $2.88 |
||
|
9111140820
|
9111140820
91111-40820
New Genuine Part
|
91111-40820 |
— | ||
| replacement | |||||
|
9111140820
|
9111140820
91111-50820 New Genuine Part |
91111-50820 |
from US $2.91 |
||
|
9111141020
|
9111141020
91111-41020
New Genuine Part
|
91111-41020 |
— | ||
| replacement | |||||
|
9111141020
|
9111141020
91111-51020 New Genuine Part |
91111-51020 |
US $2.88 |
||
|
9116151225
|
9116151225
91161-51225
New Genuine Part
|
91161-51225 |
— | ||
|
9161140825
|
9161140825
91611-40825
Bolt(For Clutch Release Cylinder Setting)
|
91611-40825 |
— | ||
| replacement | |||||
|
9161140825
|
9161140825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.13 |
||
|
9161161032
|
9161161032
91611-61032 New Genuine Part |
91611-61032 |
US $2.77 |
||
| replacement | |||||
|
9161161032
|
9161161032
91612-61032 New Genuine Part |
91612-61032 |
US $1.75 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.90 |
||
|
9411041000
|
9411041000
94110-41000 Nut(For Steering Damper) |
94110-41000 |
US $2.56 |
||
|
9411541200
|
9411541200
94115-41200
Nut
|
94115-41200 |
— | ||
| replacement | |||||
|
9411541200
|
9411541200
94130-61200 Nut |
94130-61200 |
from US $0.99 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
from US $1.60 |
||
|
9451101000
|
9451101000
94511-01000 Washer(For Rear Drive Shaft) |
94511-01000 |
US $1.76 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.76 |
||
|
9451201200
|
9451201200
94512-01200 Washer |
94512-01200 |
from US $0.76 |
||
