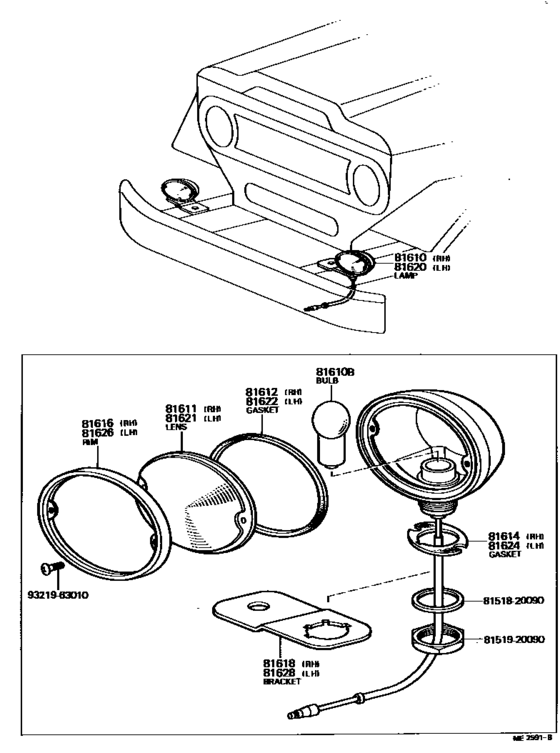

Front Clearance Lamp ([05.1973 - 02.1974] (7305-7402)RHD) Diagram Toyota LAND CRUISER
- Year
- 1969 - 1975
- Sales region
- Europe
- Frame
- FJ55
- ENGINE
- F
- DESTINATION
- GEN
- Model
- LAND CRUISER 50
- From
- 03.1969
- To
- 01.1975
- Vehicle Model
- Land Cruiser
- Driver's Position
- RHD
- Roll Bar
- WORB
- Top,back Door
- VKC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81610
|
81610
81610-60011
Lamp Assy, Parking & Clearance, Rh
[03.1969 - 10.1969] FJ55 |
81610-60011 |
— | ||
|
81610
|
81610
81610-60050
Lamp Assy, Parking & Clearance, Rh
[05.1973 - 02.1974] FJ4#,55,HJ45..RHD |
81610-60050 |
— | ||
|
81610B
|
81610B
99132-11050 Bulb (For License Plate Lamp)[05.1973 - 02.1974] FJ4#,55,HJ45..RHD 12V 5W,12V 5W |
99132-11050 |
US $2.40 |
||
|
81610B
|
81610B
99132-11080 Bulb(For Parking & Clearance Lamp)[03.1969 - 10.1969] FJ55 12V 8W |
99132-11080 |
US $2.18 |
||
| replacement | |||||
|
81610B
|
81610B
99132-11075 Bulb, Room Lamp, No.1[03.1969 - 10.1969] FJ55 12V 8W |
99132-11075 |
from US $2.56 |
||
|
81611
|
81611
81611-10010
Lens, Parking & Clearance Lamp, Rh
[05.1973 - 02.1974] FJ4#,55,HJ45..RHD |
81611-10010 |
— | ||
|
81611
|
81611
81611-60010
Lens, Parking & Clearance Lamp, Rh
[03.1969 - 10.1969] FJ55 |
81611-60010 |
— | ||
|
81612
|
81612
81512-20090
Gasket, Parking And Clearance Lamp Lens, Rh
[05.1973 - 02.1974] FJ4#,55,HJ45..RHD |
81512-20090 |
— | ||
|
81612
|
81612
81612-60010 Gasket, Parking And Clearance Lamp Lens, RhPARKING AND CLEARANCE LAMP LENS, RH [03.1969 - 10.1969] FJ55 |
81612-60010 |
US $6.84 |
||
|
81614
|
81614
81614-60010
Gasket, Parking And Clearance Lamp Body, Rh
[03.1969 - 10.1969] FJ55 |
81614-60010 |
— | ||
|
81614
|
81614
81614-60050
Gasket, Parking And Clearance Lamp Body, Rh
[05.1973 - 02.1974] FJ4#,55,HJ45..RHD |
81614-60050 |
— | ||
|
81616
|
81616
81516-20090
Rim, Parking And Clearance Lamp, Rh
[05.1973 - 02.1974] FJ4#,55,HJ45..RHD |
81516-20090 |
— | ||
|
81618
|
81618
81518-20090
Bracket, Parking And Clearance Lamp, Rh
[05.1973 - 02.1974] FJ55..RHD |
81518-20090 |
— | ||
|
81620
|
81620
81620-60011
Lamp Assy, Parking & Clearance, Lh
[03.1969 - 10.1969] FJ55 |
81620-60011 |
— | ||
|
81620
|
81620
81620-60030
Lamp Assy, Parking & Clearance, Lh
[05.1973 - 02.1974] FJ4#,55,HJ45..RHD |
81620-60030 |
— | ||
|
81621
|
81621
81611-10010
Lens, Parking & Clearance Lamp, Rh
[05.1973 - 02.1974] FJ4#,55,HJ45..RHD |
81611-10010 |
— | ||
|
81621
|
81621
81621-60010
Lens, Parking & Clearance Lamp, Lh
[03.1969 - 10.1969] FJ55 |
81621-60010 |
— | ||
|
81622
|
81622
81512-20090
Gasket, Parking And Clearance Lamp Lens, Rh
[05.1973 - 02.1974] FJ4#,55,HJ45..RHD |
81512-20090 |
— | ||
|
81622
|
81622
81612-60010 Gasket, Parking And Clearance Lamp Lens, RhPARKING AND CLEARANCE LAMP LENS, RH [03.1969 - 10.1969] FJ55 |
81612-60010 |
US $6.84 |
||
|
81624
|
81624
81614-60050
Gasket, Parking And Clearance Lamp Body, Rh
[05.1973 - 02.1974] FJ4#,55,HJ45..RHD |
81614-60050 |
— | ||
|
81624
|
81624
81624-60010
Gasket, Parking And Clearance Lamp Body, Lh
[03.1969 - 10.1969] FJ55 |
81624-60010 |
— | ||
|
81626
|
81626
81516-20090
Rim, Parking And Clearance Lamp, Rh
[05.1973 - 02.1974] FJ4#,55,HJ45..RHD |
81516-20090 |
— | ||
|
81628
|
81628
81518-20090
Bracket, Parking And Clearance Lamp, Rh
[05.1973 - 02.1974] FJ55..RHD |
81518-20090 |
— | ||
|
8151820090
|
8151820090
81518-20090
Bracket, Parking And Clearance Lamp, Rh
|
81518-20090 |
— | ||
|
8151920090
|
8151920090
81519-20090
Bracket, Front Turn Signal Lamp, Rh
|
81519-20090 |
— | ||
|
9321963010
|
9321963010
93219-63010 New Genuine Part |
93219-63010 |
US $1.46 |
||
