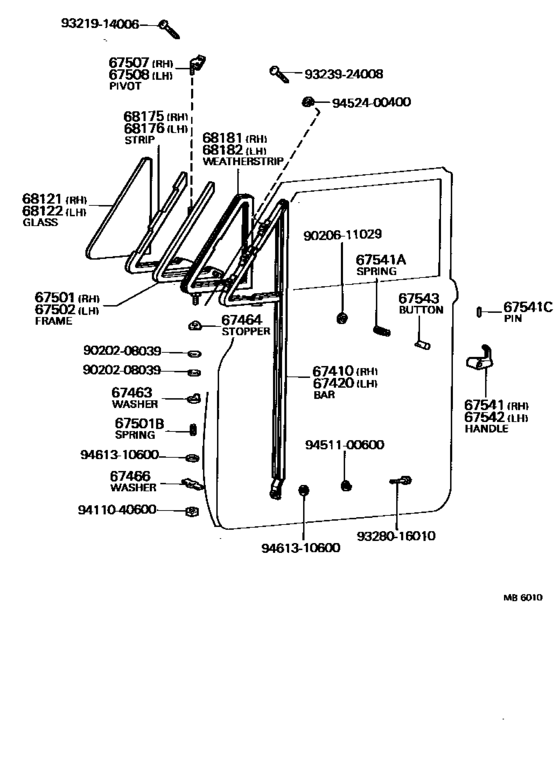

Front Door Ventilator Window ([03.1969 - 09.1973] (6903-7309)FJ55) Diagram Toyota LAND CRUISER
- Year
- 1969 - 1975
- Sales region
- Europe
- Frame
- FJ55
- ENGINE
- F
- DESTINATION
- GEN
- Model
- LAND CRUISER 50
- From
- 03.1969
- To
- 01.1975
- Vehicle Model
- Land Cruiser
- Driver's Position
- RHD
- Roll Bar
- WORB
- Top,back Door
- VKC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67410
|
67410
67510-90351
Bar Assy, Front Door Window Division, Rh
[03.1969 - 09.1973] FJ55 |
67510-90351 |
— | ||
| replacements | |||||
|
67410
|
67410
67501-90903
Frame Sub-Assy, Vent Window Glass, Rh
[03.1969 - 09.1973] FJ55 |
67501-90903 |
— | ||
|
67410
|
67410
67401-90352
Bar Sub-assy, Front Door Window, Front Rh
[03.1969 - 09.1973] FJ55 |
67401-90352 |
— | ||
|
67410
|
67410
67463-20011 Washer, Front Door Ventilating Wihdow Lower PivotFRONT DOOR VENTILATING WIHDOW LOWER PIVOT [03.1969 - 09.1973] FJ55 |
67463-20011 |
US $2.08 |
||
|
67410
|
67410
67464-90351
Stopper, Front Door Ventilating Window Opening
[03.1969 - 09.1973] FJ55 |
67464-90351 |
— | ||
|
67410
|
67410
67466-20010
Washer, Lock(For Vent Window Glass Frame)
[03.1969 - 09.1973] FJ55 |
67466-20010 |
— | ||
|
67410
|
67410
67541-20021
Handle, Ventilating Window Lock, Rh
[03.1969 - 09.1973] FJ55 |
67541-20021 |
— | ||
|
67410
|
67410
67543-20020 Button, Ventilating Window Lock Handle PushVENTILATING WINDOW LOCK HANDLE PUSH [03.1969 - 09.1973] FJ55 |
67543-20020 |
US $3.93 |
||
|
67410
|
67410
67544-90351
Pivot Sub-Assy, Vent Window, Upper Rh
[03.1969 - 09.1973] FJ55 |
67544-90351 |
— | ||
|
67410
|
67410
68121-90351
Glass, Vent Window, Rh
[03.1969 - 09.1973] FJ55 |
68121-90351 |
— | ||
|
67410
|
67410
68175-90351
Weatherstrip, Vent Window Frame, Rh
[03.1969 - 09.1973] FJ55 |
68175-90351 |
— | ||
|
67410
|
67410
90202-08039 WASHER[03.1969 - 09.1973] FJ55 |
90202-08039 |
US $3.36 |
||
|
67410
|
67410
90206-11029
Washer, Plate
[03.1969 - 09.1973] FJ55 |
90206-11029 |
— | ||
|
67410
|
67410
90245-02019 Pin, Ventilating Window Lock HandleVENTILATING WINDOW LOCK HANDLE [03.1969 - 09.1973] FJ55 |
90245-02019 |
US $4.95 |
||
|
67410
|
67410
90501-05014
Spring, Compression (For C-1 Orifice Control Valve)
[03.1969 - 09.1973] FJ55 |
90501-05014 |
— | ||
|
67410
|
67410
90501-40205 Spring, Compression(For Vent Window Glass Frame)COMPRESSION(FOR VENT WINDOW GLASS FRAME) [03.1969 - 09.1973] FJ55 |
90501-40205 |
US $2.56 |
||
|
67410
|
67410
93219-14006
New Genuine Part
[03.1969 - 09.1973] FJ55 |
93219-14006 |
— | ||
|
67410
|
67410
94110-40600 Nut, Rock[03.1969 - 09.1973] FJ55 |
94110-40600 |
from US $0.70 |
||
|
67410
|
67410
94613-10600 New Genuine Part[03.1969 - 09.1973] FJ55 |
94613-10600 |
US $2.72 |
||
|
67420
|
67420
67520-90351
Bar Assy, Front Door Window Division, Lh
[03.1969 - 09.1973] FJ55 |
67520-90351 |
— | ||
| replacements | |||||
|
67420
|
67420
67502-90903
Frame Sub-Assy, Vent Window Glass, Lh
[03.1969 - 09.1973] FJ55 |
67502-90903 |
— | ||
|
67420
|
67420
67402-90352
Bar Sub-assy, Front Door Window, Front Lh
[03.1969 - 09.1973] FJ55 |
67402-90352 |
— | ||
|
67420
|
67420
67463-20011 Washer, Front Door Ventilating Wihdow Lower PivotFRONT DOOR VENTILATING WIHDOW LOWER PIVOT [03.1969 - 09.1973] FJ55 |
67463-20011 |
US $2.08 |
||
|
67420
|
67420
67464-90351
Stopper, Front Door Ventilating Window Opening
[03.1969 - 09.1973] FJ55 |
67464-90351 |
— | ||
|
67420
|
67420
67466-20010
Washer, Lock(For Vent Window Glass Frame)
[03.1969 - 09.1973] FJ55 |
67466-20010 |
— | ||
|
67420
|
67420
67542-20021
Handle, Ventilating Window Lock, Lh
[03.1969 - 09.1973] FJ55 |
67542-20021 |
— | ||
|
67420
|
67420
67543-20020 Button, Ventilating Window Lock Handle PushVENTILATING WINDOW LOCK HANDLE PUSH [03.1969 - 09.1973] FJ55 |
67543-20020 |
US $3.93 |
||
|
67420
|
67420
67545-90351
Pivot Sub-Assy, Vent Window, Upper Lh
[03.1969 - 09.1973] FJ55 |
67545-90351 |
— | ||
|
67420
|
67420
68121-90351
Glass, Vent Window, Rh
[03.1969 - 09.1973] FJ55 |
68121-90351 |
— | ||
|
67420
|
67420
68176-90351
Weatherstrip, Vent Window Frame, Lh
[03.1969 - 09.1973] FJ55 |
68176-90351 |
— | ||
|
67420
|
67420
90202-08039 WASHER[03.1969 - 09.1973] FJ55 |
90202-08039 |
US $3.36 |
||
|
67420
|
67420
90206-11029
Washer, Plate
[03.1969 - 09.1973] FJ55 |
90206-11029 |
— | ||
|
67420
|
67420
90245-02019 Pin, Ventilating Window Lock HandleVENTILATING WINDOW LOCK HANDLE [03.1969 - 09.1973] FJ55 |
90245-02019 |
US $4.95 |
||
|
67420
|
67420
90501-05014
Spring, Compression (For C-1 Orifice Control Valve)
[03.1969 - 09.1973] FJ55 |
90501-05014 |
— | ||
|
67420
|
67420
90501-40205 Spring, Compression(For Vent Window Glass Frame)COMPRESSION(FOR VENT WINDOW GLASS FRAME) [03.1969 - 09.1973] FJ55 |
90501-40205 |
US $2.56 |
||
|
67420
|
67420
93219-14006
New Genuine Part
[03.1969 - 09.1973] FJ55 |
93219-14006 |
— | ||
|
67420
|
67420
94110-40600 Nut, Rock[03.1969 - 09.1973] FJ55 |
94110-40600 |
from US $0.70 |
||
|
67420
|
67420
94613-10600 New Genuine Part[03.1969 - 09.1973] FJ55 |
94613-10600 |
US $2.72 |
||
|
67463
|
67463
67463-20011 Washer, Front Door Ventilating Wihdow Lower PivotFRONT DOOR VENTILATING WIHDOW LOWER PIVOT [03.1969 - 09.1973] FJ55 |
67463-20011 |
US $2.08 |
||
|
67464
|
67464
67464-90351
Stopper, Front Door Ventilating Window Opening
[03.1969 - 09.1973] FJ55 |
67464-90351 |
— | ||
|
67466
|
67466
67466-20010
Washer, Lock(For Vent Window Glass Frame)
[03.1969 - 09.1973] FJ55 |
67466-20010 |
— | ||
|
67501
|
67501
67501-90351 Frame Sub-Assy, Vent Window Glass, RhVENT WINDOW GLASS, RH [03.1969 - 09.1973] FJ55 |
67501-90351 |
US $123.76 |
||
| replacement | |||||
|
67501
|
67501
67501-90903
Frame Sub-Assy, Vent Window Glass, Rh
[03.1969 - 09.1973] FJ55 |
67501-90903 |
— | ||
|
67501B
|
67501B
90501-40205 Spring, Compression(For Vent Window Glass Frame)COMPRESSION(FOR VENT WINDOW GLASS FRAME) [03.1969 - 09.1973] FJ55 |
90501-40205 |
US $2.56 |
||
|
67502
|
67502
67502-90351 Frame Sub-Assy, Vent Window Glass, LhVENT WINDOW GLASS, LH [03.1969 - 09.1973] FJ55 |
67502-90351 |
US $101.92 |
||
| replacement | |||||
|
67502
|
67502
67502-90903
Frame Sub-Assy, Vent Window Glass, Lh
[03.1969 - 09.1973] FJ55 |
67502-90903 |
— | ||
|
67507
|
67507
67544-90351
Pivot Sub-Assy, Vent Window, Upper Rh
[03.1969 - 09.1973] FJ55 |
67544-90351 |
— | ||
|
67508
|
67508
67545-90351
Pivot Sub-Assy, Vent Window, Upper Lh
[03.1969 - 09.1973] FJ55 |
67545-90351 |
— | ||
|
67541
|
67541
67541-20021
Handle, Ventilating Window Lock, Rh
[03.1969 - 09.1973] FJ55 |
67541-20021 |
— | ||
|
67541A
|
67541A
90501-05014
Spring, Compression (For C-1 Orifice Control Valve)
[03.1969 - 09.1973] FJ40,43,45,55,HJ45 |
90501-05014 |
— | ||
|
67541C
|
67541C
90245-02019 Pin, Ventilating Window Lock HandleVENTILATING WINDOW LOCK HANDLE [03.1969 - 09.1973] FJ55 |
90245-02019 |
US $4.95 |
||
|
67542
|
67542
67542-20021
Handle, Ventilating Window Lock, Lh
[03.1969 - 09.1973] FJ55 |
67542-20021 |
— | ||
|
67543
|
67543
67543-20020 Button, Ventilating Window Lock Handle PushVENTILATING WINDOW LOCK HANDLE PUSH [03.1969 - 09.1973] FJ55 |
67543-20020 |
US $3.93 |
||
|
68121
|
68121
68121-90351
Glass, Vent Window, Rh
[03.1969 - 09.1973] FJ55 |
68121-90351 |
— | ||
|
68122
|
68122
68121-90351
Glass, Vent Window, Rh
[03.1969 - 09.1973] FJ55 |
68121-90351 |
— | ||
|
68175
|
68175
68175-90351
Weatherstrip, Vent Window Frame, Rh
[03.1969 - 09.1973] FJ55 |
68175-90351 |
— | ||
|
68176
|
68176
68176-90351
Weatherstrip, Vent Window Frame, Lh
[03.1969 - 09.1973] FJ55 |
68176-90351 |
— | ||
|
68181
|
68181
68181-90351
Weatherstrip, Vent Window, No.1 Rh
[03.1969 - 09.1973] FJ55 |
68181-90351 |
— | ||
|
68182
|
68182
68182-90351
Weatherstrip, Vent Window, No.1 Lh
[03.1969 - 09.1973] FJ55 |
68182-90351 |
— | ||
|
9020208039
|
9020208039
90202-08039 WASHER |
90202-08039 |
US $3.36 |
||
|
9020611029
|
9020611029
90206-11029
Washer, Plate
|
90206-11029 |
— | ||
|
9321914006
|
9321914006
93219-14006
New Genuine Part
|
93219-14006 |
— | ||
|
9323924008
|
9323924008
93239-24008 New Genuine Part |
93239-24008 |
US $1.60 |
||
|
9328016010
|
9328016010
93280-16010
New Genuine Part
|
93280-16010 |
— | ||
|
9411040600
|
9411040600
94110-40600 Nut, Rock |
94110-40600 |
from US $0.70 |
||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $1.92 |
||
|
9452400400
|
9452400400
94524-00400
New Genuine Part
|
94524-00400 |
— | ||
|
9461310600
|
9461310600
94613-10600 New Genuine Part |
94613-10600 |
US $2.72 |
||
