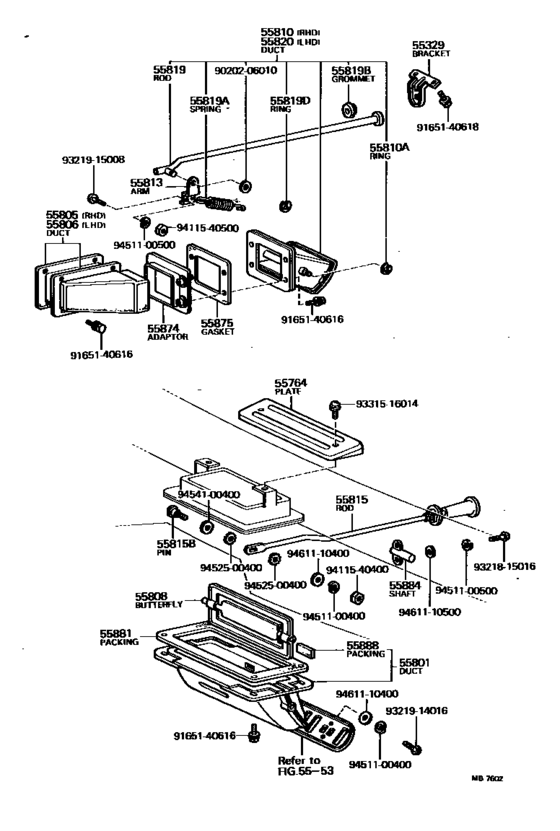

Front Ventilator ([03.1969 - 09.1972] (6903-7209)FJ55) Diagram Toyota LAND CRUISER
- Year
- 1969 - 1975
- Sales region
- Europe
- Frame
- FJ55
- ENGINE
- F
- DESTINATION
- GEN
- Model
- LAND CRUISER 50
- From
- 03.1969
- To
- 01.1975
- Vehicle Model
- Land Cruiser
- Driver's Position
- RHD
- Roll Bar
- WORB
- Top,back Door
- VKC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55329
|
55329
55329-90351
Bracket, Cowl Side Ventilator Control Rod
[03.1969 - 07.1980] FJ55 |
55329-90351 |
— | ||
|
55764
|
55764
55764-90351
Plate, Cowl Ventilator Water Guard
[03.1969 - 09.1972] FJ55 |
55764-90351 |
— | ||
|
55801
|
55801
55801-90351
Duct Assy, Cowl Ventilator
[03.1969 - 09.1972] FJ55 |
55801-90351 |
— | ||
|
55805
|
55805
55832-90903
Duct Sub-Assy, Side Ventilator, No.2 Rh
[03.1969 - 09.1972] FJ55..RHD |
55832-90903 |
— | ||
|
55808
|
55808
55802-90351
Butterfly Sub-Assy, Cowl Ventilator
[03.1969 - 09.1972] FJ55..RHD |
55802-90351 |
— | ||
|
55810
|
55810
55810-20020
Duct Assy, Side Ventilator, Rh
[03.1969 - 09.1972] FJ55..RHD |
55810-20020 |
— | ||
|
55810
|
55810
61180-90351
Duct Assy, Side Ventilator, Rh
[09.1972 - 05.1978] FJ55 |
61180-90351 |
— | ||
|
55810A
|
55810A
90523-05006 Ring, E(For Over Center Lever)E(FOR SIDE VENTILATOR DUCT) [03.1969 - 09.1972] FJ55 |
90523-05006 |
US $1.89 |
||
|
55813
|
55813
55819-90351
Arm, Cowl Side Ventilator Butterfly
[03.1969 - 09.1972] FJ55..RHD |
55819-90351 |
— | ||
|
55815
|
55815
55820-90351
Rod, Cowl Ventilator Control
[03.1969 - 09.1972] FJ55..RHD |
55820-90351 |
— | ||
|
55815B
|
55815B
55825-90352
Pin, Cowl Ventilator Control Rod
[03.1969 - 09.1972] FJ55 |
55825-90352 |
— | ||
|
55819
|
55819
55819-20020
Rod, Side Ventilator Control
[03.1969 - 09.1972] FJ55 |
55819-20020 |
— | ||
|
55819
|
55819
61187-90351
Rod, Side Ventilator Control
[09.1972 - 07.1980] FJ55 |
61187-90351 |
— | ||
|
55819A
|
55819A
90506-09115
Spring, Tension(For Side Ventilator Control Rod)
[03.1969 - 01.1979] FJ55 |
90506-09115 |
— | ||
| replacement | |||||
|
55819A
|
55819A
90506-08307 Spring, Tension(For Side Ventilator Control Rod)TENSION(FOR SIDE VENTILATOR CONTROL ROD) [03.1969 - 01.1979] FJ55 |
90506-08307 |
US $3.64 |
||
|
55819B
|
55819B
90480-12103 Grommet(For Side Ventilator Control Rod)[03.1969 - 09.1972] FJ55 |
90480-12103 |
US $5.39 |
||
| replacement | |||||
|
55819B
|
55819B
90480-13290
Grommet(For Side Ventilator Control Rod)
[03.1969 - 09.1972] FJ55 |
90480-13290 |
— | ||
|
55819D
|
55819D
90523-04008 Ring, E (For Toggle Lever Pin Stopper)E (FOR CONTROL LEVER SHAFT) [03.1969 - 09.1972] FJ55 |
90523-04008 |
US $1.89 |
||
| replacement | |||||
|
55819D
|
55819D
96160-00400 Ring, E(For Release Arm)[03.1969 - 09.1972] FJ55 |
96160-00400 |
US $1.05 |
||
|
55820
|
55820
61190-90351
Duct Assy, Side Ventilator, Lh
[09.1972 - 05.1978] FJ55 |
61190-90351 |
— | ||
|
55874
|
55874
55834-90351
Adapter, Cowl Side Ventilator Duct
[03.1969 - 09.1969] FJ55 |
55834-90351 |
— | ||
|
55875
|
55875
55835-90351
Gasket, Cowl Side Ventilator Duct
[03.1969 - 09.1969] FJ55 |
55835-90351 |
— | ||
|
55881
|
55881
55814-90351
Packing, Front Ventilator
[03.1969 - 09.1972] FJ55 |
55814-90351 |
— | ||
|
55884
|
55884
55804-90351
Shaft, Cowl Ventilator Butterfly
[03.1969 - 09.1972] FJ55 |
55804-90351 |
— | ||
|
55888
|
55888
55828-90351
Packing, Cowl Ventilator Knob
[03.1969 - 09.1972] FJ55 |
55828-90351 |
— | ||
|
9020206010
|
9020206010
90202-06010 New Genuine Part |
90202-06010 |
US $3.06 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.76 |
||
| replacements | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.48 |
||
|
9165140616
|
9165140616
90080-11395 New Genuine Part |
90080-11395 |
US $2.73 |
||
|
9165140618
|
9165140618
91651-40618 New Genuine Part |
91651-40618 |
US $2.80 |
||
|
9321815016
|
9321815016
93218-15016
New Genuine Part
|
93218-15016 |
— | ||
|
9321914016
|
9321914016
93219-14016 Screw, 1St Idle Adjusting |
93219-14016 |
US $1.22 |
||
|
9321915008
|
9321915008
93219-15008
New Genuine Part
|
93219-15008 |
— | ||
|
9331516014
|
9331516014
93315-16014 Screw |
93315-16014 |
from US $1.16 |
||
|
9411540400
|
9411540400
94115-40400
NUT
|
94115-40400 |
— | ||
| replacement | |||||
|
9411540400
|
9411540400
90076-01001 NUT |
90076-01001 |
US $2.08 |
||
|
9411540500
|
9411540500
94115-40500 Nut(For Lpg Filter Stud Bolt Set) |
94115-40500 |
US $1.76 |
||
|
9451100400
|
9451100400
94511-00400 WASHERSPRING |
94511-00400 |
US $3.20 |
||
|
9451100500
|
9451100500
94511-00500 Washer, Cover Set, No.2 |
94511-00500 |
from US $0.24 |
||
|
9452500400
|
9452500400
94525-00400
New Genuine Part
|
94525-00400 |
— | ||
|
9454100400
|
9454100400
94541-00400
New Genuine Part
|
94541-00400 |
— | ||
|
9461110400
|
9461110400
94611-10400 New Genuine Part |
94611-10400 |
US $1.38 |
||
|
9461110500
|
9461110500
94611-10500 New Genuine Part |
94611-10500 |
US $2.06 |
||
