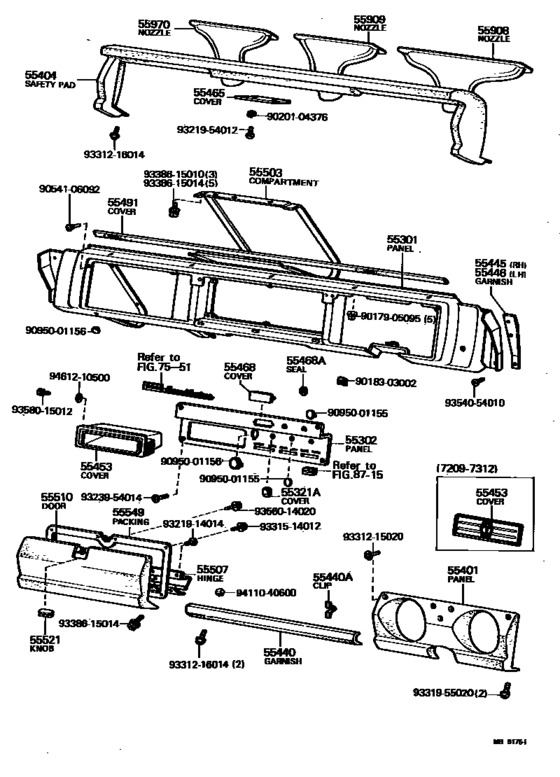

Instrument Panel & Glove Compartment ([09.1972 - 07.1980] (7209-8007)FJ55) Diagram Toyota LAND CRUISER
- Year
- 1969 - 1975
- Sales region
- Europe
- Frame
- FJ55
- ENGINE
- F
- DESTINATION
- GEN
- Model
- LAND CRUISER 50
- From
- 03.1969
- To
- 01.1975
- Vehicle Model
- Land Cruiser
- Driver's Position
- RHD
- Roll Bar
- WORB
- Top,back Door
- VKC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55301
|
55301
55301-90355
Panel Sub-Assy, Instrument
[09.1971 - 09.1972] FJ55..RHD FOR TANDEM M/C |
55301-90355 |
— | ||
|
55301
|
55301
55301-90356
Panel Sub-Assy, Instrument
[09.1971 - 09.1972] FJ55..RHD |
55301-90356 |
— | ||
|
55301
|
55301
55301-90357
Panel Sub-Assy, Instrument
[03.1969 - 07.1970] FJ55..RHD |
55301-90357 |
— | ||
|
55301
|
55301
55301-90359
Panel Sub-Assy, Instrument
[07.1970 - 09.1971] FJ55..RHD |
55301-90359 |
— | ||
|
55301
|
55301
55301-90361
Panel Sub-Assy, Instrument
[09.1972 - 08.1976] FJ55..RHD FOR SINGLE M/C |
55301-90361 |
— | ||
|
55301
|
55301
55301-90363
Panel Sub-Assy, Instrument
[09.1972 - 09.1977] FJ55..RHD FOR TANDEM M/C |
55301-90363 |
— | ||
|
55302
|
55302
55302-90355
Panel Sub-Assy, Center Control
[09.1972 - 09.1973] FJ55..RHD |
55302-90355 |
— | ||
|
55302
|
55302
55302-90357
Panel Sub-Assy, Center Control
[09.1973 - 07.1980] FJ55..RHD |
55302-90357 |
— | ||
|
55302
|
55302
55302-90361
Panel Sub-Assy, Center Control
[04.1974 - 07.1980] FJ55..RHD FOR W/BOOST VENTILATOR |
55302-90361 |
— | ||
|
55321A
|
55321A
55321-90300
Cover,instrument Panel Hole
[09.1972 - 07.1980] FJ55 |
55321-90300 |
— | ||
| replacement | |||||
|
55321A
|
55321A
90950-01329 Cover,instrument Panel Hole[09.1972 - 07.1980] FJ55 |
90950-01329 |
from US $4.84 |
||
|
55401
|
55401
55409-90351 Panel Sub-Assy, Instrument Cluster FinishINSTRUMENT CLUSTER FINISH [03.1969 - 09.1973] FJ55 |
55409-90351 |
US $179.09 |
||
| replacement | |||||
|
55401
|
55401
55409-90352
Panel Sub-Assy, Instrument Cluster Finish
[03.1969 - 09.1973] FJ55 |
55409-90352 |
— | ||
|
55401
|
55401
55409-90352
Panel Sub-Assy, Instrument Cluster Finish
[09.1973 - 07.1980] FJ55 |
55409-90352 |
— | ||
|
55404
|
55404
55404-90352 Safety Pad Sub-Assy, Instrument Panel, UpperINSTRUMENT PANEL, UPPER [03.1969 - 09.1972] FJ55 |
55404-90352 |
US $420.78 |
||
|
55404
|
55404
55404-90353
Safety Pad Sub-Assy, Instrument Panel, Upper
[09.1972 - 06.1977] FJ55 |
55404-90353 |
— | ||
|
55440
|
55440
55405-90351
Garnish, Instrument Panel, Center
[03.1969 - 07.1980] FJ55 |
55405-90351 |
— | ||
|
55440A
|
55440A
55434-30020 Retainer, Safety Pad[03.1969 - 07.1980] FJ55 |
55434-30020 |
US $3.49 |
||
|
55445
|
55445
55483-90351
Garnish, Instrument Panel Outside, Rh
[03.1969 - 07.1980] FJ55 |
55483-90351 |
— | ||
|
55446
|
55446
55484-90351
Garnish, Instrument Panel Outside, Lh
[03.1969 - 07.1980] FJ55 |
55484-90351 |
— | ||
|
55453
|
55453
55461-90351
Cover, Radio Tuner Opening
[03.1969 - 09.1972] FJ55 |
55461-90351 |
— | ||
|
55453
|
55453
55461-90352
Cover, Radio Tuner Opening
[12.1973 - 07.1980] FJ55 |
55461-90352 |
— | ||
|
55465
|
55465
55466-90351
Cover, Instrument Hole
[09.1972 - 01.1975] BJ4#,FJ55;FJ4#..LHD |
55466-90351 |
— | ||
|
55468
|
55468
55464-90353
Cover, Heater Switch Hole
[03.1969 - 07.1980] FJ55 |
55464-90353 |
— | ||
|
55468A
|
55468A
75396-20020
Seal(For Heater Switch Hole Cover)
[09.1972 - 07.1980] FJ55 |
75396-20020 |
— | ||
|
55491
|
55491
55481-90351
Cover, Instrument Panel, Upper
[03.1969 - 07.1980] FJ55 |
55481-90351 |
— | ||
|
55503
|
55503
55531-90351
Compartment Sub-Assy, Glove
[03.1969 - 11.1972] FJ55..RHD |
55531-90351 |
— | ||
|
55503
|
55503
55531-90353
Compartment Sub-Assy, Glove
[10.1969 - 11.1972] FJ55..RHD FOR W/COOLER |
55531-90353 |
— | ||
|
55503
|
55503
55531-90355
Compartment Sub-Assy, Glove
[11.1972 - 07.1980] FJ55..RHD |
55531-90355 |
— | ||
|
55503
|
55503
55531-90357
Compartment Sub-Assy, Glove
[11.1972 - 09.1973] FJ55..RHD FOR W/COOLER |
55531-90357 |
— | ||
|
55503
|
55503
55531-90359
Compartment Sub-Assy, Glove
[09.1973 - 07.1980] FJ55..RHD FOR W/COOLER |
55531-90359 |
— | ||
|
55507
|
55507
55507-90352
Hinge Sub-Assy, Glove Compartment Door
[03.1969 - 06.1978] FJ55 |
55507-90352 |
— | ||
|
55510
|
55510
55407-90352
Door Assy, Glove Compartment
[03.1969 - 06.1978] FJ55 |
55407-90352 |
— | ||
|
55510
|
55510
55407-90357
Door Assy, Glove Compartment
[03.1969 - 09.1972] FJ55 W/LOCK |
55407-90357 |
— | ||
|
55549
|
55549
55512-90351
Packing, Glove Compartment Door
[03.1969 - 06.1978] FJ55 |
55512-90351 |
— | ||
|
55908
|
55908
55905-90351
Nozzle Sub-Assy, Defroster, Rh
[03.1969 - 01.1979] FJ55..RHD |
55905-90351 |
— | ||
|
55909
|
55909
55906-90351
Nozzle Sub-Assy, Defroster, Lh
[03.1969 - 07.1980] FJ55..RHD |
55906-90351 |
— | ||
|
55970
|
55970
55907-90351
Nozzle Assy, Assist Defroster
[03.1969 - 07.1980] FJ55..RHD |
55907-90351 |
— | ||
|
55970
|
55970
55907-90353
Nozzle Assy, Assist Defroster
[10.1969 - 01.1979] FJ55..RHD FOR W/COOLER |
55907-90353 |
— | ||
|
9017905095
|
9017905095
90179-05095
NUT
|
90179-05095 |
— | ||
| replacement | |||||
|
9017905095
|
9017905095
90179-05004 NUT |
90179-05004 |
from US $1.93 |
||
|
9018303002
|
9018303002
90183-03002
New Genuine Part
|
90183-03002 |
— | ||
|
9020104376
|
9020104376
90201-04376 New Genuine Part |
90201-04376 |
US $1.60 |
||
| replacement | |||||
|
9020104376
|
9020104376
94611-10400 New Genuine Part |
94611-10400 |
US $1.38 |
||
|
9054106092
|
9054106092
90541-06092
New Genuine Part
|
90541-06092 |
— | ||
|
9095001155
|
9095001155
90950-01155
Cover, Choke Knob Hole
|
90950-01155 |
— | ||
| replacement | |||||
|
9095001155
|
9095001155
90950-01725
Cover, Choke Knob Hole
|
90950-01725 |
— | ||
|
9095001156
|
9095001156
90950-01156
Plug, Hole(For Instrument Panel)
|
90950-01156 |
— | ||
|
9321914014
|
9321914014
93219-14014
New Genuine Part
|
93219-14014 |
— | ||
|
9321954012
|
9321954012
93219-54012 New Genuine Part |
93219-54012 |
US $2.04 |
||
|
9323954014
|
9323954014
93239-54014 New Genuine Part |
93239-54014 |
US $1.75 |
||
|
9331215020
|
9331215020
93312-15020
New Genuine Part
|
93312-15020 |
— | ||
|
9331216014
|
9331216014
93312-16014 SCREW W/WASHER |
93312-16014 |
US $0.52 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.82 |
||
|
9331955020
|
9331955020
93319-55020
New Genuine Part
|
93319-55020 |
— | ||
|
9338615010
|
9338615010
93386-15010 New Genuine Part |
93386-15010 |
US $1.46 |
||
|
9338615014
|
9338615014
93386-15014 New Genuine Part |
93386-15014 |
US $1.75 |
||
|
9354054010
|
9354054010
93540-54010 Screw, Roof Headlining Trim |
93540-54010 |
from US $1.92 |
||
|
9356014020
|
9356014020
93560-14020 New Genuine Part |
93560-14020 |
US $0.79 |
||
|
9358015012
|
9358015012
93580-15012 New Genuine Part |
93580-15012 |
US $1.31 |
||
| replacement | |||||
|
9358015012
|
9358015012
90099-00324 New Genuine Part |
90099-00324 |
US $1.46 |
||
|
9411040600
|
9411040600
94110-40600 Nut, Rock |
94110-40600 |
from US $0.70 |
||
|
9461210500
|
9461210500
94612-10500 WASHERPLATE |
94612-10500 |
US $1.25 |
||
