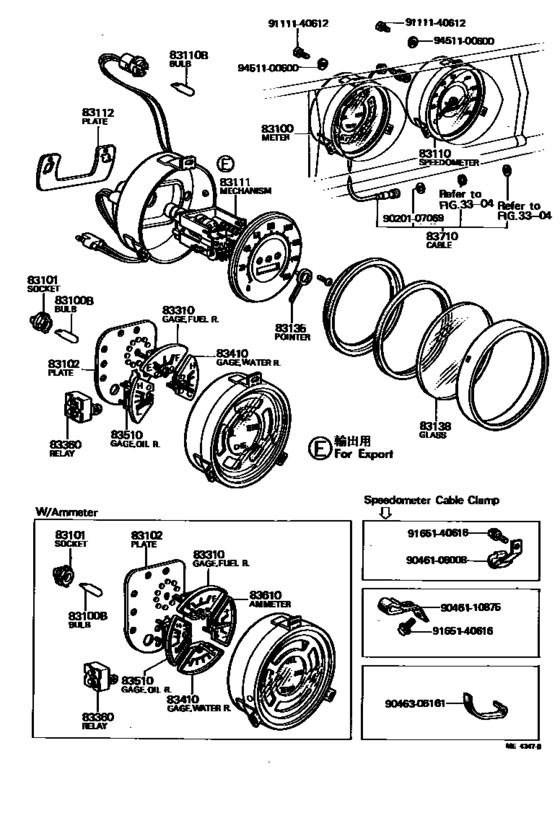

Meter ([03.1969 - 09.1977] (6903-7709)FJ55) Diagram Toyota LAND CRUISER
- Year
- 1969 - 1975
- Sales region
- Europe
- Frame
- FJ55
- ENGINE
- F
- DESTINATION
- GEN
- Model
- LAND CRUISER 50
- From
- 03.1969
- To
- 01.1975
- Vehicle Model
- Land Cruiser
- Driver's Position
- RHD
- Roll Bar
- WORB
- Top,back Door
- VKC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100
|
83100
83100-60050
Meter Assy, Combination
[03.1969 - 08.1976] FJ55 W/AMMETER |
83100-60050 |
— | ||
|
83100
|
83100
83100-60060
Meter Assy, Combination
[09.1971 - 09.1977] FJ55 L/AMMETER |
83100-60060 |
— | ||
|
83100B
|
83100B
99132-12034 Bulb, Position Indicator Lamp[03.1969 - 08.1973] FJ55 12V 3.4W,12V 3.4W |
99132-12034 |
from US $1.60 |
||
|
83101
|
83101
83101-20030 Socket Sub-Assy, Combination Meter BulbCOMBINATION METER BULB [03.1969 - 07.1980] FJ55 |
83101-20030 |
US $4.66 |
||
| replacement | |||||
|
83101
|
83101
83101-12010
Socket, Ash Receptacle Lamp
[03.1969 - 07.1980] FJ55 |
83101-12010 |
— | ||
|
83102
|
83102
83102-60010
Plate Sub-Assy, Combination Meter Circuit, No.1
[03.1969 - 08.1976] FJ55 W/AMMETER |
83102-60010 |
— | ||
|
83102
|
83102
83102-60020
Plate Sub-Assy, Combination Meter Circuit, No.1
[09.1971 - 09.1977] FJ55 L/AMMETER |
83102-60020 |
— | ||
|
83110
|
83110
83110-60030
Speedometer Assy
[03.1969 - 09.1971] FJ55 KM. |
83110-60030 |
— | ||
|
83110
|
83110
83110-60031
Speedometer Assy
[09.1972 - 01.1975] FJ55 KM. |
83110-60031 |
— | ||
|
83110
|
83110
83110-60040
Speedometer Assy
[03.1969 - 10.1970] FJ55 MILE |
83110-60040 |
— | ||
| replacement | |||||
|
83110
|
83110
83110-60041
Speedometer Assy
[03.1969 - 10.1970] FJ55 MILE |
83110-60041 |
— | ||
|
83110
|
83110
83110-60041
Speedometer Assy
[10.1970 - 09.1972] FJ55 MILE |
83110-60041 |
— | ||
|
83110
|
83110
83110-60042 Speedometer Assy[09.1972 - 01.1975] FJ55 MILE |
83110-60042 |
US $225.68 |
||
| replacement | |||||
|
83110
|
83110
83110-60043
Speedometer Assy
[09.1972 - 01.1975] FJ55 MILE |
83110-60043 |
— | ||
|
83110
|
83110
83110-60052 Speedometer Assy[09.1973 - 01.1975] FJ55 MILE EUR. SPEC. |
83110-60052 |
US $365.46 |
||
| replacement | |||||
|
83110
|
83110
83110-60053
Speedometer Assy
[09.1973 - 01.1975] FJ55 MILE EUR. SPEC. |
83110-60053 |
— | ||
|
83110
|
83110
83110-60100
Speedometer Assy
[09.1973 - 01.1975] FJ55 KM. EUR. SPEC. |
83110-60100 |
— | ||
|
83110B
|
83110B
90981-11007 Bulb, Combination Meter, No.1SPEEDOMETER [03.1969 - 08.1969] FJ55 12V 3W |
90981-11007 |
US $1.02 |
||
| replacement | |||||
|
83110B
|
83110B
99132-12034 Bulb, Position Indicator Lamp[03.1969 - 08.1969] FJ55 12V 3W |
99132-12034 |
from US $1.60 |
||
|
83110B
|
83110B
99132-12034 Bulb, Position Indicator Lamp[08.1969 - 07.1980] FJ55 12V 3.4W |
99132-12034 |
from US $1.60 |
||
|
83111
|
83111
83112-60031
Mechanism, Speedometer
[09.1973 - 01.1975] FJ55 KM. |
83112-60031 |
— | ||
|
83111
|
83111
83112-60042
Mechanism, Speedometer
[09.1973 - 01.1975] FJ55 MILE |
83112-60042 |
— | ||
|
83111
|
83111
83112-60052
Mechanism, Speedometer
[09.1972 - 01.1975] FJ55 MILE,EUR.SPEC. |
83112-60052 |
— | ||
|
83111
|
83111
83112-60082
Mechanism, Speedometer
[09.1973 - 01.1975] FJ55 KM.EUR.SPEC. |
83112-60082 |
— | ||
|
83112
|
83112
83102-36010
Plate Sub-Assy, Speedometer Circuit
[03.1969 - 09.1972] FJ55 |
83102-36010 |
— | ||
|
83135
|
83135
83135-60030
Pointer, Speedometer
[09.1972 - 07.1980] BJ4#,FJ4#,55,HJ45 |
83135-60030 |
— | ||
|
83138
|
83138
83138-60030
Glass, Speedometer
[09.1972 - 07.1980] FJ55 |
83138-60030 |
— | ||
|
83310
|
83310
83310-60031 Gage Assy, Fuel ReceiverFUEL RECEIVER [03.1969 - 09.1977] FJ55 |
83310-60031 |
US $38.88 |
||
|
83360
|
83360
83360-20011
Relay Assy, Fuel Sender
[03.1969 - 09.1977] FJ55 |
83360-20011 |
— | ||
|
83410
|
83410
83410-60031 Gage Assy, Water Temperature ReceiverWATER TEMPERATURE RECEIVER [03.1969 - 09.1969] FJ55 FOR W/AMMETER |
83410-60031 |
US $36.84 |
||
| replacement | |||||
|
83410
|
83410
83410-60032 Gage Assy, Water Temperature ReceiverWATER TEMPERATURE RECEIVER [03.1969 - 09.1969] FJ55 FOR W/AMMETER |
83410-60032 |
US $38.88 |
||
|
83410
|
83410
83410-60032 Gage Assy, Water Temperature ReceiverWATER TEMPERATURE RECEIVER [09.1969 - 08.1976] FJ55 FOR W/AMMETER |
83410-60032 |
US $38.88 |
||
|
83410
|
83410
83410-60050
Gage Assy, Water Temperature Receiver
[09.1971 - 09.1977] FJ55 FOR L/AMMETER |
83410-60050 |
— | ||
|
83510
|
83510
83510-60031
Gage Assy, Oil Pressure Receiver
[03.1969 - 09.1977] FJ55 |
83510-60031 |
— | ||
|
83610
|
83610
83610-60031
Ammeter Assy
[03.1969 - 08.1976] FJ55 |
83610-60031 |
— | ||
|
83710
|
83710
83710-60020
Cable Assy, Speedometer Drive, No.1
[03.1969 - 10.1971] FJ40,43,45,55..RHD L=2300 |
83710-60020 |
— | ||
|
83710
|
83710
83710-69035
Cable Assy, Speedometer Drive, No.1
[10.1971 - 09.1972] FJ40,43,45,55,HJ45..RHD L=2450 |
83710-69035 |
— | ||
|
83710
|
83710
83710-69036 Cable Assy, Speedometer Drive, No.1SPEEDOMETER DRIVE, NO.1 [09.1972 - 09.1973] FJ4#,55,HJ45..RHD L=2450 |
83710-69036 |
US $64.94 |
||
| replacement | |||||
|
83710
|
83710
83710-69055 Cable Assy, Speedometer Drive, No.1[09.1972 - 09.1973] FJ4#,55,HJ45..RHD L=2450 |
83710-69055 |
US $62.78 |
||
|
83710
|
83710
83710-69065 Cable Assy, Speedometer Drive, No.1SPEEDOMETER DRIVE, NO.1 [09.1973 - 08.1976] FJ55..RHD L=2450 |
83710-69065 |
US $64.94 |
||
| replacement | |||||
|
83710
|
83710
83710-69055 Cable Assy, Speedometer Drive, No.1[09.1973 - 08.1976] FJ55..RHD L=2450 |
83710-69055 |
US $62.78 |
||
|
9020107069
|
9020107069
90201-07069 Collar, Speedometer Flexible Tube Shaft Gasket (Mtm) |
90201-07069 |
US $2.24 |
||
|
9046108008
|
9046108008
90461-08008 Clamp, Fuel Pipe, No.1(For Injection Pump) |
90461-08008 |
US $7.28 |
||
|
9046110875
|
9046110875
90461-10875
New Genuine Part
|
90461-10875 |
— | ||
|
9046306161
|
9046306161
90463-06161
New Genuine Part
|
90463-06161 |
— | ||
|
9111140612
|
9111140612
91111-40612
New Genuine Part
|
91111-40612 |
— | ||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.80 |
||
| replacements | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.54 |
||
|
9165140616
|
9165140616
90080-11395 New Genuine Part |
90080-11395 |
US $2.73 |
||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $1.92 |
||
