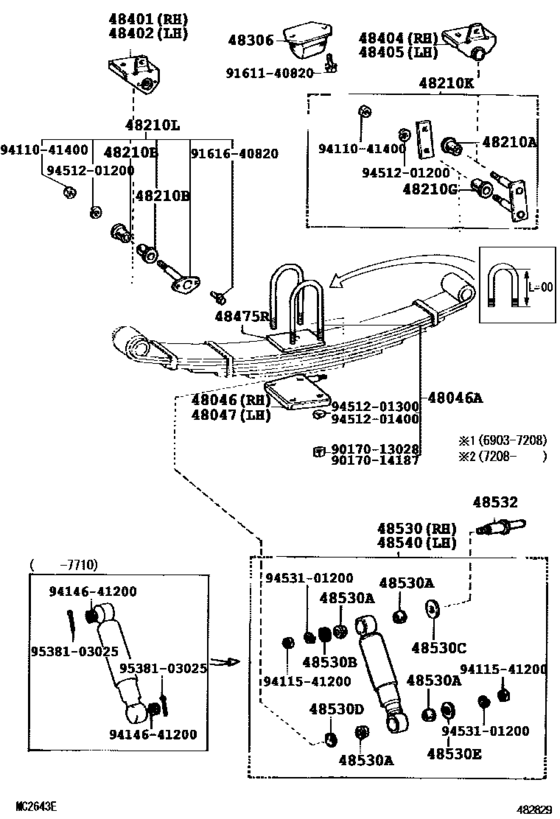

Rear Spring & Shock Absorber ([03.1969 - 07.1980] (6903-8007)FJ55) Diagram Toyota LAND CRUISER
- Year
- 1969 - 1975
- Sales region
- Europe
- Frame
- FJ55
- ENGINE
- F
- DESTINATION
- GEN
- Model
- LAND CRUISER 50
- From
- 03.1969
- To
- 01.1975
- Vehicle Model
- Land Cruiser
- Driver's Position
- RHD
- Roll Bar
- WORB
- Top,back Door
- VKC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48046
|
48046
48046-60030 Seat Sub-Assy, Spring U Bolt, RhSPRING U BOLT, RH [03.1969 - 08.1969] FJ55 |
48046-60030 |
US $53.29 |
||
| replacements | |||||
|
48046
|
48046
48046-60H00
Seat Sub-Assy, Spring U Bolt, Rh
[03.1969 - 08.1969] FJ55 |
48046-60H00 |
— | ||
|
48046
|
48046
94130-61200 Nut[03.1969 - 08.1969] FJ55 |
94130-61200 |
from US $1.03 |
||
|
48046
|
48046
48046-60031
Seat Sub-Assy, Spring U Bolt, Rh
[08.1969 - 08.1972] FJ55 ISO |
48046-60031 |
— | ||
| replacement | |||||
|
48046
|
48046
48046-60H00
Seat Sub-Assy, Spring U Bolt, Rh
[08.1969 - 08.1972] FJ55 ISO |
48046-60H00 |
— | ||
|
48046A
|
48046A
90118-13114 Bolt, U(For Rear Spring)U(FOR REAR SPRING) [03.1969 - 08.1972] FJ55 L=175,D=13,FOR LIGHT WEIGHT |
90118-13114 |
US $15.72 |
||
| replacements | |||||
|
48046A
|
48046A
90117-13044 New Genuine Part[03.1969 - 08.1972] FJ55 L=175,D=13,FOR LIGHT WEIGHT |
90117-13044 |
US $30.28 |
||
|
48046A
|
48046A
90170-13028 New Genuine Part[03.1969 - 08.1972] FJ55 L=175,D=13,FOR LIGHT WEIGHT |
90170-13028 |
US $3.06 |
||
|
48046A
|
48046A
94512-01300 Washer(For Rear Spring U Bolt)[03.1969 - 08.1972] FJ55 L=175,D=13,FOR LIGHT WEIGHT |
94512-01300 |
from US $0.68 |
||
|
48046A
|
48046A
90118-13116 Bolt, U(For Rear Spring)U(FOR REAR SPRING) [03.1969 - 08.1972] FJ55 L=190,D=13 |
90118-13116 |
US $15.72 |
||
| replacements | |||||
|
48046A
|
48046A
90117-13034 New Genuine Part[03.1969 - 08.1972] FJ55 L=190,D=13 |
90117-13034 |
US $25.63 |
||
|
48046A
|
48046A
90170-13028 New Genuine Part[03.1969 - 08.1972] FJ55 L=190,D=13 |
90170-13028 |
US $3.06 |
||
|
48046A
|
48046A
94512-01300 Washer(For Rear Spring U Bolt)[03.1969 - 08.1972] FJ55 L=190,D=13 |
94512-01300 |
from US $0.68 |
||
|
48046A
|
48046A
90118-14108
Bolt, U(For Rear Spring)
[08.1972 - 08.1976] FJ55 L=185,D=14,FOR LIGHT WEIGHT |
90118-14108 |
— | ||
|
48046A
|
48046A
90118-14109 Bolt, U(For Rear Spring)U(FOR REAR SPRING) [08.1972 - 07.1980] FJ55 L=195,D=14 |
90118-14109 |
US $30.28 |
||
| replacement | |||||
|
48046A
|
48046A
90117-14032 Bolt, U(For Rear Spring)[08.1972 - 07.1980] FJ55 L=195,D=14 |
90117-14032 |
from US $22.09 |
||
|
48046A
|
48046A
90118-14110
Bolt, U(For Rear Spring)
[08.1972 - 07.1980] BJ43,FJ43,45,55,HJ45 L=205,D=14 |
90118-14110 |
— | ||
| replacement | |||||
|
48046A
|
48046A
90117-14002 Bolt, U(For Rear Spring)U(FOR REAR SPRING) [08.1972 - 07.1980] BJ43,FJ43,45,55,HJ45 L=205,D=14 |
90117-14002 |
from US $23.58 |
||
|
48047
|
48047
48047-60030 Seat Sub-Assy, Spring U Bolt, LhSPRING U BOLT, LH [03.1969 - 08.1969] FJ55 |
48047-60030 |
US $53.29 |
||
| replacements | |||||
|
48047
|
48047
48047-60H00
Seat Sub-Assy, Spring U Bolt, Lh
[03.1969 - 08.1969] FJ55 |
48047-60H00 |
— | ||
|
48047
|
48047
94130-61200 Nut[03.1969 - 08.1969] FJ55 |
94130-61200 |
from US $1.03 |
||
|
48047
|
48047
48047-60031 Seat Sub-Assy, Spring U Bolt, LhSPRING U BOLT, LH [08.1969 - 08.1972] FJ55 ISO |
48047-60031 |
US $53.29 |
||
| replacement | |||||
|
48047
|
48047
48047-60H00
Seat Sub-Assy, Spring U Bolt, Lh
[08.1969 - 08.1972] FJ55 ISO |
48047-60H00 |
— | ||
|
48210A
|
48210A
90385-18025 Bush(For Front Spring Shackle)[03.1969 - 07.1980] BJ43,FJ43,45,55,HJ45 |
90385-18025 |
US $5.28 |
||
|
48210B
|
48210B
90385-18025 Bush(For Front Spring Shackle)[03.1969 - 07.1980] BJ43,FJ43,45,55,HJ45 |
90385-18025 |
US $5.28 |
||
|
48210G
|
48210G
90385-18025 Bush(For Front Spring Shackle)[03.1969 - 07.1980] BJ43,FJ43,45,55,HJ45 |
90385-18025 |
US $5.28 |
||
|
48210K
|
48210K
04483-35020
Shackle Kit, Rear Spring
[03.1969 - 01.1979] BJ43,FJ43,45,55,HJ45 TYPE A |
04483-35020 |
— | ||
| replacement | |||||
|
48210K
|
48210K
04483-35030
Shackle Kit, Rear Spring
[03.1969 - 01.1979] BJ43,FJ43,45,55,HJ45 TYPE A |
04483-35030 |
— | ||
|
48210L
|
48210L
04484-35020
Pin Kit, Front Spring
[03.1969 - 07.1980] FJ55 |
04484-35020 |
— | ||
| replacement | |||||
|
48210L
|
48210L
04484-35040
Pin Kit, Rear Spring
[03.1969 - 07.1980] FJ55 |
04484-35040 |
— | ||
|
48306
|
48306
48304-60010 Bumper Sub-Assy, Rear SpringREAR SPRING [03.1969 - 07.1980] BJ40,FJ40,42,55 |
48304-60010 |
US $19.15 |
||
|
48401
|
48401
48414-60030
Bracket Sub-Assy, Rear Spring, Front Rh
[03.1969 - 01.1979] FJ55 |
48414-60030 |
— | ||
|
48402
|
48402
48415-60030
Bracket Sub-Assy, Rear Spring, Front Lh
[03.1969 - 01.1979] FJ55 |
48415-60030 |
— | ||
|
48404
|
48404
48416-60020
Bracket Sub-Assy, Rear Spring, Rear Rh
[03.1969 - 07.1980] FJ55 |
48416-60020 |
— | ||
|
48405
|
48405
48416-60020
Bracket Sub-Assy, Rear Spring, Rear Rh
[03.1969 - 07.1980] FJ55 |
48416-60020 |
— | ||
|
48475R
|
48475R
48475-60010
Plate, Distance(For Front)
[08.1972 - 06.1977] BJ4#,FJ4#,55,HJ45 |
48475-60010 |
— | ||
| replacement | |||||
|
48475R
|
48475R
48475-60011
Plate, Distance(For Front)
[08.1972 - 06.1977] BJ4#,FJ4#,55,HJ45 |
48475-60011 |
— | ||
|
48530
|
48530
48531-69055 Absorber Assy, Shock, Rear RhSHOCK, REAR RH [03.1969 - 04.1971] FJ43,45,55 |
48531-69055 |
US $99.01 |
||
| replacement | |||||
|
48530
|
48530
48531-69059 Absorber Assy, Shock, Rear Rh[03.1969 - 04.1971] FJ43,45,55 |
48531-69059 |
from US $86.87 |
||
|
48530
|
48530
48531-69056 Absorber Assy, Shock, Rear RhSHOCK, REAR RH [04.1971 - 10.1977] FJ55 |
48531-69056 |
US $90.27 |
||
| replacement | |||||
|
48530
|
48530
48531-69059 Absorber Assy, Shock, Rear Rh[04.1971 - 10.1977] FJ55 |
48531-69059 |
from US $86.87 |
||
|
48530A
|
48530A
90385-16007 Cushion, Front Shock Absorber[03.1969 - 07.1980] BJ4#,FJ4#,55,HJ45 |
90385-16007 |
from US $1.91 |
||
|
48530B
|
48530B
90948-03003 Retainer, Cushion, No.1(For Front Shock Absorber)[03.1969 - 07.1980] BJ4#,FJ4#,55,HJ45 |
90948-03003 |
from US $1.31 |
||
|
48530C
|
48530C
90948-03004 Retainer, Cushion, No.1(For Front Shock Absorber)[03.1969 - 07.1980] BJ4#,FJ4#,55,HJ45 |
90948-03004 |
from US $1.42 |
||
|
48530D
|
48530D
90948-03004 Retainer, Cushion, No.1(For Front Shock Absorber)[03.1969 - 07.1980] BJ4#,FJ4#,55,HJ45 |
90948-03004 |
from US $1.42 |
||
|
48530E
|
48530E
90948-03003 Retainer, Cushion, No.1(For Front Shock Absorber)[03.1969 - 07.1980] BJ4#,FJ4#,55,HJ45 |
90948-03003 |
from US $1.31 |
||
|
48532
|
48532
48532-30010 Pin, Rear Shock Absorber PivotREAR SHOCK ABSORBER PIVOT [03.1969 - 08.1969] FJ4#,55 |
48532-30010 |
US $19.36 |
||
| replacements | |||||
|
48532
|
48532
48532-30011
Pin, Rear Shock Absorber Pivot
[03.1969 - 08.1969] FJ4#,55 |
48532-30011 |
— | ||
|
48532
|
48532
94146-41200 New Genuine Part[03.1969 - 08.1969] FJ4#,55 |
94146-41200 |
US $4.89 |
||
|
48532
|
48532
48532-30011
Pin, Rear Shock Absorber Pivot
[08.1969 - 10.1977] BJ4#,FJ4#,55,HJ45 |
48532-30011 |
— | ||
|
48540
|
48540
48531-69055 Absorber Assy, Shock, Rear RhSHOCK, REAR RH [03.1969 - 04.1971] FJ43,45,55 |
48531-69055 |
US $99.01 |
||
| replacement | |||||
|
48540
|
48540
48531-69059 Absorber Assy, Shock, Rear Rh[03.1969 - 04.1971] FJ43,45,55 |
48531-69059 |
from US $86.87 |
||
|
48540
|
48540
48531-69056 Absorber Assy, Shock, Rear RhSHOCK, REAR RH [04.1971 - 10.1977] FJ55 |
48531-69056 |
US $90.27 |
||
| replacement | |||||
|
48540
|
48540
48531-69059 Absorber Assy, Shock, Rear Rh[04.1971 - 10.1977] FJ55 |
48531-69059 |
from US $86.87 |
||
|
9017013028
|
9017013028
90170-13028 New Genuine Part |
90170-13028 |
US $3.06 |
||
|
9017014187
|
9017014187
90170-14187 NUT |
90170-14187 |
US $2.88 |
||
|
9161140820
|
9161140820
91611-40820
Bolt(For Intake Manifold To Exhaust Manifold)
|
91611-40820 |
— | ||
|
9161640820
|
9161640820
91616-40820 Bolt, Engine Rear Cover Hinge Set |
91616-40820 |
US $1.40 |
||
|
9411041400
|
9411041400
94110-41400
Nut(For Backing Plate To Steering Knuckle Setting)
|
94110-41400 |
— | ||
| replacement | |||||
|
9411041400
|
9411041400
94115-41400 Nut(For Backing Plate To Steering Knuckle Setting) |
94115-41400 |
US $2.62 |
||
|
9411541200
|
9411541200
94115-41200
Nut
|
94115-41200 |
— | ||
| replacement | |||||
|
9411541200
|
9411541200
94130-61200 Nut |
94130-61200 |
from US $1.03 |
||
|
9414641200
|
9414641200
94146-41200 New Genuine Part |
94146-41200 |
US $4.89 |
||
|
9451201200
|
9451201200
94512-01200 Washer |
94512-01200 |
from US $0.76 |
||
|
9451201300
|
9451201300
94512-01300 Washer(For Rear Spring U Bolt) |
94512-01300 |
from US $0.68 |
||
|
9451201400
|
9451201400
94512-01400 Washer(For Rear Spring U Bolt) |
94512-01400 |
US $1.60 |
||
|
9453101200
|
9453101200
94531-01200 WASHER |
94531-01200 |
from US $0.80 |
||
|
9538103025
|
9538103025
95381-03025 PIN |
95381-03025 |
from US $0.84 |
||
