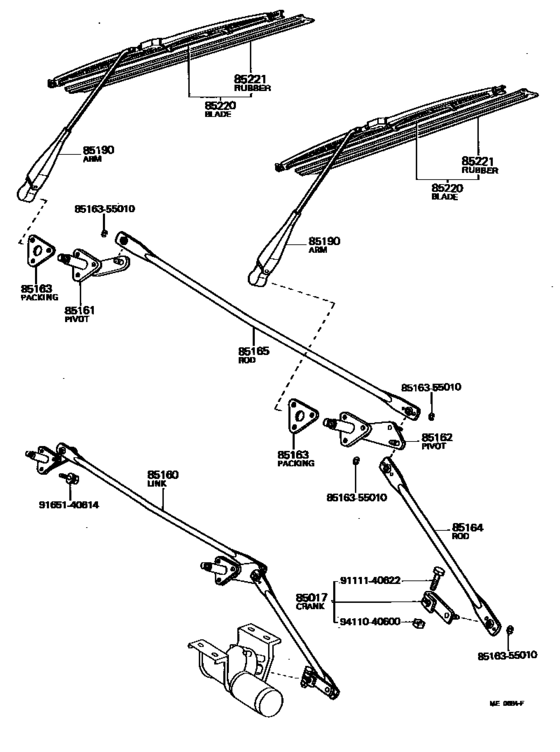

Windshield Wiper ([03.1969 - 09.1971] (6903-7109)FJ55) Diagram Toyota LAND CRUISER
- Year
- 1969 - 1975
- Sales region
- Europe
- Frame
- FJ55
- ENGINE
- F
- DESTINATION
- GEN
- Model
- LAND CRUISER 50
- From
- 03.1969
- To
- 01.1975
- Vehicle Model
- Land Cruiser
- Driver's Position
- RHD
- Roll Bar
- WORB
- Top,back Door
- VKC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85017
|
85017
85017-60020
Crank Sub-Assy, Windshield Wiper Link
[03.1969 - 09.1971] FJ55 |
85017-60020 |
— | ||
|
85160
|
85160
85160-60020
Link Assy, Windshield Wiper
[03.1969 - 09.1971] FJ55..RHD |
85160-60020 |
— | ||
|
85160
|
85160
85160-90350
Link Assy, Windshield Wiper
[09.1971 - 09.1973] FJ55..RHD |
85160-90350 |
— | ||
|
85160
|
85160
85160-90352 Link Assy, Windshield WiperWINDSHIELD WIPER [09.1973 - 10.1973] FJ55..RHD |
85160-90352 |
US $110.66 |
||
| replacement | |||||
|
85160
|
85160
85160-90354
Link Assy, Windshield Wiper
[09.1973 - 10.1973] FJ55..RHD |
85160-90354 |
— | ||
|
85160
|
85160
85160-90354
Link Assy, Windshield Wiper
[10.1973 - 07.1980] FJ55..RHD |
85160-90354 |
— | ||
|
85161
|
85161
85161-60020
Pivot, Windshield Wiper Link, No.1
[03.1969 - 09.1971] FJ55 |
85161-60020 |
— | ||
|
85162
|
85162
85162-60020
Pivot, Windshield Wiper Link, No.2
[03.1969 - 09.1971] FJ55..RHD |
85162-60020 |
— | ||
|
85163
|
85163
85185-60020
Packing, Windshield Wiper Pivot
[03.1969 - 09.1971] FJ55 |
85185-60020 |
— | ||
|
85164
|
85164
85164-60020
Rod, Windshield Wiper Link, No.1
[03.1969 - 09.1971] FJ55 |
85164-60020 |
— | ||
|
85165
|
85165
85165-60020
Rod, Windshield Wiper Link W/crank
[03.1969 - 09.1971] FJ55 |
85165-60020 |
— | ||
|
85190
|
85190
85190-60040
Arm Assy, Windshield Wiper
[03.1969 - 09.1973] FJ55..RHD |
85190-60040 |
— | ||
|
85190
|
85190
85190-90350
Arm Assy, Windshield Wiper
[09.1973 - 01.1979] FJ55..RHD |
85190-90350 |
— | ||
|
85220
|
85220
85220-26010
Blade Assy, Windshield Wiper
[03.1969 - 01.1979] FJ55 SILVER TYPE |
85220-26010 |
— | ||
|
85221
|
85221
85221-26010 Blade, Windshield WiperWINDSHIELD WIPER [03.1969 - 09.1971] FJ55 |
85221-26010 |
US $74.26 |
||
| replacement | |||||
|
85221
|
85221
85221-26011 Blade, Windshield WiperFR WIPER, LH [03.1969 - 09.1971] FJ55 |
85221-26011 |
US $61.59 |
||
|
8516355010
|
8516355010
85163-55010
Packing, Windshield Wiper Pivot
|
85163-55010 |
— | ||
|
9111140622
|
9111140622
91111-40622 New Genuine Part |
91111-40622 |
US $2.33 |
||
| replacement | |||||
|
9111140622
|
9111140622
91111-50622 New Genuine Part |
91111-50622 |
US $2.33 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9411040600
|
9411040600
94110-40600 Nut, Rock |
94110-40600 |
from US $0.70 |
||
