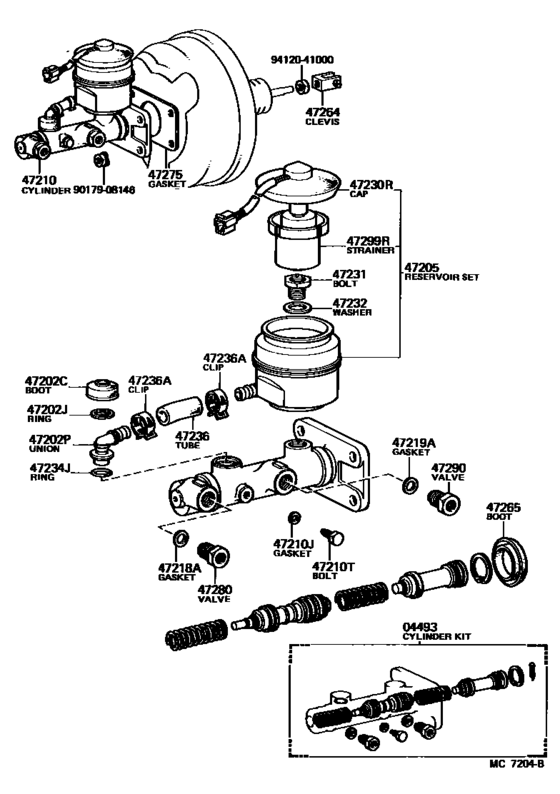

Brake Master Cylinder ([08.1980 - 11.1984] (8008-8411) ; (8411-8504)FJ60) Diagram Toyota LAND CRUISER
- Year
- 1980 - 1987
- Sales region
- U.S.A.
- Frame
- FJ60
- body
- WGG
- ENGINE
- 2F
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- LAND CRUISER 60
- From
- 08.1980
- To
- 08.1987
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04493
|
04493
04493-60070 Cylinder Kit, Brake MasterBRAKE MASTER [08.1980 - 11.1984] BJ60,FJ60 |
04493-60070 |
US $76.27 |
||
|
04493
|
04493
04493-60160
Cylinder Kit, Brake Master
[04.1985 - 08.1987] FJ60,HJ60 |
04493-60160 |
— | ||
| replacement | |||||
|
04493
|
04493
04493-60170 Cylinder Kit, Brake MasterBRAKE MASTER [04.1985 - 08.1987] FJ60,HJ60 |
04493-60170 |
US $113.16 |
||
|
47202C
|
47202C
47265-20060
Boot, Reservoir, No.1(For Brake Master Cylinder Side)
[08.1980 - 08.1987] BJ60,FJ60,HJ60 |
47265-20060 |
— | ||
|
47202J
|
47202J
96151-02000 Ring, Snap (For Low Coast Shift Control Valve)[08.1980 - 08.1987] BJ60,FJ60,HJ60 |
96151-02000 |
US $1.27 |
||
|
47202P
|
47202P
90407-10003
Union, Reservoir(For Brake Master Cylinder Side)
[08.1980 - 04.1985] BJ60,FJ60 |
90407-10003 |
— | ||
| replacement | |||||
|
47202P
|
47202P
90407-10004
Union, Reservoir(For Brake Master Cylinder Side)
[08.1980 - 04.1985] BJ60,FJ60 |
90407-10004 |
— | ||
|
47202P
|
47202P
90407-10004
Union, Reservoir(For Brake Master Cylinder Side)
[04.1985 - 08.1987] FJ60,HJ60 |
90407-10004 |
— | ||
|
47205
|
47205
47202-60040
Reservoir Sub-Assy, Brake Master Cylinder
[08.1980 - 04.1985] BJ60,FJ60 |
47202-60040 |
— | ||
|
47205
|
47205
47202-60090 Reservoir Sub-Assy, Brake Master CylinderBRAKE MASTER CYLINDER(FOR REAR SIDE) [04.1985 - 08.1987] FJ60,HJ60 |
47202-60090 |
US $227.14 |
||
|
47210
|
47210
47201-60130
Cylinder Sub-Assy, Brake Master
[08.1980 - 11.1984] BJ60,FJ60 |
47201-60130 |
— | ||
| replacement | |||||
|
47210
|
47210
47201-60220
Cylinder Sub-Assy, Brake Master
[08.1980 - 11.1984] BJ60,FJ60 |
47201-60220 |
— | ||
|
47210
|
47210
47201-60340 Cylinder Sub-Assy, Brake MasterMASTER, W/O BOOSTER [04.1985 - 08.1987] FJ60,HJ60 |
47201-60340 |
US $451.36 |
||
|
47210J
|
47210J
90430-06104 Gasket(For Brake Actuator)[08.1980 - 08.1987] BJ60,FJ60,HJ60 |
90430-06104 |
from US $1.79 |
||
|
47210T
|
47210T
90109-06008 Bolt(For Brake Master Cylinder)[08.1980 - 08.1987] BJ60,FJ60,HJ60 |
90109-06008 |
US $0.44 |
||
|
47218A
|
47218A
90430-09253
Gasket(For Clutch Master Cylinder Accumulator)
[08.1980 - 08.1987] BJ60,FJ60,HJ60 |
90430-09253 |
— | ||
|
47219A
|
47219A
90430-09253
Gasket(For Clutch Master Cylinder Accumulator)
[08.1980 - 08.1987] BJ60,FJ60,HJ60 |
90430-09253 |
— | ||
|
47230R
|
47230R
84460-22010
Cap Assy, Brake Master Cylinder Reservoir Filler
[08.1980 - 08.1987] BJ60,FJ60,HJ60 |
84460-22010 |
— | ||
|
47231
|
47231
47231-20010 Bolt, Clutch Master Cylinder Reservoir Set[04.1985 - 08.1987] FJ60,HJ60 |
47231-20010 |
US $4.08 |
||
|
47231
|
47231
47231-30010 Bolt, Clutch Master Cylinder Reservoir Set[08.1980 - 04.1985] BJ60,FJ60 |
47231-30010 |
US $5.02 |
||
|
47232
|
47232
47232-30010 Washer, Reservoir Set Bolt[08.1980 - 08.1987] BJ60,FJ60 |
47232-30010 |
US $3.94 |
||
|
47234J
|
47234J
90301-14001 Ring, O(For Clutch Master Cylinder Union)[08.1980 - 08.1987] BJ60,FJ60,HJ60 |
90301-14001 |
US $3.67 |
||
|
47236
|
47236
47234-14010 Tube, Reservoir, No.1[08.1980 - 08.1987] BJ60,FJ60,HJ60 |
47234-14010 |
US $9.09 |
||
|
47236A
|
47236A
90467-16001
Clamp, Oil Cooler Hose
[08.1980 - 08.1987] BJ60,FJ60,HJ60 |
90467-16001 |
— | ||
| replacement | |||||
|
47236A
|
47236A
96133-41500 Clamp Or Clip(For Air Hose, No.5)[08.1980 - 08.1987] BJ60,FJ60,HJ60 |
96133-41500 |
from US $2.26 |
||
|
47264
|
47264
47264-22010 Clevis, Master Cylinder Push Rod[08.1980 - 08.1987] BJ60,FJ60,HJ60 |
47264-22010 |
US $6.12 |
||
|
47265
|
47265
47265-20050 Boot, Clutch Master Cylinder[08.1980 - 08.1987] BJ60,FJ60,HJ60 |
47265-20050 |
from US $4.52 |
||
|
47275
|
47275
47275-22010 Gasket, Brake Master Cylinder[08.1980 - 08.1987] BJ60,FJ60,HJ60 |
47275-22010 |
US $4.48 |
||
|
47280
|
47280
47280-14010
Valve Assy, Brake Master Cylinder Outlet Check
[04.1985 - 10.1985] FJ60 |
47280-14010 |
— | ||
|
47280
|
47280
47280-30030
Valve Assy, Brake Master Cylinder Outlet Check
[08.1980 - 04.1985] BJ60,FJ60 |
47280-30030 |
— | ||
| replacement | |||||
|
47280
|
47280
47280-14010
Valve Assy, Brake Master Cylinder Outlet Check
[08.1980 - 04.1985] BJ60,FJ60 |
47280-14010 |
— | ||
|
47290
|
47290
47280-14010
Valve Assy, Brake Master Cylinder Outlet Check
[04.1985 - 10.1985] FJ60 |
47280-14010 |
— | ||
|
47290
|
47290
47280-30030
Valve Assy, Brake Master Cylinder Outlet Check
[08.1980 - 04.1985] BJ60,FJ60 |
47280-30030 |
— | ||
| replacement | |||||
|
47290
|
47290
47280-14010
Valve Assy, Brake Master Cylinder Outlet Check
[08.1980 - 04.1985] BJ60,FJ60 |
47280-14010 |
— | ||
|
47299R
|
47299R
47299-14010
Strainer, Brake Master Cylinder Reservoir
[04.1982 - 08.1987] BJ60,FJ60,HJ60 |
47299-14010 |
— | ||
|
47299R
|
47299R
47299-20010
Strainer, Brake Master Cylinder Reservoir
[08.1980 - 04.1982] BJ60,FJ60 |
47299-20010 |
— | ||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $0.74 |
||
| replacement | |||||
|
9412041000
|
9412041000
90170-A0002 Nut |
90170-A0002 |
US $2.33 |
||
