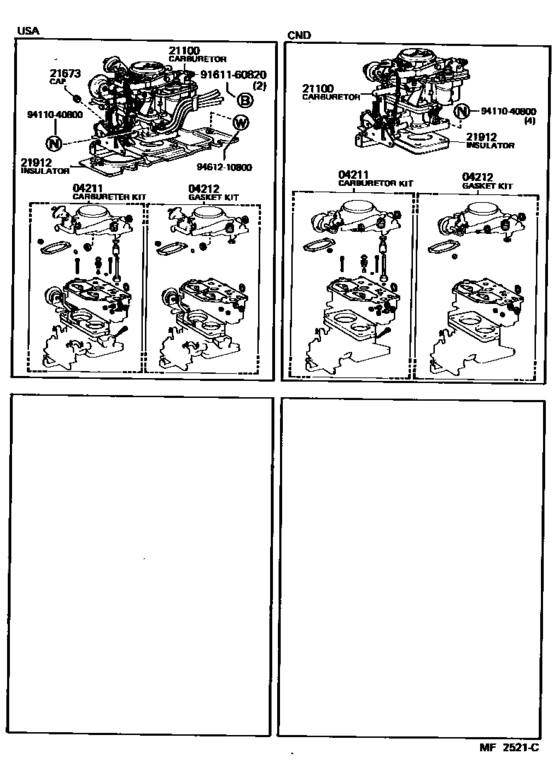

Carburetor Assembly ([08.1980 - ] (8008- )2F) Diagram Toyota LAND CRUISER
- Year
- 1980 - 1987
- Sales region
- U.S.A.
- Frame
- FJ60
- body
- WGG
- ENGINE
- 2F
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- LAND CRUISER 60
- From
- 08.1980
- To
- 08.1987
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04211
|
04211
04211-61170 Carburetor Kit[08.1980 - 08.1987] 2F..FJ60..USA |
04211-61170 |
US $125.22 |
||
| replacement | |||||
|
04211
|
04211
04211-61171
Carburetor Kit
[08.1980 - 08.1987] 2F..FJ60..USA |
04211-61171 |
— | ||
|
04212
|
04212
04212-61030
Gasket Kit, Carburetor
[08.1980 - 08.1987] 2F..FJ60 |
04212-61030 |
— | ||
| replacement | |||||
|
04212
|
04212
04212-61031
Gasket Kit, Carburetor
[08.1980 - 08.1987] 2F..FJ60 |
04212-61031 |
— | ||
|
21100
|
21100
21100-61140 Carburetor Assy[08.1980 - 10.1981] 2F..FJ60..USA |
21100-61140 |
US $1,390.48 |
||
| replacement | |||||
|
21100
|
21100
21100-61142
Carburetor Assy
[08.1980 - 10.1981] 2F..FJ60..USA |
21100-61142 |
— | ||
|
21100
|
21100
21100-61141 Carburetor Assy[10.1981 - 04.1986] 2F..FJ60 |
21100-61141 |
US $1,386.11 |
||
| replacement | |||||
|
21100
|
21100
21100-61142
Carburetor Assy
[10.1981 - 04.1986] 2F..FJ60 |
21100-61142 |
— | ||
|
21100
|
21100
21100-61142
Carburetor Assy
[04.1986 - 08.1987] 2F..FJ60 |
21100-61142 |
— | ||
|
21673
|
21673
21673-38020 Cap, Idle Limit[08.1980 - 05.1983] 2F..FJ60..USA |
21673-38020 |
US $9.90 |
||
|
21912
|
21912
21912-61032
Insulator, Carburetor Heat
[08.1980 - 08.1987] 2F..FJ60..USA |
21912-61032 |
— | ||
| replacement | |||||
|
21912
|
21912
21912-61035 Insulator, Carburetor Heat[08.1980 - 08.1987] 2F..FJ60..USA |
21912-61035 |
from US $98.27 |
||
|
9161160820
|
9161160820
91611-60820
Bolt(For Transaxle & Engine Setting)
|
91611-60820 |
— | ||
| replacement | |||||
|
9161160820
|
9161160820
91611-G0820 Bolt |
91611-G0820 |
from US $1.18 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.87 |
||
|
9461210800
|
9461210800
94612-10800 Washer, Plate(For Repair Actuator Set) |
94612-10800 |
from US $0.82 |
||
