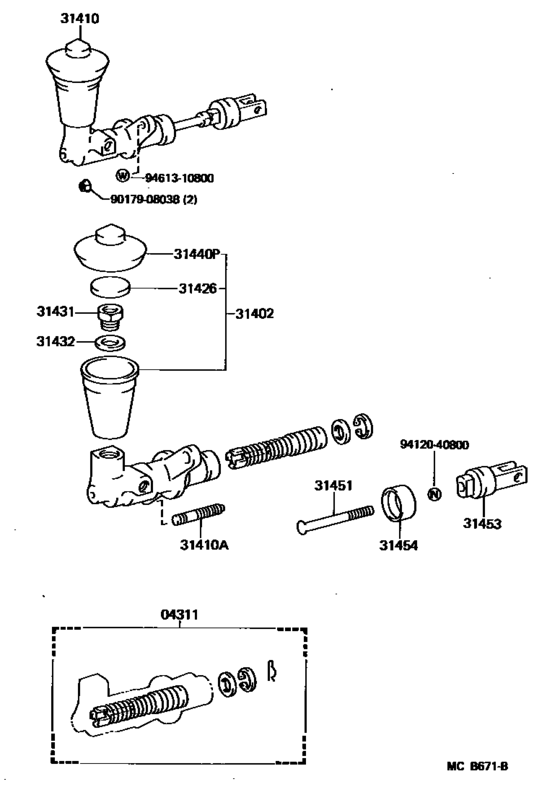

Clutch Master Cylinder ([04.1985 - ] (8411- )BJ60 ; (8504- )FJ60 ; (8510- )5 F) Diagram Toyota LAND CRUISER
- Year
- 1980 - 1987
- Sales region
- U.S.A.
- Frame
- FJ60
- body
- WGG
- ENGINE
- 2F
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- LAND CRUISER 60
- From
- 08.1980
- To
- 08.1987
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04311
|
04311
04311-60030
Cylinder Kit, Clutch Master
[08.1980 - 11.1984] BJ60,FJ60 |
04311-60030 |
— | ||
| replacement | |||||
|
04311
|
04311
04311-60032 Cylinder Kit, Clutch Master[08.1980 - 11.1984] BJ60,FJ60 |
04311-60032 |
from US $40.07 |
||
|
04311
|
04311
04311-60050 Cylinder Kit, Clutch Master[04.1985 - 08.1987] BJ60,FJ60,HJ60..MTM |
04311-60050 |
US $58.53 |
||
| replacement | |||||
|
04311
|
04311
04311-60051 Cylinder Kit, Clutch Master[04.1985 - 08.1987] BJ60,FJ60,HJ60..MTM |
04311-60051 |
from US $39.14 |
||
|
31402
|
31402
31402-30030 Reservoir Sub-Assy, Clutch Master Cylinder[04.1985 - 08.1987] BJ60,FJ60,HJ60..MTM |
31402-30030 |
US $27.61 |
||
|
31402
|
31402
31402-35010
Reservoir Sub-Assy, Clutch Master Cylinder
[08.1980 - 11.1984] BJ60,FJ60 |
31402-35010 |
— | ||
| replacement | |||||
|
31402
|
31402
31402-20010
Reservoir Sub-Assy, Clutch Master Cylinder
[08.1980 - 11.1984] BJ60,FJ60 |
31402-20010 |
— | ||
|
31410
|
31410
31410-60060 Cylinder Assy, Clutch Master[08.1980 - 11.1984] BJ60,FJ60 |
31410-60060 |
US $206.75 |
||
| replacement | |||||
|
31410
|
31410
31410-60061 Cylinder Assy, Clutch Master[08.1980 - 11.1984] BJ60,FJ60 |
31410-60061 |
from US $151.13 |
||
|
31410
|
31410
31410-60280 Cylinder Assy, Clutch Master[04.1985 - 08.1987] BJ60,FJ60,HJ60..MTM |
31410-60280 |
US $182 |
||
| replacement | |||||
|
31410
|
31410
31410-60282 Cylinder Assy, Clutch Master[04.1985 - 08.1987] BJ60,FJ60,HJ60..MTM |
31410-60282 |
US $188.70 |
||
|
31410A
|
31410A
90116-08022 Bolt(For Clutch Master Cylinder Setting)[11.1984 - 08.1987] BJ60,FJ60,HJ60..MTM |
90116-08022 |
US $2.33 |
||
|
31426
|
31426
31426-20010 Float, Clutch Master Cylinder ReservoirBRAKE MASTER CYLINDER RESERVOIR(FOR REAR SIDE) [08.1980 - 11.1984] BJ60,FJ60 |
31426-20010 |
US $4.37 |
||
|
31426
|
31426
31426-30011
Float, Clutch Master Cylinder Reservoir
[04.1985 - 08.1987] BJ60,FJ60,HJ60..MTM |
31426-30011 |
— | ||
|
31431
|
31431
47231-20010 Bolt, Clutch Master Cylinder Reservoir Set[08.1980 - 11.1984] BJ60,FJ60 |
47231-20010 |
US $4.08 |
||
|
31431
|
31431
47231-30010 Bolt, Clutch Master Cylinder Reservoir Set[04.1985 - 08.1987] BJ60,FJ60,HJ60..MTM |
47231-30010 |
US $5.02 |
||
|
31432
|
31432
47232-30010 Washer, Reservoir Set Bolt[11.1984 - 08.1987] BJ60,FJ60,HJ60..MTM |
47232-30010 |
US $3.94 |
||
|
31440P
|
31440P
31440-35010
Cap, Clutch Master Cylinder Reservoir Filler
[08.1980 - 11.1984] BJ60,FJ60 |
31440-35010 |
— | ||
| replacement | |||||
|
31440P
|
31440P
47230-20040 Cap, Clutch Master Cylinder Reservoir Filler[08.1980 - 11.1984] BJ60,FJ60 |
47230-20040 |
from US $8.68 |
||
|
31440P
|
31440P
47230-20040 Cap, Clutch Master Cylinder Reservoir Filler[04.1985 - 08.1987] BJ60,FJ60,HJ60..MTM |
47230-20040 |
from US $8.68 |
||
|
31451
|
31451
31451-30030
Rod, Clutch Master Cylinder Push
[08.1980 - 11.1984] BJ60,FJ60 |
31451-30030 |
— | ||
|
31451
|
31451
31451-60050
Rod, Clutch Master Cylinder Push
[04.1985 - 08.1987] BJ60,FJ60,HJ60..MTM |
31451-60050 |
— | ||
|
31453
|
31453
31453-22010 Clevis, Clutch Master Cylinder Push Rod[04.1985 - 11.1986] BJ60,FJ60,HJ60..MTM |
31453-22010 |
US $6.55 |
||
| replacement | |||||
|
31453
|
31453
31453-35010 Clevis, Clutch Master Cylinder Push Rod[04.1985 - 11.1986] BJ60,FJ60,HJ60..MTM |
31453-35010 |
US $6.47 |
||
|
31453
|
31453
31453-30011
Clevis, Clutch Master Cylinder Push Rod
[08.1980 - 11.1984] BJ60,FJ60 |
31453-30011 |
— | ||
|
31453
|
31453
31453-35010 Clevis, Clutch Master Cylinder Push Rod[11.1986 - 08.1987] FJ60,HJ60..MTM |
31453-35010 |
US $6.47 |
||
|
31454
|
31454
31454-30030 Boot, Clutch Master Cylinder[08.1980 - 08.1987] BJ60,FJ60,HJ60..MTM |
31454-30030 |
US $3.84 |
||
|
9017908038
|
9017908038
90179-08038 Nut (For Transmission Control Cable) |
90179-08038 |
from US $0.78 |
||
|
9412040800
|
9412040800
94120-40800 Nut(For Clutch Pedal Stopper) |
94120-40800 |
US $1.61 |
||
|
9461310800
|
9461310800
94613-10800 Spacer (For Control Select Lever Support) |
94613-10800 |
from US $0.67 |
||
