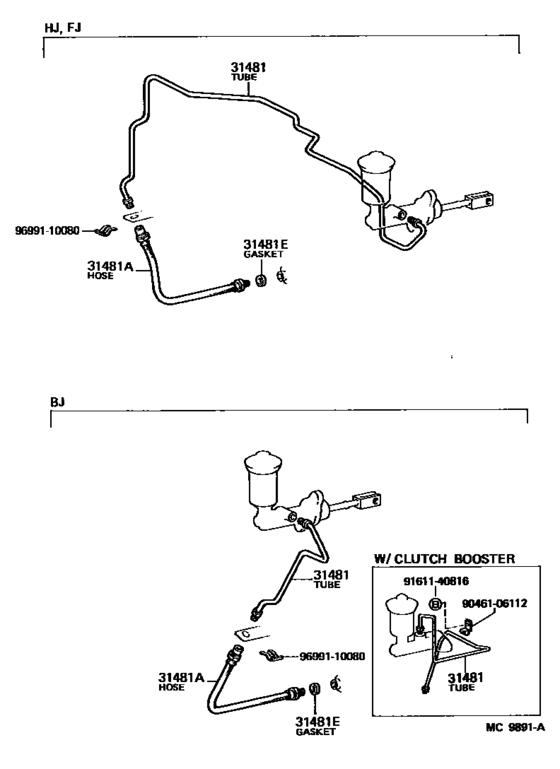

Clutch Pedal & Flexible Hose ([08.1980 - ] (8008- )MTM) Diagram Toyota LAND CRUISER
- Year
- 1980 - 1987
- Sales region
- U.S.A.
- Frame
- FJ60
- body
- WGG
- ENGINE
- 2F
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- LAND CRUISER 60
- From
- 08.1980
- To
- 08.1987
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31481
|
31481
31481-60250
Tube, Clutch Master Cylinder To Flexible Hose
[08.1980 - 04.1985] FJ60 |
31481-60250 |
— | ||
|
31481
|
31481
31481-60301
Tube, Clutch Master Cylinder To Flexible Hose
[04.1985 - 08.1987] FJ60,HJ60..MTM |
31481-60301 |
— | ||
|
31481A
|
31481A
90947-02358 Hose, Clutch, No.1CLUTCH, NO.1 [08.1980 - 04.1985] FJ60 |
90947-02358 |
from US $26.88 |
||
|
31481A
|
31481A
96812-50320 Hose, Clutch, No.1[04.1985 - 08.1987] FJ60,HJ60..MTM |
96812-50320 |
US $29.90 |
||
|
31481E
|
31481E
90430-10074 Gasket(For Oil Pressure Regulator)[08.1980 - 11.1984] BJ60,FJ60 |
90430-10074 |
from US $0.86 |
||
|
9046106112
|
9046106112
90461-06112 Clamp, Brake Tube, No.6 |
90461-06112 |
US $2.33 |
||
|
9161140816
|
9161140816
91611-40816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-40816 |
— | ||
| replacement | |||||
|
9161140816
|
9161140816
91611-B0816 Bolt |
91611-B0816 |
from US $0.99 |
||
|
9699110080
|
9699110080
96991-10080 CLIP |
96991-10080 |
from US $1.16 |
||
