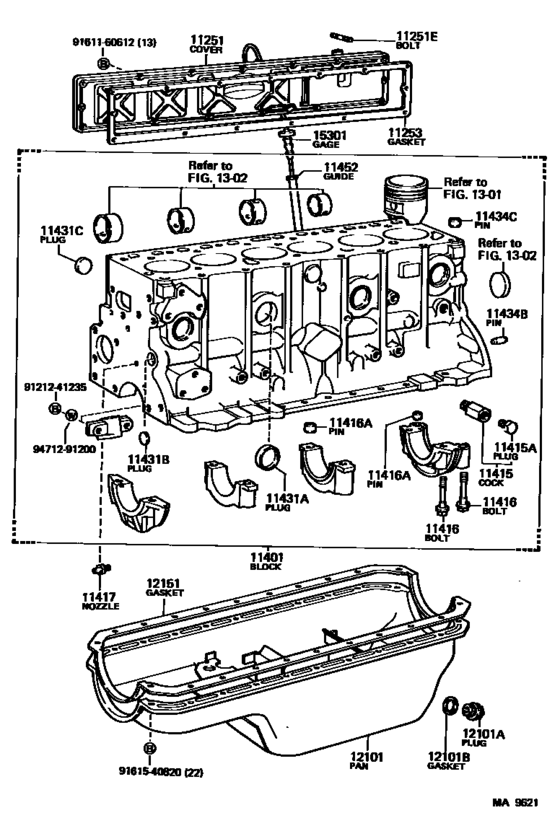

Cylinder Block ([08.1980 - ] (8008- )2F) Diagram Toyota LAND CRUISER
- Year
- 1980 - 1987
- Sales region
- U.S.A.
- Frame
- FJ60
- body
- WGG
- ENGINE
- 2F
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- LAND CRUISER 60
- From
- 08.1980
- To
- 08.1987
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11251
|
11251
11203-61011
Cover, Valve Push Rod
[08.1980 - 08.1987] 2F..FJ60 |
11203-61011 |
— | ||
|
11251E
|
11251E
90116-06306
Bolt, Stud(For Valve Push Rod Cover)
[08.1980 - 08.1987] 2F..FJ60 L=29,S=7&18 |
90116-06306 |
— | ||
|
11253
|
11253
11253-60010 Gasket, Valve Push Rod CoverVALVE PUSH ROD COVER [08.1980 - 08.1987] 2F..FJ60 |
11253-60010 |
from US $9.04 |
||
|
11401
|
11401
11401-69055 Block Sub-Assy, CylinderCYLINDER [08.1980 - 10.1984] 2F..FJ60 |
11401-69055 |
US $4,775.68 |
||
| replacements | |||||
|
11401
|
11401
11401-69056 Block Sub-Assy, CylinderCYLINDER [08.1980 - 10.1984] 2F..FJ60 |
11401-69056 |
US $4,542.72 |
||
|
11401
|
11401
90101-10132 New Genuine Part[08.1980 - 10.1984] 2F..FJ60 |
90101-10132 |
US $2.77 |
||
|
11401
|
11401
90101-10133
New Genuine Part
[08.1980 - 10.1984] 2F..FJ60 |
90101-10133 |
— | ||
|
11401
|
11401
91612-61040 Bolt(For Transmission Case & Engine Setting)[08.1980 - 10.1984] 2F..FJ60 |
91612-61040 |
US $2.33 |
||
|
11401
|
11401
92112-61028 Bolt, Stud(For Manifold To Cylinder Head)[08.1980 - 10.1984] 2F..FJ60 |
92112-61028 |
US $4.30 |
||
|
11401
|
11401
11401-69056 Block Sub-Assy, CylinderCYLINDER [10.1984 - 08.1987] 2F..FJ60 |
11401-69056 |
US $4,542.72 |
||
|
11415
|
11415
90910-09070
Cock Sub-Assy, Water Drain(For Cylinder Block)
[10.1984 - 04.1985] 2F..FJ60 |
90910-09070 |
— | ||
| replacement | |||||
|
11415
|
11415
96431-53828 Cock Sub-Assy, Water Drain(For Cylinder Block)[10.1984 - 04.1985] 2F..FJ60 |
96431-53828 |
US $8.12 |
||
|
11415
|
11415
96431-03833
Cock Sub-Assy, Water Drain(For Cylinder Block)
[08.1980 - 07.1984] 3B..BJ60; 2F..FJ60 |
96431-03833 |
— | ||
| replacement | |||||
|
11415
|
11415
96431-53828 Cock Sub-Assy, Water Drain(For Cylinder Block)[08.1980 - 07.1984] 3B..BJ60; 2F..FJ60 |
96431-53828 |
US $8.12 |
||
|
11415
|
11415
96431-53828 Cock Sub-Assy, Water Drain(For Cylinder Block)[04.1985 - 08.1987] 3B..BJ60; 2F..FJ60; 2H..HJ60 |
96431-53828 |
US $8.12 |
||
|
11415A
|
11415A
90910-09072
Plug, Water Drain Cock(For Cylinder Block)
[10.1984 - 04.1985] 2F..FJ60 |
90910-09072 |
— | ||
| replacement | |||||
|
11415A
|
11415A
96432-23814
Plug, Water Drain Cock(For Cylinder Block)
[10.1984 - 04.1985] 2F..FJ60 |
96432-23814 |
— | ||
|
11415A
|
11415A
96431-23814 Plug, Water Drain Cock(For Cylinder Block)[08.1980 - 07.1984] 3B..BJ60; 2F..FJ60 |
96431-23814 |
from US $6.76 |
||
|
11415A
|
11415A
96432-23814
Plug, Water Drain Cock(For Cylinder Block)
[04.1985 - 08.1987] 3B..BJ60; 2F..FJ60; 2H..HJ60 |
96432-23814 |
— | ||
|
11416
|
11416
90105-14033
Bolt(For Crankshaft Bearing Cap Set)
[10.1984 - 08.1987] 2F..FJ60 FR,*18-2PX65-27 |
90105-14033 |
— | ||
|
11416
|
11416
90910-02054 Bolt(For Crankshaft Bearing Cap Set)[08.1980 - 10.1984] 2F..FJ60 FR,*14-2.0PX67-29 |
90910-02054 |
US $5.82 |
||
| replacement | |||||
|
11416
|
11416
90105-14033
Bolt(For Crankshaft Bearing Cap Set)
[08.1980 - 10.1984] 2F..FJ60 FR,*14-2.0PX67-29 |
90105-14033 |
— | ||
|
11416
|
11416
90910-02057 Bolt(For Crankshaft Bearing Cap Set)[08.1980 - 08.1987] 2F..FJ60 RR,*12-1.75PX68-26 |
90910-02057 |
US $3.93 |
||
|
11416A
|
11416A
90253-16014
Pin, Ring(For Crankshaft Bearing Cap Set)
[08.1980 - 08.1987] 2F..FJ60 NO.4 |
90253-16014 |
— | ||
|
11416A
|
11416A
90253-17007
Pin, Ring(For Crankshaft Bearing Cap Set)
[08.1980 - 06.1984] 2F..FJ60 NO.1.2.3 |
90253-17007 |
— | ||
|
11416A
|
11416A
90253-18003 Pin, Ring(For Crankshaft Bearing Cap Set)[06.1984 - 08.1987] 2F..FJ60 NO.1.2.3 |
90253-18003 |
US $2.48 |
||
|
11417
|
11417
90915-01014
Nozzle, Oil
[08.1980 - 08.1987] 2F..FJ60 |
90915-01014 |
— | ||
|
11431A
|
11431A
96411-45000 Plug, Tight, No.1(For Cam Housing)[08.1980 - 08.1987] 2F..FJ60 OD=50 |
96411-45000 |
from US $3.74 |
||
|
11431B
|
11431B
90330-24013
Plug, Tight, No.2(For Cylinder Block)
[08.1980 - 06.1984] 2F..FJ60 |
90330-24013 |
— | ||
|
11431B
|
11431B
90344-54003 Plug, Tight, No.2(For Cylinder Block)[06.1984 - 08.1987] 2F..FJ60 |
90344-54003 |
from US $3.32 |
||
|
11431C
|
11431C
96411-42500 Plug, Tight, No.1[08.1980 - 08.1987] 2F..FJ60 OD=25 |
96411-42500 |
from US $2.95 |
||
|
11434B
|
11434B
90250-10192 Pin, Straight(For Timing Gear Cover Set)[08.1980 - 08.1987] 2F..FJ60 L=22,OD=10 |
90250-10192 |
from US $0.97 |
||
|
11434C
|
11434C
90253-17003 Pin, Ring(For Crankshaft Bearing Cap Set)[08.1980 - 08.1987] 2F..FJ60 L=7,OD=16.5 |
90253-17003 |
US $3.32 |
||
|
11452
|
11452
11452-60013
Guide, Oil Level Gage
[08.1980 - 10.1984] 2F..FJ60 |
11452-60013 |
— | ||
| replacement | |||||
|
11452
|
11452
11452-61010 Guide, Oil Level Gage[08.1980 - 10.1984] 2F..FJ60 |
11452-61010 |
from US $7.70 |
||
|
11452
|
11452
11452-61010 Guide, Oil Level Gage[10.1984 - 08.1987] 2F..FJ60 |
11452-61010 |
from US $7.70 |
||
|
12101
|
12101
12101-61010 Pan Sub-Assy, OilOIL [08.1980 - 05.1982] 2F..FJ60 |
12101-61010 |
US $349.44 |
||
| replacements | |||||
|
12101
|
12101
90033-41020 Plug(For Oil Pan Drain)[08.1980 - 05.1982] 2F..FJ60 |
90033-41020 |
from US $2.13 |
||
|
12101
|
12101
90430-18023 Gasket(For Oil Pan)[08.1980 - 05.1982] 2F..FJ60 |
90430-18023 |
from US $1.01 |
||
|
12101
|
12101
90430-12028 Gasket (For Drain Plug)[08.1980 - 05.1982] 2F..FJ60 |
90430-12028 |
from US $1.08 |
||
|
12101
|
12101
12101-61013 Pan Sub-Assy, OilOIL [08.1980 - 05.1982] 2F..FJ60 |
12101-61013 |
from US $215.06 |
||
|
12101
|
12101
12151-61011 Gasket, Oil Pan[08.1980 - 05.1982] 2F..FJ60 |
12151-61011 |
from US $31.24 |
||
|
12101
|
12101
90341-12012 Plug(For Oil Pan Drain)[08.1980 - 05.1982] 2F..FJ60 |
90341-12012 |
from US $2.87 |
||
|
12101
|
12101
12101-61011
Pan Sub-Assy, Oil
[05.1982 - 10.1986] 2F..FJ60 |
12101-61011 |
— | ||
| replacements | |||||
|
12101
|
12101
90430-12028 Gasket (For Drain Plug)[05.1982 - 10.1986] 2F..FJ60 |
90430-12028 |
from US $1.08 |
||
|
12101
|
12101
12101-61013 Pan Sub-Assy, OilOIL [05.1982 - 10.1986] 2F..FJ60 |
12101-61013 |
from US $215.06 |
||
|
12101
|
12101
12151-61011 Gasket, Oil Pan[05.1982 - 10.1986] 2F..FJ60 |
12151-61011 |
from US $31.24 |
||
|
12101
|
12101
90341-12012 Plug(For Oil Pan Drain)[05.1982 - 10.1986] 2F..FJ60 |
90341-12012 |
from US $2.87 |
||
|
12101
|
12101
12101-61012 Pan Sub-Assy, OilOIL [10.1986 - 03.1987] 2F..FJ60 |
12101-61012 |
US $329.06 |
||
| replacements | |||||
|
12101
|
12101
12101-61013 Pan Sub-Assy, OilOIL [10.1986 - 03.1987] 2F..FJ60 |
12101-61013 |
from US $215.06 |
||
|
12101
|
12101
12151-61011 Gasket, Oil Pan[10.1986 - 03.1987] 2F..FJ60 |
12151-61011 |
from US $31.24 |
||
|
12101
|
12101
90341-12012 Plug(For Oil Pan Drain)[10.1986 - 03.1987] 2F..FJ60 |
90341-12012 |
from US $2.87 |
||
|
12101
|
12101
90430-12028 Gasket (For Drain Plug)[10.1986 - 03.1987] 2F..FJ60 |
90430-12028 |
from US $1.08 |
||
|
12101
|
12101
12101-61013 Pan Sub-Assy, OilOIL [03.1987 - 08.1987] 2F..FJ60 |
12101-61013 |
from US $215.06 |
||
|
12101A
|
12101A
90341-12012 Plug(For Oil Pan Drain)[03.1987 - 08.1987] 2F..FJ60 |
90341-12012 |
from US $2.87 |
||
|
12101A
|
12101A
90341-18089
Plug(For Oil Pan Drain)
[05.1982 - 03.1987] 2F..FJ60 OD=18; 2H..HJ60 OD=18; 3B..BJ60 OD=18 |
90341-18089 |
— | ||
| replacement | |||||
|
12101A
|
12101A
90033-41020 Plug(For Oil Pan Drain)[05.1982 - 03.1987] 2F..FJ60 OD=18; 2H..HJ60 OD=18; 3B..BJ60 OD=18 |
90033-41020 |
from US $2.13 |
||
|
12101A
|
12101A
90341-25054 Plug(For Oil Pan Drain)[08.1980 - 05.1982] 2F..FJ60 OD=25 |
90341-25054 |
from US $8.76 |
||
|
12101B
|
12101B
90430-12011
Gasket(For Oil Pan Drain Plug)
[03.1987 - 08.1987] 2F..FJ60 |
90430-12011 |
— | ||
| replacement | |||||
|
12101B
|
12101B
90430-12028 Gasket (For Drain Plug)[03.1987 - 08.1987] 2F..FJ60 |
90430-12028 |
from US $1.08 |
||
|
12101B
|
12101B
90430-18013
Gasket(For Oil Pan Drain Plug)
[01.1986 - 03.1987] 2F..FJ60 |
90430-18013 |
— | ||
| replacement | |||||
|
12101B
|
12101B
90430-18023 Gasket(For Oil Pan)[01.1986 - 03.1987] 2F..FJ60 |
90430-18023 |
from US $1.01 |
||
|
12101B
|
12101B
90430-18244
Gasket(For Oil Pan Drain Plug)
[05.1982 - 01.1986] 2H..HJ60 ID=18; 3B..BJ60 ID=18; 2F..FJ60 ID=18 |
90430-18244 |
— | ||
| replacement | |||||
|
12101B
|
12101B
90430-18023 Gasket(For Oil Pan)[05.1982 - 01.1986] 2H..HJ60 ID=18; 3B..BJ60 ID=18; 2F..FJ60 ID=18 |
90430-18023 |
from US $1.01 |
||
|
12101B
|
12101B
90430-25013
Gasket(For Oil Pan Drain Plug)
[08.1980 - 05.1982] 2F..FJ60 ID=25 |
90430-25013 |
— | ||
| replacement | |||||
|
12101B
|
12101B
90430-25003 Gasket(For Oil Pan Drain Plug)[08.1980 - 05.1982] 2F..FJ60 ID=25 |
90430-25003 |
from US $1.24 |
||
|
12151
|
12151
12151-60021
Gasket, Oil Pan
[08.1980 - 10.1984] 2F..FJ60 |
12151-60021 |
— | ||
| replacement | |||||
|
12151
|
12151
12151-61010 Gasket, Oil Pan[08.1980 - 10.1984] 2F..FJ60 |
12151-61010 |
from US $36.79 |
||
|
12151
|
12151
12151-61010 Gasket, Oil Pan[10.1984 - 03.1987] 2F..FJ60 |
12151-61010 |
from US $36.79 |
||
|
12151
|
12151
12151-61011 Gasket, Oil Pan[03.1987 - 08.1987] 2F..FJ60 |
12151-61011 |
from US $31.24 |
||
|
15301
|
15301
15301-61010
Gage Sub-Assy, Oil Level
[08.1980 - 08.1987] 2F..FJ60 |
15301-61010 |
— | ||
|
9121241235
|
9121241235
91212-41235
New Genuine Part
|
91212-41235 |
— | ||
|
9161160612
|
9161160612
91611-60612
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-60612 |
— | ||
| replacement | |||||
|
9161160612
|
9161160612
91611-G0612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91611-G0612 |
from US $0.76 |
||
|
9161540820
|
9161540820
91615-40820 Bolt (for Transmission Control Cable Bracket) |
91615-40820 |
US $2.04 |
||
| replacement | |||||
|
9161540820
|
9161540820
91611-B0816 Bolt |
91611-B0816 |
from US $0.99 |
||
|
9471291200
|
9471291200
94712-91200
New Genuine Part
|
94712-91200 |
— | ||
