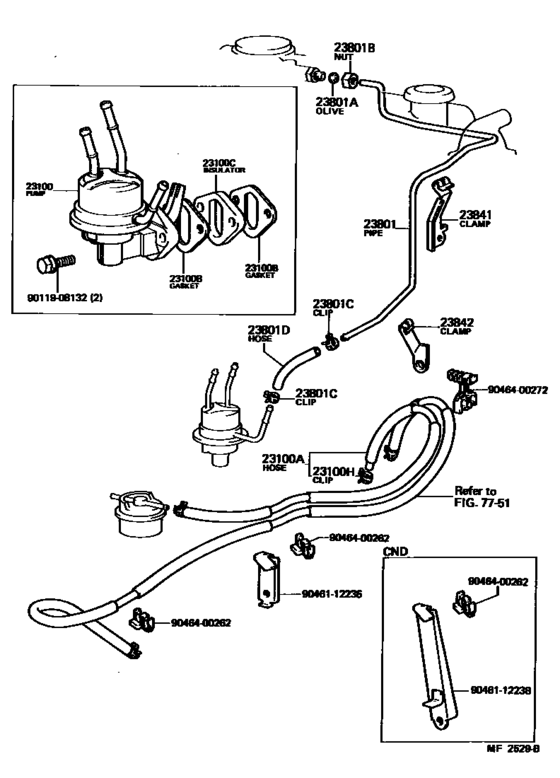

Fuel Pump & Pipe ([08.1980 - ] (8008- )2F) Diagram Toyota LAND CRUISER
- Year
- 1980 - 1987
- Sales region
- U.S.A.
- Frame
- FJ60
- body
- WGG
- ENGINE
- 2F
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- LAND CRUISER 60
- From
- 08.1980
- To
- 08.1987
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23100
|
23100
23100-61070 Pump Assy, FuelFUEL [08.1980 - 08.1987] 2F..FJ60 |
23100-61070 |
from US $115.14 |
||
|
23100A
|
23100A
23820-61060 Hose, Fuel[08.1980 - 11.1986] 2F..FJ60 |
23820-61060 |
US $62.17 |
||
| replacement | |||||
|
23100A
|
23100A
77260-60090
Hose, Fuel
[08.1980 - 11.1986] 2F..FJ60 |
77260-60090 |
— | ||
|
23100A
|
23100A
77260-60090
Hose, Fuel
[11.1986 - 08.1987] 2F..FJ60 |
77260-60090 |
— | ||
|
23100B
|
23100B
90923-05005
Gasket, Cylinder Block Side Cover, No.2
[08.1980 - 10.1984] 2F..FJ60 |
90923-05005 |
— | ||
| replacement | |||||
|
23100B
|
23100B
90923-05019 Gasket, Fuel Pump[08.1980 - 10.1984] 2F..FJ60 |
90923-05019 |
from US $2.70 |
||
|
23100B
|
23100B
90923-05016
Gasket, Fuel Pump
[10.1984 - 08.1987] 2F..FJ60 |
90923-05016 |
— | ||
| replacements | |||||
|
23100B
|
23100B
90923-06010 Insulator, Fuel Pump[10.1984 - 08.1987] 2F..FJ60 |
90923-06010 |
from US $9.99 |
||
|
23100B
|
23100B
90923-06014 Insulator, Fuel Pump[10.1984 - 08.1987] 2F..FJ60 |
90923-06014 |
US $11.71 |
||
|
23100C
|
23100C
90923-06001
Insulator, Fuel Pump
[08.1980 - 10.1984] 2F..FJ60 |
90923-06001 |
— | ||
| replacement | |||||
|
23100C
|
23100C
90923-06009 Insulator, Fuel Pump[08.1980 - 10.1984] 2F..FJ60 |
90923-06009 |
from US $5.42 |
||
|
23100C
|
23100C
90923-06008
Insulator, Fuel Pump
[10.1984 - 08.1987] 2F..FJ60 |
90923-06008 |
— | ||
| replacements | |||||
|
23100C
|
23100C
90923-06010 Insulator, Fuel Pump[10.1984 - 08.1987] 2F..FJ60 |
90923-06010 |
from US $9.99 |
||
|
23100C
|
23100C
90923-06014 Insulator, Fuel Pump[10.1984 - 08.1987] 2F..FJ60 |
90923-06014 |
US $11.71 |
||
|
23100H
|
23100H
96132-30800
Clip, No.3(For Idle-Up Hose)
[08.1980 - 08.1987] 2F..FJ60 |
96132-30800 |
— | ||
| replacement | |||||
|
23100H
|
23100H
96132-51300 Clip(For Ventilation Hose No.2)[08.1980 - 08.1987] 2F..FJ60 |
96132-51300 |
from US $1.44 |
||
|
23801
|
23801
23811-61032
Pipe Or Hose Sub-Assy, Carburetor Fuel, No.1
[08.1980 - 08.1987] 2F..FJ60 |
23811-61032 |
— | ||
|
23801A
|
23801A
96395-71400 Olive(For Fuel Pipe)[08.1980 - 08.1987] 2F..FJ60 |
96395-71400 |
US $3.76 |
||
|
23801B
|
23801B
90402-13041 Nut, Union(For Fuel Pipe)[08.1980 - 08.1987] 2F..FJ60 |
90402-13041 |
US $3.76 |
||
|
23801C
|
23801C
96132-30800
Clip, No.3(For Idle-Up Hose)
[08.1980 - 08.1987] 2F..FJ60 |
96132-30800 |
— | ||
| replacement | |||||
|
23801C
|
23801C
96132-51300 Clip(For Ventilation Hose No.2)[08.1980 - 08.1987] 2F..FJ60 |
96132-51300 |
from US $1.44 |
||
|
23801D
|
23801D
95332-08020
Hose, Fuel Pipe, No.1
[08.1980 - 02.1987] 2F..FJ60 *H,L=130,ID=7.6 |
95332-08020 |
— | ||
| replacement | |||||
|
23801D
|
23801D
95337-08020 Hose, Fuel(For Fuel Evaporative Separator)FUEL, NO.1(FOR RETURN TUBE, NO.1) [08.1980 - 02.1987] 2F..FJ60 *H,L=130,ID=7.6 |
95337-08020 |
from US $5.56 |
||
|
23801D
|
23801D
95333-08020
Hose, Lpg Injector
[02.1987 - 08.1987] 2F..FJ60 *H,L=130 |
95333-08020 |
— | ||
| replacement | |||||
|
23801D
|
23801D
95337-08020 Hose, Fuel(For Fuel Evaporative Separator)FUEL, NO.1(FOR RETURN TUBE, NO.1) [02.1987 - 08.1987] 2F..FJ60 *H,L=130 |
95337-08020 |
from US $5.56 |
||
|
23841
|
23841
23841-61021
Clamp, Fuel Pipe(Hose), No.1
[08.1980 - 08.1987] 2F..FJ60 |
23841-61021 |
— | ||
|
23842
|
23842
23842-61031
Clamp, Fuel Pipe(Hose), No.2
[08.1980 - 08.1987] 2F..FJ60 |
23842-61031 |
— | ||
|
9011908132
|
9011908132
90119-08132
New Genuine Part
|
90119-08132 |
— | ||
|
9046112235
|
9046112235
90461-12235 New Genuine Part |
90461-12235 |
US $7.28 |
||
|
9046112238
|
9046112238
90461-12238
New Genuine Part
|
90461-12238 |
— | ||
|
9046400262
|
9046400262
90464-00262
New Genuine Part
|
90464-00262 |
— | ||
|
9046400272
|
9046400272
90464-00272
New Genuine Part
|
90464-00272 |
— | ||
