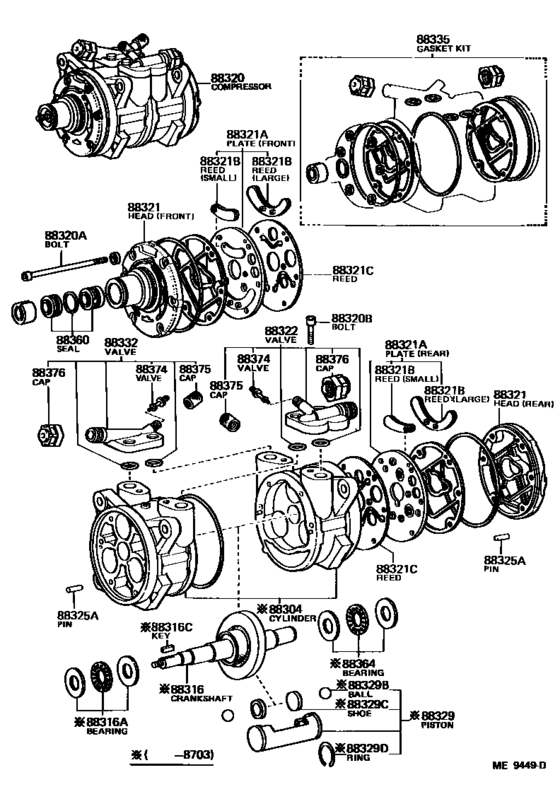

Heating & Air Conditioning - Compressor ([08.1980 - ] (8008- )USA) Diagram Toyota LAND CRUISER
- Year
- 1980 - 1987
- Sales region
- U.S.A.
- Frame
- FJ60
- body
- WGG
- ENGINE
- 2F
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- LAND CRUISER 60
- From
- 08.1980
- To
- 08.1987
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88304
|
88304
88304-14010
Cylinder Sub-Assy, Cooler Compressor
[08.1980 - 03.1987] FJ60..USA |
88304-14010 |
— | ||
|
88316
|
88316
88316-20070
Crankshaft, Cooler Compressor
[08.1980 - 03.1987] FJ60..USA |
88316-20070 |
— | ||
|
88316A
|
88316A
88366-20050
Bearing, Compressor Crankshaft, Front
[08.1980 - 03.1987] FJ60..USA |
88366-20050 |
— | ||
|
88316C
|
88316C
90099-13011
Key, Compressor Crankshaft
[08.1980 - 03.1987] FJ60..USA |
90099-13011 |
— | ||
|
88320
|
88320
88320-60080
Compressor Assy, Cooler
[08.1980 - 04.1985] FJ60..USA |
88320-60080 |
— | ||
|
88320
|
88320
88320-60230
Compressor Assy, Cooler
[04.1985 - 03.1987] FJ60 |
88320-60230 |
— | ||
|
88320
|
88320
88320-60231
Compressor Assy, Cooler
[03.1987 - 08.1987] FJ60 |
88320-60231 |
— | ||
|
88320A
|
88320A
90099-04926
Bolt, Through
[08.1980 - 08.1987] FJ60..USA |
90099-04926 |
— | ||
|
88320B
|
88320B
90099-04905
Bolt, Service Valve
[08.1980 - 04.1985] FJ60..USA |
90099-04905 |
— | ||
| replacement | |||||
|
88320B
|
88320B
90099-04924
Bolt, Service Valve
[08.1980 - 04.1985] FJ60..USA |
90099-04924 |
— | ||
|
88320B
|
88320B
90099-04924
Bolt, Service Valve
[04.1985 - 03.1987] FJ60 |
90099-04924 |
— | ||
|
88321
|
88321
88321-20061
Head, Cooler Compressor Cylinder
[08.1980 - 08.1987] FJ60..USA FR |
88321-20061 |
— | ||
|
88321
|
88321
88322-20040
Head, Cooler Compressor Cylinder
[08.1980 - 08.1987] FJ60..USA RR |
88322-20040 |
— | ||
|
88321A
|
88321A
88305-20070
Plate Sub-Assy, Valve
[08.1980 - 08.1987] FJ60..USA FR |
88305-20070 |
— | ||
|
88321A
|
88321A
88306-20040
Plate Sub-Assy, Valve
[08.1980 - 08.1987] FJ60..USA RR |
88306-20040 |
— | ||
|
88321B
|
88321B
88307-20050
Reed Sub-Assy, Valve
[08.1980 - 08.1987] FJ60..USA SMALL |
88307-20050 |
— | ||
|
88321B
|
88321B
88307-20060
Reed Sub-Assy, Valve
[08.1980 - 08.1987] FJ60..USA LARGE |
88307-20060 |
— | ||
|
88321C
|
88321C
88343-20040
Reed, Suction Valve
[08.1980 - 08.1987] FJ60..USA |
88343-20040 |
— | ||
|
88322
|
88322
88371-60050
Valve, Cooler Compressor Suction Service
[08.1980 - 08.1987] FJ60..USA |
88371-60050 |
— | ||
|
88325A
|
88325A
90099-08058
Pin, Cylinder Block
[08.1980 - 08.1987] FJ60..USA |
90099-08058 |
— | ||
|
88329
|
88329
88301-20050
Piston Sub-Assy, Cooler Compressor
[08.1980 - 03.1987] FJ60..USA |
88301-20050 |
— | ||
|
88329B
|
88329B
88312-30250
Ball, Piston
[08.1980 - 04.1985] FJ60..USA |
88312-30250 |
— | ||
|
88329C
|
88329C
88313-20070
Shoe, Piston
[08.1980 - 03.1987] FJ60..USA |
88313-20070 |
— | ||
|
88329D
|
88329D
88317-20030
Ring, Compressor Piston Snap
[08.1980 - 04.1985] FJ60..USA |
88317-20030 |
— | ||
|
88332
|
88332
88372-22100
Valve, Cooler Compressor Discharge Service
[04.1985 - 03.1987] FJ60 |
88372-22100 |
— | ||
|
88332
|
88332
88372-22101
Valve, Cooler Compressor Discharge Service
[03.1987 - 08.1987] FJ60 |
88372-22101 |
— | ||
|
88332
|
88332
88372-30320
Valve, Cooler Compressor Discharge Service
[08.1980 - 04.1985] FJ60..USA |
88372-30320 |
— | ||
|
88335
|
88335
04881-14030
Gasket Kit, Overhaul
[08.1980 - 08.1987] FJ60..USA |
04881-14030 |
— | ||
|
88360
|
88360
88360-30270
Seal Assy, Cooler Compressor Shaft
[08.1980 - 04.1985] FJ60..USA |
88360-30270 |
— | ||
| replacement | |||||
|
88360
|
88360
88360-30280
Seal Assy, Cooler Compressor Shaft
[08.1980 - 04.1985] FJ60..USA |
88360-30280 |
— | ||
|
88360
|
88360
88360-30280
Seal Assy, Cooler Compressor Shaft
[04.1985 - 08.1987] FJ60 |
88360-30280 |
— | ||
|
88364
|
88364
88366-20050
Bearing, Compressor Crankshaft, Front
[08.1980 - 03.1987] FJ60..USA |
88366-20050 |
— | ||
|
88374
|
88374
88374-12020
Valve, Service, No.1
[08.1980 - 08.1987] FJ60..USA |
88374-12020 |
— | ||
| replacement | |||||
|
88374
|
88374
88374-20020 Valve, Service, No.1[08.1980 - 08.1987] FJ60..USA |
88374-20020 |
US $5.73 |
||
|
88375
|
88375
88375-20010
Cap, Service Valve (For Cooler Pipe)
[03.1987 - 08.1987] FJ60,HJ60 DISCHARGE |
88375-20010 |
— | ||
|
88375
|
88375
88375-30270
Cap, Cooler Compressor Service Valve
[03.1987 - 08.1987] FJ60,HJ60 SUCTION |
88375-30270 |
— | ||
|
88376
|
88376
88376-26010
Cap, Blind
[03.1987 - 08.1987] FJ60,HJ60 SUCTION |
88376-26010 |
— | ||
|
88376
|
88376
88376-26020
Cap, Blind
[03.1987 - 08.1987] FJ60,HJ60 DISCHARGE |
88376-26020 |
— | ||
